Location:Index--->Product Center >> HVAC Control cools spare parts >> Danfoss Multifunction valve body, ICV 40 PM, 027H4128


|
|
||||||||||||||||||||||||
Product Description

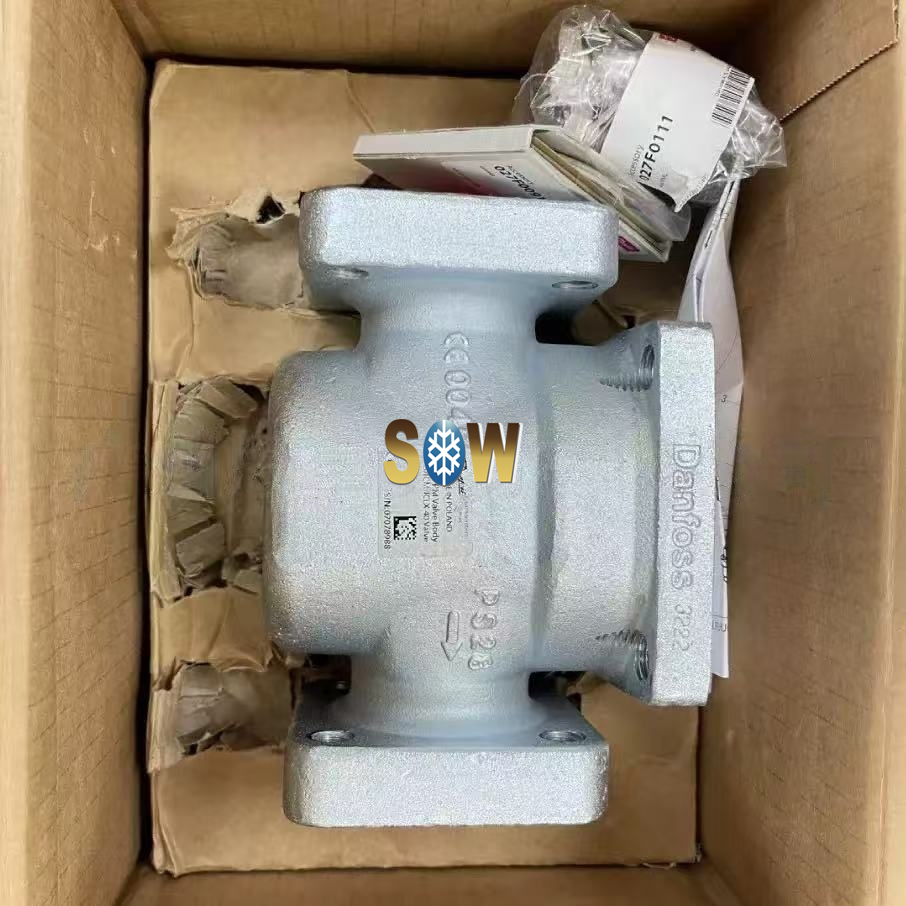

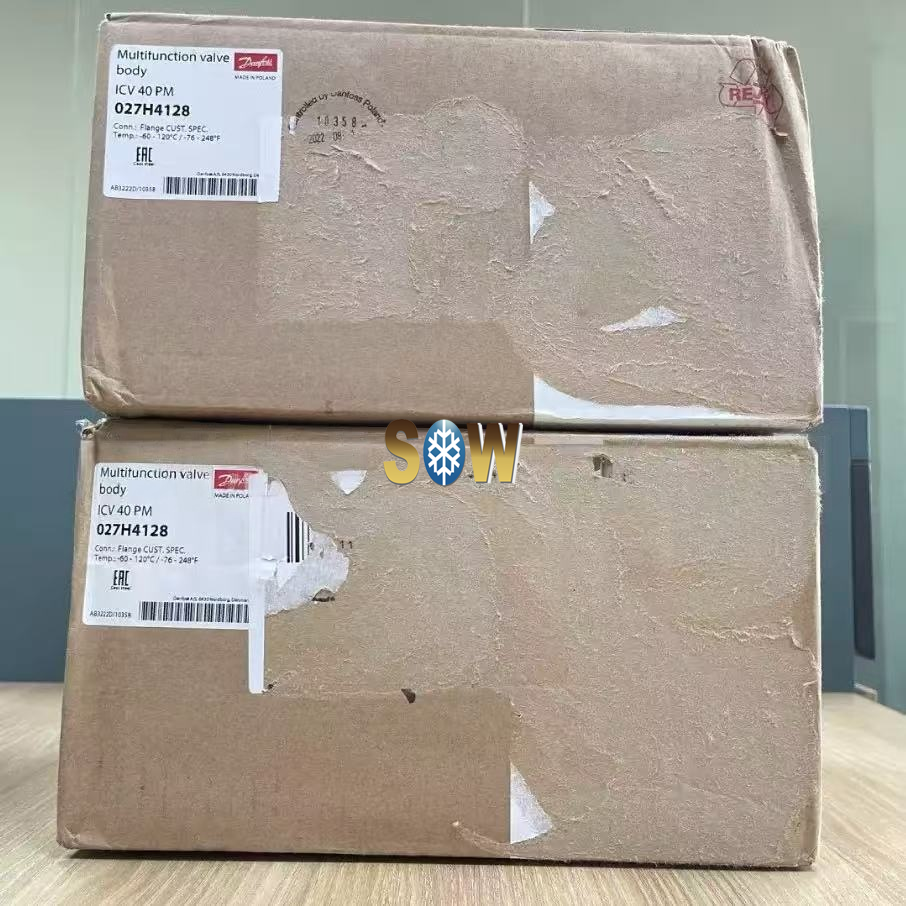

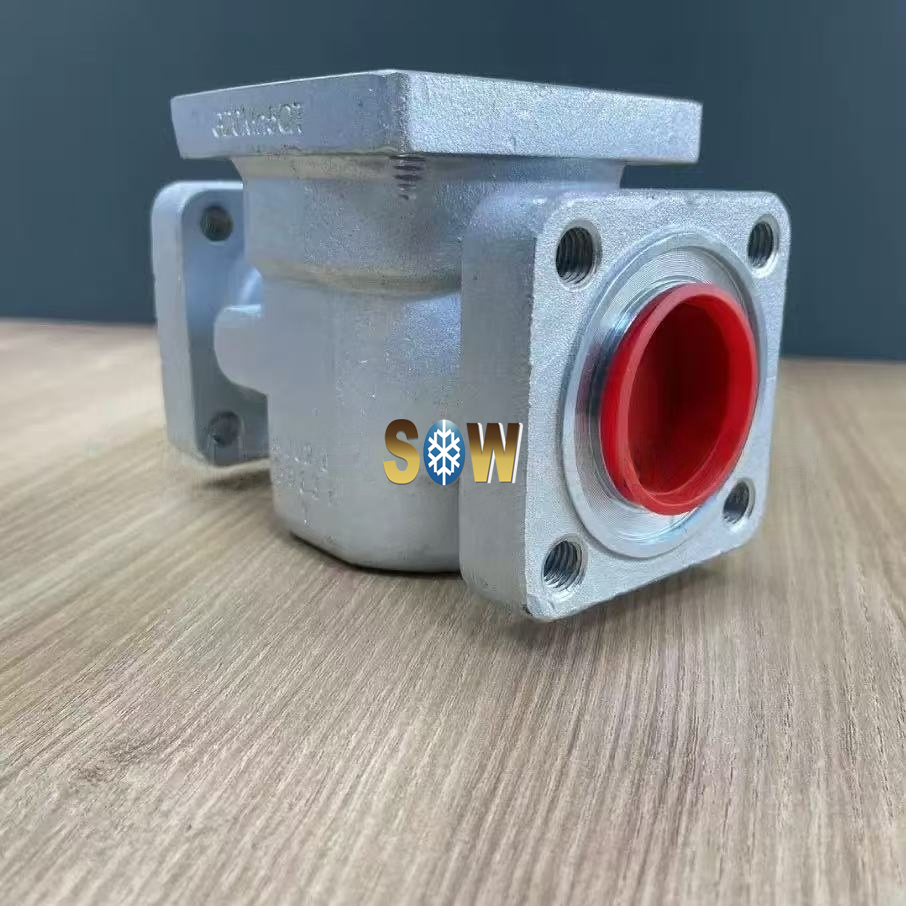

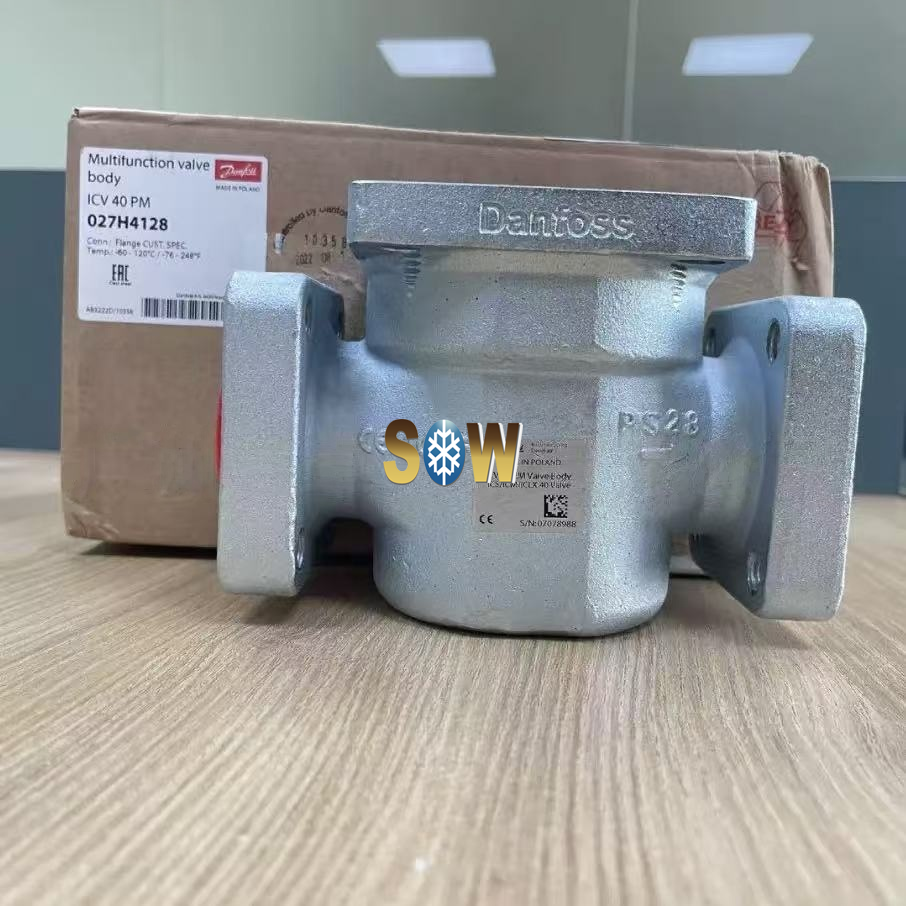

Danfoss Multifunction valve body, ICV 40 PM, 027H4128
Product details
| Gross weight | 5.334 Kilogram |
| Net weight | 4.83 Kilogram |
| Volume | 8.68 Liter |
| EAN | 5702428868884 |
| Type | ICV 40 PM |
| Product group | Multifunction valves |
| Product Name Description | Multifunction valve body |
| Approval | EAC |
| Body material | Steel |
| Brand | ICV Flexline |
| China RoHS compliance | Yes |
| China RoHS exemption clause | No |
| Connection material | Steel |
| Connection standard | CUST. SPEC. |
| Connection type | Flange |
| Contains batteries | No |
| EU RoHS compliance | Yes |
| EU RoHS exemption clause | No |
| Flow direction indicator | Embossed 1-way arrow |
| Further information | PM retrofit |
| Max. Working Pressure [bar] | 28 bar |
| Max. Working Pressure [psig] | 406 psig |
| Packing format | Single pack |
| Parts Program name | ICLX ICM ICS |
| Product accessories | ICM / ICS / ICLX accessories |
| Quantity per packing format | 1 pc |
| REACH Candidate List substances | No |
| Refrigerants | R113 R114 R1233zd(E) R1234yf R1234ze(E) R125 R1270 R1336mzz(Z) Read more |
| Serviceable | ICM / ICS / ICLX spare parts |
| Temperature range [°C] [Max] | 120 °C |
| Temperature range [°C] [Min] | -60 °C |
| Temperature range [°F] [Max] | 248 °F |
| Temperature range [°F] [Min] | -76 °F |
| Used for product | ICLX 40 ICM 40 ICS 40 |
| Valve operation | Function module |
| Proposition 65 |
