Product Description

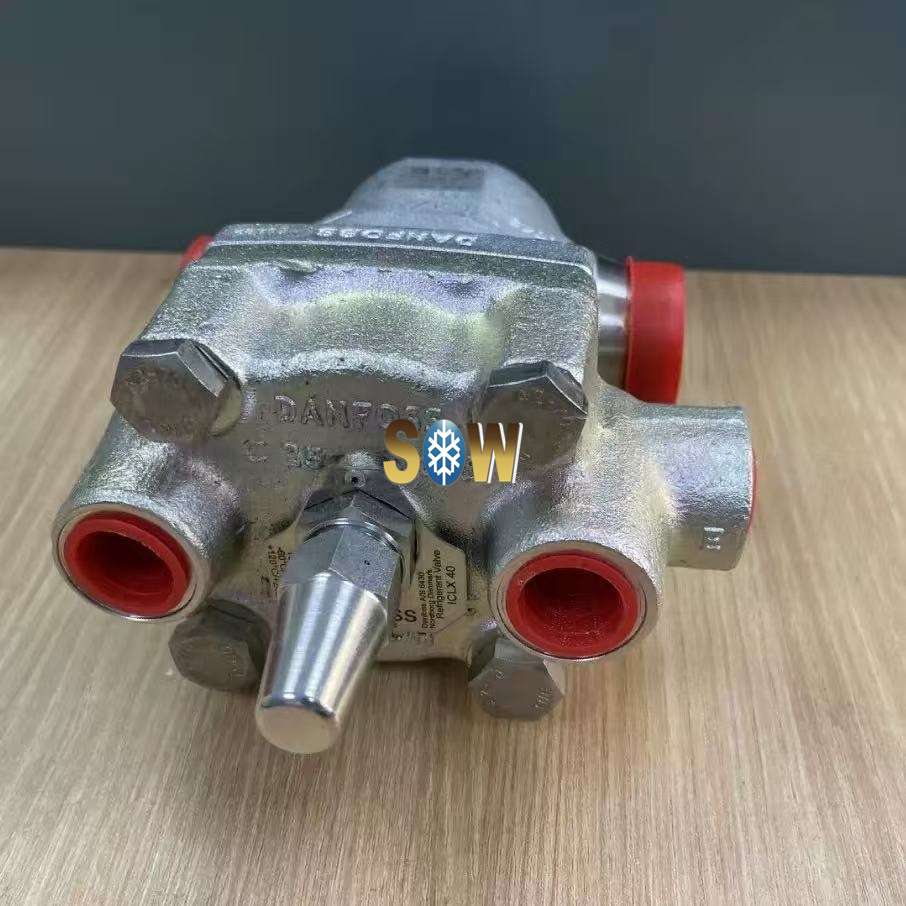

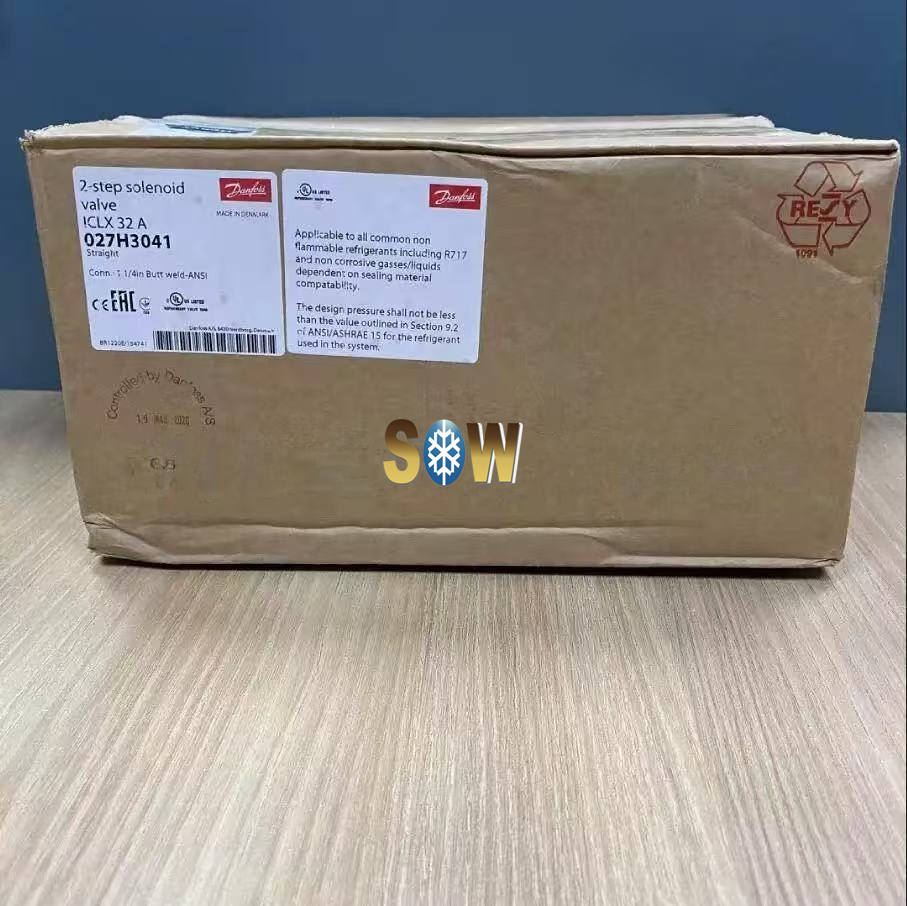

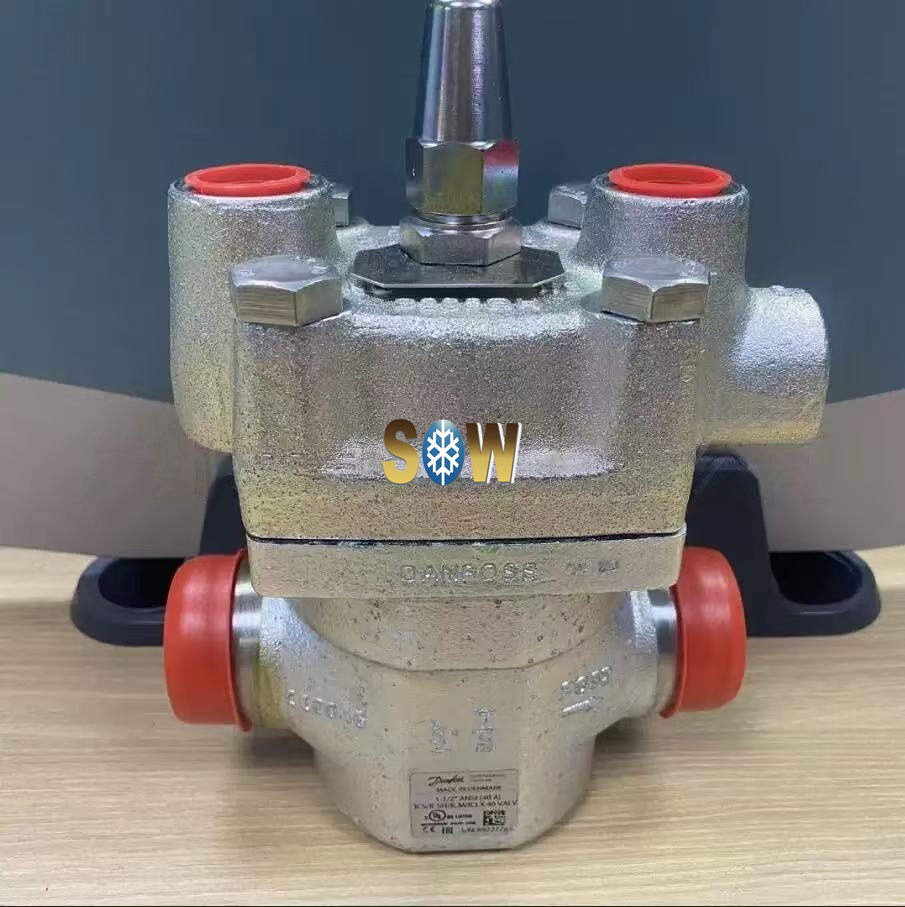

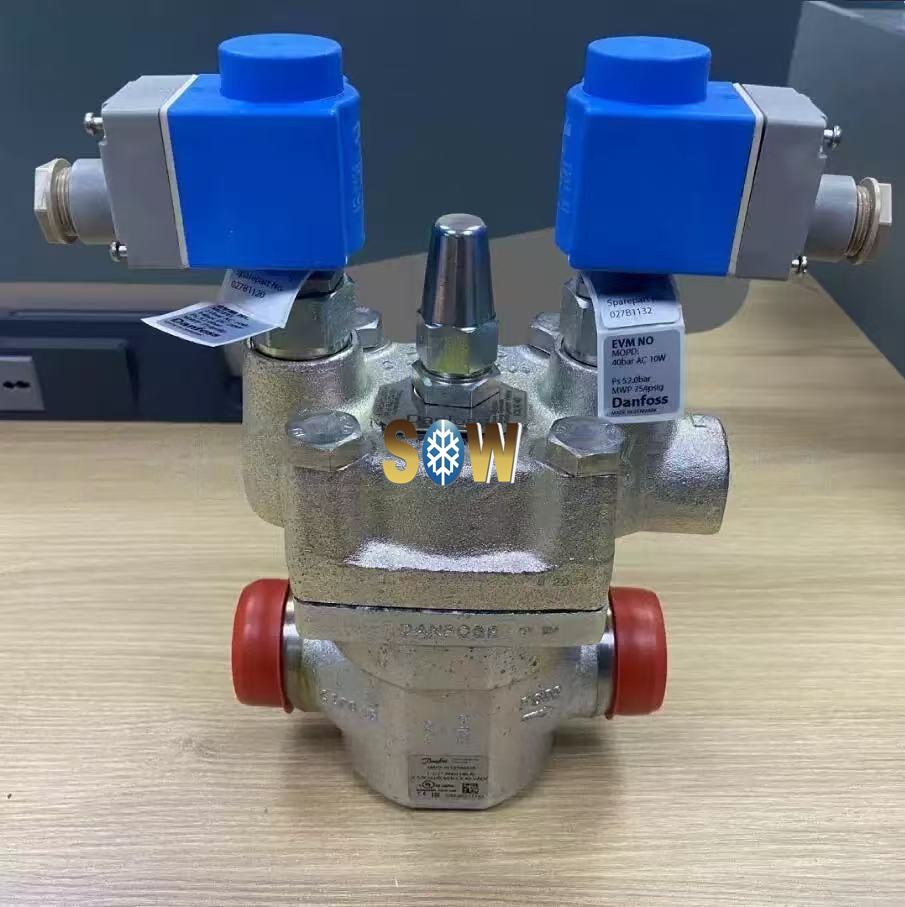

Danfoss 2-step solenoid valve, ICLX 32,027H3041
Product details
| Gross weight | 8.013 Kilogram |
| Net weight | 6.95 Kilogram |
| Volume | 8.68 Liter |
| EAN | 5702428483032 |
| Type | ICLX 32 |
| Product group | Solenoid valves |
| Product Line | 40 |
| Product Name Description | 2-step solenoid valve |
| Actuator system | 2 EVM pilot sol valve module |
| Approval | EAC LLC CDC TYSK TÜV UL |
| Body material | Steel |
| Brand | ICV Flexline |
| Category | II |
| China RoHS compliance | Yes with exemptions |
| China RoHS exemption clause | 7.1 7.2 |
| Connection material | Steel |
| Connection standard | ASME B 36.10M SCHEDULE 80 |
| Contains batteries | No |
| Cv value [gal/min] | 25.52 gal/min |
| Description | 2-step solenoid valve |
| Direction | Straightway |
| EU RoHS compliance | Yes with exemptions |
| EU RoHS exemption clause | 6(a) 6(b) |
| Ext pilot pressure connection | Nipple (P2 port) |
| Flow direction indicator | Embossed 1-way arrow |
| Fluid Group | 1 |
| Inlet connection size [in] | 1 1/4 in |
| Inlet connection size [mm] | 32 mm |
| Inlet connection type | Butt weld |
| Kv value [m³/h] | 22 m³/h |
| Manual operation option | Manual open spindle |
| Max. Working Pressure [bar] | 65 bar |
| Max. Working Pressure [psig] | 943 psig |
| Opening configuration | 1-step (optional setting) 2-step (default) |
| Outlet connection size [in] | 1 1/4 in |
| Outlet connection size [mm] | 32 mm |
| Outlet connection type | Butt weld |
| Packing format | Single pack |
| Parts Program name | ICLX |
| Product accessories | ICM / ICS / ICLX accessories |
| Product description | Solenoid valve |
| Quantity per packing format | 1 pc |
| REACH Candidate List substances 0.1 | Lead (CAS no. 7439-92-1) |
| Refrigerants | R134a R22 R401A R402A R404A R407A R407B R407C Read more |
| SCIP dossier no. | a65a5318-3dcd-4e13-b6f2-5cef46ffb9e6 |
| SCIP dossier product name | ICLX 32-65 |
| Serviceable | ICM / ICS / ICLX spare parts |
| Step 1 opening degree (~) [%] | 10 % |
| Step 2 initialization | Delta p < 1.25 bar (18 psig) |
| Surface coating | Zn (TLP) |
| Temperature range [°C] [Max] | 120 °C |
| Temperature range [°C] [Min] | -60 °C |
| Temperature range [°F] [Max] | 248 °F |
| Temperature range [°F] [Min] | -76 °F |
| UL approval file name | REFRIGERANT VALVE 53R0 |
| UL evaluated | Yes |
| Valve operation | Direct operated |
| Valve version | Standard version |
