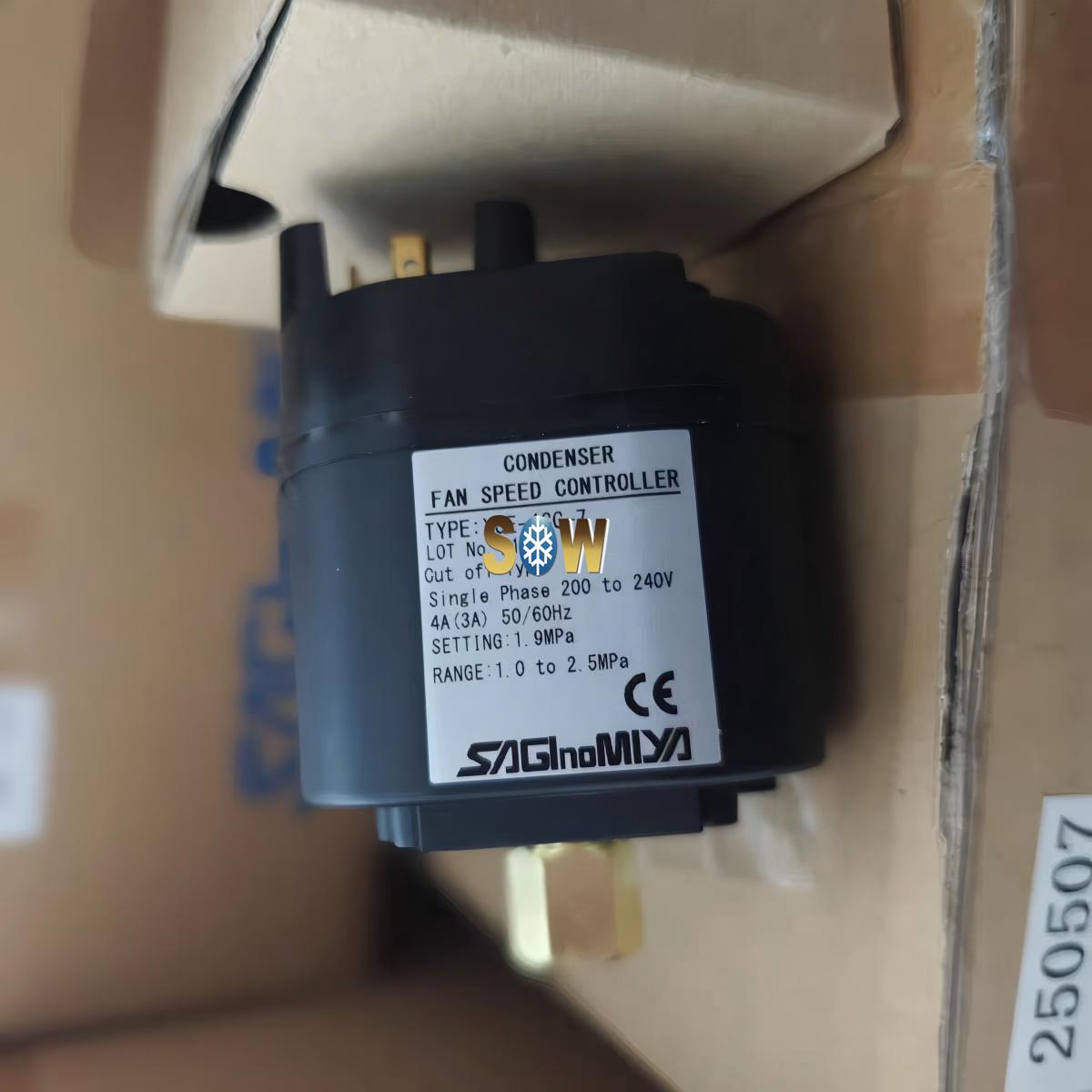

Saginomiya XGE  type Condenser Fan Speed Controllers XGE-4CC-7

Features

Small and lightweight fan speed controller that can be attached directly onto piping.

Regulates rotation rate of fan motors in air-cooled condensers.

Available in two types for low-pressure operations: minimum speed type and cut-off type (for AC fans).

CE marking (ATEX) and UL/c-UL compliant products also available.

Applications

Condensing units, packaged air conditioners

Common Specifications

Regulation method: Phase control

Maximum working pressure: 4.7 MPa

Power specifications: Frequency, 50/60 Hz; current rating, 0.2 to 3 A

Connections: 1.4 in. flare nuts with Schrader

Enclosure (waterproof standard): IP54

*Same specifications for AC fans
