Location:Index--->Product Center >> HVAC Control cools spare parts >> Danfoss Function module, ICM 32-B, Steel 027H3181


|
|
||||||||||||||||||||||
Product Description

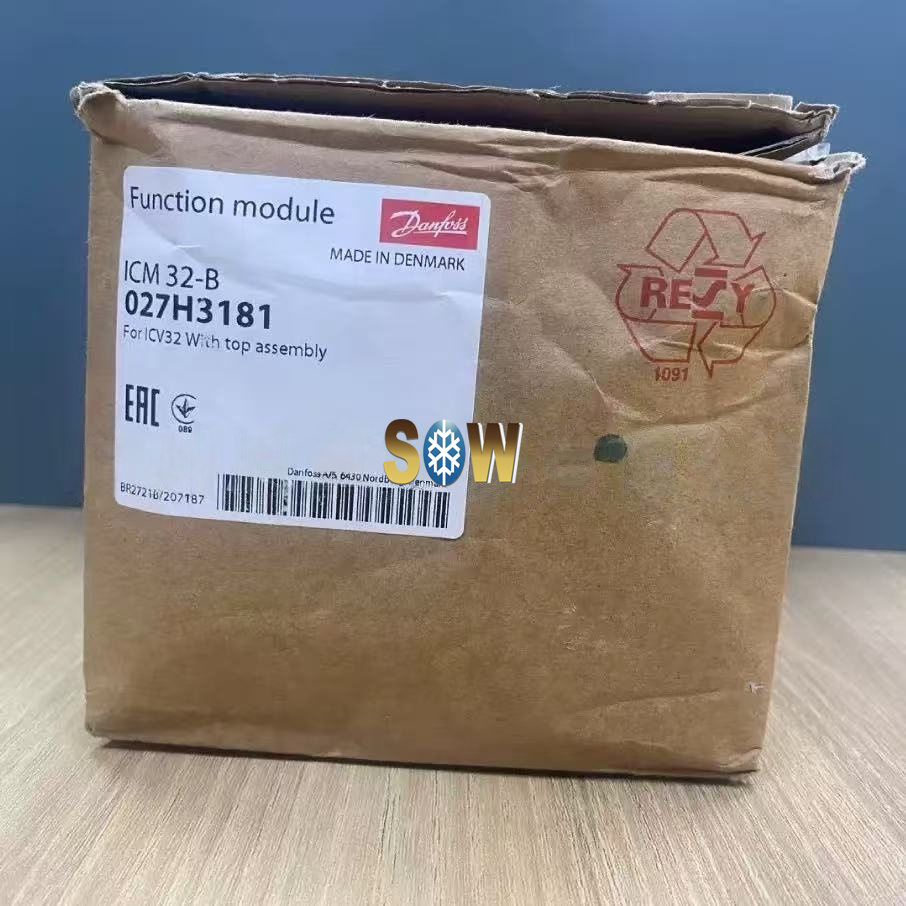

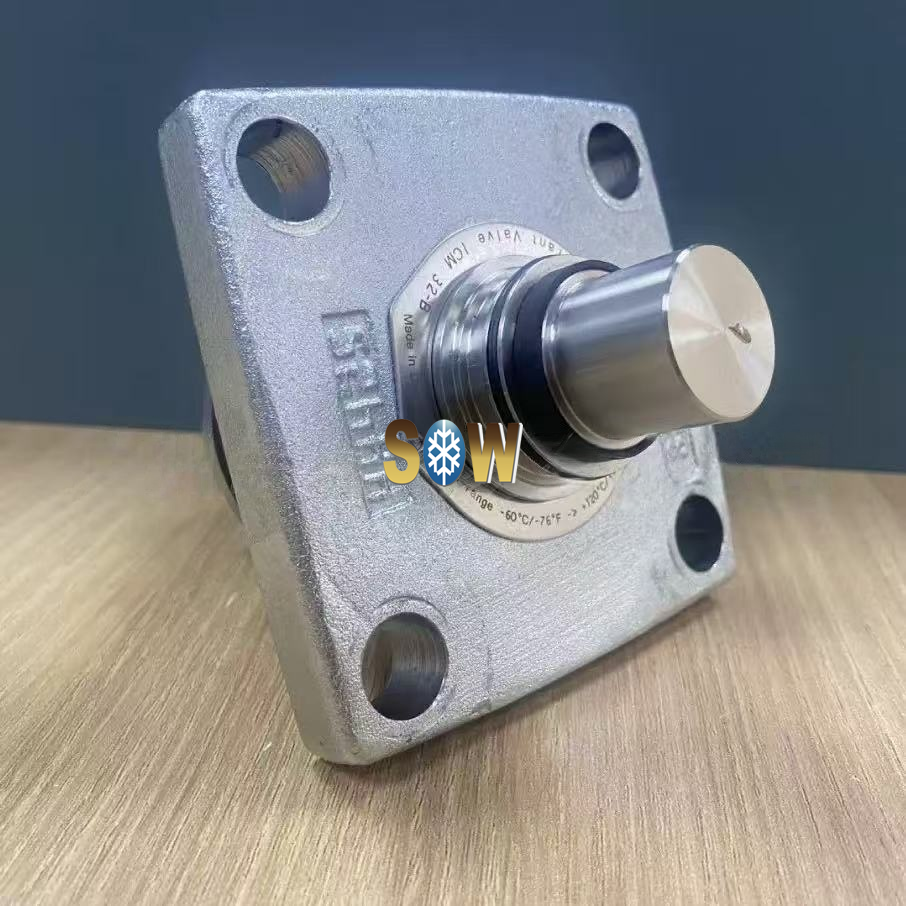

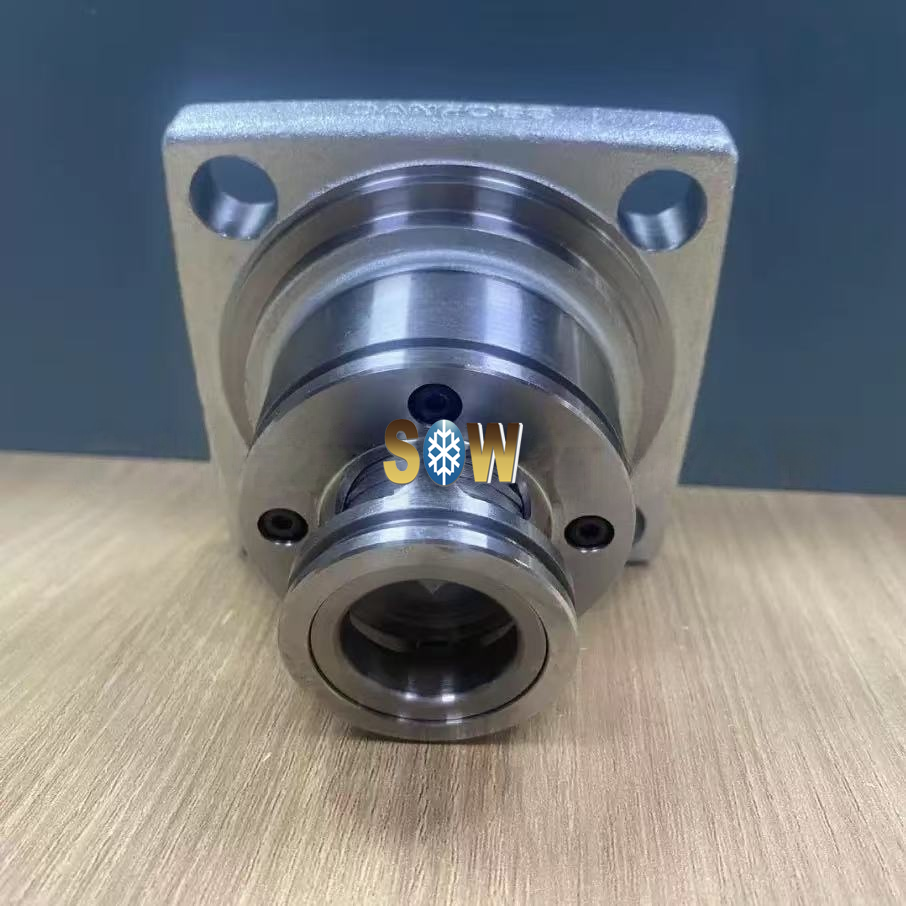

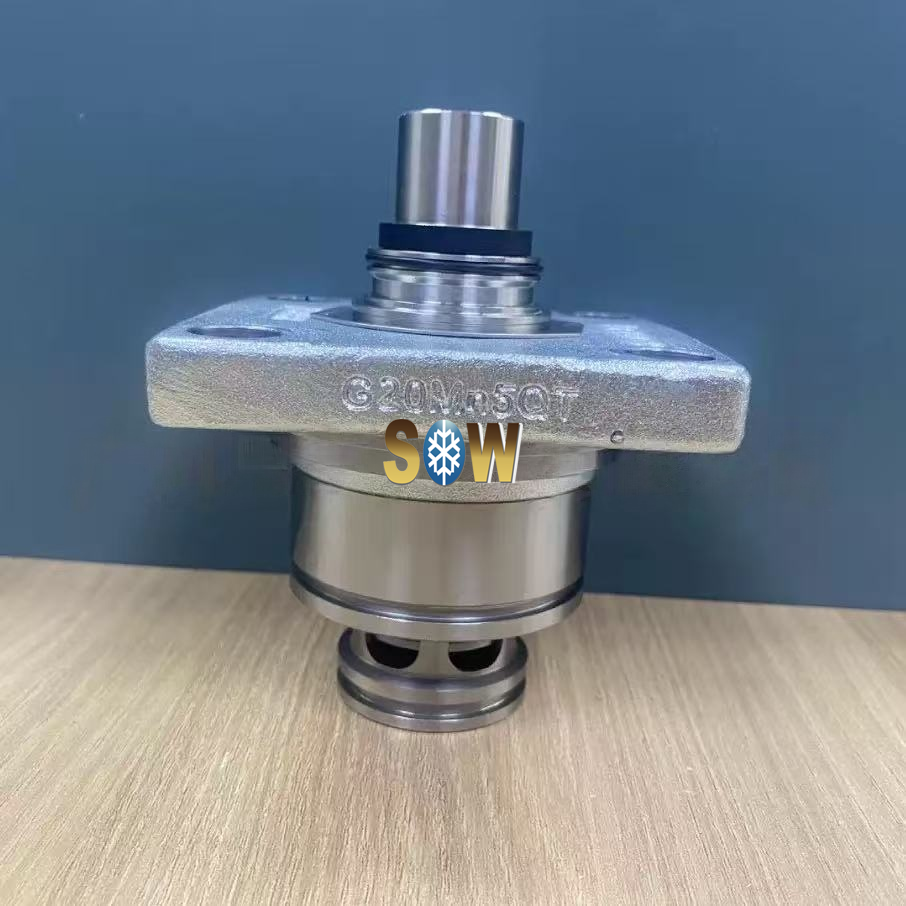

Danfoss Function module, ICM 32-B, Steel 027H3181
Product details
| Gross weight | 2.896 Kilogram |
| Net weight | 2.729 Kilogram |
| Volume | 3.349 Liter |
| EAN | 5702428237550 |
| Type | ICM 32-B |
| Product group | Press. and temp. regul. valves |
| Product Name Description | Function module |
| Actuator system | ICAD motor, magnet coupling |
| Body material | Steel |
| Brand | ICV Flexline |
| China RoHS compliance | Yes |
| China RoHS exemption clause | No |
| Contains batteries | No |
| Cv value [gal/min] | 20 gal/min |
| EU RoHS compliance | Yes |
| EU RoHS exemption clause | No |
| Kv value [m³/h] | 17 m³/h |
| Manual operation option | Via ICAD setting Via Multifunction tool |
| Open/close time [s] | 8 s |
| Outlet connection size [mm] | 32 mm |
| Packing format | Single pack |
| Parts included | Bolts/O-ring Seat/O-ring |
| Parts Program name | ICM |
| Product accessories | ICAD accessories ICM / ICS / ICLX accessories |
| Product description | Function module |
| Quantity per packing format | 1 pc |
| REACH Candidate List substances | No |
| Refrigerants | R134a R22 R401A R402A R404A R407A R407B R407C Read more |
| Serviceable | ICM / ICS / ICLX spare parts |
| Used for product | ICV 32 |
| Used for product comments | With top assembly |
| Valve operation | Motor operated |
| Proposition 65 |
