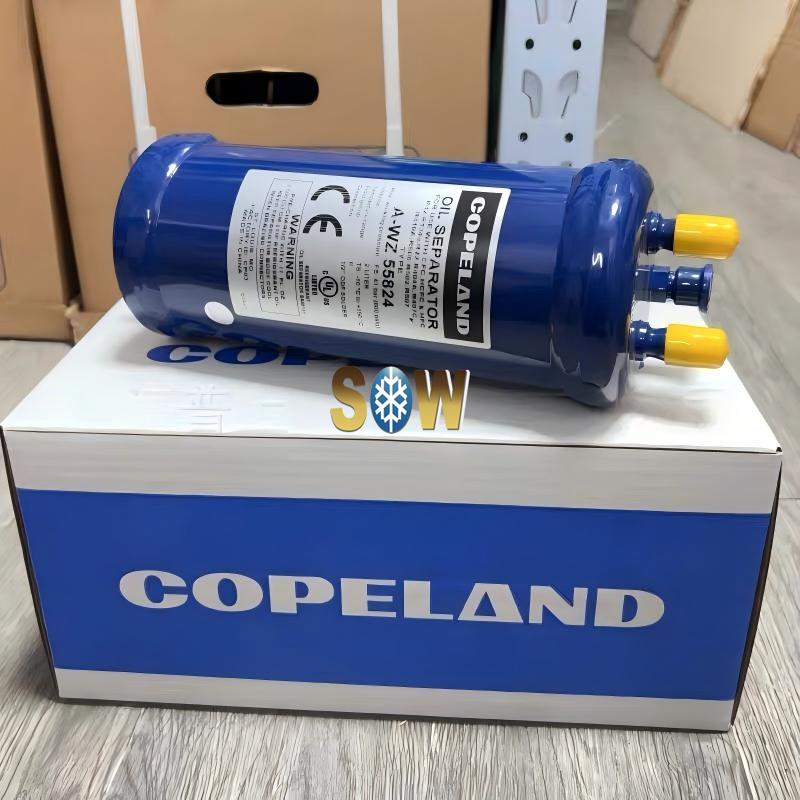

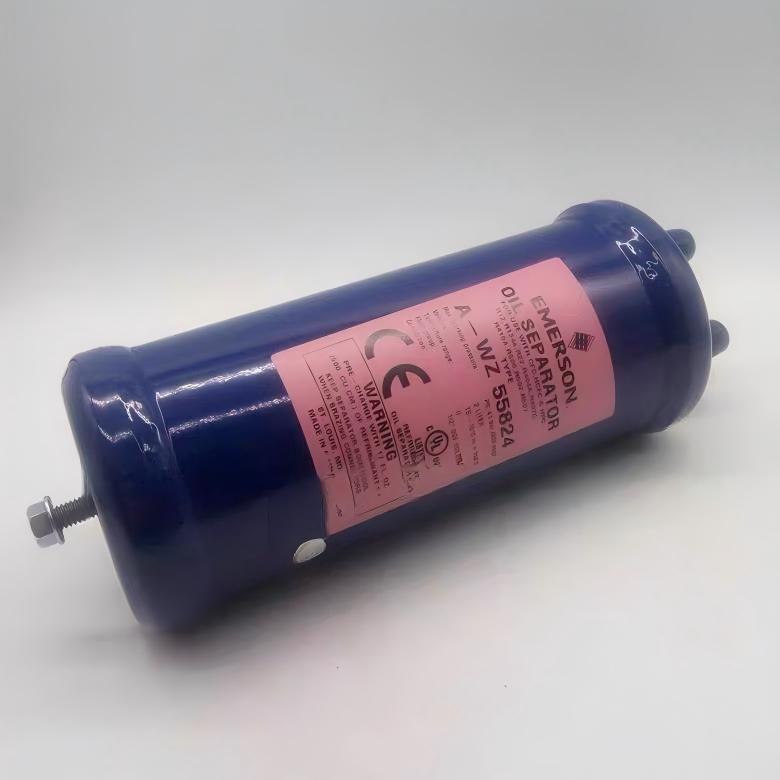

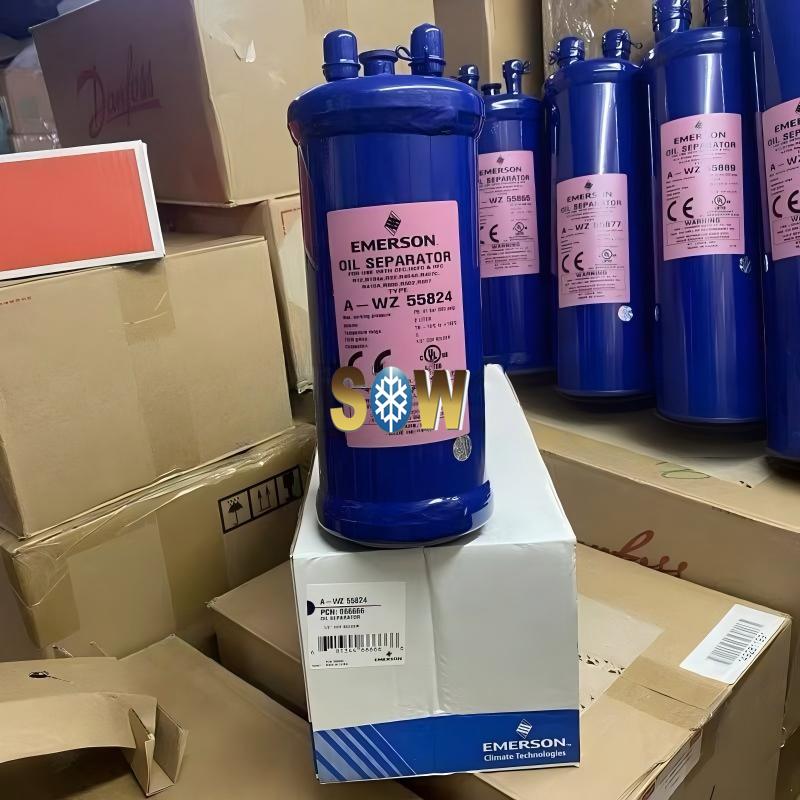

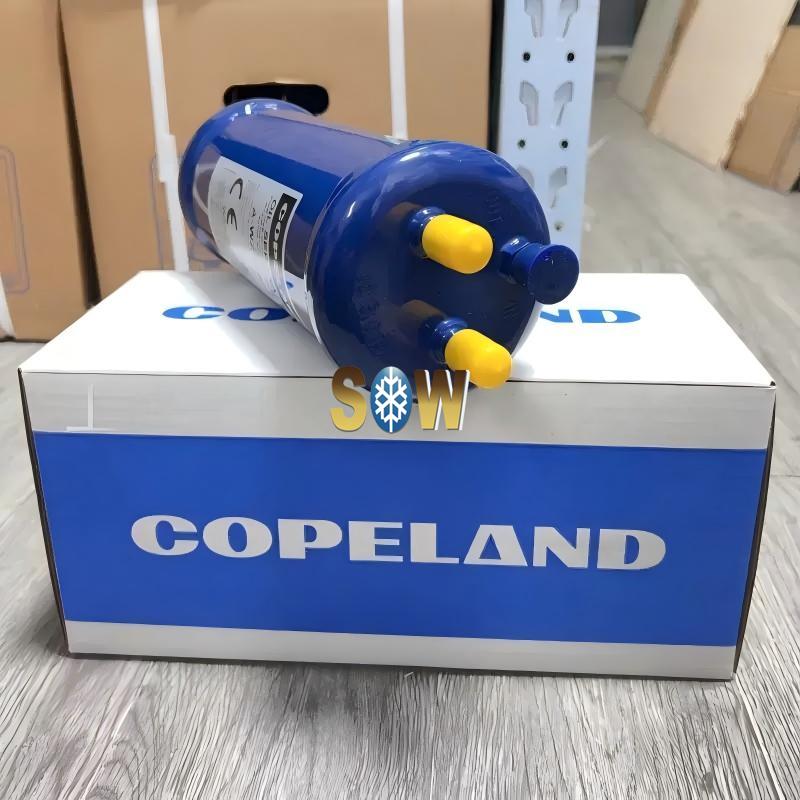

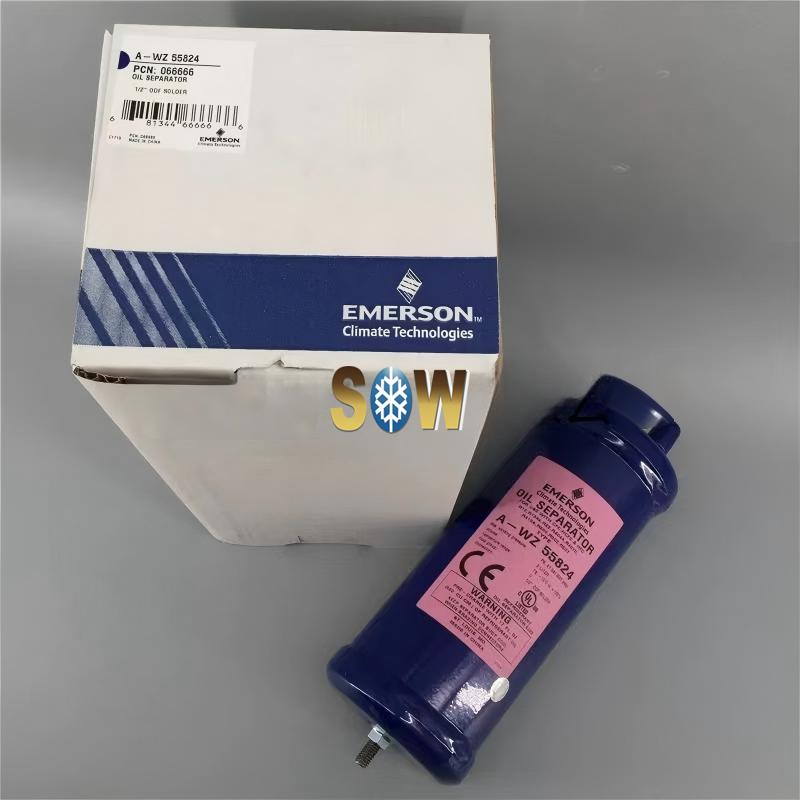

Name:	Emerson Copeland Oil Separator A-WZ55824
Brand:	Emerson/Copeland
Model No.:	A-WZ
Part No.:	A-WZ55824
Country of origin:	China
N.W:	2.3kgs/pc
Pressure environment:	High pressure
Seal material:	Cast steel
Operating mode:	Single-acting
Actuation type:	Hydraulic

Emerson Copeland Oil Separator A-WZ55824

A-WZ Series Oil Separators

Features:

· Fully enclosed design

· Copper-plated connecting pipes

· Exterior coated with corrosion-resistant epoxy powder paint

· Suitable for R410A systems

· Maximum operating pressure: 41 bar

· UL/CUL certified, certification number SA:8547

· CE marking in accordance with PED 97/23/EC

Naming Convention:

A: Oil-filled series

WZ: W = Welded type

5582: Model number

4: Pipe connection size, unit: 1/8 inch

Model No.	Connection pipe size （ODF）（inch）	PCN	OD （mm）	Length （mm）	R410A		Pre-filled oil volume （ml）
					-40℃	4℃
					kw	kw
A-WZ 55824	1/2	066666	101.6	276.4	9.5	10.9	500
A-WZ 55855	5/8	066667		338.1	26.0	29.5
A-WZ 55877	7/8	066668		284.3	38.7	42.2
A-WZ 55889	11/8	066669		416.1	52.8	59.8
A-WZ 559011	13/8	066670		498.6	66.8	73.9
A-WZ 569011	13/8	066671	152.4	400.0	66.8	73.9	750
A-WZ 569213	15/8	066672	152.4	469.9	84.4	98.5	750
