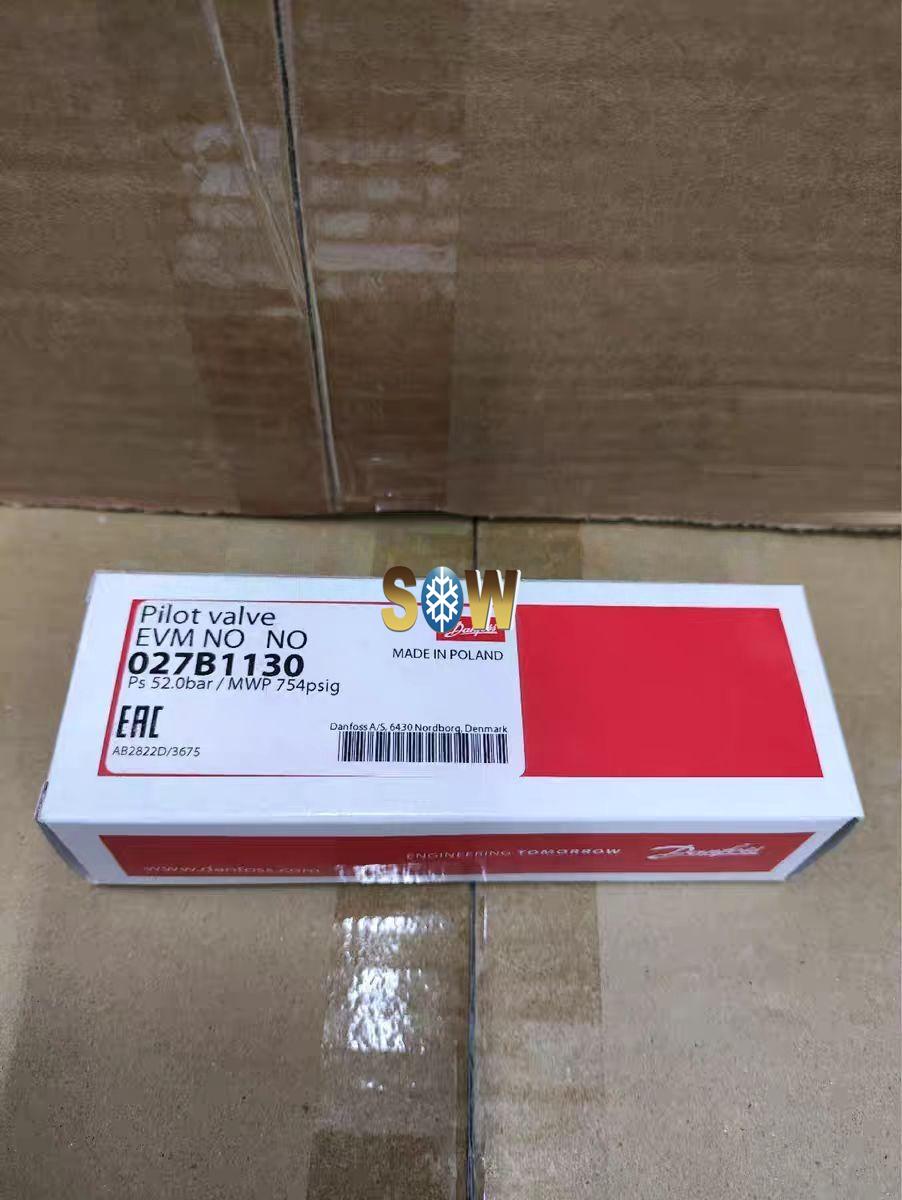

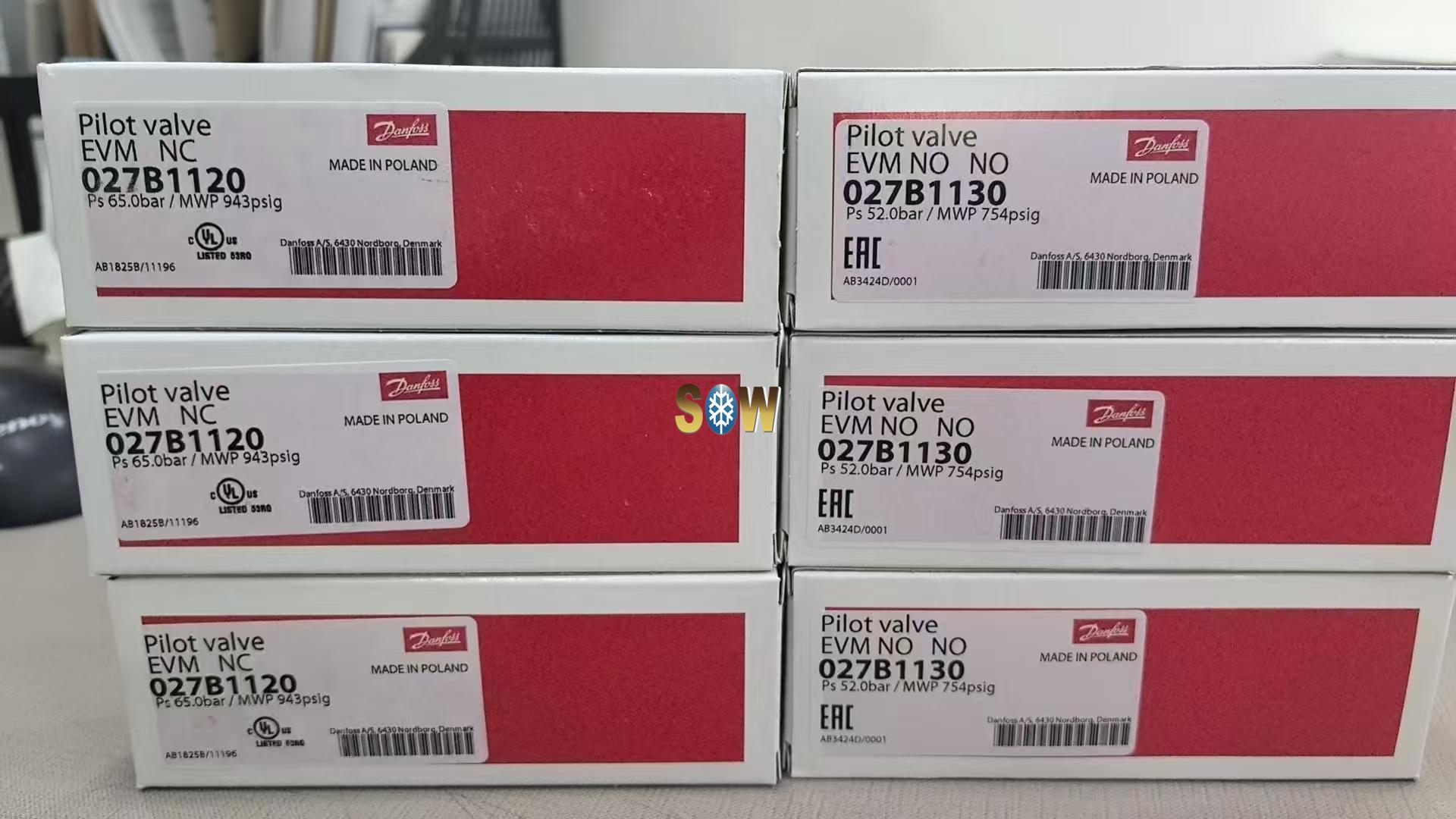

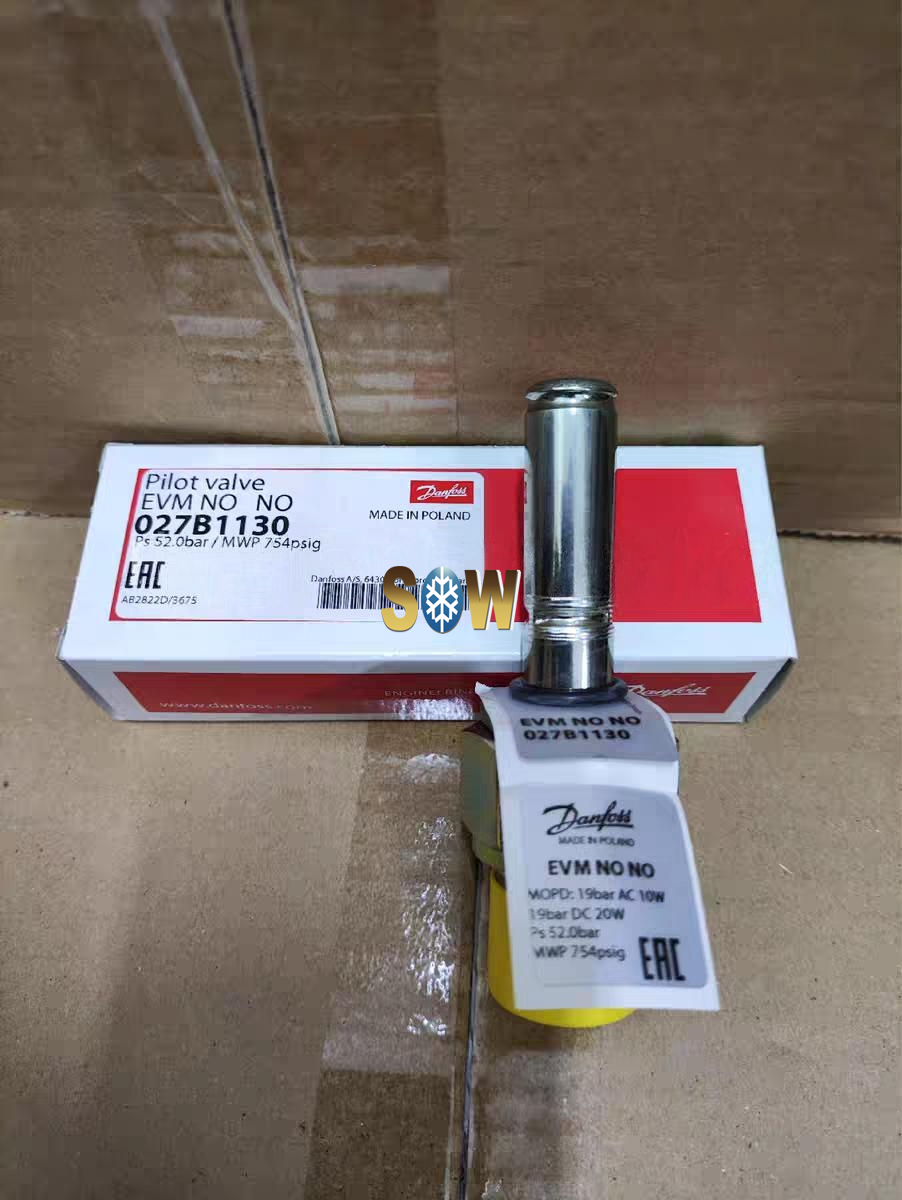

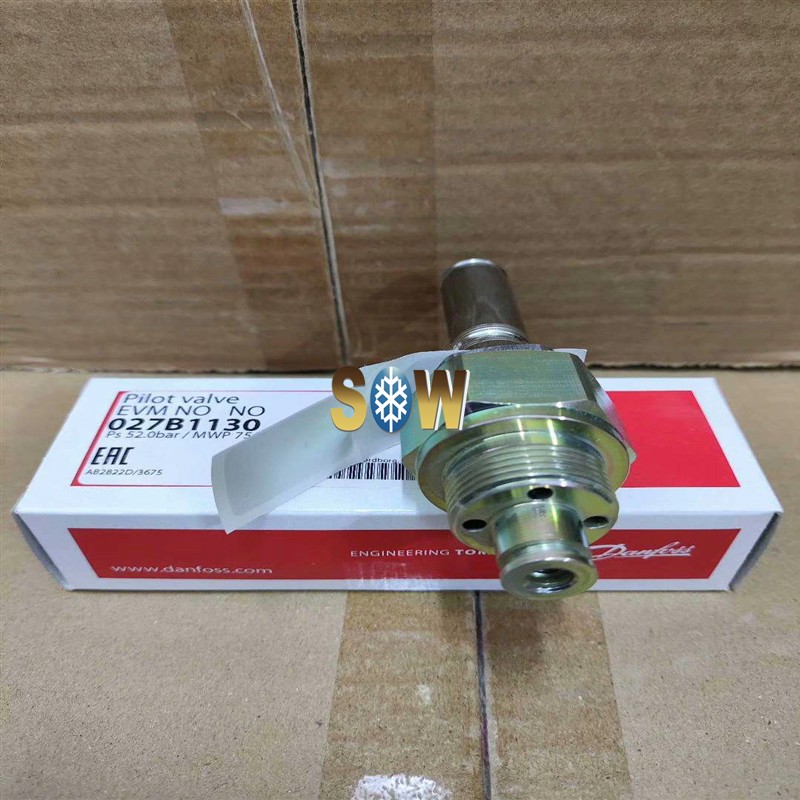

Danfoss Pilot valve, EVM 027B1130

Product details

Actuator system [mm]	13.5 mm
Ambient temperature	-40 - 80 °C
Ambient temperature range [°F] [max]	176 °F
Ambient temperature range [°F] [min]	-40 °F
Approval	LLC CDC TYSK UL
Body material	Steel
China RoHS compliance	Out of scope
Coil	No
Contains batteries	No
Cv value [gal/min]	0.136 gal/min
Direction	None
EU RoHS compliance	Out of scope
Function	NO
Inlet connection type	Thread
Kv value [m³/h]	0.118 m³/h
Manual operation option	No
Max. Working Pressure [bar]	65 bar
Max. Working Pressure [psig]	943 psig

MaxOPD[bar] 10W AC	19 bar
MaxOPD[bar] 20W DC	19 bar
MaxOPD[psi] 10W AC	276 psi
Medium temperature range [°C] [max]	120 °C
Medium temperature range [°C] [min]	-60 °C
Medium temperature range [°F] [max]	248 °F
Medium temperature range [°F] [min]	-76 °F
Orifice size [mm]	1.8 mm
Packing format	Multi pack
Parts Program name	CVH ICS
Product accessories	Pilot valve accessories
Quantity per packing format	20 pc
REACH Candidate List substances	No
Refrigerants	R1234yf R1234ze(E) R125 R134a R152a R170 R22 R227ea R236fa R245fa R290 R32 R401A R402A R404A R407A R407B R407C R407F R407H R409A R410A R413A R417A R421A R422A R422B R422D R438A R442A R444B R447A R447B R448A R449A R449B R450A R452A R452B R452C R454A R454B R454C R455A R463A R502 R507A R512A R513A R513B R515A R515B R516A R600 R600a R717 R744
Serviceable	No
Type designation	Solenoid valve
UL evaluated	Yes
Valve operation	Servo-piston
