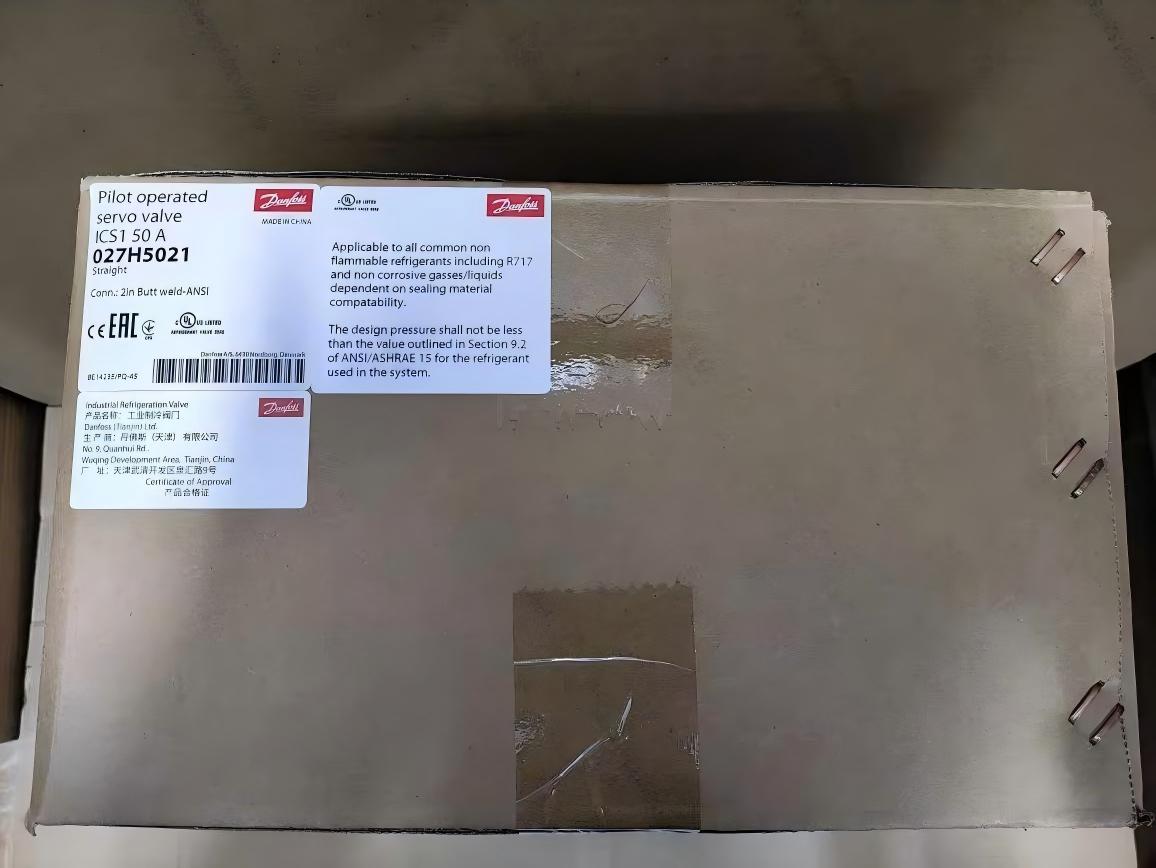

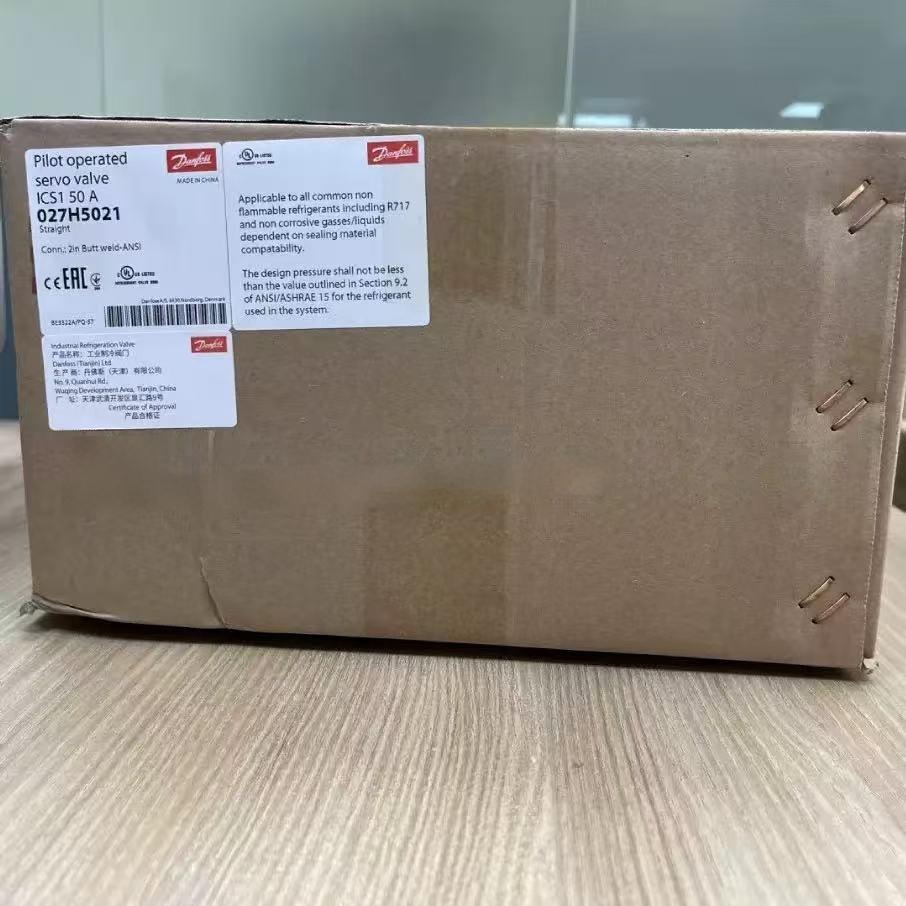

Name:	Danfoss Pilot operated servo valve 027H5021
Brand:	Danfoss
Model No.:	027H5021
Country of origiona:	China
G.W:	10.73kgs/pc
Product Name Description:	Pilot operated servo valve

Danfoss Pilot operated servo valve 027H5021

Product details

Approval	EAC LLC CDC TYSK TÜV UL
Body material	Steel
Brand	ICV Flexline
China RoHS compliance	Out of scope
Connection material	Steel
Connection standard	ASME B 36.10M SCHEDULE 40
Contains batteries	No
Cv value [gal/min]	51.04 gal/min
Direction	Straightway
EU RoHS compliance	Out of scope
Ext pilot pressure connection	Weld nipple (P2 Port)
Flow direction indicator	Embossed 1-way arrow
Fluid Group	1
Inlet connection size [in]	2 in
Inlet connection size [mm]	50 mm
Inlet connection type	Butt weld
Kv value [m³/h]	44 m³/h
Manual operation option	Manual open spindle
Max. Working Pressure [bar]	65 bar
Max. Working Pressure [psig]	943 psig
Opening configuration	Closed (delta p=0 bar) Full open (delta p≥0.2 bar) PropOpen (delta p=0.07-0.2bar)
Outlet connection size [in]	2 in

Outlet connection size [mm]	50 mm
Outlet connection type	Butt weld
Packing format	Single pack
Parts Program name	ICS
PED category	II
Pressure gauge connection	Int. thread with blind plug
Product accessories	ICM / ICS / ICLX accessories
Product description	Servo operated valve
Quantity per packing format	1 pc
REACH Candidate List substances	No
Refrigerants	R134a R22 R401A R402A R404A R407A R407B R407C R407F R409A R410A R421A R502 R717 R744 R1234ze(E) R507A R1234yf R125 R152a R227ea R236fa R245fa R290 R32 R407H R413A R417A R422A R422B R422D R438A R442A R444B R447A R447B R448A R449A R449B R450A R452A R452B R454A R454B R454C R455A R463A R512A R513A R513B R515A R515B R516A R170 R452C R600 R600a
Serviceable	ICM / ICS / ICLX spare parts
Surface coating	Zn (TLP)
Temperature range [°C] [max]	120 °C
Temperature range [°C] [min]	-60 °C
Temperature range [°F] [max]	248 °F
Temperature range [°F] [min]	-76 °F
Top cover	1 function module
UL approval file name	REFRIGERANT VALVE 53R0
UL evaluated	Yes
Valve operation	Pilot operated
Valve version	Standard version
