25HP Carlyle carrier 06EA565600 Semi-hermetic compressor

Features

High-flow, automatically reversible oil pump provides positive-displacement oil lubrication.

Crankcase venting system equalizes pressure during startup and assures oil return to sump.

Oversize sump holds extra oil in crankcase to prevent levels dropping below safe lubrication range during flooded starts.

Contoured pistons lower cylinder clearances to increase compressor capacity and efficiency.

High-efficiency valves provide increased refrigerant flow and lower pressure drops.

Electronic oil-pressure switch.

25HP 06E Carlyle 06EA565600 Semi-hermetic Compressor.

Product Paramenters

Type: Semi-hermetic Compressor

Model: 06EA565600

Cylinder: 6

Displacement: (m3/h) 91.8

Lubricant Charge(L): 9.0 L

Speed 50Hz/60Hz (SYN RPM): 1500/1800

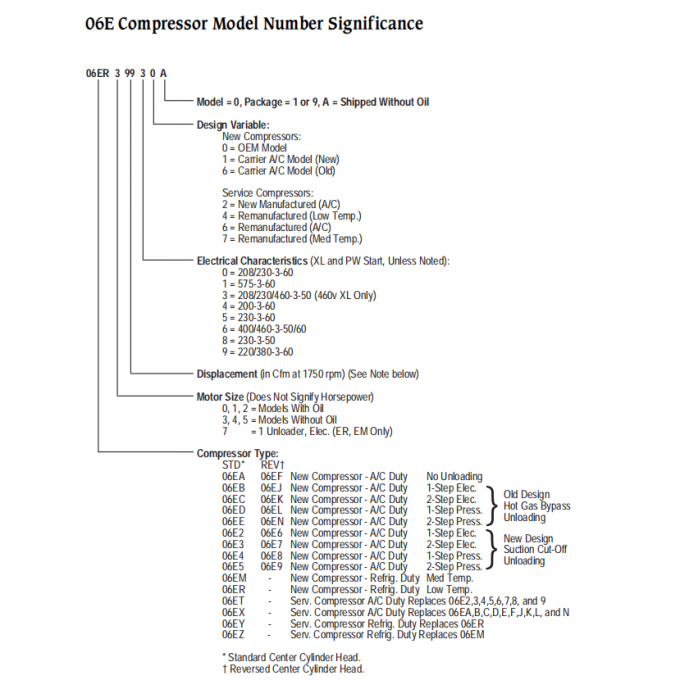

Naming rules
