Product Description

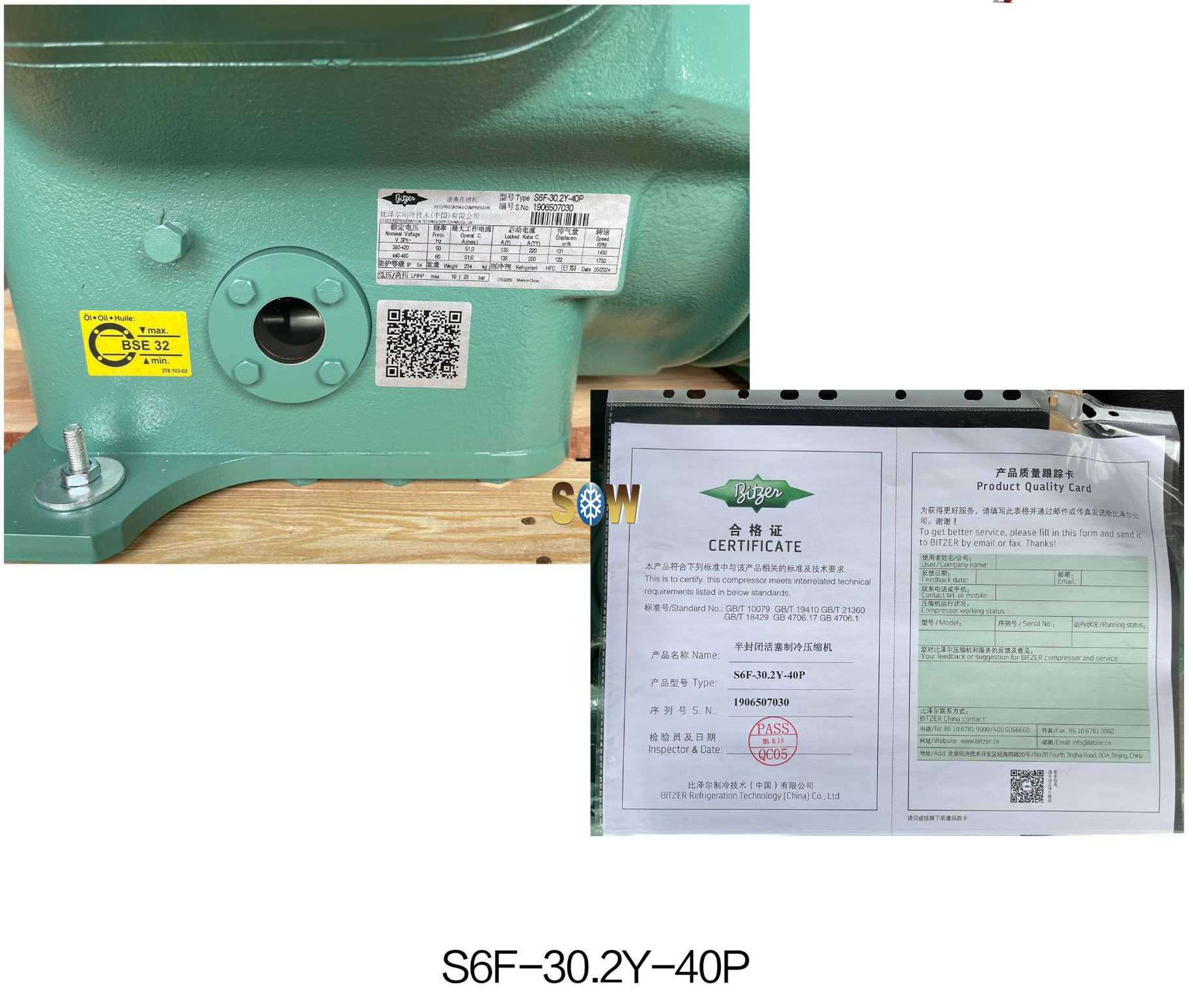

Bitzer Semi-Hermetic low Temp two stage compressor S6F-30.2Y-40P
2nd generation 2-stage R22 - S6F-30.2Y
BITZER is raising the bar in terms of technology and capacity for expanded low temperature applications with the 2nd generation of 2-stage compressors. This series is the result of extensive research on the basis of years of experience in the construction of highly efficient and solid reciprocating compressors. The gas flow control and working valves are specially adapted for low temperature applications.
Displacement at 1450 min-1 : 101,1 (LP) 50,5 (HP)
Number of cylinders : 6
Oilcharge : 4,75 dm3
Full specifications for Bitzer S6F-30.2YBrand:Bitzer
Type: S6F-30.2Y
Refrigerant:Freon
kW at -30ºC/+40ºC: 35,7
kW at -40ºC/+40ºC: 25,3
kW at -45ºC/+40ºC :20,7
On steel base frame:Yes
Pressure safety switches Hp/Lp/Op:Yes
Pressure gauges Hp/Lp/Op :Yes
Liquid receiver:Yes
Liquid receiver ltr. :73
Suction accumulator:Yes
Oil separator :Yes
Liquid line filter drier:Yes
Sight Glass:Yes
m3 / h: 101,1 / 50,5
Remarks | :y.o.b. 2001
Semi-hermetic:two-stage
Semi-hermetic piston compressors with two-stage compression of the refrigerant are particularly suitable for low-temperature refrigeration.
By sub-cooling the refrigerant, the refrigeration performance and efficiency of the overall compressor unit can be significantly improved.
With liquid subcooling 50Hz (R22)
Compressor type | Cond.temp. | Qo / Pe | Evaporating temperature °C | ||||||
---|---|---|---|---|---|---|---|---|---|
[°C] | -20 | -25 | -30 | -35 | -40 | -45 | -50 | ||
S6F-30.2Y | 30 | Qo | 48800 | 40750 | 33700 | 27400 | 21900 | 17030 | 12610 |
Pe | 21,23 | 19,52 | 17,78 | 16,04 | 14,30 | 12,57 | 10,86 | ||
35 | Qo | 48250 | 40350 | 33350 | 27150 | 21650 | 16710 | 12200 | |
Pe | 22,71 | 20,83 | 18,95 | 17,06 | 15,18 | 13,31 | 11,45 | ||
40 | Qo | 47750 | 39950 | 33000 | 26850 | 21350 | 16390 | 11790 | |
Pe | 24,18 | 22,15 | 20,11 | 18,07 | 16,03 | 13,99 | 11,96 | ||
45 | Qo | 47250 | 39550 | 32700 | 26600 | 21100 | 16100 | ||
Pe | 25,66 | 23,45 | 21,25 | 19,05 | 16,84 | 14,60 | |||
50 | Qo | 46750 | 39200 | 32450 | 26400 | 20900 | |||
Pe | 27,12 | 24,73 | 22,37 | 20,01 | 17,59 | ||||
55 | Qo | 46300 | 38850 | 32200 | 26200 | ||||
Pe | 28,56 | 25,99 | 23,47 | 20,92 |
Qo - Cooling capacity [Watt], Pe - Power consumption [kW]
Without liquid subcooling 50Hz (R22)
Compressor type | Cond.temp. | Qo / Pe | Evaporating temperature °C | |||||||||
---|---|---|---|---|---|---|---|---|---|---|---|---|
[°C] | -20 | -25 | -30 | -35 | -40 | -45 | -50 | |||||
S6F-30.2Y | 30 | Qo | 44450 | 36250 | 29200 | 23200 | 18060 | 13650 | 9820 | |||
Pe | 17,41 | 16,43 | 15,32 | 14,06 | 12,63 | 11,02 | 9,20 | |||||
35 | Qo | 42700 | 34800 | 28050 | 22250 | 17280 | 12980 | 9220 | ||||
Pe | 18,91 | 17,74 | 16,44 | 14,99 | 13,37 | 11,56 | 9,56 | |||||
40 | Qo | 40900 | 33350 | 26900 | 21300 | 16510 | 12330 | 8630 | ||||
Pe | 20,40 | 19,09 | 17,61 | 15,96 | 14,12 | 12,07 | 9,82 | |||||
45 | Qo | 39100 | 31900 | 25700 | 20400 | 15760 | 11700 | |||||
Pe | 21,87 | 20,44 | 18,80 | 16,95 | 14,85 | 12,50 | ||||||
50 | Qo | 37250 | 30400 | 24600 | 19490 | 15040 | ||||||
Pe | 23,31 | 21,79 | 20,02 | 17,96 | 15,57 | |||||||
55 | Qo | 35450 | 29050 | 23500 | 18610 | |||||||
Pe | 24,71 | 23,11 | 21,23 | 18,97 |
Qo - Cooling capacity [Watt], Pe - Power consumption [kW]
Compressor type | Displacement at 1450 min-1 | Number of cylinders | Oil charge | Weight | Pipe connections | Motor | Max. operating current | Max. power consumption | Starting current(lockedrotor) | ||||
---|---|---|---|---|---|---|---|---|---|---|---|---|---|
LP | HP | DL | SL | ||||||||||
dm3 | Kg | mm | pouce | mm | pouce | Amp | kW | Amp. Y/YY | |||||
S6F-30.2Y | 101,1 | 50,5 | 6 | 7.75 | 234 | 35 | 13/8 | 42 54 |
15/8 21/8 |
380 ..420YY/3/50 440 ..480 YY/3/60 |
51 | 31,9 | 135/220 |
