Location:Index--->Product Center >> Danfoss Solenoid Valve&Coil >> Danfoss Solenoid coil, BF024AS,018F6257


|
|
||||||||||||||||||||||||
Product Description

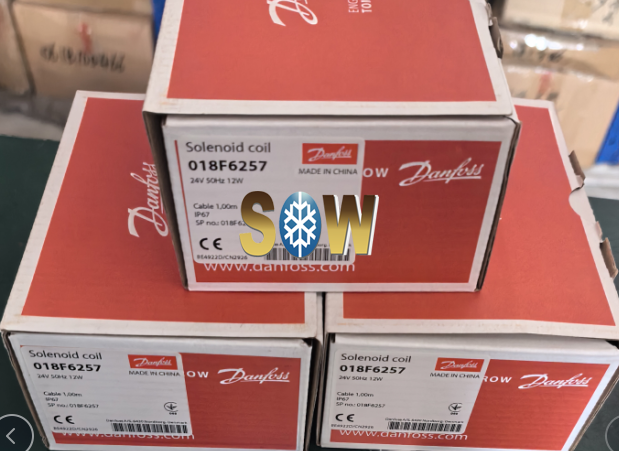

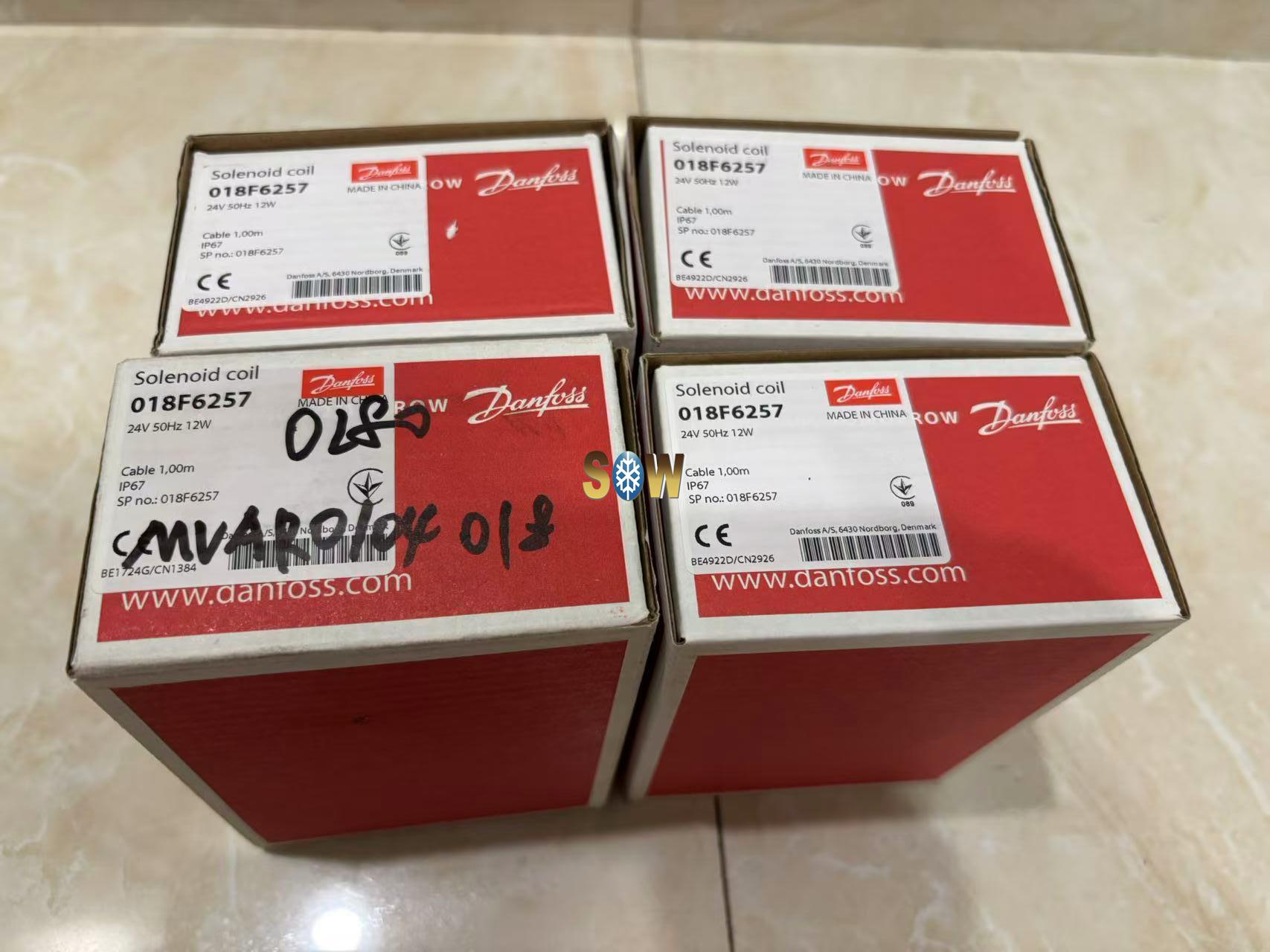

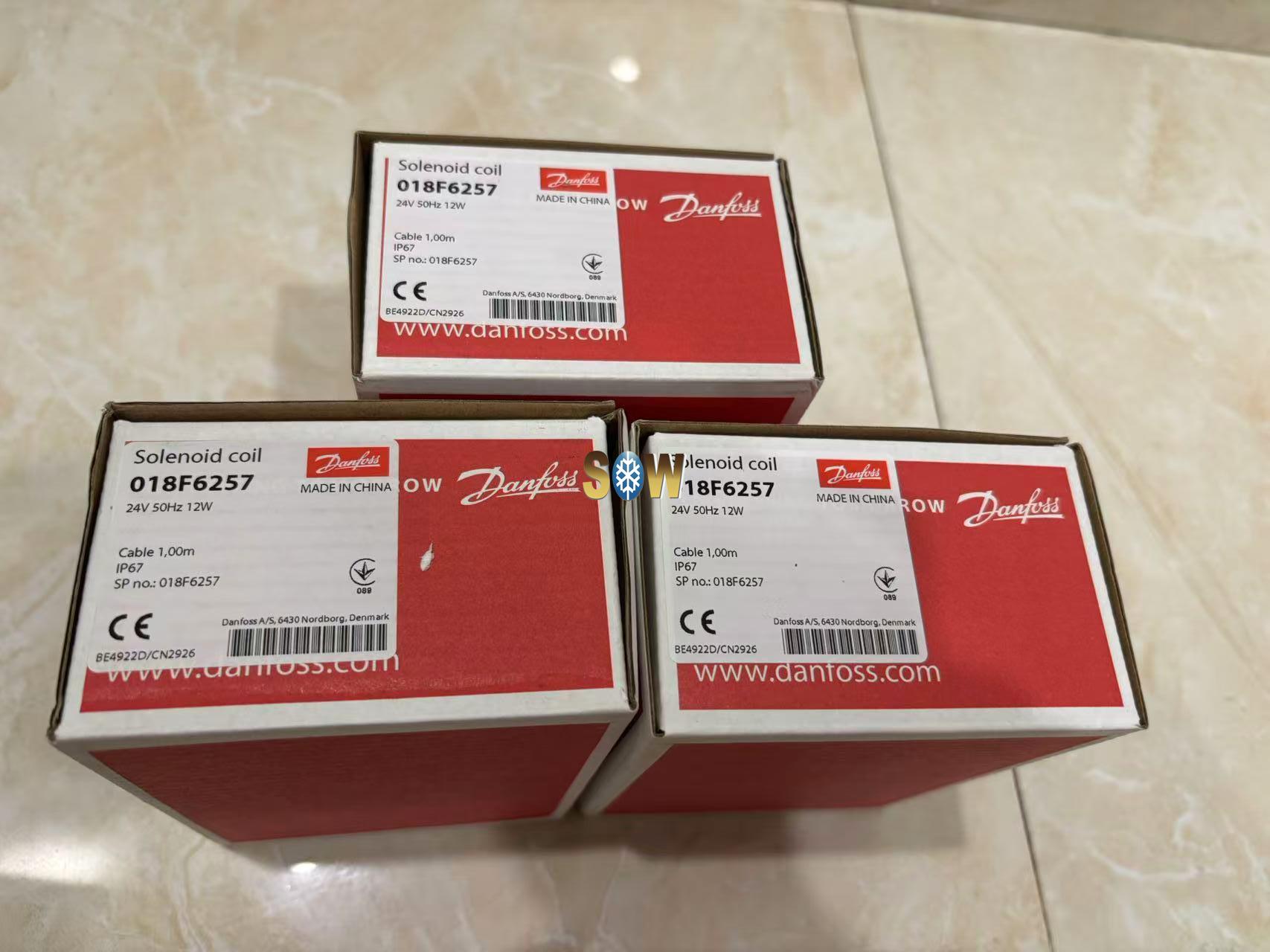

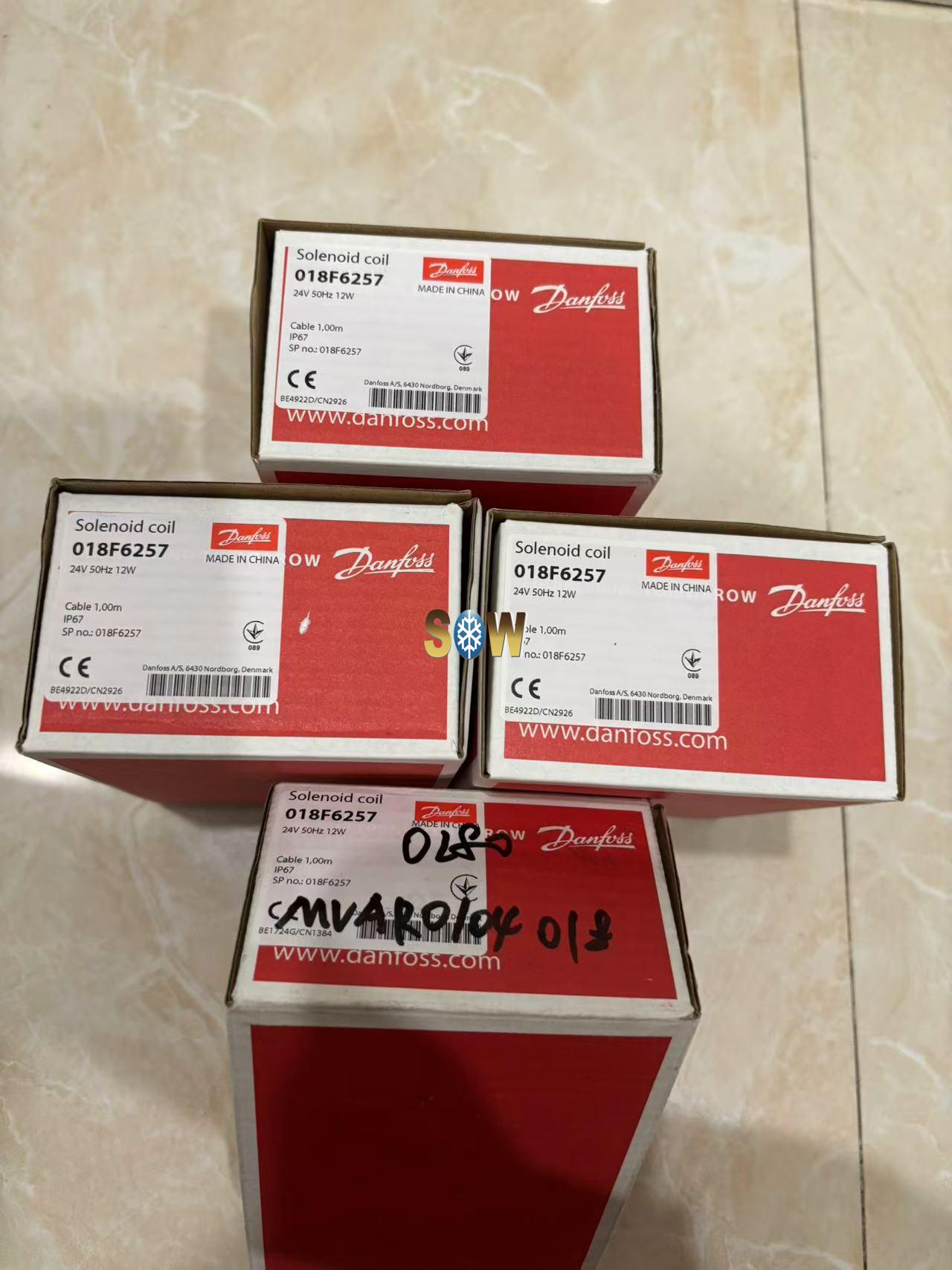

Danfoss Solenoid coil, BF024AS,018F6257
Product details
| Gross weight | 0.332 Kilogram |
| Net weight | 0.293 Kilogram |
| EAN | 5702428024877 |
| Type | BF024AS |
| Product group | Solenoid valves |
| Product Name Description | Solenoid coil |
| Actuator size | 13.5 mm |
| Ambient temperature range [°C] [max] | 80 °C |
| Ambient temperature range [°C] [min] | -40 °C |
| Ambient temperature range [°F] [max] | 175 °F |
| Ambient temperature range [°F] [min] | -40 °F |
| Approval | LLC CDC TYSK |
| Cable diameter [mm] | 6.6 mm |
| Cable length [in] | 40 in |
| Cable length [m] | 1 m |
| China RoHS compliance | Out of scope |
| Coil connection | Cable |
| Coil design standard | VDE 0580 |
| Coil fastening | Clip-on |
| Coil winding insulation class | Class H to IEC 85 |
| Colour | Blue |
| Compliance | EN 60730-1 |
| Conductor area [mm2] | 3 x 0.75 mm2 |
| Contain batteries | No |
| Duty rating | Continuous |
| Electrical connection | Cable |
| Electrical connector | 3 core cable |
| Enclosure rating IP | IP67 |
| EU RoHS compliance | Out of scope |
| Frequency [Hz] | 50 Hz |
| Packing format | Multi pack |
| Parts Program name | EV210B EV212B EV220B 15 - 50 EV220B 6 - 22 EV220B 65 - 100 EV222B EV224B EV227B EV250B EV251B |
| Power consumption 50Hz [VA] | 20 VA |
| Power consumption [W] 50Hz | 12 W |
| Product accessories | Solenoid coil accessories |
| Quantity per packing format | 24 pc |
| REACH Candidate List substances | No |
| Rel. Humidity [% RH] [max] | 100 % |
| Rel. Humidity [% RH] [min] | 0 % |
| Serviceable | No |
| Spare part number | 018F6257 |
| Supply voltage 50Hz Max [V] | 24 V |
| Supply voltage [V] AC | 24 V |
| Type designation | BF024AS |
