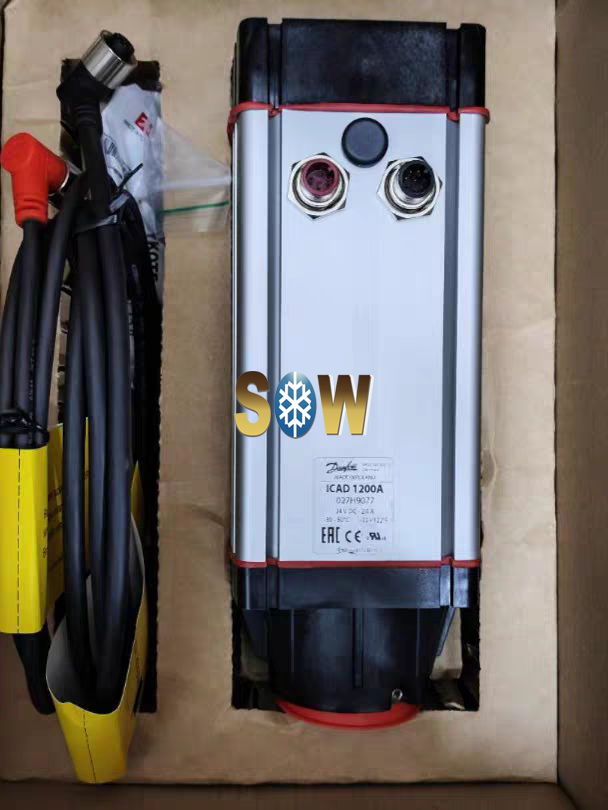

Danfoss Actuator, ICAD 1200A 027H9077

Product details

Gross weight	2.37 Kilogram
Net weight	1.889 Kilogram

Volume	6.248 Liter
EAN	5702428889520

Ambient temperature range [°C] [max]	50 °C
Ambient temperature range [°C] [min]	-30 °C
Ambient temperature range [°F] [max]	122 °F
Ambient temperature range [°F] [min]	-22 °F
Analog input current opt. [mA] [max]	20 mA
Analog input current opt. [mA] [min]	4 mA
Analog input Volt opt. [V] d.c [max]	10 V
Analog input Volt opt. [V] d.c [min]	2 V
Analog output options [mA] [max]	20 mA
Analog output options [mA] [min]	4 mA
Approval	CE CRN EAC LLC CDC TYSK UL UKCA
Cable length [in]	60 in
Cable length [m]	1.5 m
Control cable size [AWG]	7 x ~24 AWG, Ø0.24 in
Control cable size [mm2]	7 x 0,25 mm, Ø6 mm
Dig. Output-Ext supply [V] d.c [max]	24 V
Dig. Output-Ext supply [V] d.c [min]	5 V
Digital Output-Load [Ohm]	50
Digital Output-Max Load [mA]	50 mA
Digital outputs (DO) [pc]	3 pc
Display type	LCD
Enclosure rating IP	IP67
Enclosure rating Nema (~)	6
Function	Digital output
In scope of WEEE and contain batteries	No

Load Analog input Current[Ohm]	200
Load Analog input Voltage[Ohm]	10000
Load Analog output max [Ohm]	250
Output configuration	NPN Transistor
Packing format	Single pack
Parts Program name	ICM
Product description	Actuator
Product group	Press. and temp. regul. valves
Product Name Description	Actuator
Quantity per packing format	1 pc
REACH Candidate List substances	No
Supply cable size [AWG]	3 x ~22 AWG, Ø0.19 in
Supply cable size [mm2]	3 x 0,34 mm, Ø4,8 mm
Supply voltage [V] DC	24 V
Supply voltage [V] DC	24 V
Supply voltage load [A]	2 A
Supply voltage tolerance [%] [max]	10 %
Supply voltage tolerance [%] [min]	-15 %
Temperature range [°C] [max]	50 °C
Temperature range [°C] [min]	-30 °C
Temperature range [°F] [max]	122 °F
Temperature range [°F] [min]	-22 °F
Type	ICAD 1200A
UL approval file name	REFRIGERANT VALVE 53R0
Used for product	ICM 40 ICM 50 ICM 65 ICM100 ICM125 ICM150
