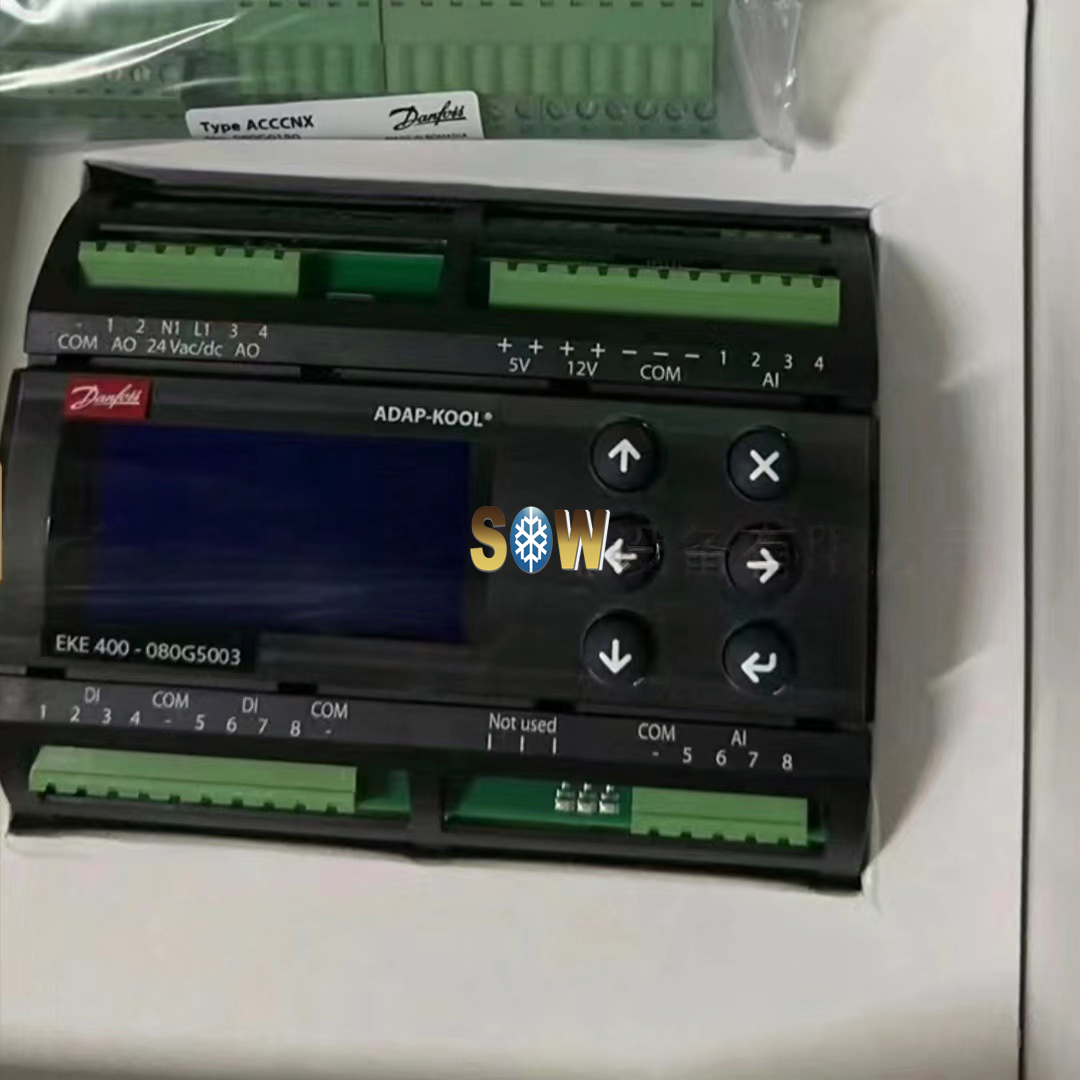

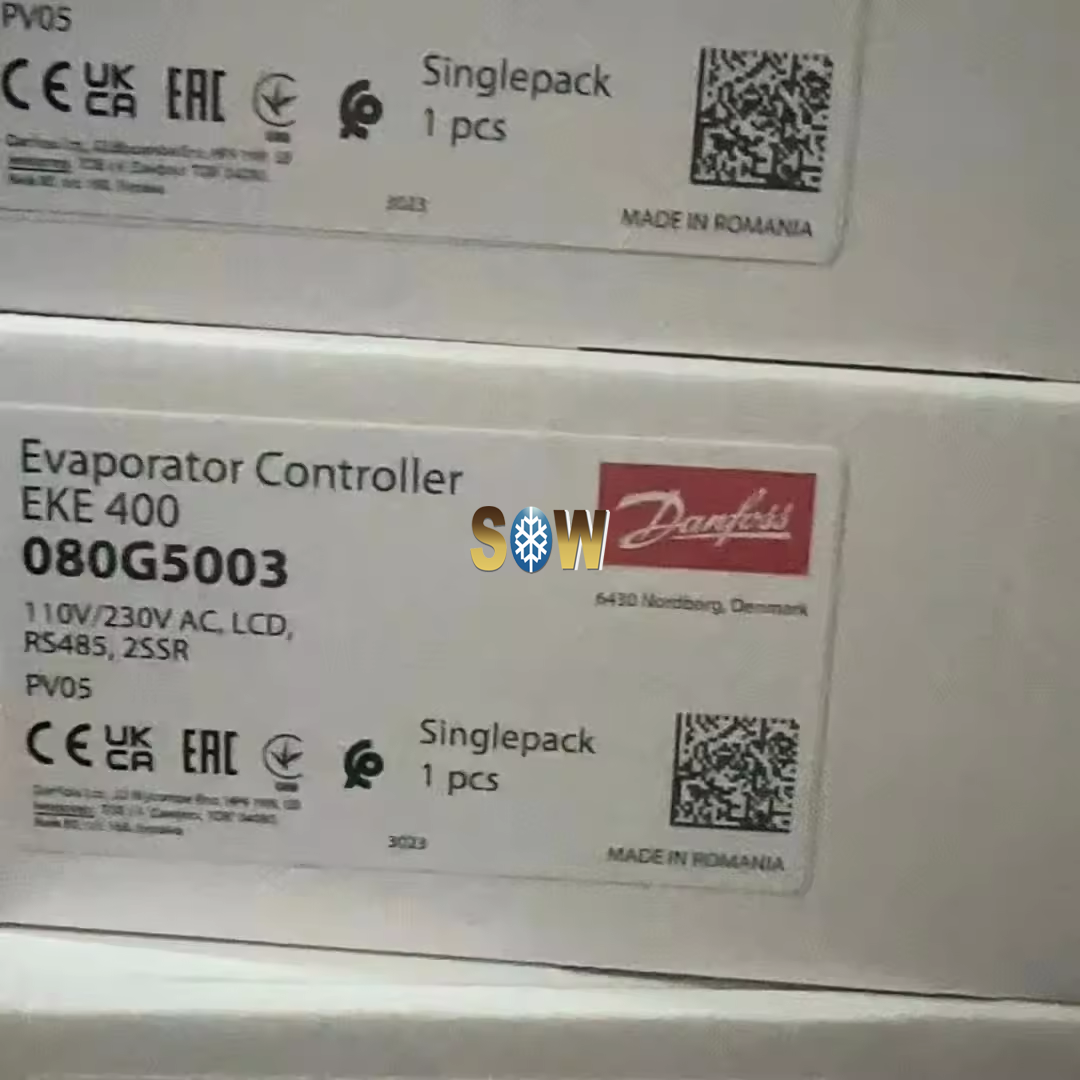

Name:	Danfoss Electronic valve control, EKE 400 080G5003
Brand:	Danfoss
Model No.:	EKE 400
Part No.:	080G5003
Country of origion:	Romania
G.W:	0.664kgs/pc
Product group:	Electronic valve control
Application area:	Direct Expansion evaporator,Flooded evaporator
Function:	Cooling, Hot Gas Defrost
Communication type:	RS485; MODBUS
Product features:	Buzzer; Real time clock

Danfoss Electronic valve control, EKE 400 080G5003

Product details

Gross weight	0.664 Kilogram
Net weight	0.461 Kilogram

Volume	2.867 Liter
EAN	5702428546188

1 Primary battery SUM weight Kg	0.001
Ambient temperature range [°C] [max]	60 °C
Ambient temperature range [°C] [min]	-20 °C
Analog inputs (AI) [pc]	8 pc
Analog inputs type	Voltage or Current
Analog outputs (AO) [pc]	4 pc
Application area	Direct Expansion evaporator Flooded evaporator
Approval	CE cURus UKCA
Battery type or Name	Lithium coin cell
Buzzer	Yes
China RoHS compliance	Out of scope
Communication type	MODBUS RS485
Connector kit included	Yes
Digital inputs (DI) [pc]	8 pc
Digital outputs (DO) [pc]	8 pc
Display - option	On front. Option: MMIGRS2
Display on front	Yes
Display type	LED graphic
EEE category	5 small equipment (any external dimension 50 cm)
Enclosure rating IP	IP20
Equipment	Incl. Connectors
Frequency [Hz]	50/60 Hz

Function	Cooling, Hot Gas Defrost
In scope of WEEE	Yes
In scope of WEEE and contain batteries	Yes
Mounting method	DIN rail
Number of Sensor inputs	8 pc
Other RoHS documentation	EAEU RoHS
Packing format	Multi pack
Power consumption [VA]	20 VA
Product features	Buzzer Real time clock
Product group	Electronic valve control
Product Language	Chinese English Portuguese Spanish Dutch French German Italian Russian Japanese Korean
Product Name Description	Evaporator and room control
Programming tools	CoolSelector
Quantity per packing format	12 pc
Real time clock	Yes
Sensor type	Temperature sensor Pressure sensor
Supply voltage [V] AC [max]	265 V
Supply voltage [V] AC [min]	85 V
Temp. sensor support	Pt 1000
Type	EKE 400
UK RoHS compliance	Out of scope
