Location:Index--->Product Center >> HVAC Control cools spare parts >> Danfoss Hand operated regulating valve, REG-SB 50,148B5724


|
|
||||||||||||||||||||||||||||
Product Description

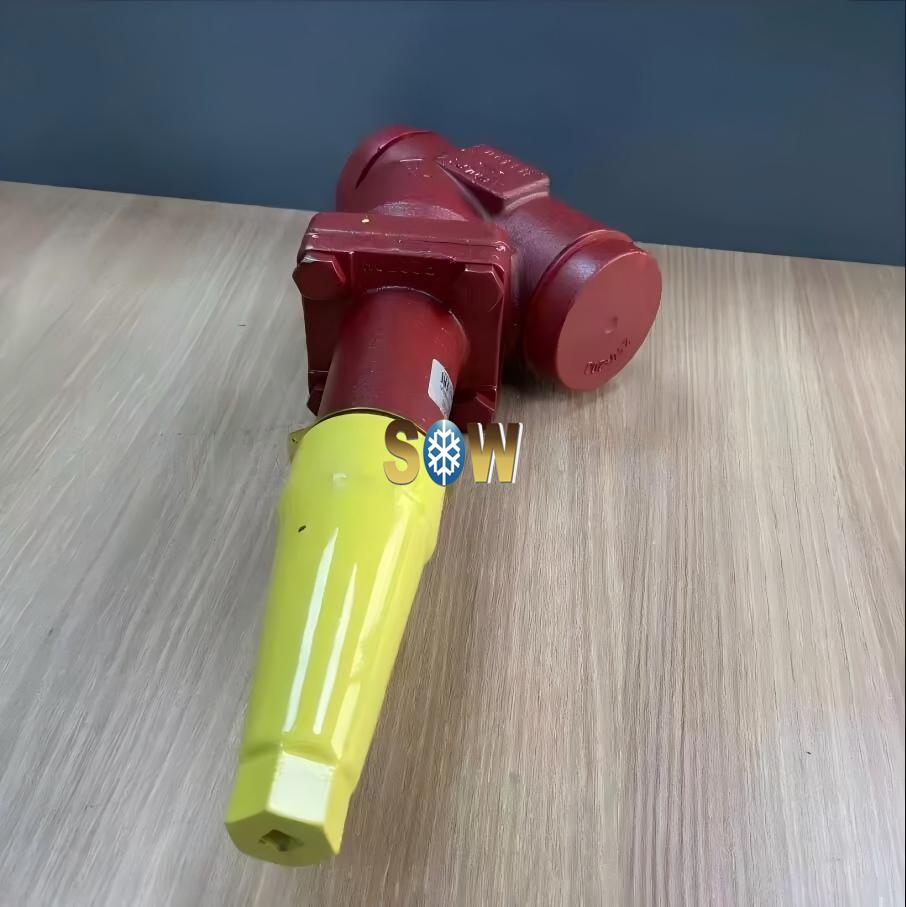

Danfoss Hand operated regulating valve, REG-SB 50,148B5724
Product details
| Gross weight | 6.193 Kilogram |
| Net weight | 5.25 Kilogram |
| Volume | 12.933 Liter |
| EAN | 5702428482813 |
| Type | REG-SB 50 |
| Product group | Shut-off and regulating valves |
| Product Name Description | Hand operated regulating valve |
| Approval | CE CRN EAC LLC CDC TYSK |
| Body material | Steel |
| Brand | SVL Flexline |
| Category | II |
| CE evaluated | Yes |
| China RoHS compliance | Yes |
| China RoHS exemption clause | No |
| Colour Paint | Reddish brown |
| Connection material | Steel |
| Connection standard | ASME B 36.10M SCHEDULE 40 |
| Contains batteries | No |
| Cv value [gal/min] | 52.2 gal/min |
| Direction | Straightway |
| Equipment | Cap |
| EU RoHS compliance | Yes |
| EU RoHS exemption clause | No |
| Flow area [in2] | 1.274 in² |
| Flow area [mm2] | 822 mm² |
| Flow direction indicator | Embossed 1-way arrow |
| Fluid Group | 1 2 |
| Inlet connection size [in] | 2 in |
| Inlet connection size [mm] | 50 mm |
| Inlet connection type | Butt weld |
| Kv value [m³/h] | 45 m³/h |
| Max. Working Pressure [bar] | 52 bar |
| Max. Working Pressure [psig] | 754 psig |
| Neck | Standard |
| Outlet connection size [in] | 2 in |
| Outlet connection size [mm] | 50 mm |
| Outlet connection type | Butt weld |
| Packing format | Single pack |
| Parts Program name | REG-SA / REG-SB |
| Product accessories | SVL Flexline accessories |
| Product description | Hand Regulating Valve |
| Quantity per packing format | 1 pc |
| REACH Candidate List substances | No |
| Refrigerants | R134a R22 R290 R401A R402A R404A R407A R407B Read more |
| Serviceable | SVL Flexline spare parts |
| Temperature range [°C] [Max] | 150 °C |
| Temperature range [°C] [Min] | -60 °C |
| Temperature range [°F] [Max] | 302 °F |
| Temperature range [°F] [Min] | -76 °F |
| Valve version | Standard version |
| Proposition 65 |
