Location:Index--->Product Center >> HVAC Control cools spare parts >> Danfoss Check valves, CHV-X 25,148B5436


|
|
||||||||||||||||||||||||
Product Description

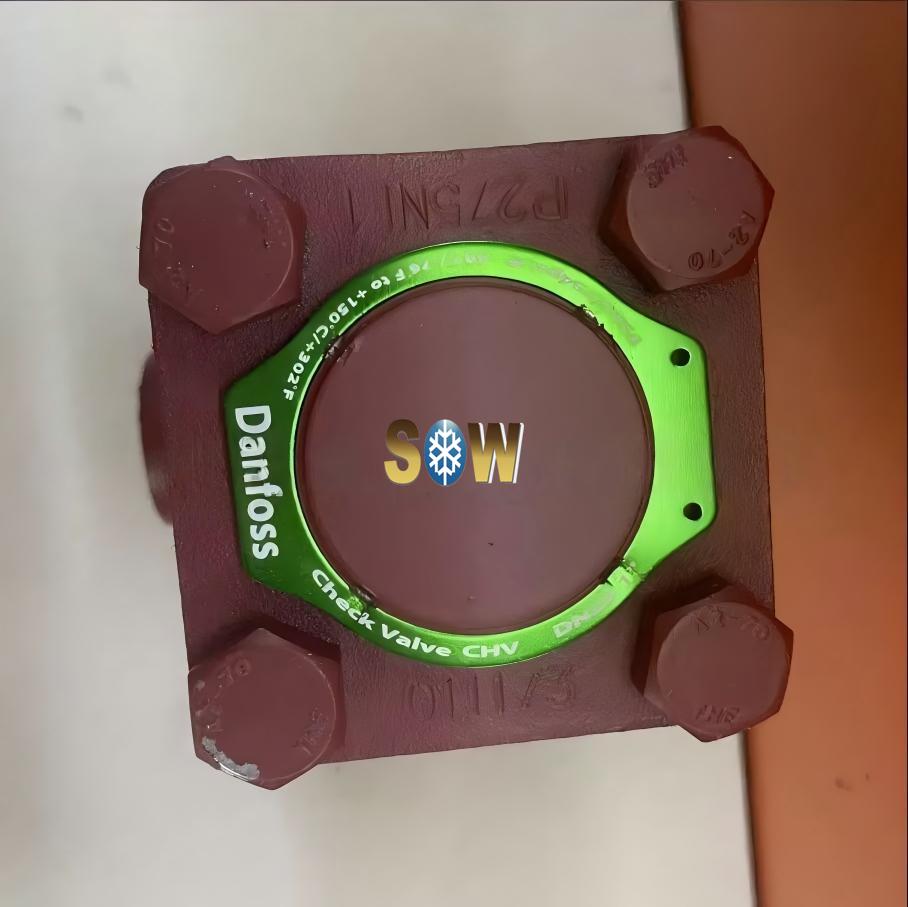

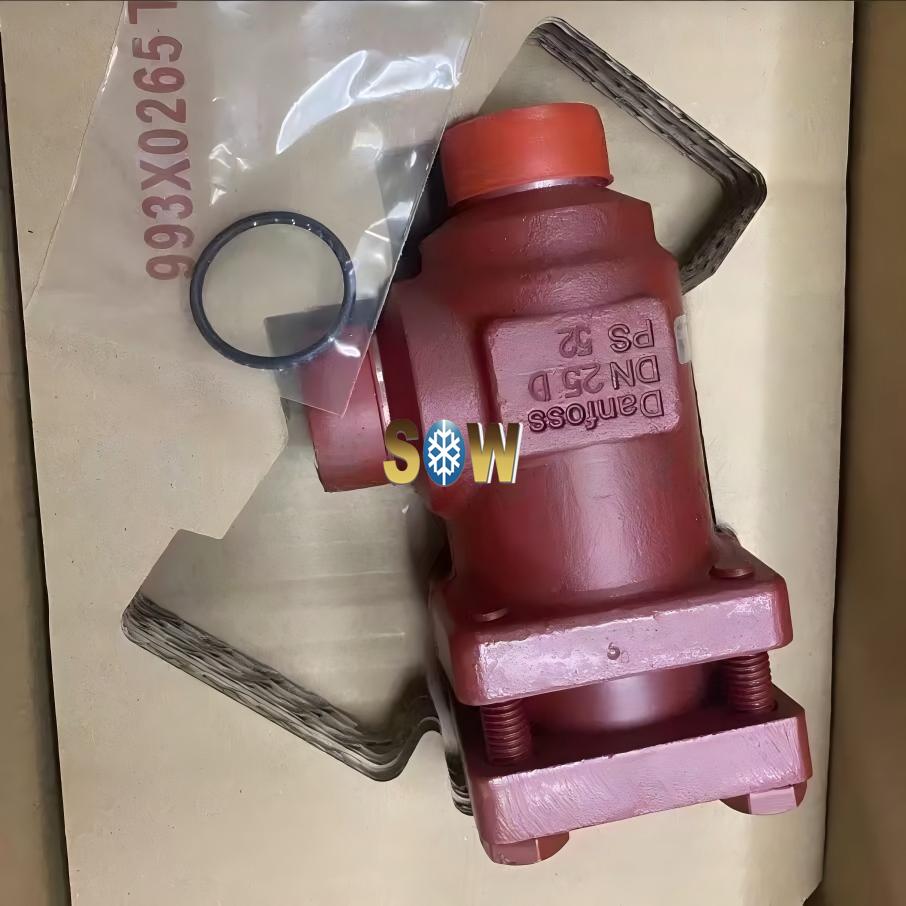

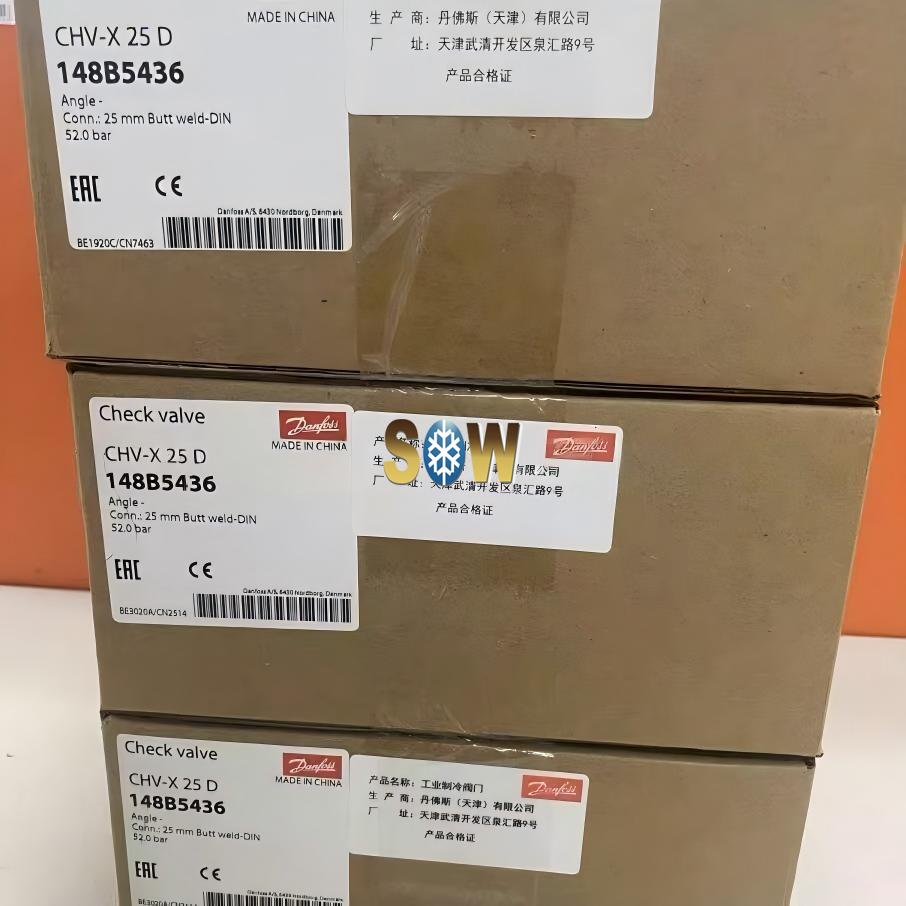

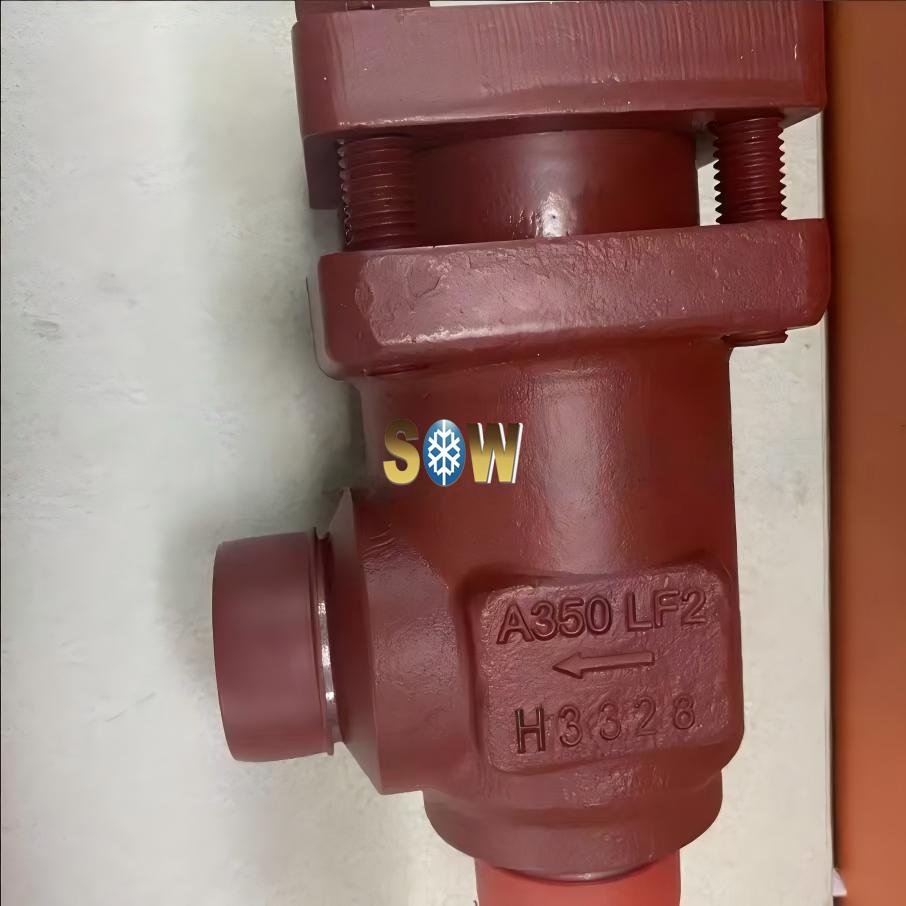

Danfoss Check valves, CHV-X 25,148B5436
Product details
| Gross weight | 2.946 Kilogram |
| Net weight | 2.52 Kilogram |
| Volume | 5.372 Liter |
| EAN | 5702428477208 |
| Type | CHV-X 25 |
| Product group | Check valves |
| Product Name Description | Check Valve |
| Approval | UKCA |
| Brand | SVL Flexline |
| Category | Art. 4, par. 3 |
| CE evaluated | Yes |
| China RoHS compliance | Yes |
| China RoHS exemption clause | No |
| Colour Paint | Reddish brown |
| Connection material | Steel |
| Connection size [in] | 1 in |
| Connection size [mm] | 25 mm |
| Connection standard | EN 10220 |
| Connection type | Butt weld |
| Contains batteries | No |
| Cv value [gal/min] | 27.8 gal/min |
| Direction | Angleway |
| EU RoHS compliance | Yes |
| EU RoHS exemption clause | No |
| Flow direction indicator | Embossed 1-way arrow |
| Fluid Group | 1 2 |
| Kv value [m³/h] | 24 m³/h |
| Max. Working Pressure [bar] | 52 bar |
| Max. Working Pressure [psig] | 754 psig |
| MinODP [bar] | 0.04 bar |
| MinODP [psi] | 0.62 psi |
| Packing format | Single pack |
| Parts Program name | CHV-X |
| Product accessories | SVL Flexline accessories |
| Product description | Check Valve |
| Quantity per packing format | 1 pc |
| REACH Candidate List substances | No |
| Refrigerants | R134a R22 R290 R401A R402A R404A R407A R407B Read more |
| Serviceable | SVL Flexline spare parts |
| Temperature range [°C] [Max] | 150 °C |
| Temperature range [°C] [Min] | -60 °C |
| Temperature range [°F] [Max] | 302 °F |
| Temperature range [°F] [Min] | -76 °F |
