Danfoss Joystick PVREL 155U2606

Danfoss PVREL Electric Lever With Friction C/W Neutral Switch 155U2606 PVREL Remote Joystick

Condition: New, unused and with original packaging

Productgroup: Electronic Controls

Productline: Joysticks

Description: PVREL with friction (+ neutral sw)

Weight:0.550000kgs/pc

Country of Origin:Denmark

Manufacturer:Danfoss

HS Code:90329000

Item code:155U2606

Description

Danfoss 155U2606 PVREL Joystick155U2606

function:Spring-centred with hold function.

With neutral position switch

The remote control lever functions as the basic model, but by rotating the top of the handle the centre position can be displaced and a constant control signal is given.

The remote control lever can still be activated from its set centre position as normal, but when released will return to its set centre point.For installation, all PVREL remote control levers are supplied with O-rings and bolt sets. The bottom cover is not included in the above mentioned code number.

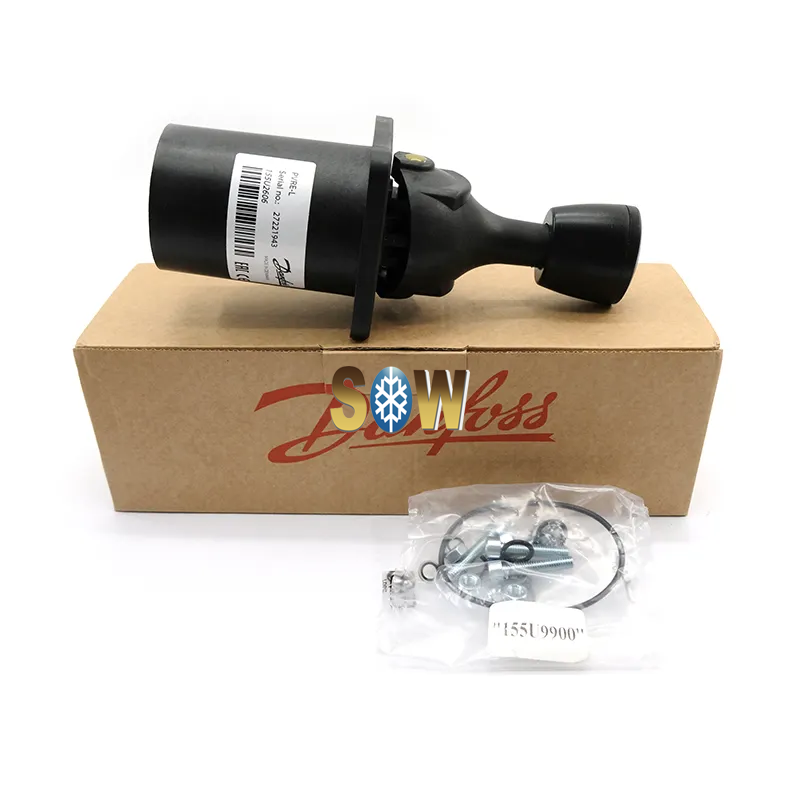

Accessories included with the item 155U2606: 155U9900 (O-Rings & Mounting kit for PVREL)633B0048 O-Ring 1 PCS

633B1461 O-Ring 4 PCS

633B9008 Bonded-Seal 6,70 4 PCS

681x1986 Screw M6 x 30CS 4 PCS

681x8142 Nut 6,05 4 PCS

684x9142 Lock washer 4 PCS

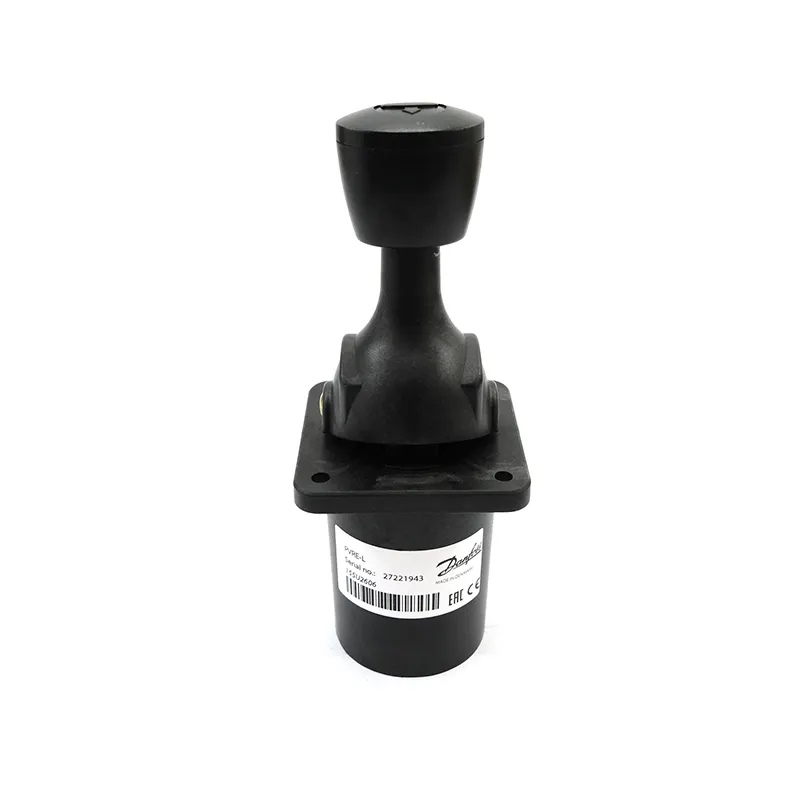

Danfoss JoysticksThis Danfoss PLUS+1® Joystick - PVREL is an electric remote control lever made in weather-resistant plastic.

PVREL is for easy mounting in operating panels and characterised by:IP 67 enclosure

Low operating forces

Obust construction

Small dimensions

The PVREL remote control levers contains a potentiometer for the control of one proportional function.
