Name:Fin Tube Condenser
Model No.:FNA/FNF Series
Place of Origin:China
HS Code:8418999200
Usage:for cold storage
Cooling Method:Direct Cooling
Type:Condenser, condenser, air cooled condenser
Fan:fan with condenser
Packing:Carton/Wooden case
material:Copper
Certification:CE
Market:Global
Production Capacity:1000 PCS/ Month
Customize:Yes

Product Description

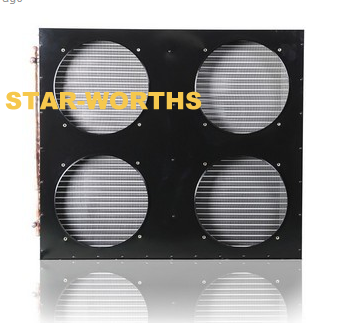

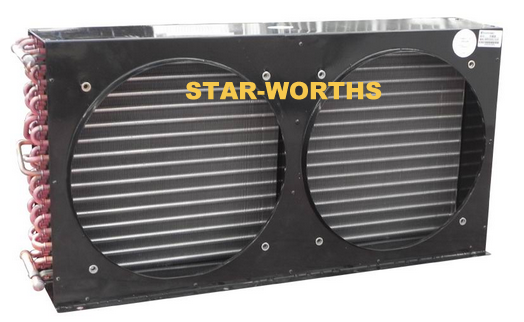

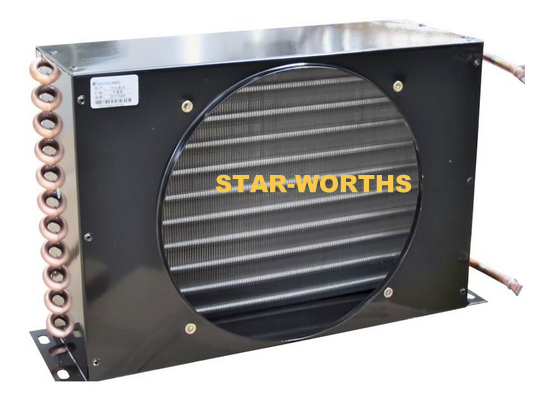

Fin Tube Condenser

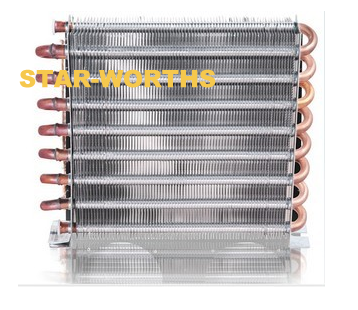

1,High quality copper pipe and aluminum fin, with good heat transfer

2,copper in 9.52 mm with fin sapce 2.6mm, Passed 2.6 mpa air tightness test.

.
  Model                                              Specification Capacity(W) Hear transfer area(m2) Size (mm ) Fan Φ (mm)
FNA-0.8/3.4 1/4 hp 800 3.4 250x120x235 1x 200
FNA-1.0/4.4 1/2hp 1000 4.4 320x130x280 1x 250
FNA-1.2/5.4 3/4hp 1150 5.4 360x150x330 1x 300
FNA-1.6/8.4 1hp 1600 8.4 450x150x330 1x 300
FNF-1.8/9.8  1.5hp small 1850 9.8 385x150x330 1x 300
FNF-2.5/11.3 1.5HP big 2500 11.3 440x150x420 1x 350
FNF-2.8/13 2HP 3000 13 440x150x420 1x 350
FNF-4.4/16.5 2.5HP 4400 16.5 460x150x460 1x 350
FNF-5.5/20 3HP small 5500 20 510x165x530 1x 400
FNF-6.0/22 3HP big 6500 22 510x200x530 1x 400
FNF-7.2/26 3HP double fan 7800 26 820x165x430 2x 350
FNF-8.8/30 4HP 8800 30 950x180x610 2x 400
FNF-9.0/42 5HP small 10800 42 980x200x590 2x 400
FNF-10.2/50 5HP big 14000 50 950x200x530 2x 400
FNF-15.2/53 6.5HP 15200 53 980x200x590 2x 400
FNF-19.0/63 7.5HP 19000 63 960x200x630 2x 400
FNF-21.5/75 8.5HP 22000 75 960x220x630 2x 400
FNF-24.2/88 10HP 24200 88 960x200x1030 4x 400
FNF-36.0/130 15HP 36000 130 1180x200x1030 4x 400
FNF-42.0/150 20HP 42000 150 1140x200x1230 4x 400
FNF-50.0/180 25HP 50000 180 1390x200x1330 4x 500
FNF-60.0/210 30HP 60000 210 1390x220x1330 4x 500
