Name:	SH184A4ALC Danfoss Commercial Compressor
Brand:	Danfoss
Model:	SH184A4ALC
Country of origional:	China
G.W:	76.12kgs/pc
Packing format:	Single pack
Compressor power supply [V]:	380-415/3/50 460/3/60
Segment usage:	Air conditioning
Refrigerants:	R410A

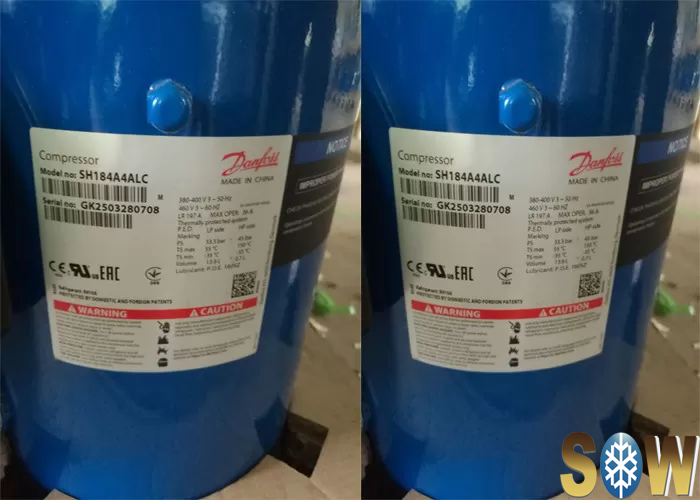

SH184A4ALC Danfoss Commercial Compressor

Danfoss Scroll compressor, SH184A4ALC

Product details

Gross weight	76.12 Kilogram
Net weight	72 Kilogram

Volume	0.23 Cubic meter
EAN	5702428980791

Approval	CE UL UKCA
Brand technique	Scroll compressor
Capacity control	Fixed speed
China RoHS compliance	Out of scope
Colour	Blue
Compressor power supply [V]	380-415/3/50 460/3/60
Configuration code	Single
Connection type	Brazed
Description	SH184-4
Diameter [mm]	243 mm
Discharge connection height [mm]	525 mm
Discharge connection pipe size [in]	7/8 in
Discharge connection size [in]	7/8 in
Drawing number	8560023e
Economizer	No
EU RoHS compliance	Yes with exemptions
EU RoHS exemption clause	6(a), 6(a)-I, 7(a), 7(c)-I, 8(b), 9(b)
Factory HP [bar]	0 bar
Factory LP [bar]	0 bar
Family	SH
Fitting standard	ODF
Frequency [Hz]	50/60
Gauge port HP	None
Gauge port LP	Schrader
Glass mounting	Threaded
Glass torque [Nm]	50 N-m
High Side TS Max	150 °C
High Side TS Min	-35 °C
High Side Volume	0.7 L
High value of nominal voltage at 50Hz [V]	400 V
High value of nominal voltage at 60Hz [V]	460 V
High value of voltage range at 50Hz [V]	440 V
High value of voltage range at 60Hz [V]	506 V
In scope of WEEE and contain batteries	No
IP protection class	IP54 (with cable gland)
Low Side TS Max	55 °C
Low Side TS Min	-35 °C
Low Side Volume	13.9 L
Low value of nominal voltage at 50Hz [V]	380 V
Low value of nominal voltage at 60Hz [V]	460 V
Low value of voltage range at 50Hz [V]	342 V
Low value of voltage range at 60Hz [V]	414 V
LRA	197 A
Max pressure (PS) - high side	48.7 bar
Max pressure (PS) - low side	33.3 bar
Maximum Operating Current [MOC]	36 A
MCC	38.6 A

Model number	SH184A4ALC
Motor protection	Internal overload protector
Mounting torque [Nm]	15 N-m
Network power supply [V/Ph/Hz]	380-415/3/50 460/3/60
Number of starts per hour [Max]	12
Oil charge [L]	3.6 L
Oil equalization	1-3/4'' Rotolock
Oil reference	160SZ
Oil type	POE
Packaging height [mm]	596 mm
Packaging length [mm]	470 mm
Packaging weight [Kg]	73 kg
Packaging width [mm]	370 mm
Packing format	Single pack
Packing quantity	1
Phase	3
Power connections	Screw 4.8 mm
Product group	Hermetic compressors
Product Name Description	Scroll compressor SH
REACH Candidate List substances	Lead (CAS no. 7439-92-1)
Refrigerant charge [kg] [Max]	7.9 kg
Refrigerants	R410A
RLA	27.6 A
Rotational speed at 50Hz [rpm]	2900 rpm
Rotational speed at 60Hz [rpm]	3500 rpm
SCIP dossier no.	bff3e2c3-5aad-40f0-b874-7eee67aaf788
SCIP dossier product name	CSHD092-183/DSF090-200/DSH090-184/SH090-184/SJ161/WSH090-184
Segment usage	Air conditioning
Shipped instructions	Installation instructions
Shipped mounting	Mounting kit with grommets, bolts, nuts, sleeves and washers
Shipped oil	Initial oil charge
Suction connection height [mm]	300 mm
Suction connection material	-
Suction connection pipe size [in]	1 3/8 in
Suction connection size [in]	1 3/8 in
Swept volume [cm3]	170.3 cm³
Technology	Scroll
Test dif [bar] [Max]	37 bar
Test HP [bar] [Max]	48.7 bar
Test LP [bar] [Max]	33.3 bar
Torque earth [Nm]	2 N-m
Torque power [Nm]	3 N-m
Total height [mm]	555 mm
Type	SH184
UK RoHS compliance	Out of scope
Viscosity [cP]	32 cP
Winding resistance for three-phase compressors with identical windings [Ohm]	0.83 Ohm
