Name:	SY240A4CBE Danfoss Commercial Compressor
Brand:	Danfoss
Model:	SY240A4CBE
G.W:	168kgs/pc
County of origion:	China
Packing format:	Single pack
Compressor power supply [V]:	380-415/3/50 460/3/60
Segment usage:	Air conditioning
Refrigerants:	R407C; R134a; R513A; R22

Product Description

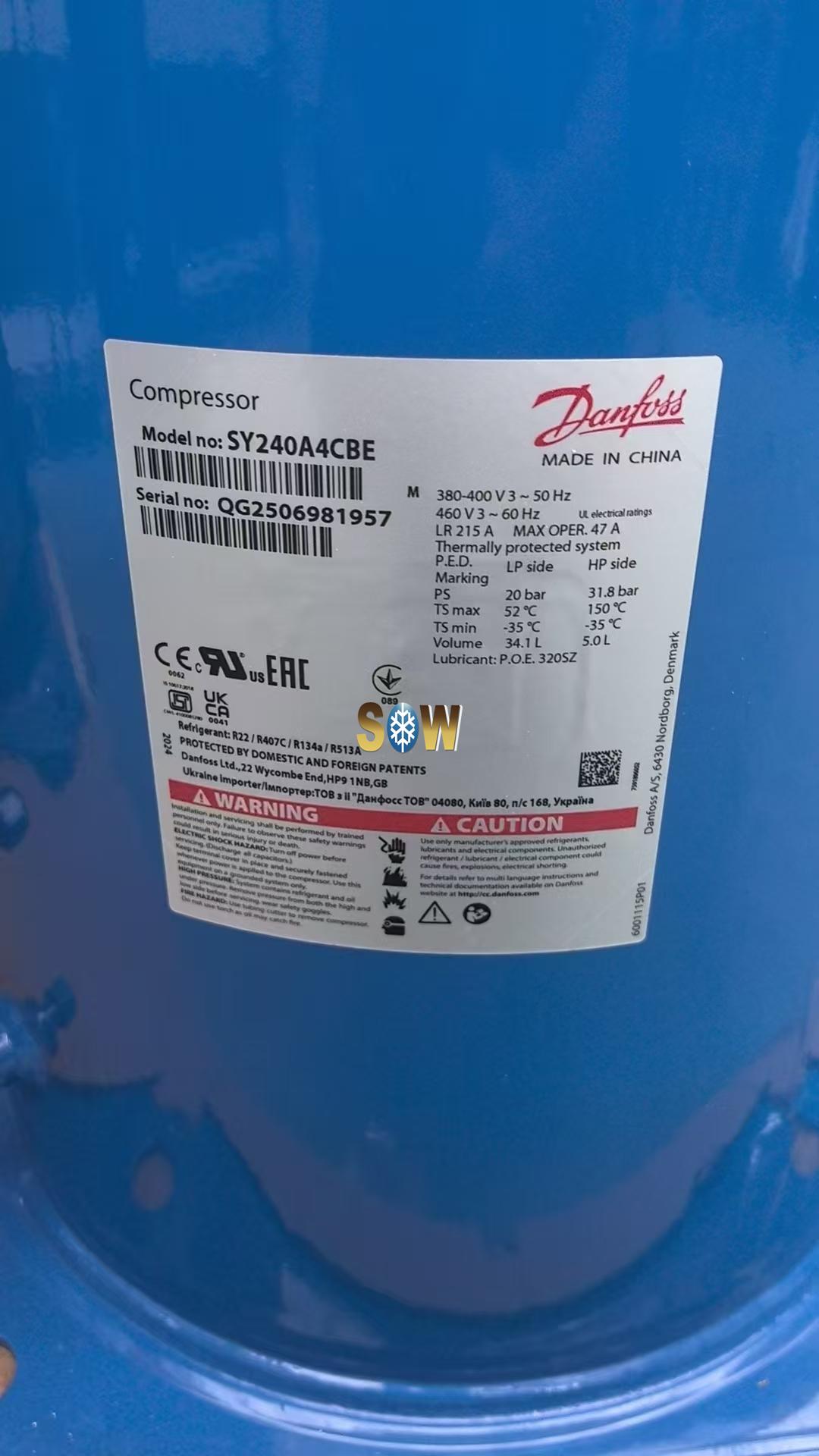

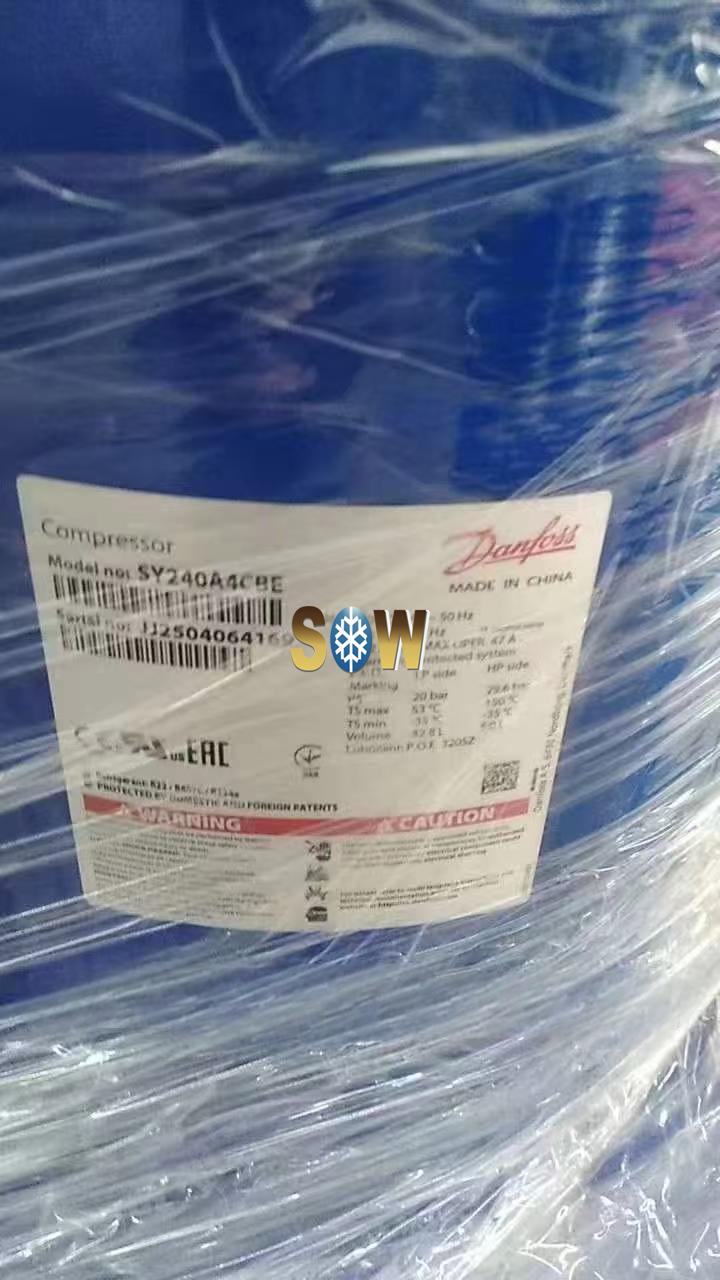

SY240A4CBE Danfoss Commercial Compressor

Scroll compressor, SY240A4CBE SY240A4CBI

Product details

Gross weight	168 Kilogram
Net weight	151 Kilogram

Volume	0.23 Cubic meter
EAN	5702428660747

Approval	CE UL UKCA
Brand technique	Scroll compressor
Capacity control	Fixed speed
China RoHS compliance	Out of scope
Colour	Blue
Compressor power supply [V]	380-415/3/50 460/3/60
Configuration code	Single
Connection type	Brazed
Description	SY240-4
Diameter [mm]	344 mm
Discharge connection height [mm]	654 mm
Discharge connection pipe size [in]	1 1/8 in
Discharge connection size [in]	1 1/8 in
Drawing number	8556092b
Economizer	No
EU RoHS compliance	Yes with exemptions
EU RoHS exemption clause	6(a), 6(a)-I, 7(a), 7(c)-I, 8(b), 9(b)
Factory HP [bar]	33 bar
Factory LP [bar]	25 bar
Family	SY
Fitting standard	ODF
Frequency [Hz]	50/60
Gauge port HP	None
Gauge port LP	Schrader
Glass mounting	Threaded
Glass torque [Nm]	50 N-m
GP LP torque [Nm]	15 N-m
High Side TS Max	150 °C
High Side TS Min	-35 °C
High Side Volume	5 L
High value of nominal voltage at 50Hz [V]	400 V
High value of nominal voltage at 60Hz [V]	460 V
High value of voltage range at 50Hz [V]	440 V
High value of voltage range at 60Hz [V]	506 V
In scope of WEEE and contain batteries	No
IP protection class	IP54 (with cable gland)
Low Side TS Max	52 °C
Low Side TS Min	-35 °C
Low Side Volume	34.1 L
Low value of nominal voltage at 50Hz [V]	380 V
Low value of nominal voltage at 60Hz [V]	460 V
Low value of voltage range at 50Hz [V]	342 V
Low value of voltage range at 60Hz [V]	414 V
LRA	215 A
Max pressure (PS) - high side	31.8 bar
Max pressure (PS) - low side	20 bar
MCC	50 A
Model number	SY240A4CBE
Motor protection	Electronic protection module, 110/240 V

Mounting torque [Nm]	40 N-m
Network power supply [V/Ph/Hz]	380-415/3/50 460/3/60
Number of starts per hour [Max]	12
Oil charge [L]	8 L
Oil drain	1/4'' flare
Oil drain torque [Nm]	35 N-m
Oil equalization	1/2'' flare
Oil equalization torque [Nm]	66 N-m
Oil reference	320SZ
Packaging height [mm]	780 mm
Packaging length [mm]	510 mm
Packaging weight [Kg]	156 kg
Packaging width [mm]	465 mm
Packing format	Single pack
Packing quantity	1
Phase	3
Power connections	Stud M5
Product group	Hermetic compressors
Product Name Description	Scroll compressor SY
REACH Candidate List substances	Lead (CAS no. 7439-92-1)
Refrigerant charge [kg] [Max]	16 kg
Refrigerants	R134a R22 R407C R513A
Reverse rotation protection	Electronic module
RLA	35.7 A
Rotational speed at 50Hz [rpm]	2900 rpm
Rotational speed at 60Hz [rpm]	3500 rpm
SCIP dossier no.	51393c5f-fa09-4984-947c-f686d7aaef0f
SCIP dossier product name	SVA-S top complete cap
Segment usage	Air conditioning
Shipped instructions	Installation instructions
Shipped module	Electronic protection module mounted in terminal box
Shipped mounting	Mounting kit with grommets and sleeves
Shipped oil	Initial oil charge
Suction connection height [mm]	196 mm
Suction connection material	-
Suction connection pipe size [in]	1 5/8 in
Suction connection size [in]	1 5/8 in
Swept volume [cm3]	347.8 cm³
Technology	Scroll
Test dif [bar] [Max]	24 bar
Test HP [bar] [Max]	32 bar
Test LP [bar] [Max]	20 bar
Torque earth [Nm]	4 N-m
Torque power [Nm]	3 N-m
Total height [mm]	727 mm
Type	SY240
UK RoHS compliance	Out of scope
Viscosity [cP]	68 cP
Winding resistance for three-phase compressors with identical windings [Ohm]	0.616 Ohm
