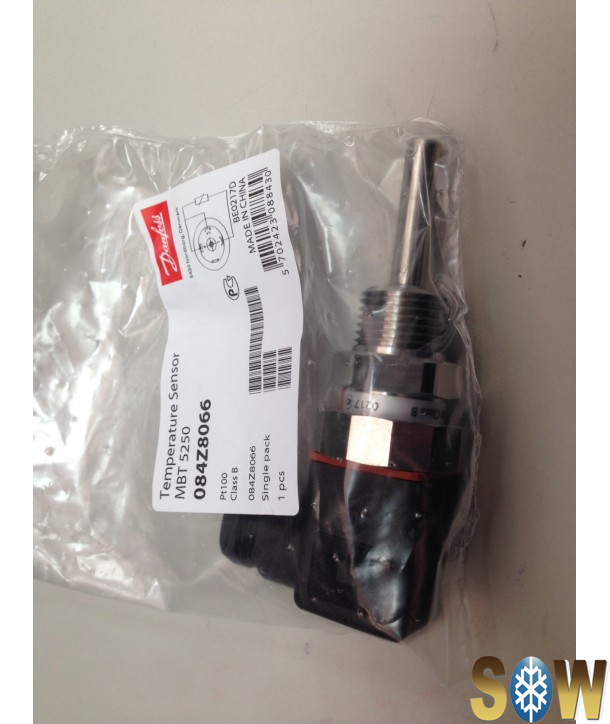

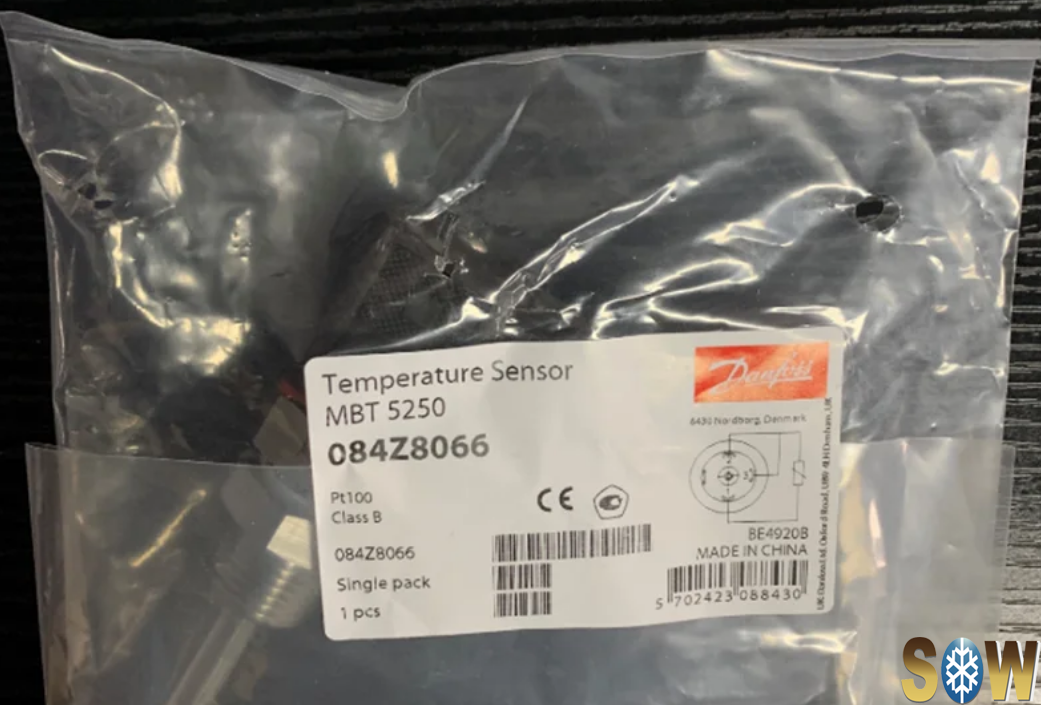

Name:	Danfoss 084Z8066 MBT5252 50MM NPT,1/2-14 Marine approved temperature sensor
Brand:	Danfoss
Model:	MBT5250
Part No.:	084Z8066
G.W:	0.147kgs/pc
Process connection size:	1/2-14
Output signal:	Ohm
Process connection Male/Female:	Male
Process connection material:	Stainless steel
Number of terminals [pcs]:	3 pc
Insertion type:	Fixed
Insertion length [mm]:	50 mm
Insertion length [in]:	1.97 in
In scope of WEEE:	Yes

Product Description

Danfoss 084Z8066 MBT5252 50MM NPT,1/2-14 Marine approved temperature sensor

Temperature sensor, MBT 5250, 50 mm, NPT,1/2-14

084Z8066

Temperature range [°C]: -50 - 200, Sensor element type: Pt, Sensor elem. resistance [Ohm]: 100, Protection tube material: AISI 316 Ti, Electrical connection: Angular connector, Electrical connection size: Pg 11

Product details

Gross weight	0.147 Kilogram
Net weight	0.143 Kilogram

Volume	0.075 Liter
EAN	5702423088430

Ambient temperature max. [°C]	125 °C
Ambient temperature max. [°F]	257 °F
China RoHS compliance	Yes exceed limitations
Connection material	Stainless steel
Connection standard	ANSI/ASME B1.20
Connection type	NPT
EEE category	5 small equipment (any external dimension 50 cm)
Electrical conn. Male/Female	Male and Female
Electrical connection	Angular connector
Electrical connection size	Pg 11
Electrical connection standard	EN 175301-803-A
Enclosure rating IP	IP65
EU RoHS compliance	Yes with exemptions
EU RoHS exemption clause	6(a), 6(b), 6(c), 7(a), 7(c)-I
In scope of WEEE	Yes
In scope of WEEE and contain batteries	No
Insertion length [in]	1.97 in
Insertion length [mm]	50 mm
Insertion type	Fixed
Number of terminals [pcs]	3 pc
Output signal	Ohm
Packing format	Multi pack
Process connection Male/Female	Male
Process connection material	Stainless steel
Process connection size	1/2-14

Process connection standard	ANSI/ASME B1.20.1
Process connection type	NPT
Product group	Sensors
Product Name Description	Temperature sensor
Protection tube diameter [in]	0.31 in
Protection tube diameter [mm]	8 mm
Protection tube material	AISI 316 Ti
Quantity per packing format	20 pc
REACH Candidate List substances	Lead (CAS no. 7439-92-1)
SCIP dossier no.	1741c763-fa54-4cb9-973c-52e51e4079b9
Sensor elem. resistance [Ohm]	100
Sensor element [pc]	1 pc
Sensor element standard	EN 60751
Sensor element tolerance	Class B
Sensor element type	Pt
Sensor Insert	Exchangeable
Temperature range [°C] [max]	200 °C
Temperature range [°C] [min]	-50 °C
Temperature range [°F] [max]	392 °F
Temperature range [°F] [min]	-58 °F
Type	MBT 5250
Type designation	MBT 5250-0000-050-230
UK RoHS compliance	Out of scope
Wires [pcs]	2 pc
