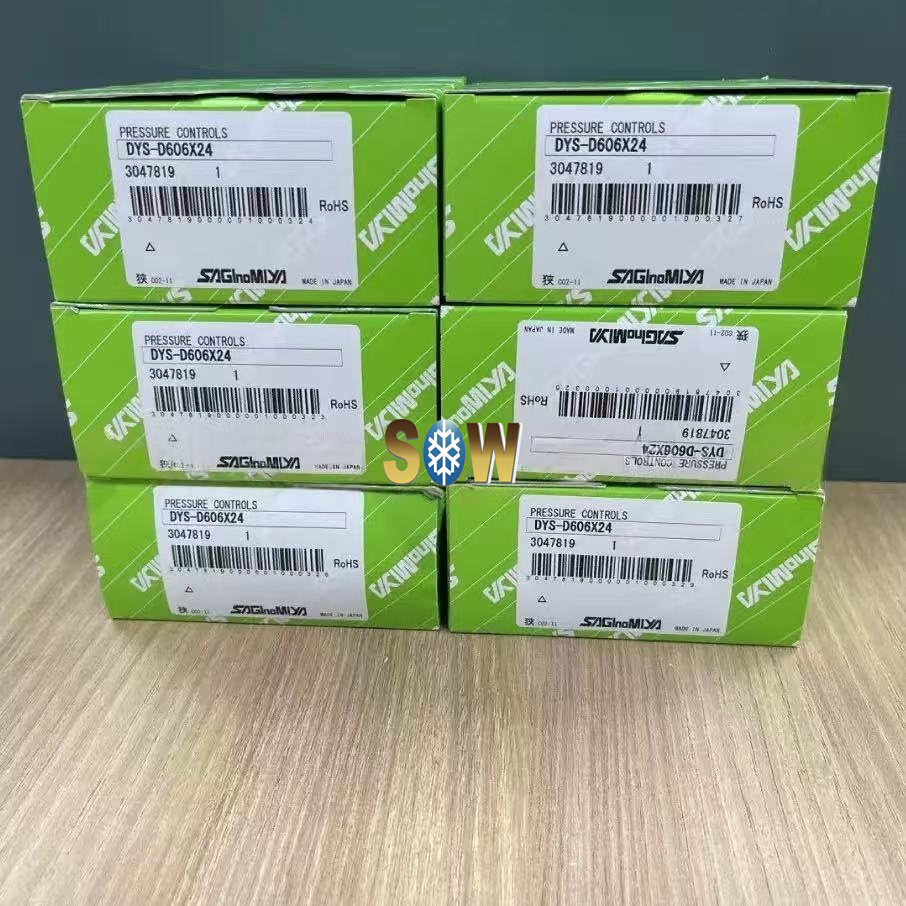

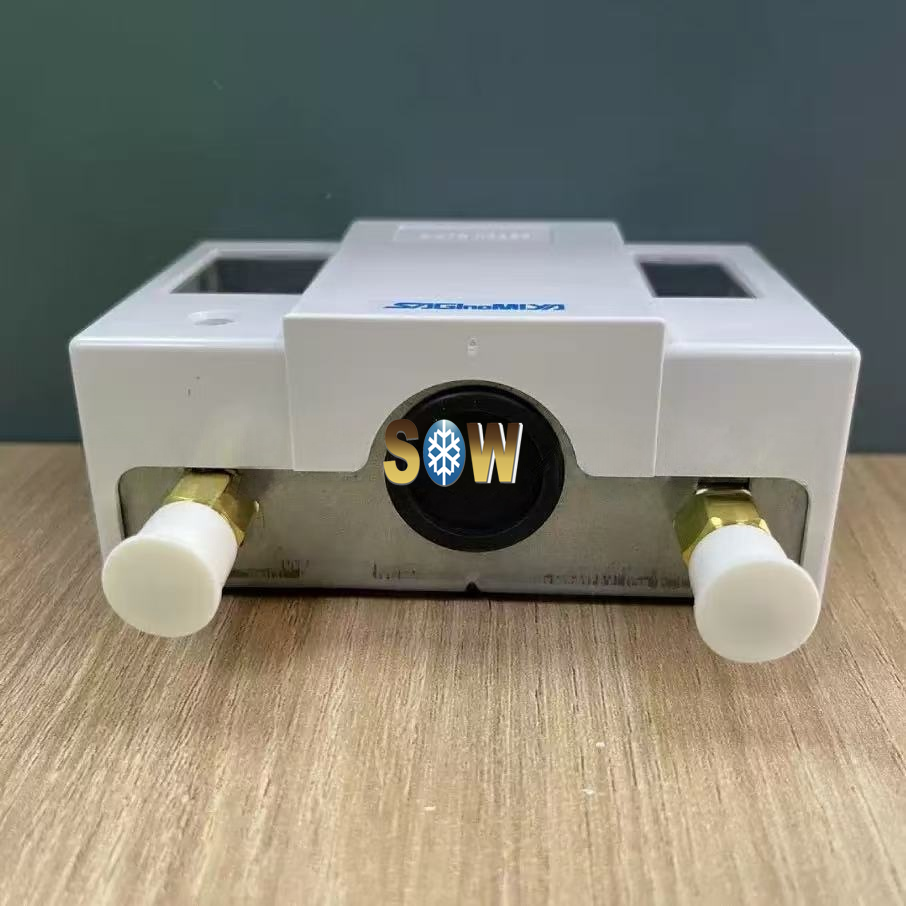

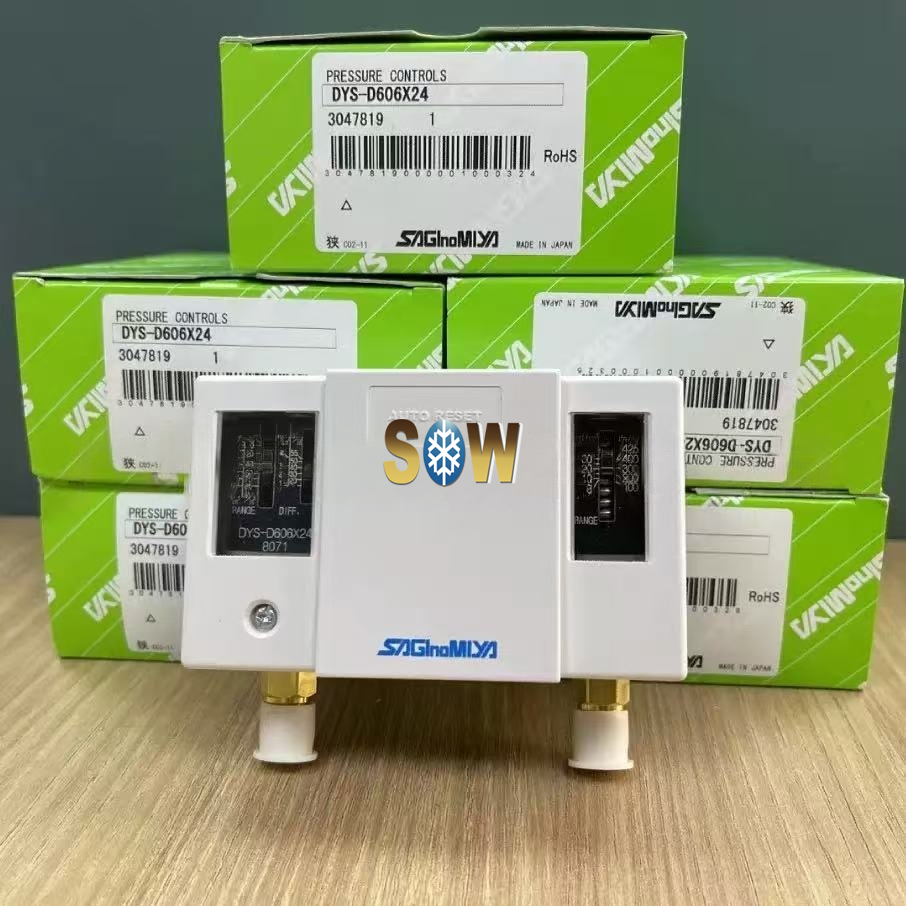

Saginomiya Pressure controls DYS-D606X24

Features

An integrated switch with high-side overpressure protection and low-side control for refrigeration equipment.

Automatic reset, high-pressure manual reset, high- and low-pressure manual reset, and other types available.

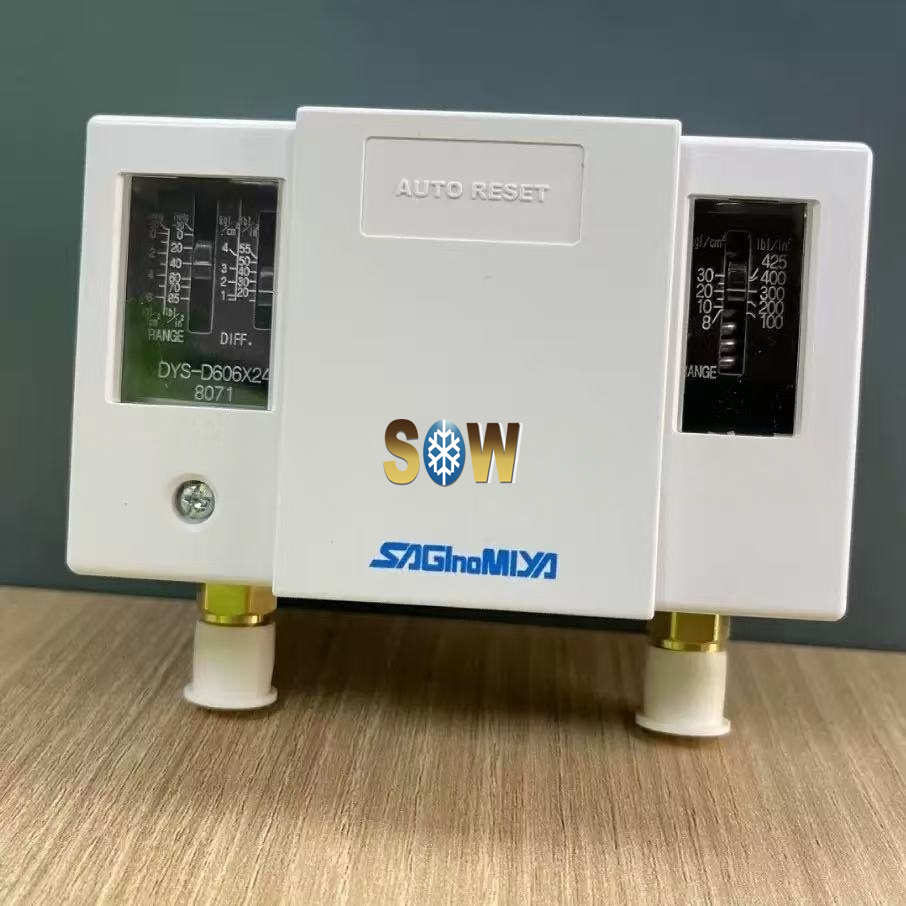

Small, lightweight and large, easy-to-read scale plate.

A variety of products also available that are compliant with CE marking, UL/c-UL, CQC, etc.

Applications

Refrigeration, air conditioners, and various industrial equipment.

Common Specifications

Maximum working pressure: Low-side 1.65 MPa, high-side 3.3 MPa

Airtight test pressure: Low pressure 1.8 MPa, high pressure 4 MPa

Fluid temperature range: -20 to 120℃

Operating ambient temperature range: -20 to 70℃

Enclosure: IP20
