Location:Index--->Product Center >> HVAC Control cools spare parts >> Danfoss Shut-off ball valve, GBC 6s 009L7020


|
|
||||||||||||||||||||||
Product Description

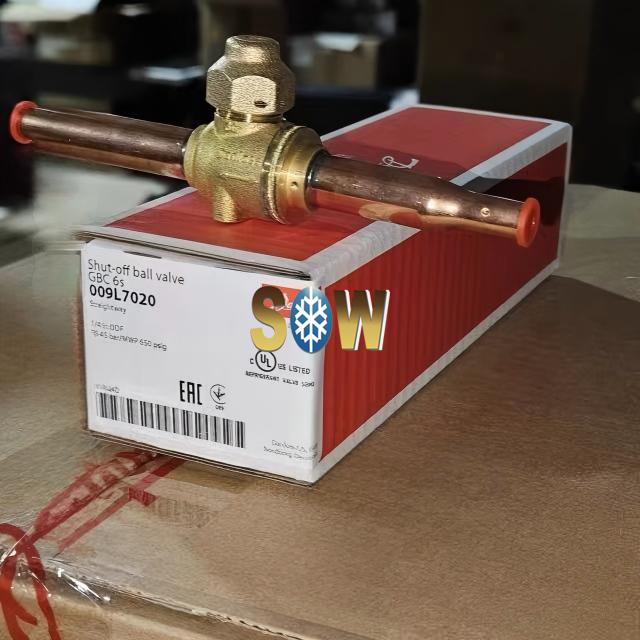

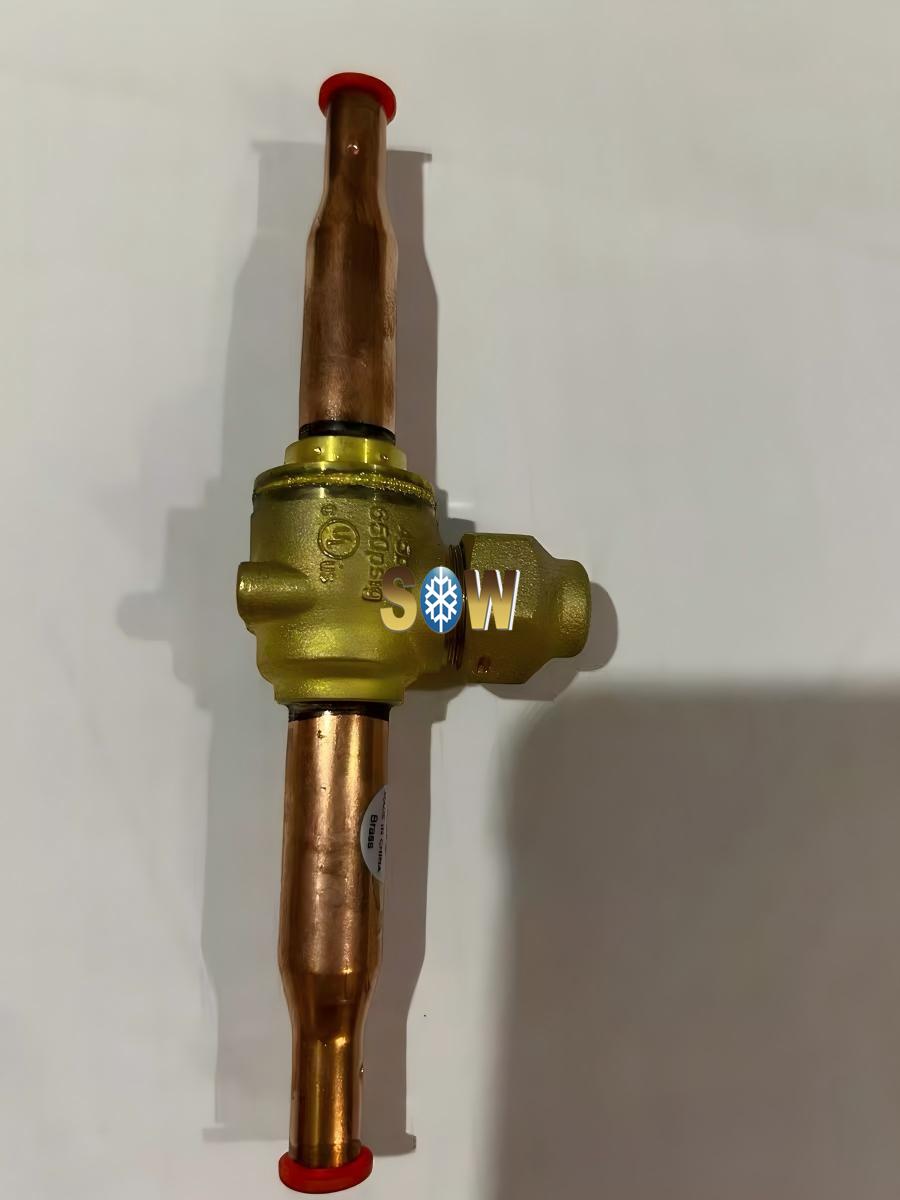

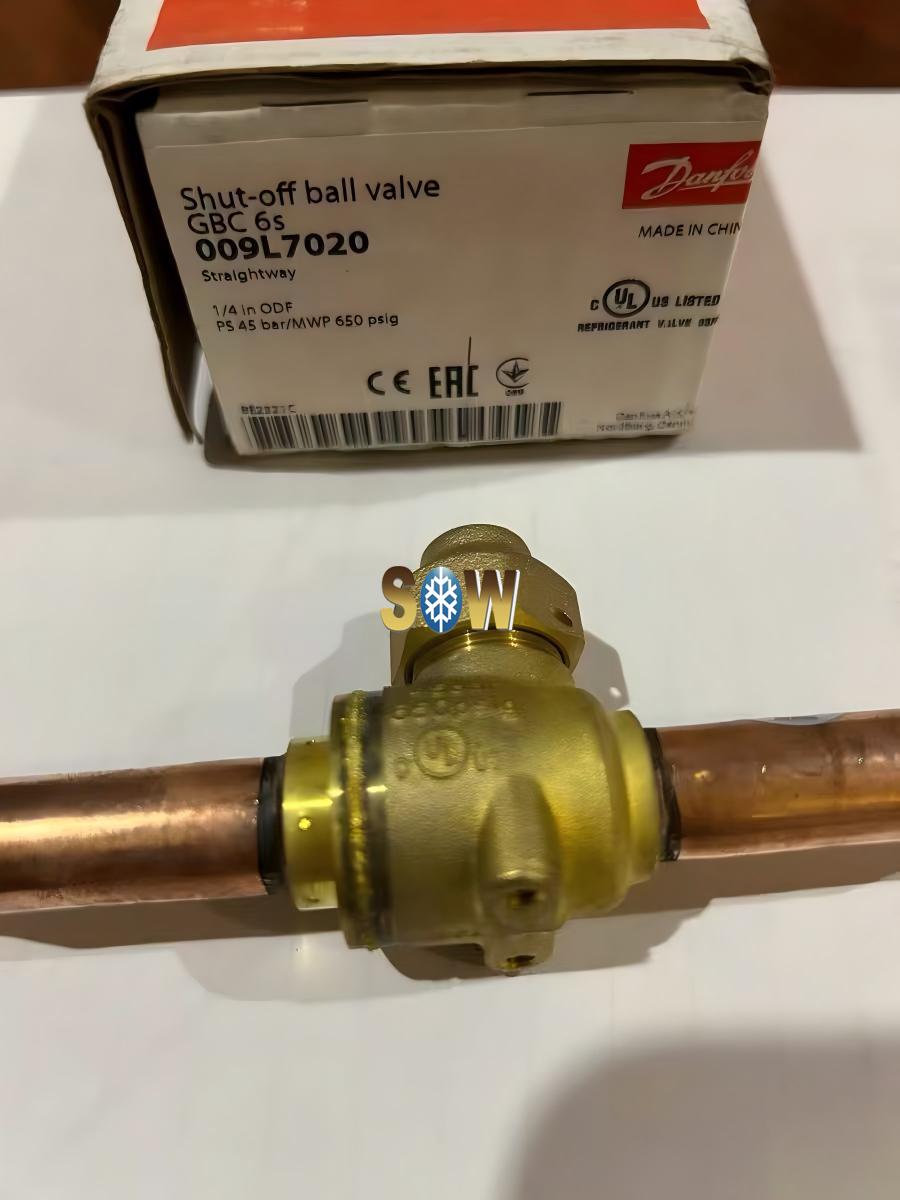

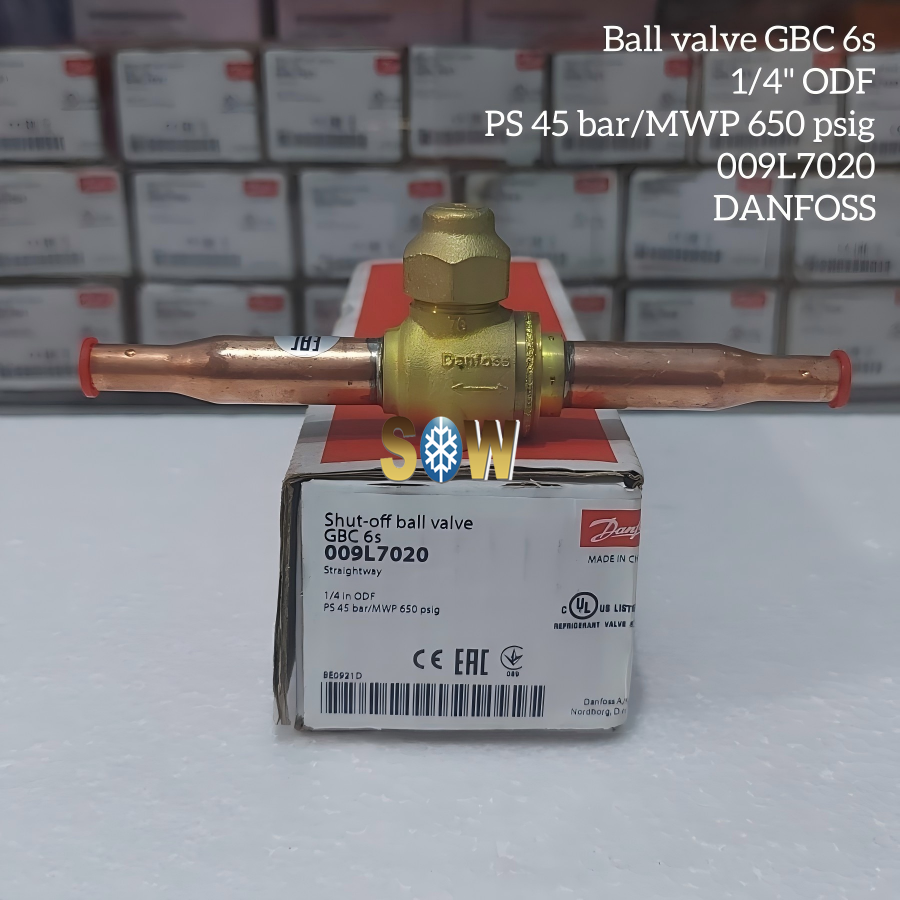

Danfoss Shut-off ball valve, GBC 6s 009L7020
Product details
| Gross weight | 0.182 Kilogram |
| Net weight | 0.131 Kilogram |
| Volume | 0.715 Liter |
| EAN | 5702428515818 |
| Type | GBC 6s |
| Product group | Shut-off and regulating valves |
| Product Name Description | Shut-off ball valve |
| Access port | No |
| Approval | C UL US LISTED EAC |
| Body material | Brass |
| CE mark | Yes |
| China RoHS compliance | Yes with exemptions |
| Connection material | Copper |
| Contains batteries | No |
| Cv value [gal/min] | 2.1 gal/min |
| Direction | Straightway |
| Equipment | Cap w. wire seal |
| EU RoHS compliance | Yes with exemptions |
| EU RoHS exemption clause | 6(c) |
| Flow direction | Bi-flow |
| Flow direction indicator | Embossed 2-way arrow |
| Fluid Group | 1 2 |
| Ignition source assessment | Yes |
| Inlet connection type | Solder, ODF |
| Inlet size [in] | 1/4 in |
| Kv value [m³/h] | 1.83 m³/h |
| Max. media temp. Oil free [°C] | 80 °C |
| Max. Working Pressure [bar] | 45 bar |
| Max. Working Pressure [psig] | 650 psig |
| Oil free refrigerants | R1234ze(E) R134a R513A R515B R516A |
| Outlet connection type | Solder, ODF |
| Outlet size [in] | 1/4 in |
| Packing format | Multi pack |
| Panel mounting option | M3 × 0.5 (2 PC) |
| PED category | Art. 4, par. 3 |
| Product accessories | BM/GBC valve accessories |
| Quantity per packing format | 30 pc |
| REACH Candidate List substances | Lead (CAS no. 7439-92-1) |
| Refrigerants | R1234yf R1234ze(E) R134a R22/R407C R290 R32 R404A/R507A R407A Read more |
| SCIP dossier no. | 3a432833-c1d7-4ceb-a928-46aeb038ec08 |
| SCIP dossier product name | GBC V2 without AP |
| Serviceable | BM/GBC valve spare parts |
| Temperature range [°C] [max] | 100 °C |
| Temperature range [°C] [min] | -40 °C |
| Temperature range [°F] [max] | 212 °F |
| Temperature range [°F] [min] | -40 °F |
| UL approved refrigerants | R1234yf R1234ze(E) R134a R22 R290 R32 R404A R407A Read more |
| UL mark | Yes |
