Location:Index--->Product Center >> HVAC Control cools spare parts >> Danfoss Shut-off diaphragm valve, BML 10 009G0127


|
|
||||||||||||||||||||||
Product Description

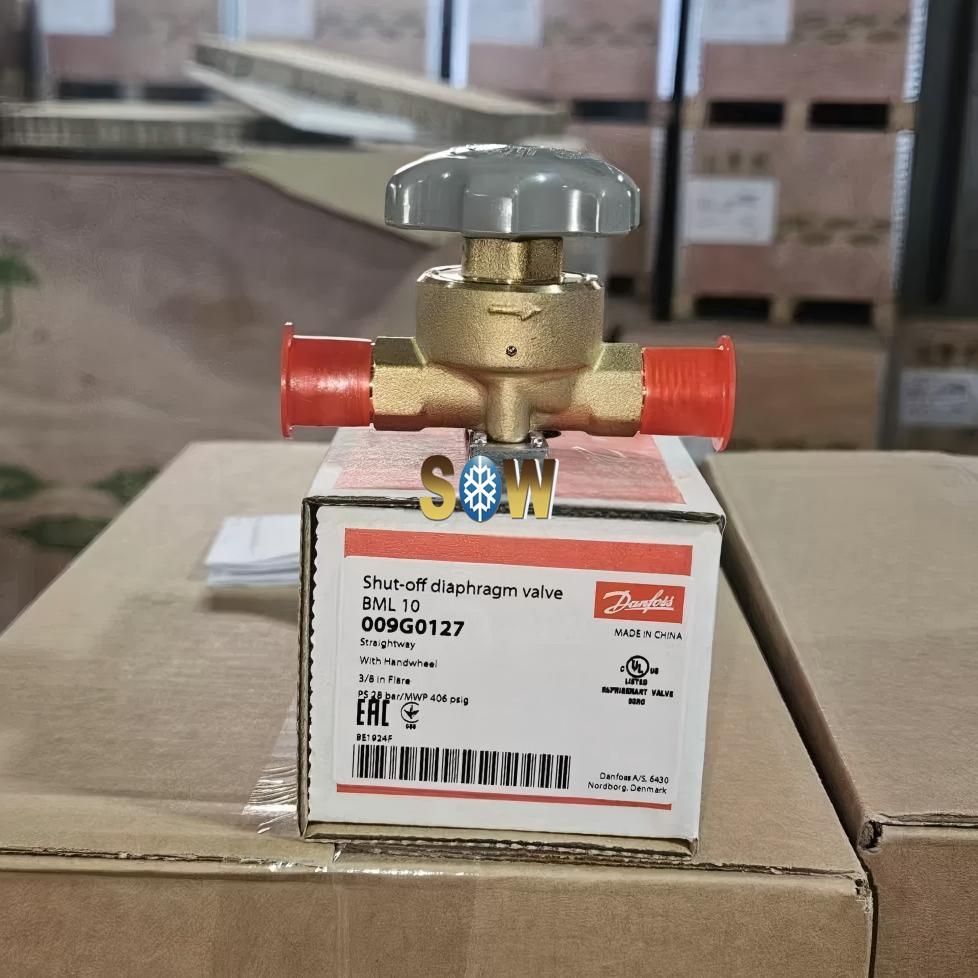

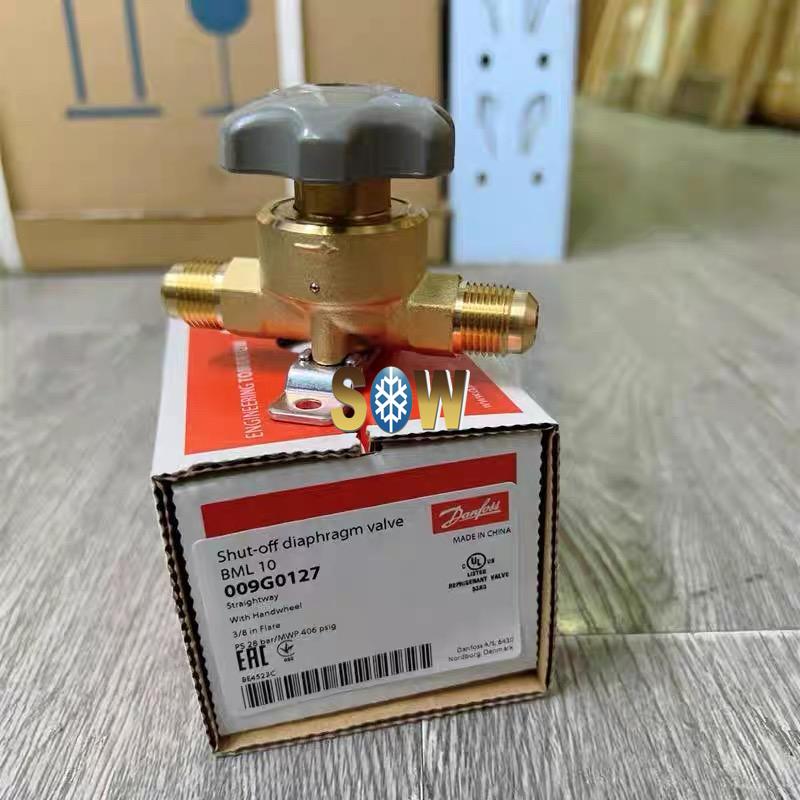

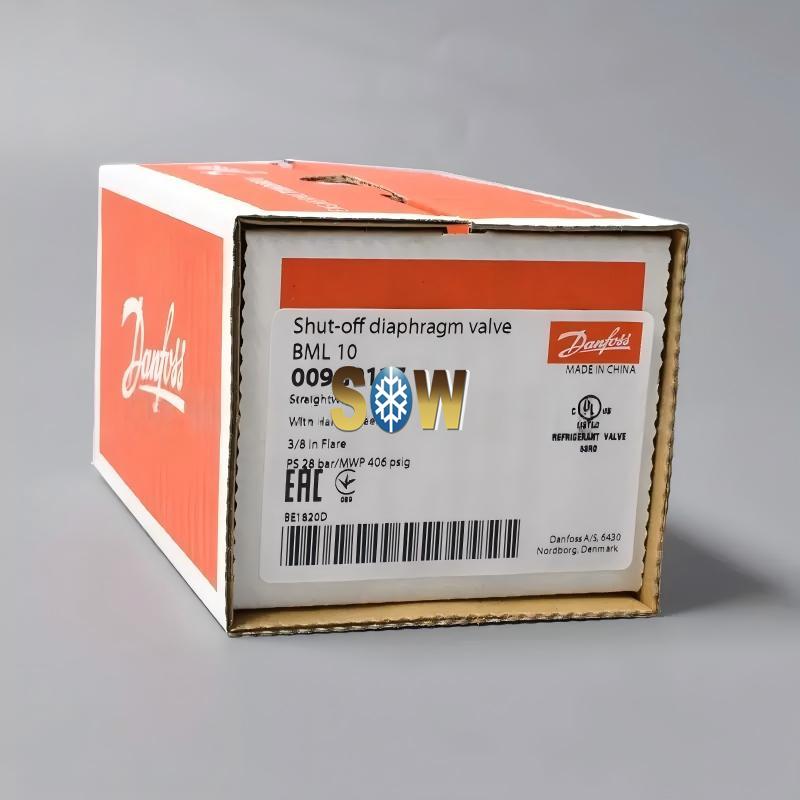

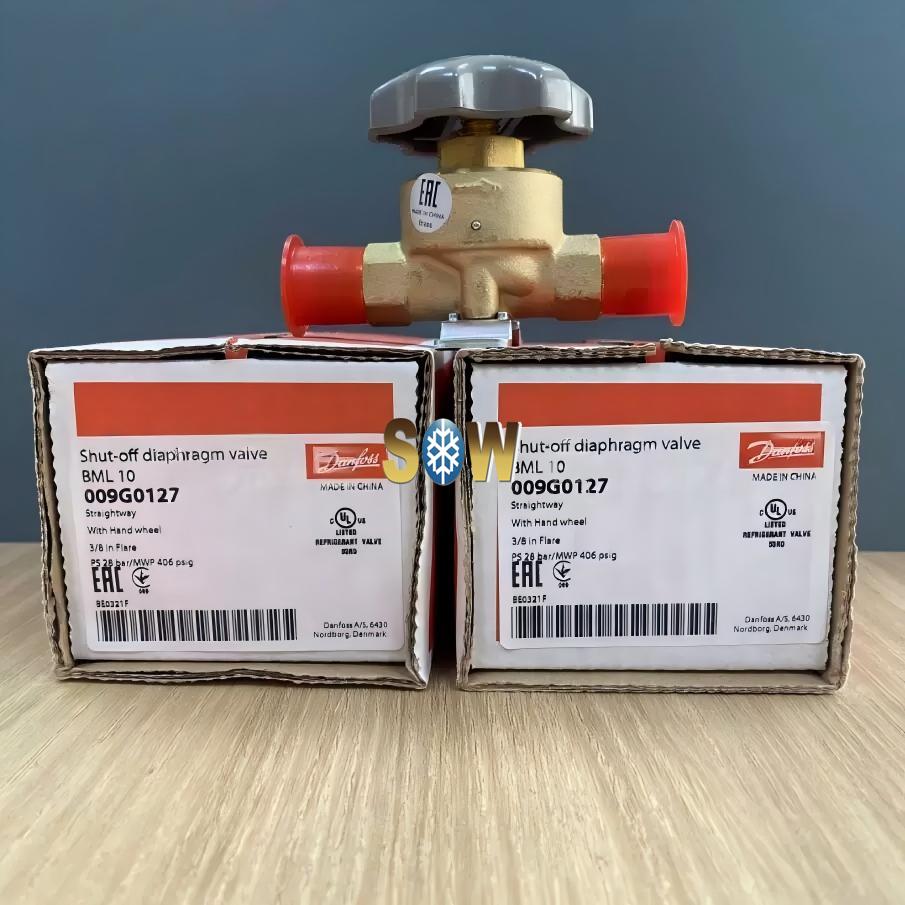

Danfoss Shut-off diaphragm valve, BML 10 009G0127
Product details
| Gross weight | 0.316 Kilogram |
| Net weight | 0.286 Kilogram |
| Volume | 0.704 Liter |
| EAN | 5702422042129 |
| Type | BML 10 |
| Product group | Shut-off and regulating valves |
| Product Name Description | Shut-off diaphragm valve |
| Approval | C UL US LISTED EAC LLC CDC TYSK |
| Body material | Brass |
| Category | Art. 4, par. 3 |
| China RoHS compliance | Yes with exemptions |
| China RoHS exemption clause | 7.3 |
| Connection material | Brass |
| Contains batteries | No |
| Cv value [gal/min] | 0.97 gal/min |
| Direction | Straightway |
| Equipment | Handwheel |
| EU RoHS compliance | Yes with exemptions |
| EU RoHS exemption clause | 6(c) |
| Flow direction indicator | Embossed 1-way arrow |
| Fluid Group | 1 2 |
| Inlet connection type | Flare |
| Inlet size [in] | 3/8 in |
| Kv value [m³/h] | 0.84 m³/h |
| Lubricants compatibility | Oilfree applications |
| Max. test pressure [bar] | 36.4 bar |
| Max. test pressure [psig] | 528 psig |
| Max. Working Pressure [bar] | 28 bar |
| Max. Working Pressure [psig] | 406 psig |
| Oil free refrigerants | R134a R513A R515B |
| Outlet connection type | Flare |
| Outlet size [in] | 3/8 in |
| Packing format | Multi pack |
| Product accessories | BM/GBC valve accessories |
| Quantity per packing format | 20 pc |
| REACH Candidate List substances | Lead (CAS no. 7439-92-1) |
| Refrigerants | R1234yf R134a R22/R407C R404A/R507A R407H R449B R450A R513A Read more |
| SCIP dossier no. | 4713b3ce-0431-444e-9b2b-0f14b47fa788 |
| SCIP dossier product name | BML/BMT |
| Serviceable | BM/GBC valve spare parts |
| Temperature range [°C] [Max] | 100 °C |
| Temperature range [°C] [Min] | -55 °C |
| Temperature range [°F] [Max] | 212 °F |
| Temperature range [°F] [Min] | -67 °F |
| UL approval file name | REFRIGERANT VALVE 53R0 |
| UL approved refrigerants | R134a R22 R404A R407C R407H R449B R450A R507A Read more |
| UL evaluated | Yes |
| Working range [bar] [Max] | 21 bar |
| Working range [bar] [Min] | -1 bar |
| Working range [psig] [Max] | 304 psig |
| Working range [psig] [Min] | -14 psig |
| Proposition 65 |
