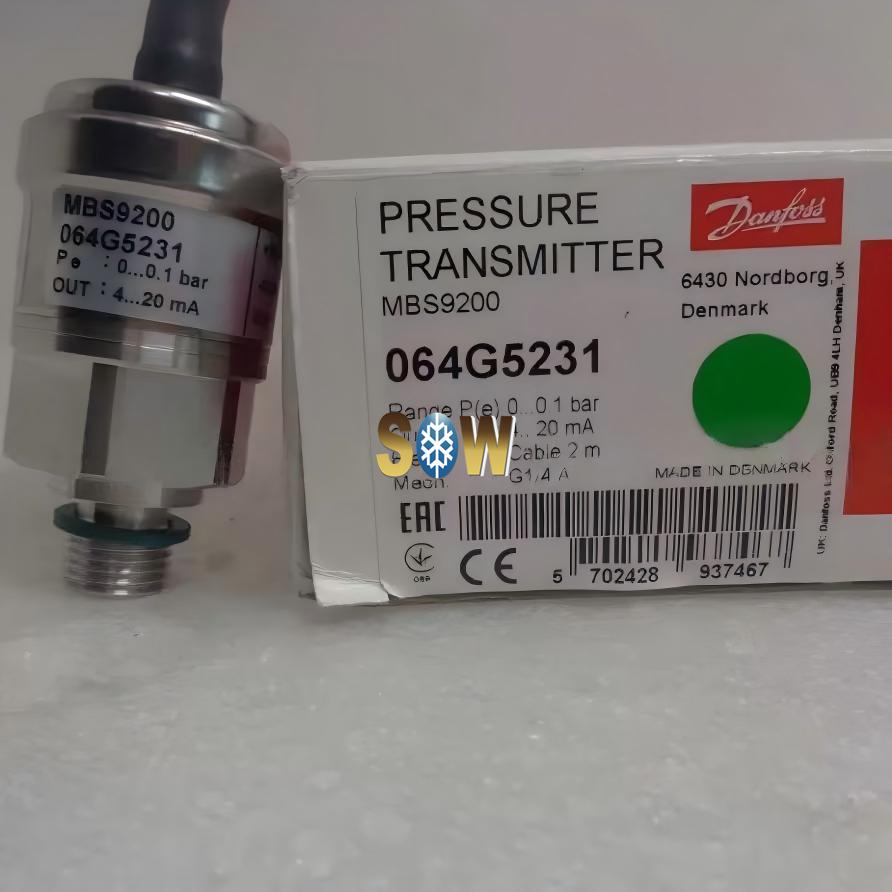

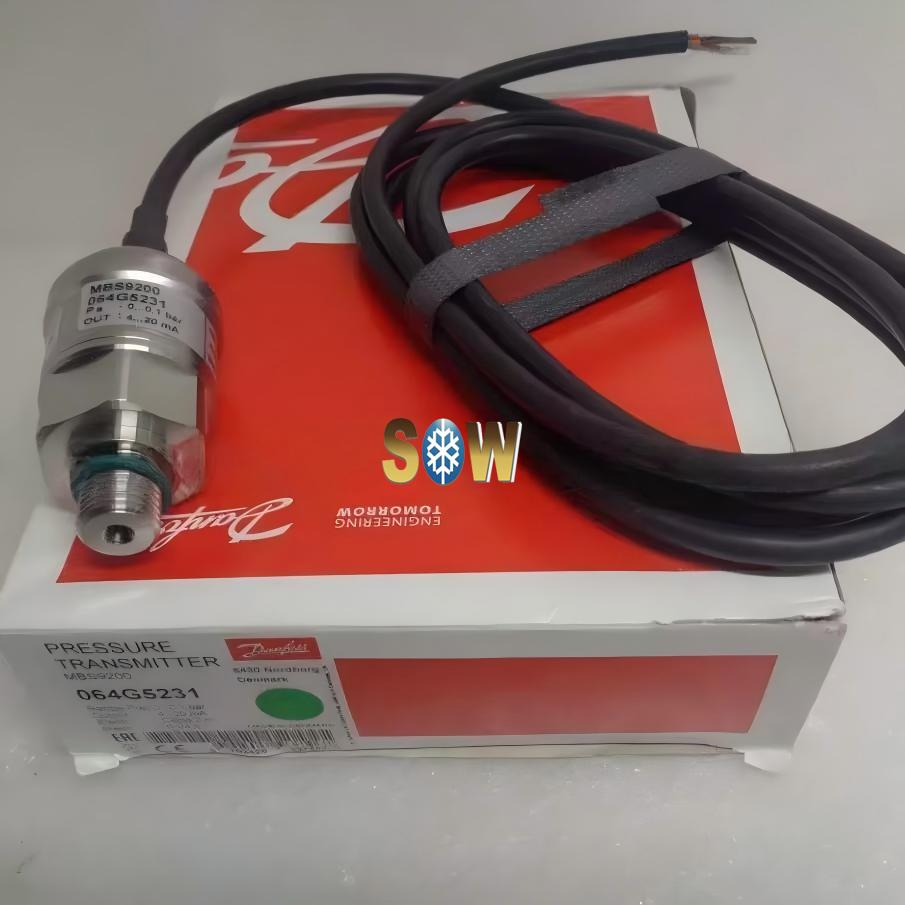

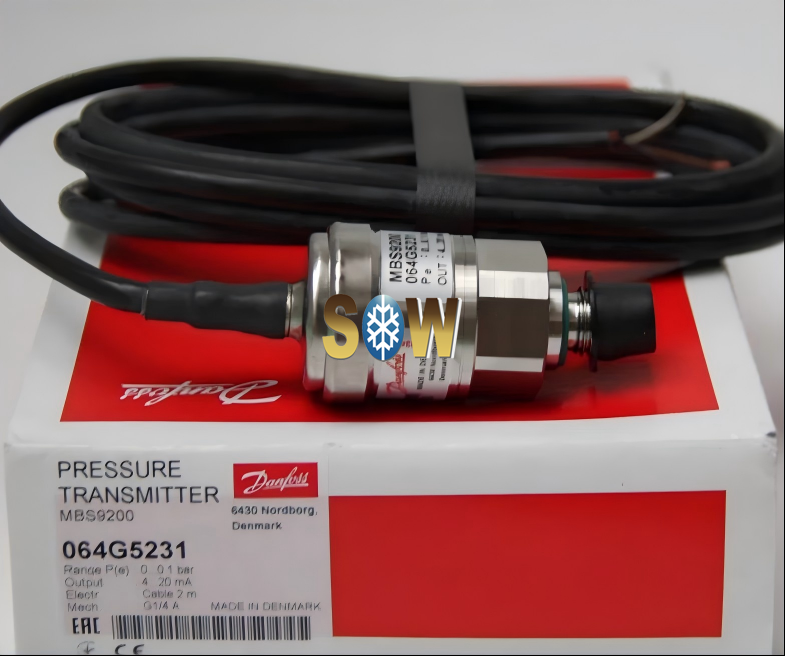

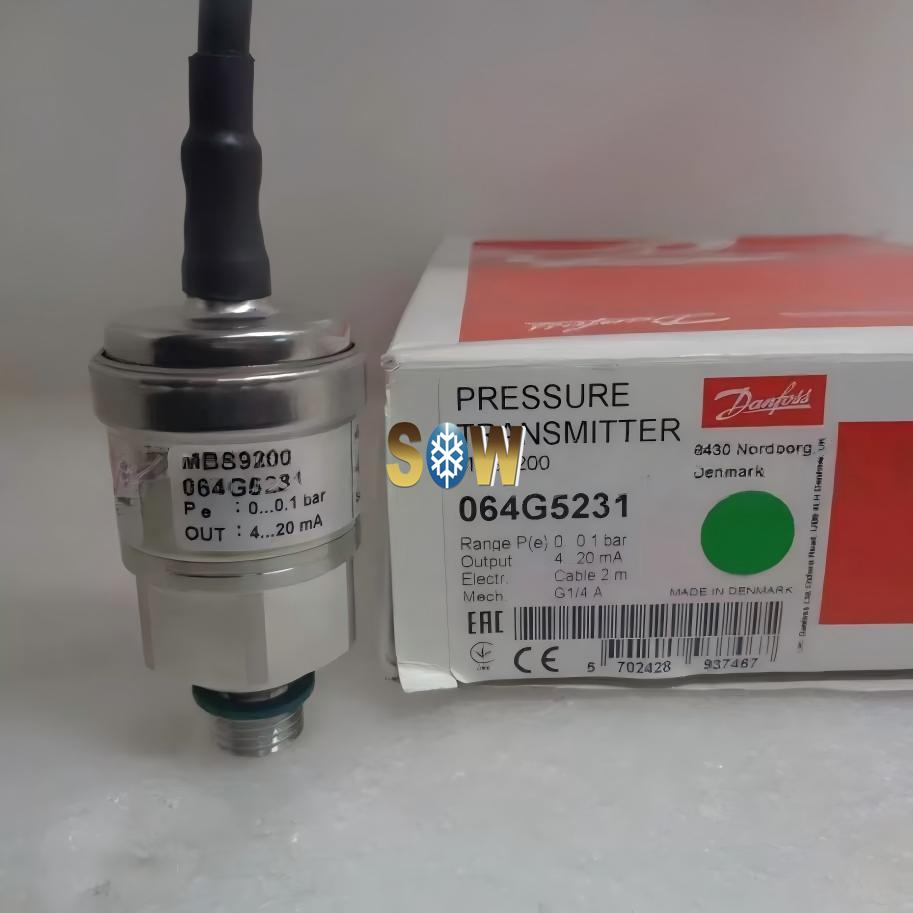

Name:	Danfoss Pressure transmitter, MBS 9200,064G5231
Brand:	Danfoss
Model No.:	MBS 9200
Part No.:	064G5231
Country of origin:	Denmark
G.W:	0.274kgs/pc
Pressure range [bar]:	0 mbar - 100 mbar,
Electrical connection:	Cable
Pressure connection type:	G
Pressure connection size:	1/4
Specification key:	MBS 9200-B311-A3GB04-1

Danfoss Pressure transmitter, MBS 9200,064G5231

Product details

+ supply	Brown
- common	Black
Acc. @ ref. Temp. ±FS typ. [%]	1 %
Ambient temperature range [°C] [max]	100 °C
Ambient temperature range [°C] [min]	-25 °C
Approval	C UL US UL Recognized CE
Burst pressure [bar]	50 bar
Cable length [in]	79 in
Cable length [m]	2 m
CE evaluated	Yes
China RoHS compliance	Out of scope
Compensated temp. range [°C] [Max]	80 °C
Compensated temp. range [°C] [Min]	0 °C
Contains batteries	No
Durability P @ 10-90% FS	10000000
EEE category	5 small equipment (any external dimension < 50 cm)
Electrical conn. comments	Screened Cable
Electrical conn. Male/Female	Male and Female
Electrical connection	Cable
Electrical connection size	4 wire
Enclosure rating IP	IP65
EU RoHS compliance	Yes with exemptions
EU RoHS exemption clause	6(c)
Hysteresis and repeat. ±FS[%]	0.1 %
In scope of WEEE	Yes
Intrinsically safe	No
Medium temperature range [°C] [Max]	125 °C
Medium temperature range [°C] [Min]	-20 °C
Medium temperature range [°F] [Max]	257 °F
Medium temperature range [°F] [Min]	-4 °F
Mount.pos. err. @ 180° ±FS(%)	0.5 %
Non-linearity BFSL ±FS [%]	0.2 %

Output signal	Current
Output signal [mA] [Max]	20 mA
Output signal [mA] [Min]	4 mA
Overload pressure max. [bar]	3.5 bar
Packing format	Multi pack
Pressure connection HEX [mm]	27 mm
Pressure connection notes	A
Pressure connection size	1/4
Pressure connection standard	DIN 3852-E
Pressure connection type	G
Pressure Male/Female	Male
Pressure range [mbar] [max]	100 mbar
Pressure range [mbar] [min]	0 mbar
Pressure range [psi] [Max]	1.45 psi
Pressure range [psi] [Min]	0 psi
Pressure unit reference	Gauge (relative)
Pulse-snubber	No
Quantity per packing format	8 pc
REACH Candidate List substances	Lead (CAS no. 7439-92-1)
Recommen. mounting torque [Nm]	25 Nm
Reference temperature [°C]	25 °C
SCIP dossier no.	16d2efc6-64f3-4a4e-ae98-a3fd7ce0218d
SCIP dossier product name	AKS/MBS
Specification key	MBS 9200-B311-A3GB04-1
Storage temperature range [°C] [Max]	125 °C
Storage temperature range [°C] [Min]	-40 °C
Storage temperature range [°F] [Max]	257 °F
Storage temperature range [°F] [Min]	-40 °F
Supply voltage [V] DC [max]	32 V
Supply voltage [V] DC [min]	9 V
TEB inside CTR ±FS [%]	2 %
UL evaluated	Yes
