Danfoss Hand operated regulating valve, REG-SB 25,148B5429-Product Center-Star-Worths Refrigeration Co.,Ltd.-

Name:	Danfoss Hand operated regulating valve, REG-SB 25,148B5429
Brand:	Danfoss
Model No.:	REG-SB 25
Part No.:	148B5429
Country of origin:	China
G.W:	4.72kgs/pc
Material:	Steel
Outlet connection size [mm]:	25
Inlet connection size [mm]:	25
Inlet connection type:	Butt weld
Outlet connection type:	Butt weld
Kv value [m³/h]:	20
Max. Working Pressure [bar]:	52

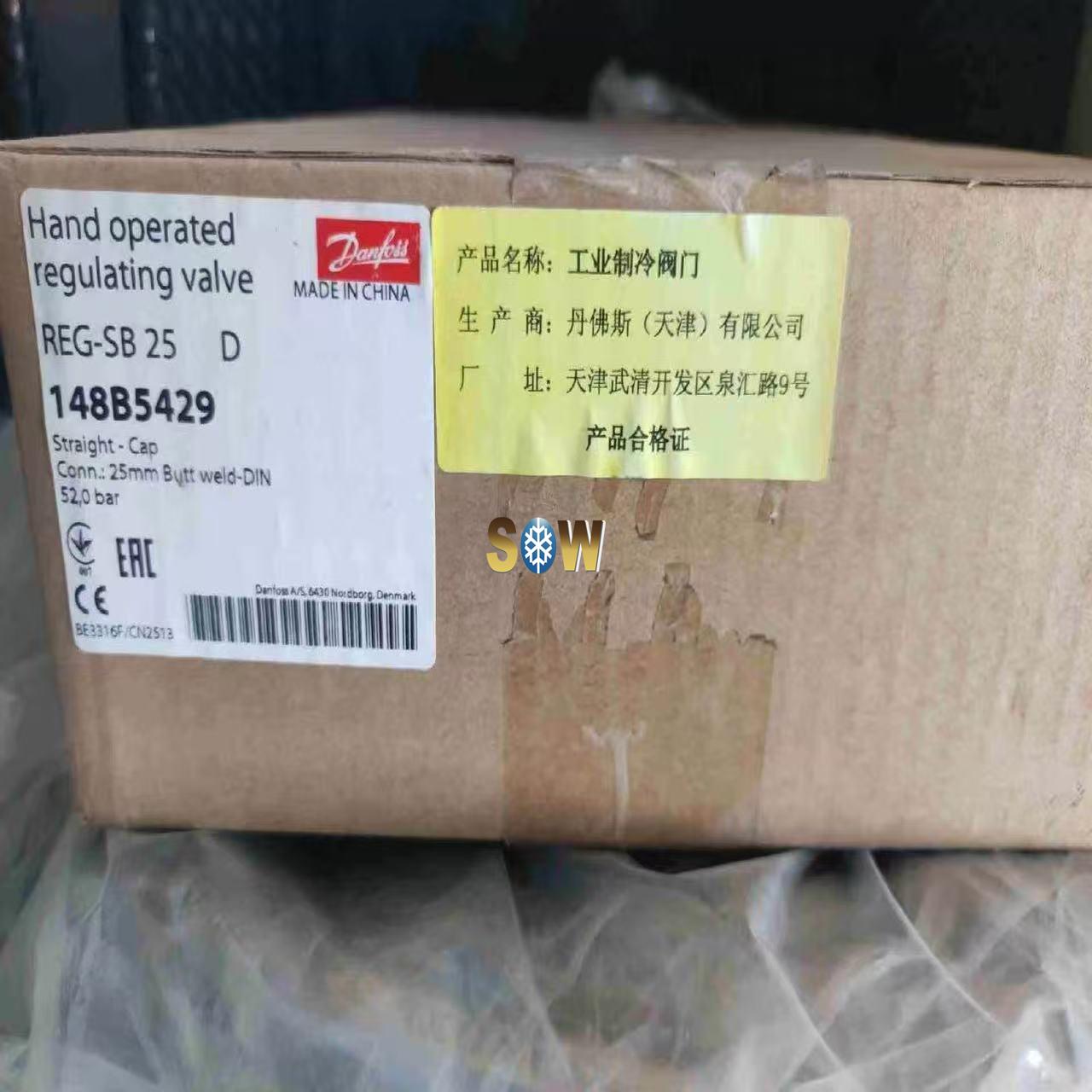

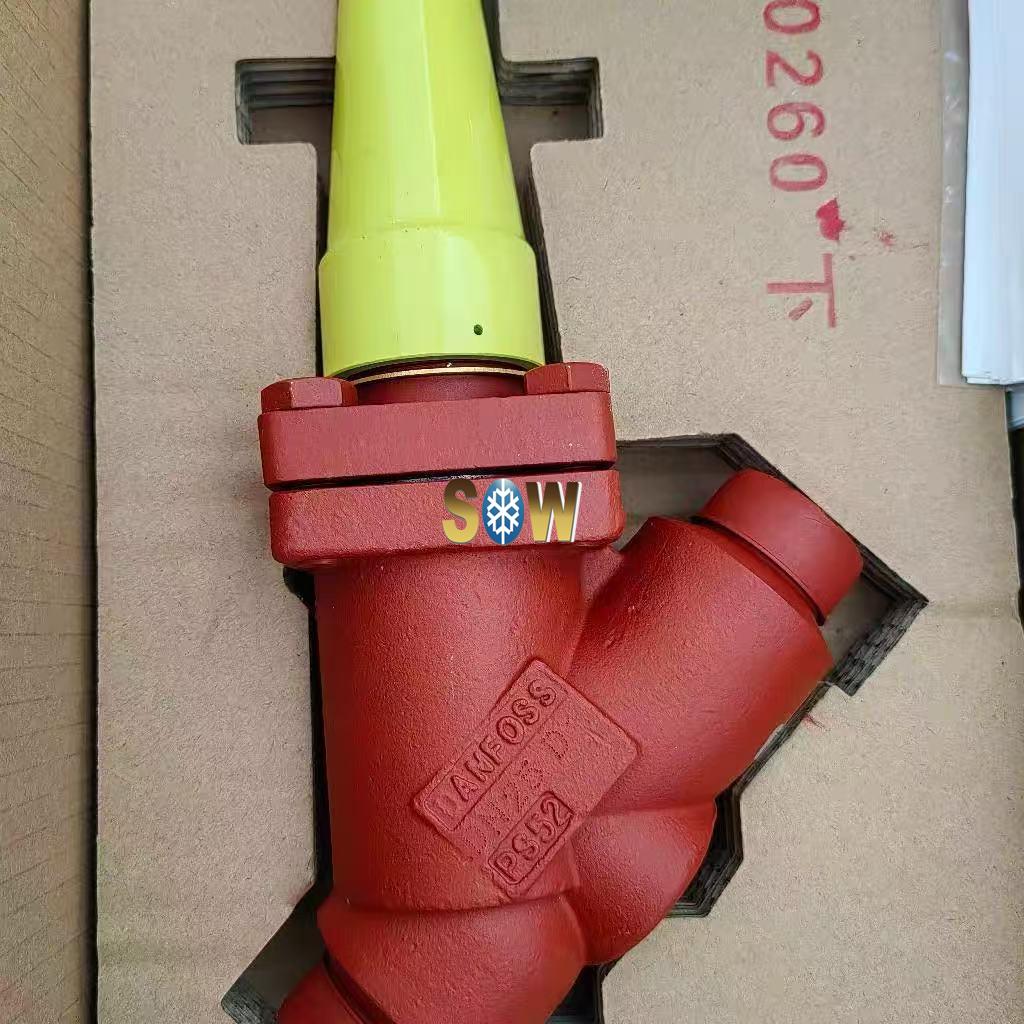

Danfoss Hand operated regulating valve, REG-SB 25,148B5429

Product details

Type	REG-SB 25
Product group	Shut-off and regulating valves
Product Name Description	Hand operated regulating valve

Kv value [m³/h]	20 m³/h
Max. Working Pressure [bar]	52 bar
Max. Working Pressure [psig]	754 psig
Neck	Standard
Outlet connection size [in]	1 in
Outlet connection size [mm]	25 mm
Outlet connection type	Butt weld
Packing format	Single pack
Parts Program name	REG-SA / REG-SB
PED category	Art. 3, par. 3
Product accessories	SVL Flexline accessories
Product description	Hand Regulating Valve
Quantity per packing format	1 pc
REACH Candidate List substances	No
Refrigerants	R134a R22 R290 R401A R402A R404A R407A R407B Read more
Serviceable	SVL Flexline spare parts
Temperature range [°C] [max]	150 °C
Temperature range [°C] [min]	-60 °C
Temperature range [°F] [max]	302 °F
Temperature range [°F] [min]	-76 °F
Valve version	Standard version
