Product Description

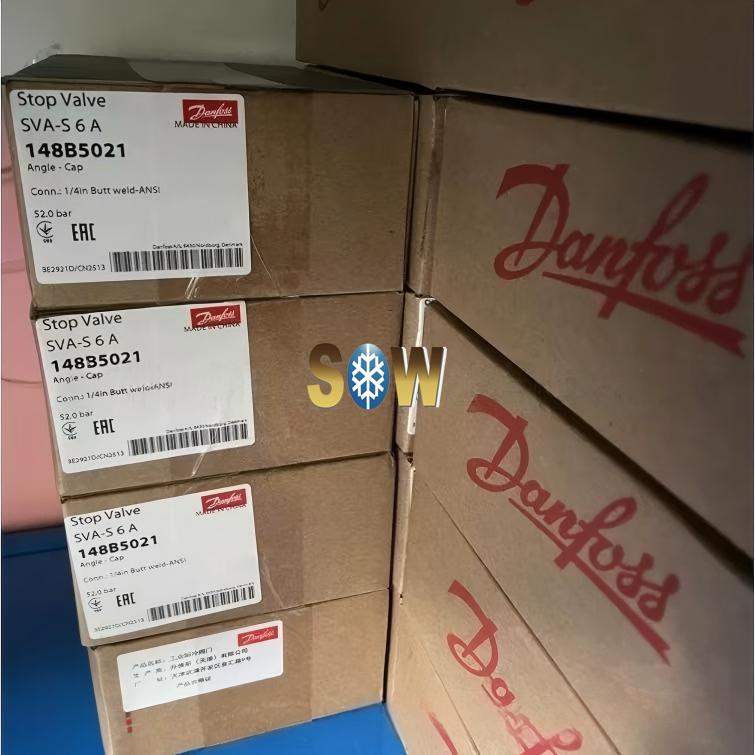

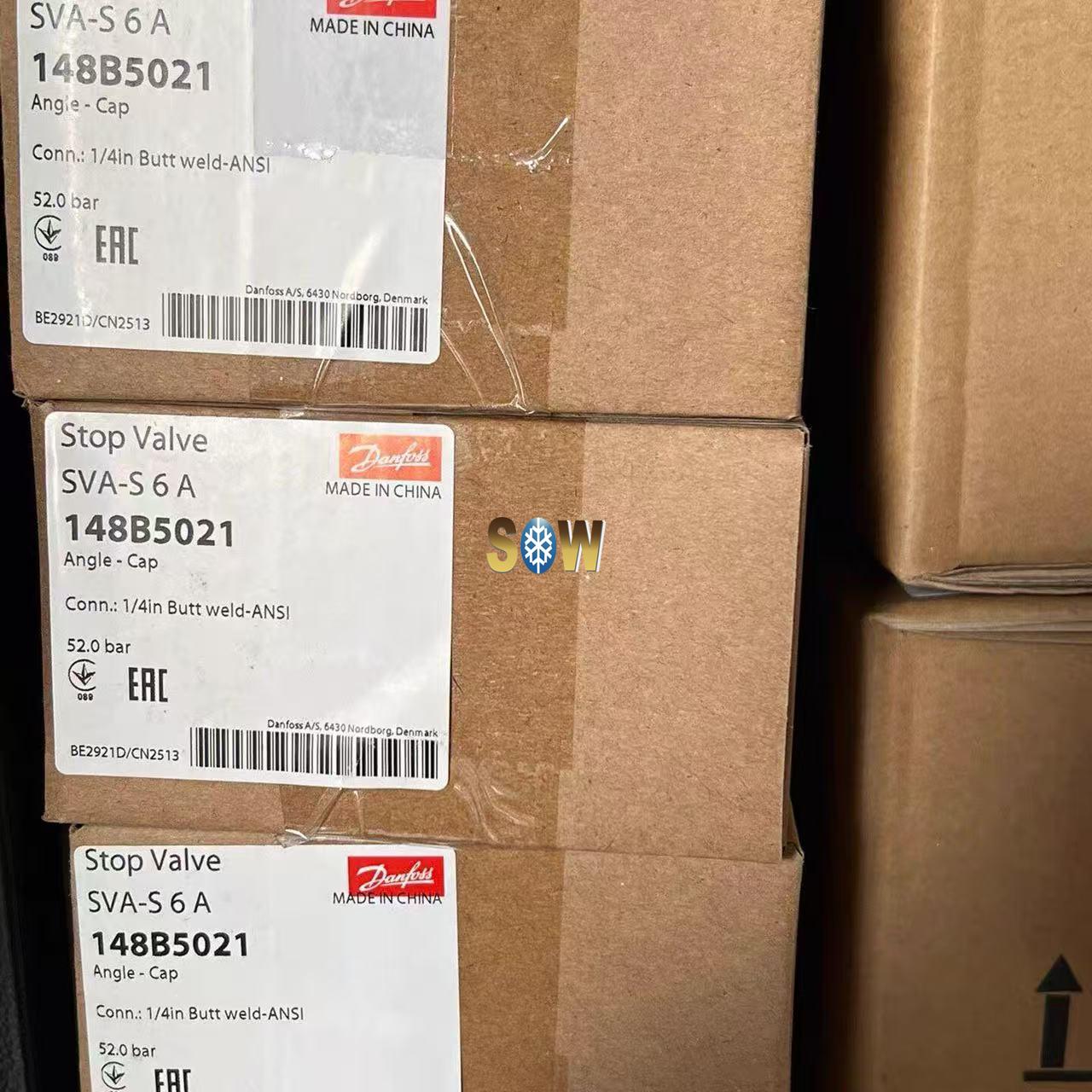

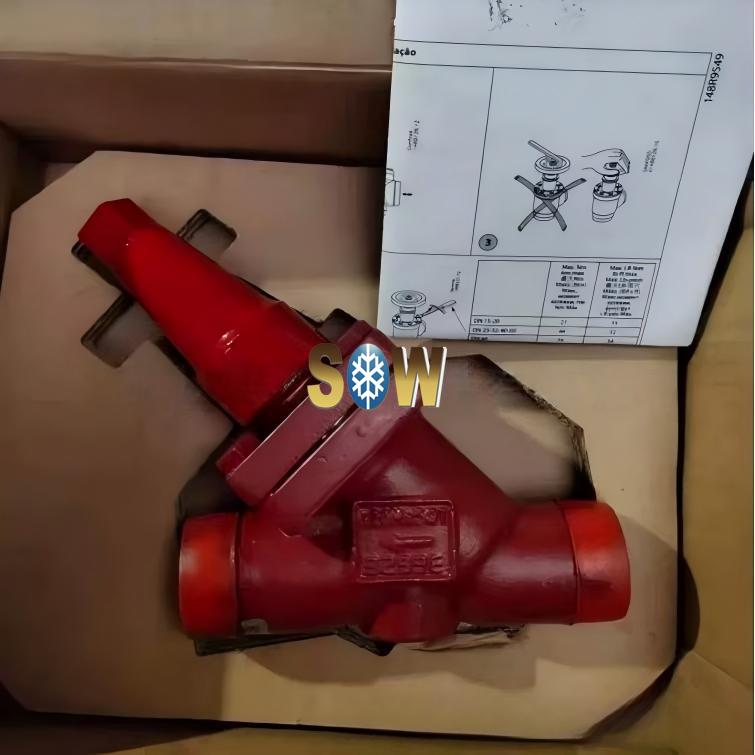

Danfoss Shut-off valve, SVA-S 6,148B5021
Product details
| Gross weight | 0.61 Kilogram |
| Net weight | 0.41 Kilogram |
| Volume | 1.724 Liter |
| EAN | 5702428471572 |
| Type | SVA-S 6 |
| Product group | Shut-off and regulating valves |
| Product Name Description | Shut-off valve |
| Approval | EAC LLC CDC TYSK |
| Body material | Steel |
| Brand | SVL Flexline |
| CE mark | Yes |
| China RoHS compliance | Yes with exemptions |
| China RoHS exemption clause | 7.1 7.2 |
| Colour Paint | Reddish brown |
| Connection material | Steel |
| Connection standard | ASME B 36.10M SCHEDULE 80 |
| Contains batteries | No |
| Cv value [gal/min] | 3.4 gal/min |
| Direction | Angleway |
| Equipment | Cap |
| EU RoHS compliance | Yes with exemptions |
| EU RoHS exemption clause | 6(a) 6(b) |
| Flow direction | Bi-flow |
| Flow direction indicator | Embossed 1-way arrow |
| Fluid Group | 1 |
| Inlet connection size [in] | 1/4 in |
| Inlet connection size [mm] | 6 mm |
| Inlet connection type | Butt weld |
| Kv value [m³/h] | 2.9 m³/h |
| Max. Working Pressure [bar] | 52 bar |
| Max. Working Pressure [psig] | 754 psig |
| Neck | Standard |
| Outlet connection size [in] | 1/4 in |
| Outlet connection size [mm] | 6 mm |
| Outlet connection type | Butt weld |
| Packing format | Single pack |
| Parts Program name | SVA-S / SVA-L |
| PED category | Art. 3, par. 3 |
| Product accessories | SVL Flexline accessories |
| Product description | Stop valve |
| Quantity per packing format | 1 pc |
| REACH Candidate List substances | Lead (CAS no. 7439-92-1) |
| Refrigerants | R113 R114 R1234yf R1234ze(E) R125 R1270 R1336mzz(Z) R134a Read more |
| SCIP dossier no. | b095c3f5-98c7-41bb-8596-f3bb1f50ef02 |
| SCIP dossier product name | SVA |
| Serviceable | SVL Flexline spare parts |
| Temperature range [°C] [max] | 150 °C |
| Temperature range [°C] [min] | -60 °C |
| Temperature range [°F] [max] | 302 °F |
| Temperature range [°F] [min] | -76 °F |
| Valve version | Standard version |
