Location:Index--->Product Center >> HVAC Control cools spare parts >> Danfoss Strainers, FIA 40 148B5625


|
|
||||||||||||||||||||
Product Description

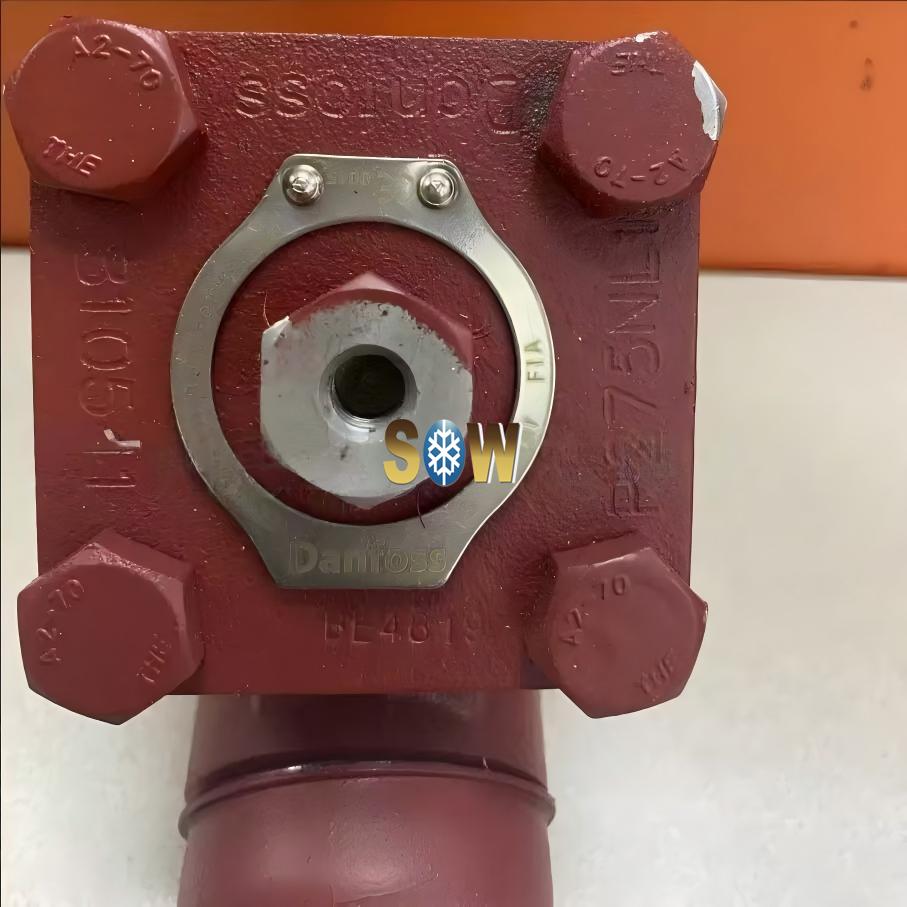

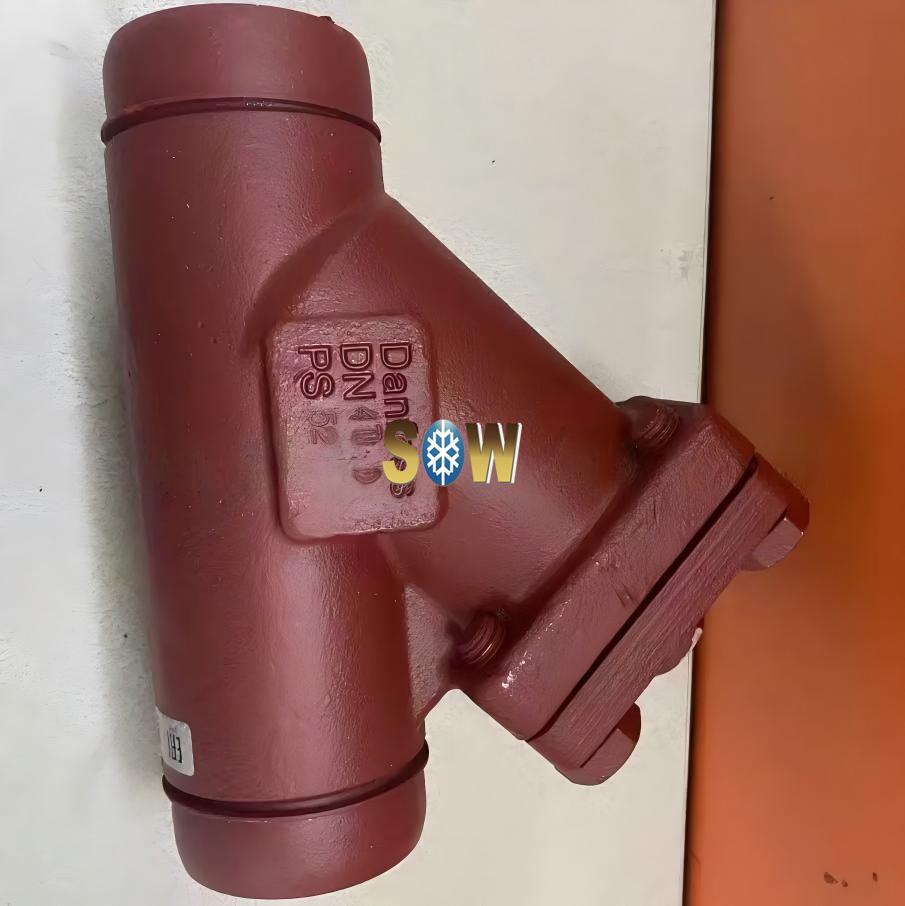

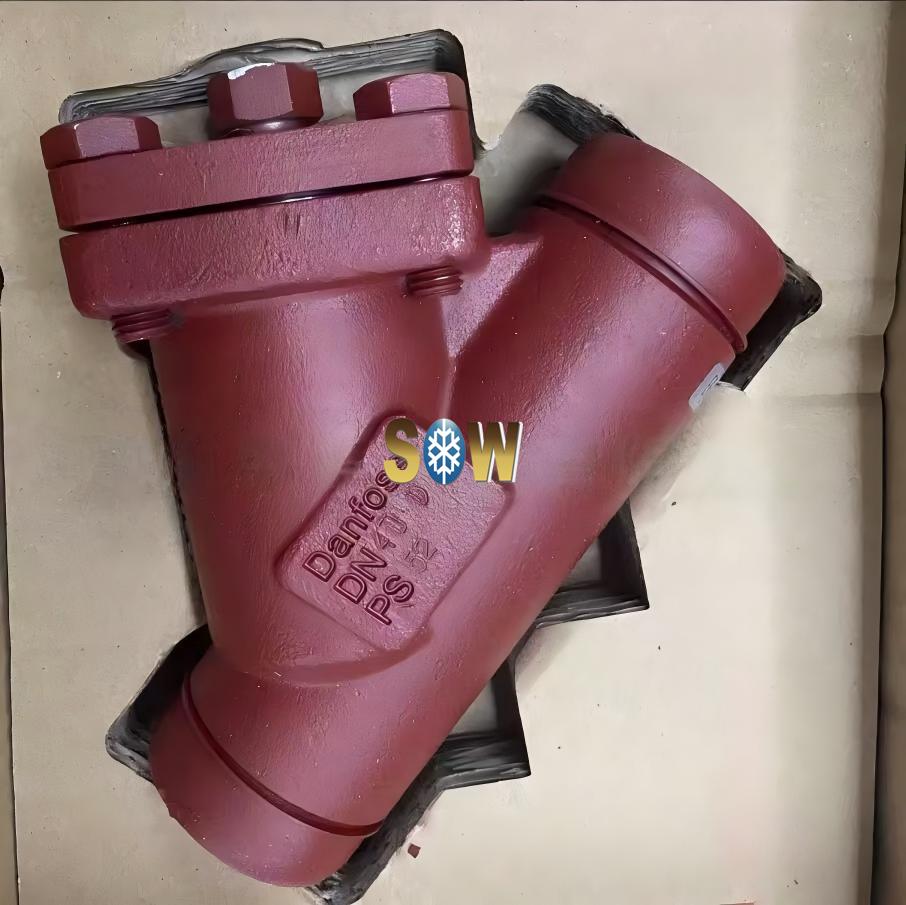

Danfoss Strainers, FIA 40 148B5625
Product details
| Gross weight | 2.982 Kilogram |
| Net weight | 2.75 Kilogram |
| Volume | 5.372 Liter |
| EAN | 5702428477277 |
| Type | FIA 40 |
| Product group | Strainers |
| Product Name Description | Strainer housing |
| Approval | CE |
| Brand | SVL Flexline |
| CE mark | Yes |
| China RoHS compliance | Yes |
| China RoHS exemption clause | No |
| Colour Paint | Reddish brown |
| Connection material | Steel |
| Connection standard | EN 10220 |
| Contains batteries | No |
| Cv value [gal/min] 100 plain | 85.86 gal/min |
| Cv value [gal/min] 100 pleated | 112.27 gal/min |
| Cv value [gal/min] 150 plain | 84.54 gal/min |
| Cv value [gal/min] 38 plain | 94.66 gal/min |
| Cv value [gal/min] 72 plain | 88.94 gal/min |
| Cv value [gal/min] 72 pleated | 116.24 gal/min |
| Direction | Straightway |
| Equipment | Cover |
| EU RoHS compliance | Yes |
| EU RoHS exemption clause | No |
| Flow direction indicator | Embossed 1-way arrow |
| Fluid Group | 1 2 |
| Inlet connection size [in] | 1 1/2 in |
| Inlet connection size [mm] | 40 mm |
| Inlet connection type | Butt weld |
| Kv value [m3/h] µ100 plain | 19.2 m³/h |
| Kv value [m3/h] µ150 plain | 19.5 m³/h |
| Kv value [m3/h] µ150 pleated | 25.5 m³/h |
| Kv value [m3/h] µ250 plain | 20.2 m³/h |
| Kv value [m3/h] µ250 pleated | 26.4 m³/h |
| Kv value [m3/h] µ500 plain | 21.5 m³/h |
| Max. Working Pressure [bar] | 52 bar |
| Max. Working Pressure [psig] | 754 psig |
| Outlet connection size [in] | 1 1/2 in |
| Outlet connection size [mm] | 40 mm |
| Outlet connection type | Butt weld |
| Packing format | Single pack |
| Parts Program name | FIA |
| PED category | II |
| Product accessories | SVL Flexline accessories |
| Product description | Filter housing |
| Quantity per packing format | 1 pc |
| REACH Candidate List substances | No |
| Refrigerants | R113 R114 R1233zd(E) R1234yf R1234ze(E) R125 R1270 R1336mzz(Z) Read more |
| Serviceable | SVL Flexline spare parts |
| Temperature range [°C] [max] | 150 °C |
| Temperature range [°C] [min] | -60 °C |
| Temperature range [°F] [max] | 302 °F |
| Temperature range [°F] [min] | -76 °F |
| Valve version | Standard version |
