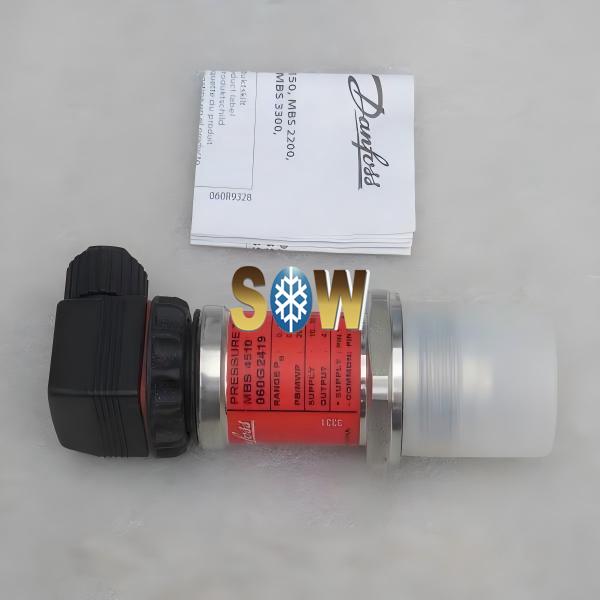

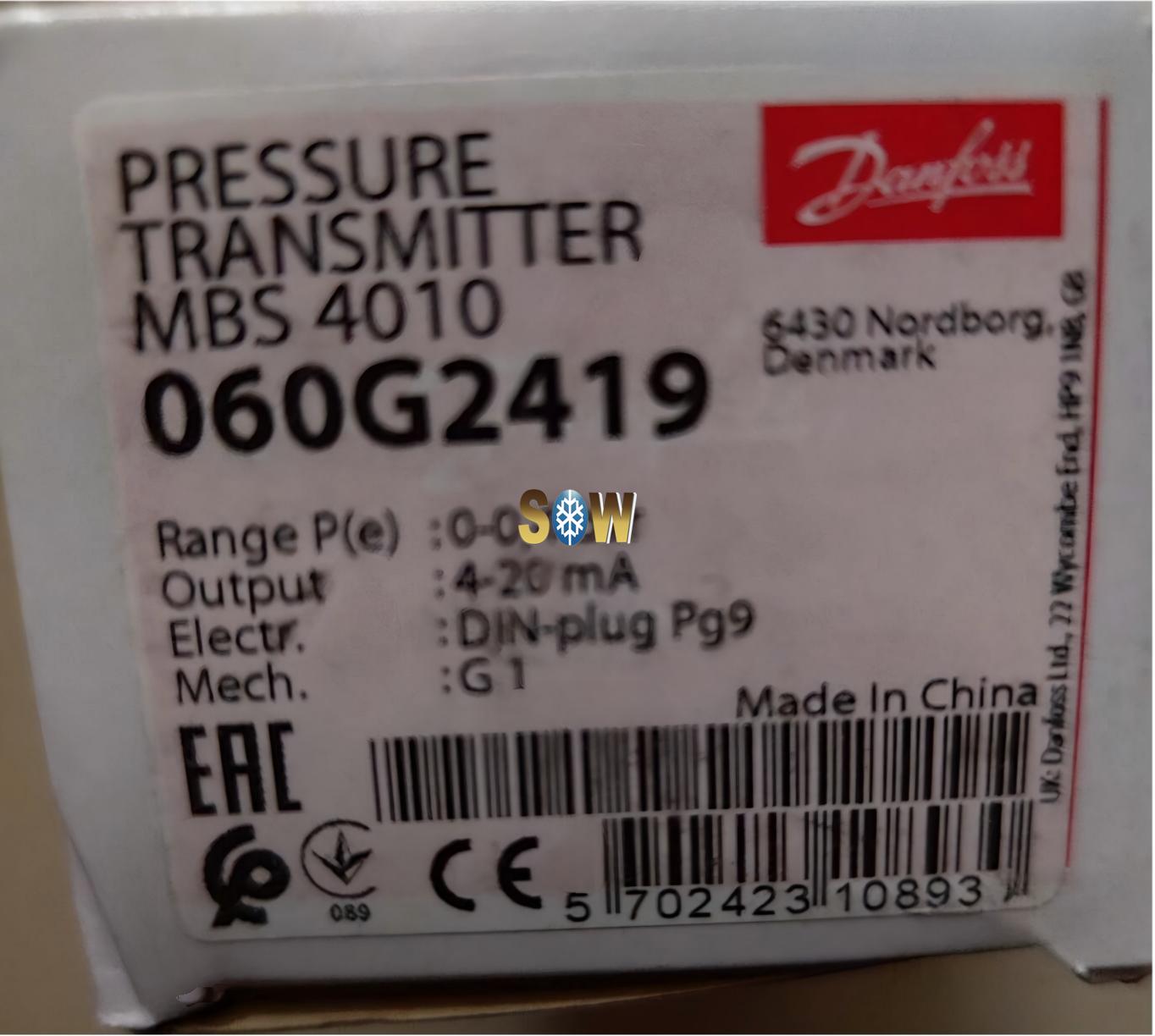

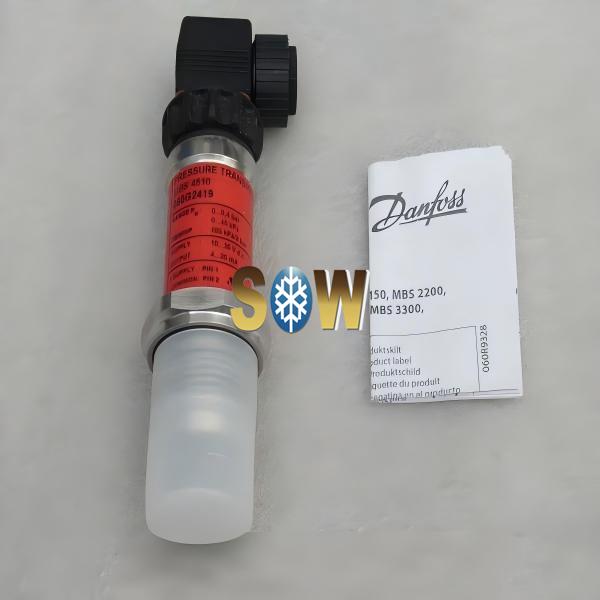

Name:	Danfoss Pressure transmitter, MBS 4010,060G2419
Brand:	Danfoss
Model No.:	MBS 4010
Part No.:	060G2419
Country of origin:	China
G.W:	0.368kgs/pc
Pressure connection type:	G
Pressure connection size:	1
Specification key:	MBS 4010-0611-A1CB11-2
Pressure range [psi]:	0 psi - 5.8 psi

Danfoss Pressure transmitter, MBS 4010,060G2419

Product details

+ supply	Pin 1
- common	Pin 2
Accuracy, max. +/- FS [%]	1 %
Accuracy, typical +/- FS [%]	0.2 %
Adj. zero point and span	No
Ambient temperature range [°C] [max]	85 °C
Ambient temperature range [°C] [min]	-10 °C
Ambient temperature range [°F] [Max]	185 °F
Ambient temperature range [°F] [Min]	14 °F
Approval	ATEX CE
Approval comments	ATEX Ex ec IIA T4 Gc
CE evaluated	Yes
China RoHS compliance	Out of scope
Compensated temp. range [°C] [Max]	80 °C
Compensated temp. range [°C] [Min]	0 °C
Compensated temp. range [°F] [Max]	176 °F
Compensated temp. range [°F] [Min]	32 °F
Contains batteries	No
EEE category	5 small equipment (any external dimension < 50 cm)
Electrical conn. Male/Female	Male and Female
Electrical connection	Angular connector
Electrical connection size	Pg 9
Electrical connection standard	EN 175301-803-A
Enclosure rating IP	IP65
EU RoHS compliance	Yes with exemptions
EU RoHS exemption clause	6(c)
Flush diaphragm	Yes
High Clipping Level	22.4
In scope of WEEE	Yes
International Article Number	5702423108930
Intrinsically safe	No

Low Clipping Level	3.6
Medium temperature range [°C] [Max]	85 °C
Medium temperature range [°C] [Min]	-10 °C
Medium temperature range [°F] [Max]	185 °F
Medium temperature range [°F] [Min]	14 °F
Non-linearity BFSL ±FS [%]	0.2 %
Output signal	Current
Output signal [mA] [Max]	20 mA
Output signal [mA] [Min]	4 mA
Overload pressure max. [bar]	2 bar
Packing format	Multi pack
Pressure connection HEX [mm]	41 mm
Pressure connection size	1
Pressure connection standard	ISO 228-1
Pressure connection type	G
Pressure Male/Female	Male
Pressure range [bar] [Max]	0.4 bar
Pressure range [bar] [Min]	0 bar
Pressure range [psi] [Max]	5.8 psi
Pressure range [psi] [Min]	0 psi
Pressure unit reference	Gauge (relative)
Pulse-snubber	No
Quantity per packing format	12 pc
REACH Candidate List substances	Lead (CAS no. 7439-92-1)
Response time max. [ms]	4 ms
SCIP dossier no.	16d2efc6-64f3-4a4e-ae98-a3fd7ce0218d
SCIP dossier product name	AKS/MBS
Specification key	MBS 4010-0611-A1CB11-2
Supply voltage [V] DC [max]	32 V
Supply voltage [V] DC [min]	9 V
UL evaluated	Yes
