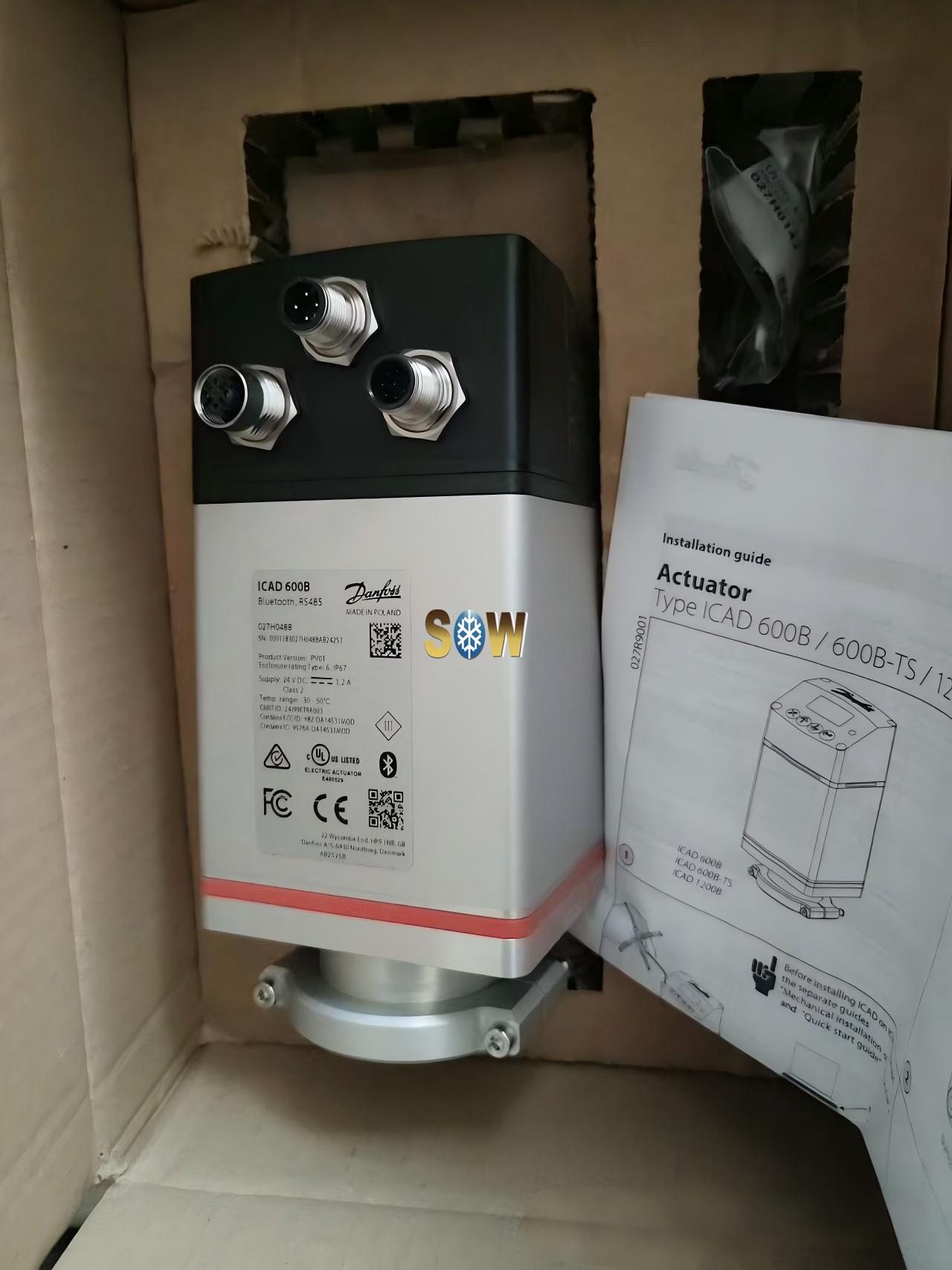

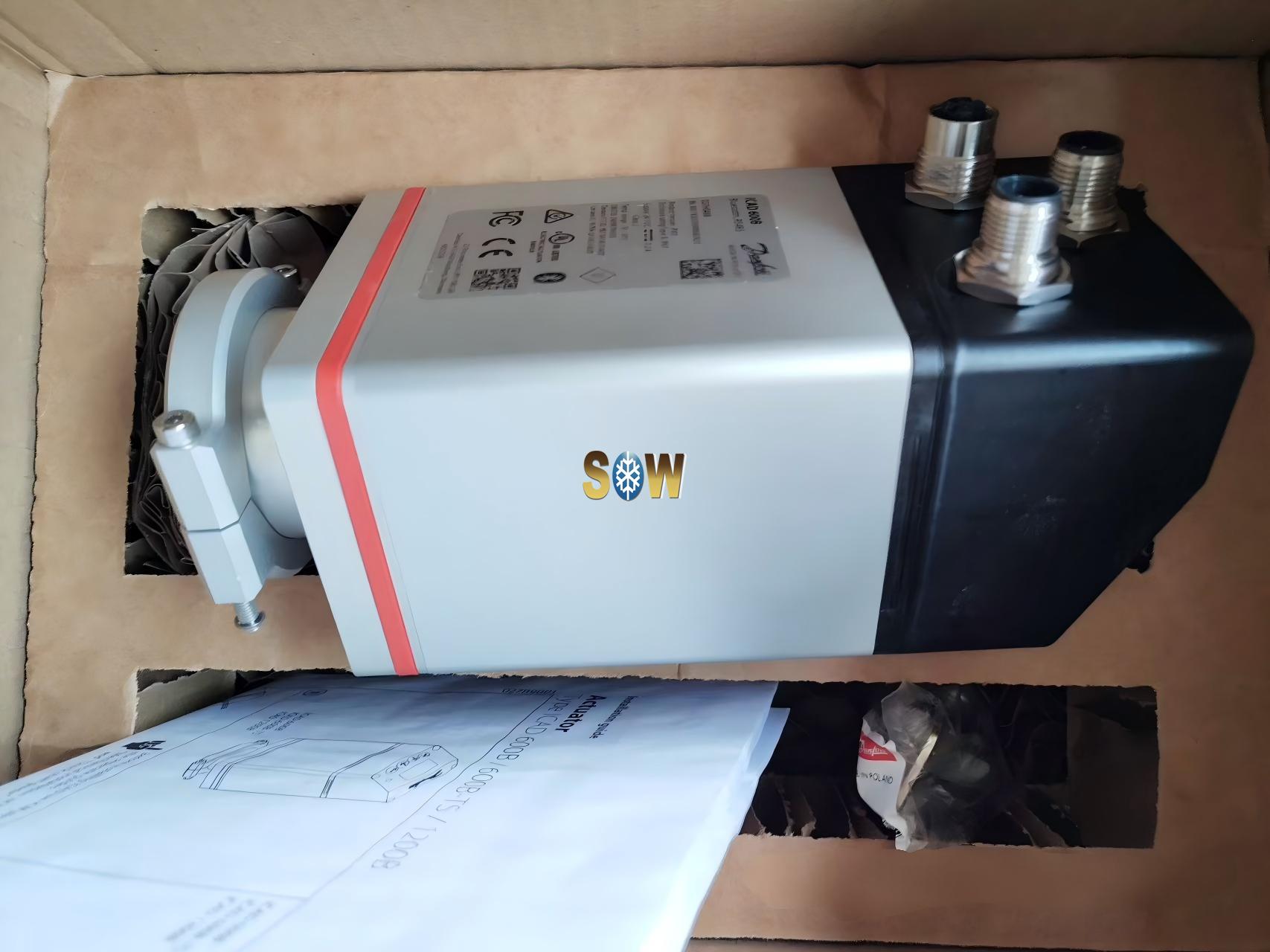

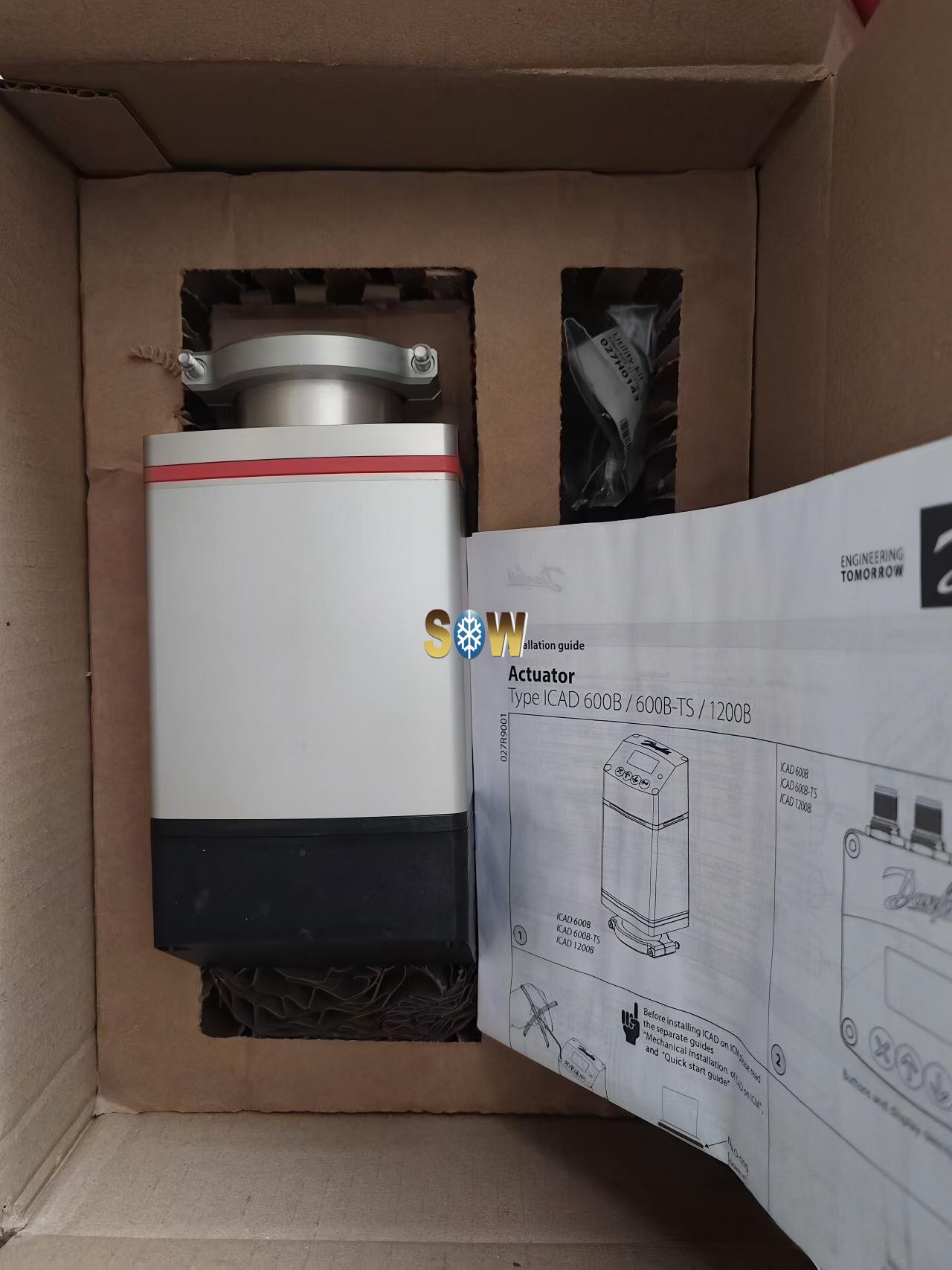

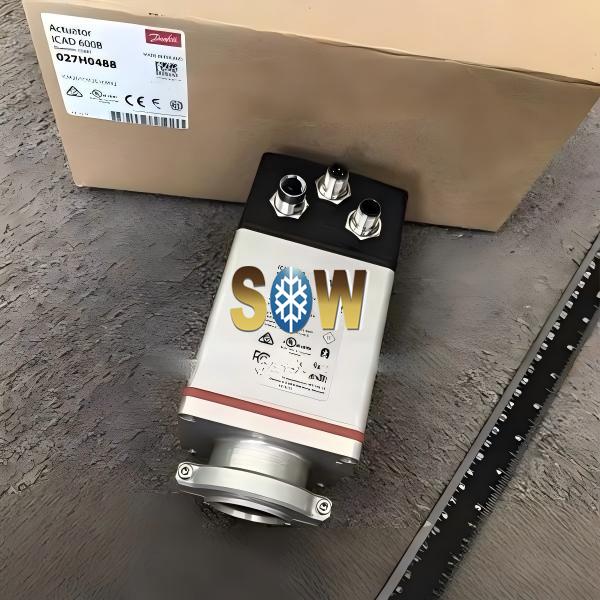

Danfoss Actuator, ICAD 600B 027H0488

Product details

Ambient temperature range [°C] [max]	50 °C
Ambient temperature range [°C] [min]	-30 °C
Ambient temperature range [°F] [max]	122 °F
Ambient temperature range [°F] [min]	-22 °F
Analog input current opt. [mA] [max]	20 mA
Analog input current opt. [mA] [min]	4 mA
Analog input Volt opt. [V] d.c [max]	10 V
Analog input Volt opt. [V] d.c [min]	2 V
Analog output options [mA] [max]	20 mA
Analog output options [mA] [min]	4 mA
Approval	CE FCC UL
Approval document	FCC ID: Y82-DA14531MOD IC: 9576A-DA14531MOD CMIIT ID: 24J99ET9A003
CE mark	Yes
China RoHS compliance	Yes with exemptions
China RoHS exemption clause	7.1 7.2
Communication type	Bluetooth RS485
Contains batteries	No
Dig. Output-Ext supply [V] d.c [max]	24 V
Dig. Output-Ext supply [V] d.c [min]	5 V
Digital Output-Load [Ohm]	60 Ohm
Digital Output-Max Load [mA]	50 mA
Digital outputs (DO) [pc]	3 pc
Electrical connector	M12
Enclosure rating IP	IP67
Enclosure rating Nema (~)	6
EU RoHS compliance	Yes with exemptions

EU RoHS exemption clause	6(a) 6(b)
Function	Digital output
Load Analog input Current[Ohm]	250 Ohm
Load Analog input Voltage[Ohm]	10000 Ohm
Load Analog output max [Ohm]	500 Ohm
Output configuration	Open drain
Packing format	Single pack
Parts Program name	ICM
Power supply	Class 2
Product accessories	ICAD accessories
Product description	Electric Actuator
Product version	01
Quantity per packing format	1 pc
REACH Candidate List substances	Lead (CAS no. 7439-92-1)
SCIP dossier no.	aaf4df04-232e-4c2f-a798-03522fc35abf
SCIP dossier product name	ICAD
Supply voltage [V] DC	24 V
Supply voltage load [A]	1.2 A
Supply voltage tolerance [%] [max]	10 %
Supply voltage tolerance [%] [min]	-15 %
Temperature range [°C] [max]	120 °C
Temperature range [°C] [min]	-60 °C
Temperature range [°F] [max]	248 °F
Temperature range [°F] [min]	-76 °F
UL mark	Yes
Used for product	ICM 20 ICM 25 ICM 32
