Location:Index--->Product Center >> HVAC Control cools spare parts >> Danfoss PAH pumps, PAH 63 180B0040

|
|
||||||||||||||||||||||||||||
Product Description

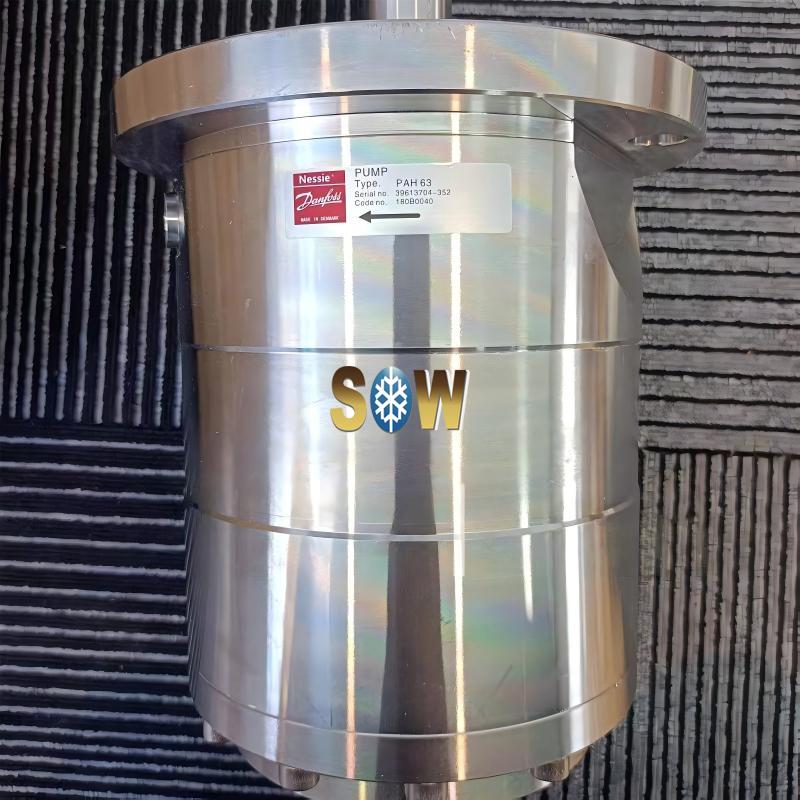

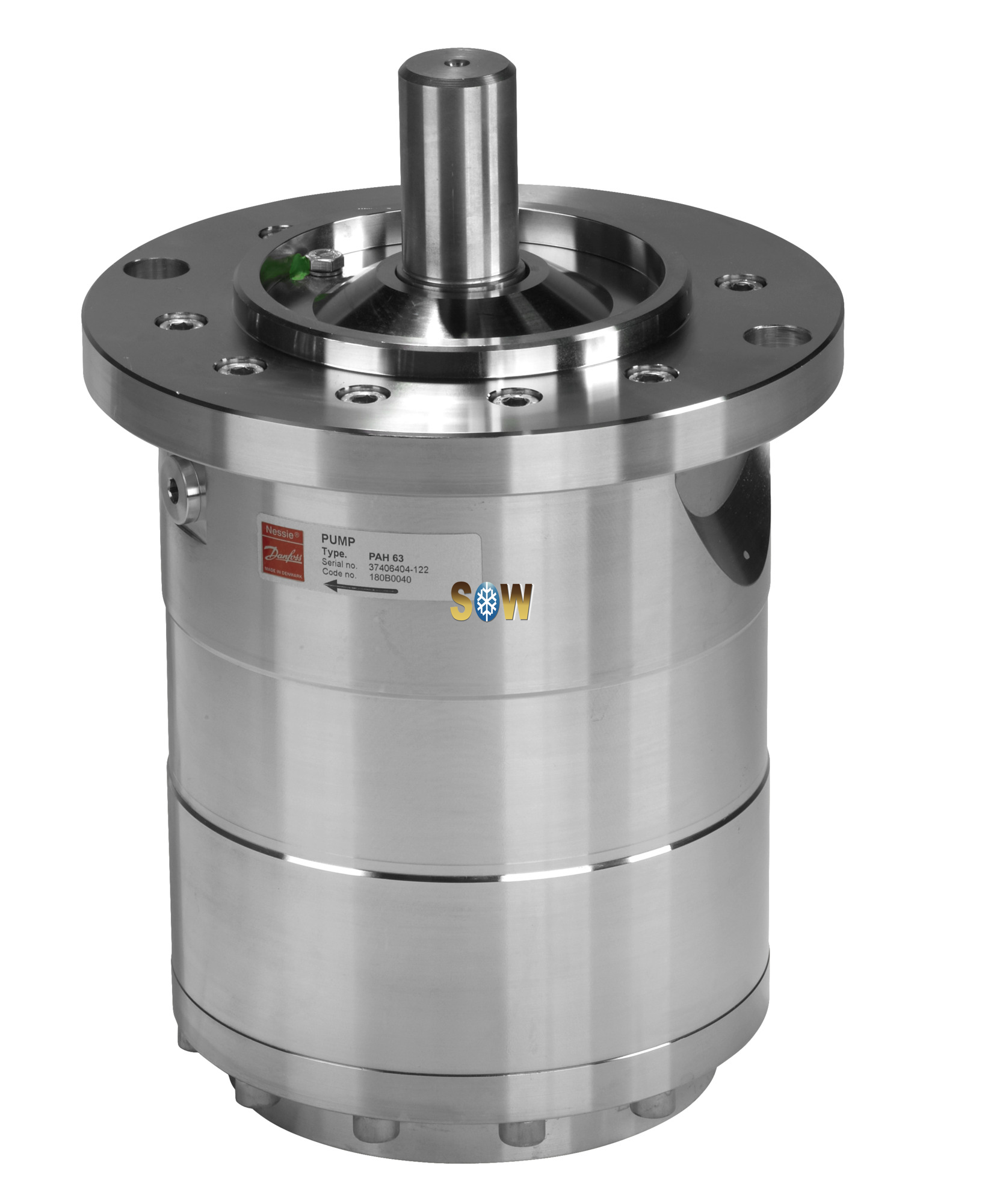

Danfoss PAH pumps, PAH 63 180B0040
Product details
| Gross weight | 36.48 Kilogram |
| Net weight | 31 Kilogram |
| Volume | 17.28 Liter |
| EAN | 5715162666968 |
| Type | PAH 50-100 |
| Product group | Pump |
| Ambient temperature [°C] [max] | 50 °C |
| Ambient temperature [°C] [min] | 0 °C |
| Ambient temperature [°F] [max] | 122 °F |
| Ambient temperature [°F] [min] | 32 °F |
| Approval | CE |
| ATEX compliance | No |
| Body material | AISI 304 |
| CE mark | Yes |
| China RoHS compliance | Out of scope |
| Contains batteries | No |
| Country of origin | Denmark |
| Description | PAH 63 |
| Displacement [cm³/rev] | 63 cm³/rev |
| Displacement [in³/rev] | 3.84 in³/rev |
| Drain connection size [in] | 1/4 in |
| Drain connection standard | BSPP |
| Drain connection type | Thread |
| EU RoHS compliance | Out of scope |
| Flow [gpm] [Max] | 27.7 gal/min |
| Flow [gpm] [Min] | 9.6 gal/min |
| Flow [l/min] [Max] | 106.8 l/min |
| Flow [l/min] [Min] | 37.2 l/min |
| In scope of WEEE | No |
| Inlet connection size [in] | 1 1/2 in |
| Inlet connection standard | BSPP |
| Inlet connection type | Thread |
| Inlet pressure [barg] [Max] | 4 barg |
| Inlet pressure [barg] [Min] | 0 barg |
| Inlet pressure [psig] [Max] | 58 psig |
| Inlet pressure [psig] [Min] | 0 psig |
| Media temperature [°C] [Max] | 50 °C |
| Media temperature [°C] [Min] | 2 °C |
| Media temperature [°F] [Max] | 122 °F |
| Media temperature [°F] [Min] | 36 °F |
| Outlet connection size [in] | 1 1/4 in |
| Outlet connection standard | BSPP |
| Outlet connection type | Thread |
| Outlet pressure [barg] [Max] | 160 barg |
| Outlet pressure [barg] [Min] | 30 barg |
| Outlet pressure [psig] [Max] | 2320 psig |
| Outlet pressure [psig] [Min] | 435 psig |
| Outside dimensions of packaging LxWxH [in] | 14,9x11,8x11,8 |
| Outside dimensions of packaging LxWxH [mm] | 380x300x300 |
| Product description | PAH pumps |
| REACH Candidate List substances | No |
| Seal Material | NBR |
| Serviceable | Yes |
| Sound pressure level [dB(A)] | 80 dBA |
| Speed [rpm] [Max] | 1800 rpm |
| Speed [rpm] [Min] | 700 rpm |
| Speed continuous [rpm] [Min] | 700 rpm |
| Type designation | PAH 63 |
| UL mark | No |
