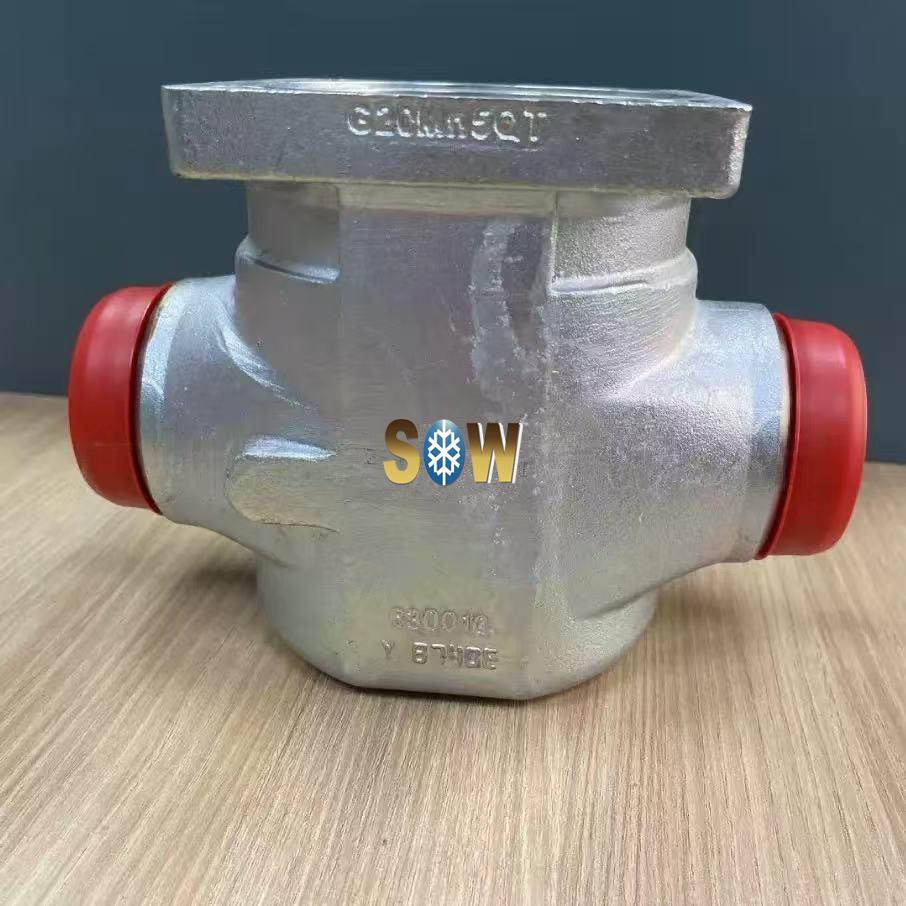

Name:	Danfoss Multifunction valve body, ICV 65, 027H6121
Brand:	Danfoss
Model No.:	ICV 65
Part No.:	027H6121
Country of origion:	Denmark
G.W:	8.672kgs/pc
Connection type:	Butt weld
Connection material:	Steel
Max. Working Pressure [bar]:	65
Temperature range [°C]:	-60 - 120
Used for product:	ICS 65; ICLX 65; ICM 65

Danfoss Multifunction valve body, ICV 65, 027H6121

Product details

Parts Program name	ICLX ICM ICS
Product accessories	ICM / ICS / ICLX accessories
Quantity per packing format	1 pc
REACH Candidate List substances	No
Refrigerants	R113 R114 R1233zd(E) R1234yf R1234ze(E) R125 R1270 R1336mzz(Z) R134a R152a R170 R22 R227ea R23 R236fa R290 R32 R401A R402A R402B R404A R407A R407B R407C R407F R407H R408A R409A R410A R417A R421A R422A R422B R422D R427A R438A R444B R447A R448A R449A R449B R450A R452A R454B R455A R502 R503 R513A R600 R600a R717 R744 RE170 R507A R1150 R245fa R413A R442A R447B R452B R454A R454C R463A R512A R513B R515A R515B R516A R508B
Serviceable	ICM / ICS / ICLX spare parts
Temperature range [°C] [max]	120 °C
Temperature range [°C] [min]	-60 °C
Temperature range [°F] [max]	248 °F
Temperature range [°F] [min]	-76 °F
Used for product	ICLX 65 ICM 65 ICS 65
Valve operation	Function module
