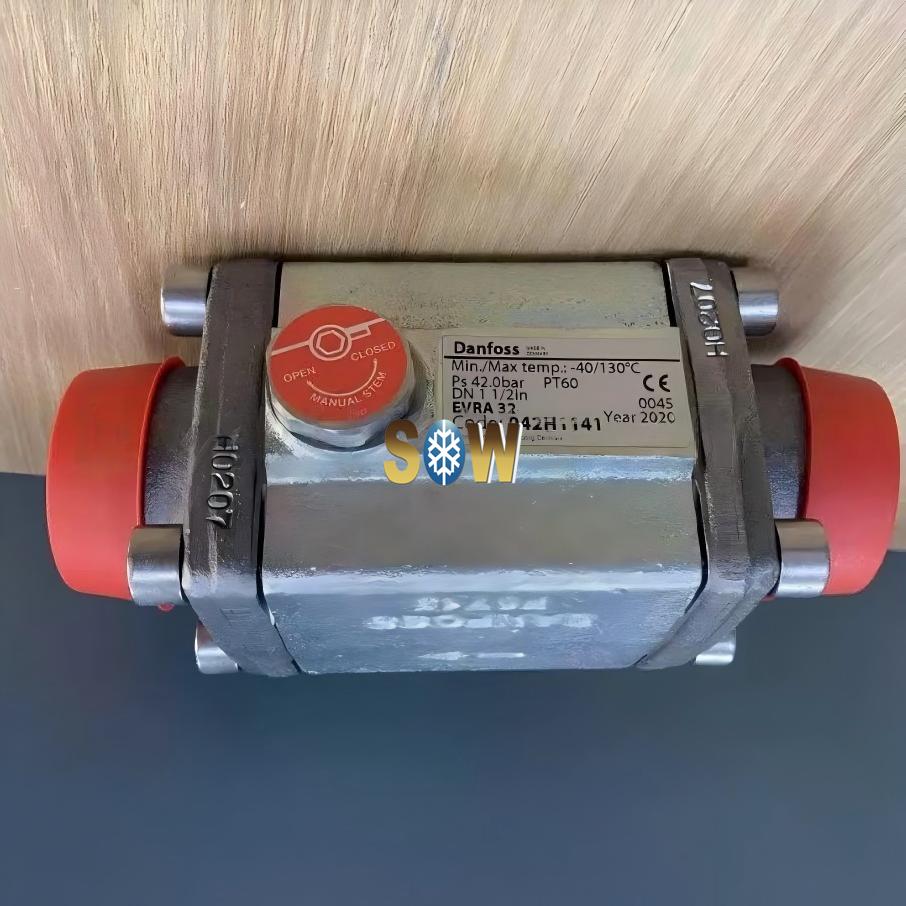

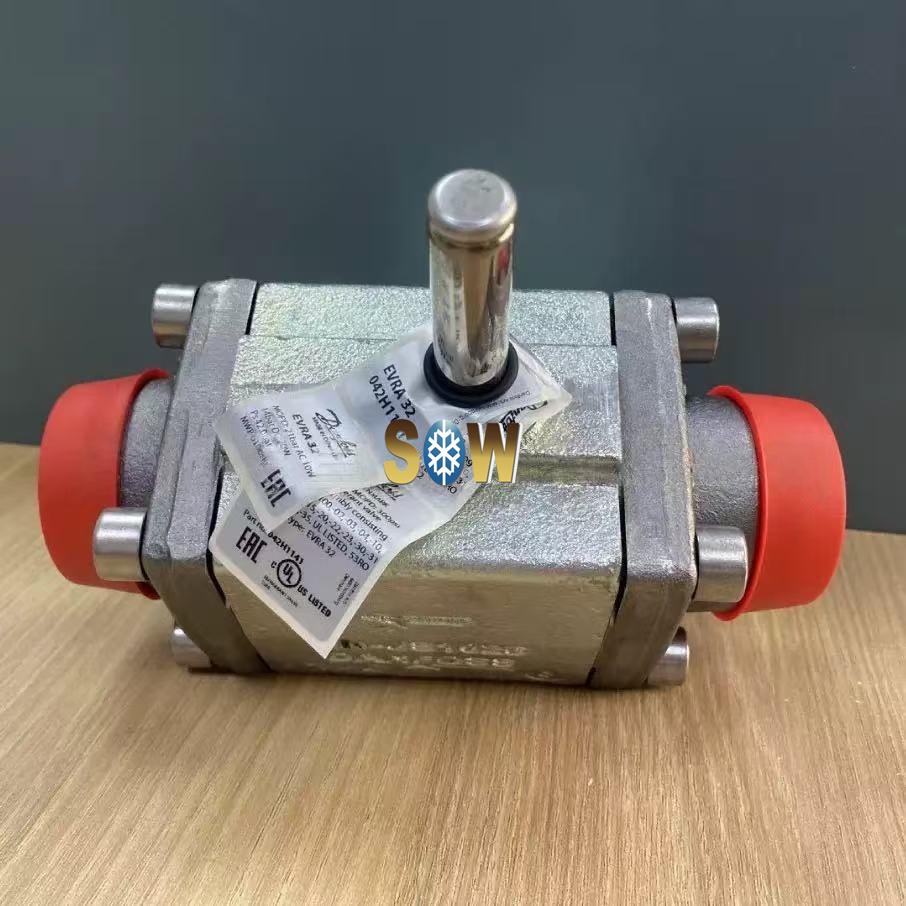

Name:	Danfoss Solenoid valve, EVRA 32 042H1141
Brand:	Danfoss
Model No.:	EVRA 32
Part No.:	042H1141
Country of origion:	Poland
G.W:	4.95kgs/pc
Function:	NC
Inlet connection type:	Butt weld
Outlet connection type:	Butt weld
Manual operation option:	Yes
Cv value [gal/min]:	18.5
Kv value [m³/h]:	16

Danfoss Solenoid valve, EVRA 32 042H1141

Product details

Actuator system [mm]	13.5 mm
Ambient temperature	-40 - 80 °C
Ambient temperature range [°F] [max]	175 °F
Ambient temperature range [°F] [min]	-40 °F
Approval	C UL US LISTED EAC LLC CDC TYSK
Body material	Cast iron
China RoHS compliance	Out of scope
Coil	No
Connection material	Steel
Connection standard, inlet	ANSI 36.10
Connection standard, outlet	ANSI 36.10
Contains batteries	No
Cv value [gal/min]	18.5 gal/min
Direction	Straightway
EU RoHS compliance	Out of scope
Flow direction indicator	Embossed 1-way arrow
Function	NC
Inlet connection type	Butt weld
Inlet size [in]	1 1/2 in
Kv value [m³/h]	16 m³/h
Manual operation option	Yes
Max. Working Pressure [bar]	42 bar
Max. Working Pressure [psig]	610 psig
MaxOPD[bar] 10W AC	21 bar
MaxOPD[bar] 12W AC	25 bar

MaxOPD[bar] 20W DC	14 bar
MaxOPD[psi] 14W AC	300 psi
Medium temp. range note	Defrost max 130°C/265°F
Medium temperature range [°C] [max]	105 °C
Medium temperature range [°C] [min]	-40 °C
Medium temperature range [°F] [max]	221 °F
Medium temperature range [°F] [min]	-40 °F
MinODP [bar]	0.2 bar
MinODP [psi]	2.9 psi
Orifice size [mm]	22.23 mm
Outlet connection type	Butt weld
Outlet size [in]	1 1/2 in
Packing format	Single pack
Parts Program name	EVRA / EVRAT
Product accessories	Solenoid valve accessories
Quantity per packing format	1 pc
REACH Candidate List substances	Lead (CAS no. 7439-92-1)
Refrigerants	R134a R22 R401A R402A R404A R407A R407B R407C R407F R409A R410A R421A R502 R507A R717
SCIP dossier no.	d38f86ba-12bb-4e70-8d9f-ec3fd58b7365
SCIP dossier product name	EVRA EVRAT
Serviceable	Solenoid valve spare parts
Type designation	Solenoid valve
UL evaluated	Yes
Valve operation	Servo-piston
