Location:Index--->Product Center >> HVAC Control cools spare parts >> Danfoss Pilot valve, CVP-LP, Constant-pressure pilot valve 027B1100


|
|
||||||||||||||||||||
Product Description

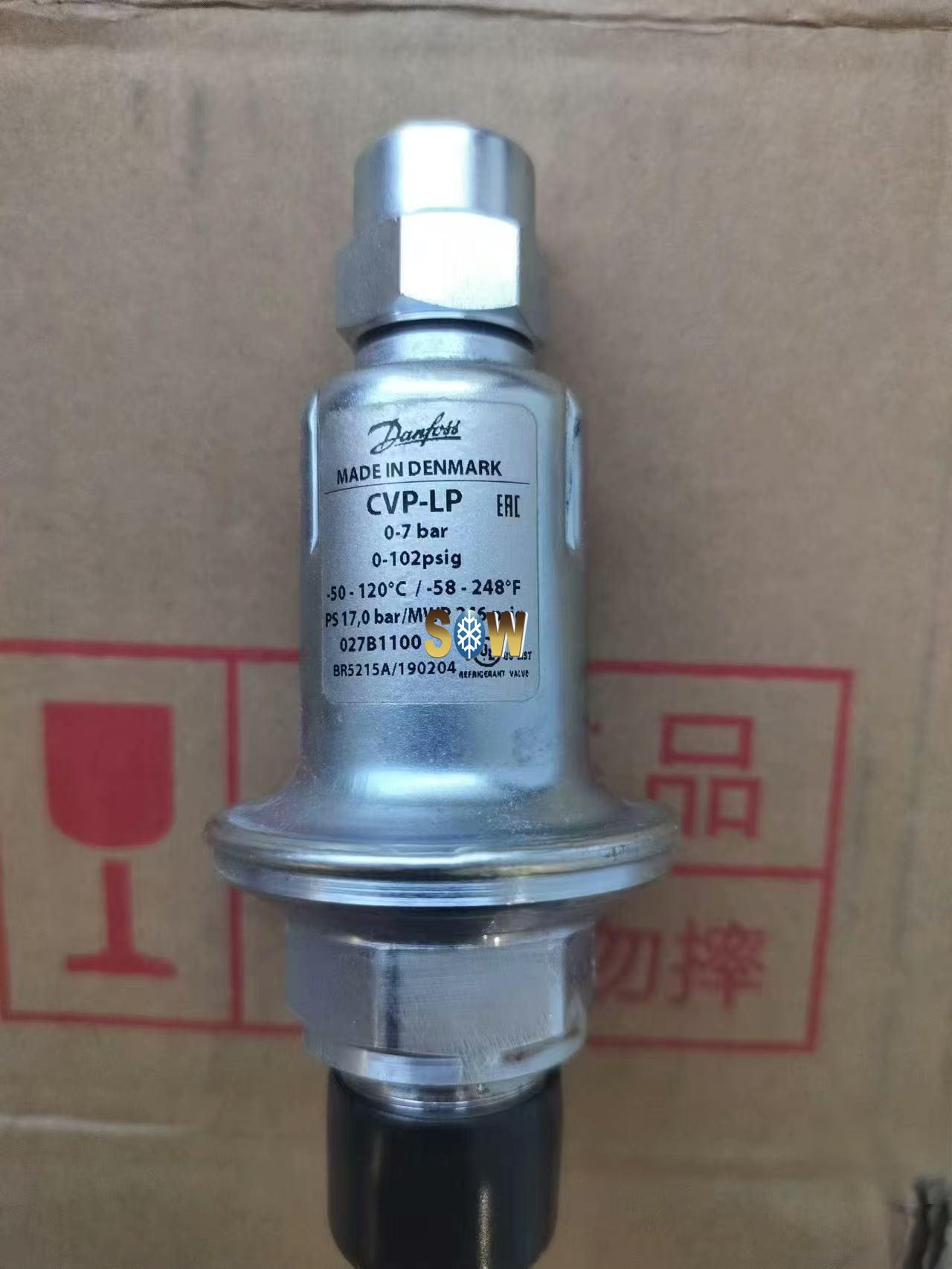

Danfoss Pilot valve, CVP-LP, Constant-pressure pilot valve 027B1100
This product has been discontinued.
We have a replacement.
Product details
| Gross weight | 0.456 Kilogram |
| Net weight | 0.39 Kilogram |
| Volume | 0.477 Liter |
| EAN | 5702422021957 |
| Type | CVP-LP |
| Product group | Press. and temp. regul. valves |
| Product Name Description | Pilot valve |
| Approval | CRN EAC LLC CDC TYSK UL |
| China RoHS compliance | Out of scope |
| Contains batteries | No |
| Cv value [gal/min] | 0.46 gal/min |
| EU RoHS compliance | Out of scope |
| Fluid Group | 1 |
| Kv value [m³/h] | 0.4 m³/h |
| Max. Working Pressure [bar] | 17 bar |
| Max. Working Pressure [psig] | 246 psig |
| Packing format | Multi pack |
| PED category | Art. 3, par. 3 |
| Pressure range [bar] Pe [max] | 7 bar |
| Pressure range [bar] Pe [min] | 0 bar |
| Pressure range [psig] Pe [max] | 102 psig |
| Pressure range [psig] Pe [min] | 0 psig |
| Product accessories | No |
| Product description | Constant-pressure pilot valve |
| Quantity per packing format | 12 pc |
| REACH Candidate List substances | Lead (CAS no. 7439-92-1) |
| Refrigerants | R134a R22 R401A R402A R404A R407A R407B R407C R407F R409A R410A R421A R502 R717 R744 R507A |
| Serviceable | Pilot valve spare parts |
| Temperature range [°C] [max] | 120 °C |
| Temperature range [°C] [min] | -50 °C |
| Temperature range [°F] [max] | 248 °F |
| Temperature range [°F] [min] | -58 °F |
| UL approval file name | REFRIGERANT VALVE 53R0 |
| UL evaluated | Yes |
| Valve version | Low pressure |
