Location:Index--->Product Center >> Danfoss Control >> Danfoss 2-step solenoid valve, ICLX 50, 027H5041


|
|
||||||||||||||||||||||||
Product Description

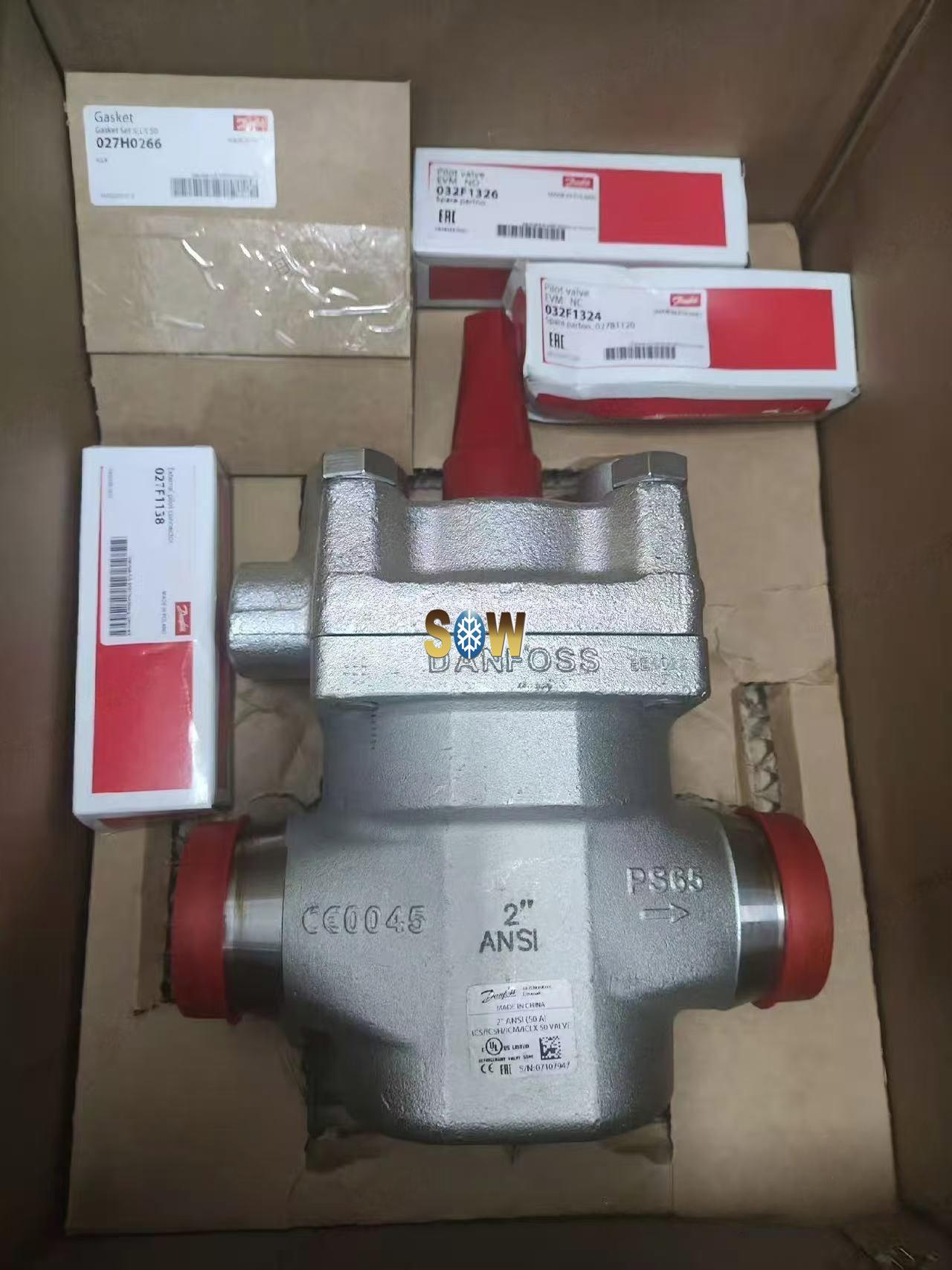

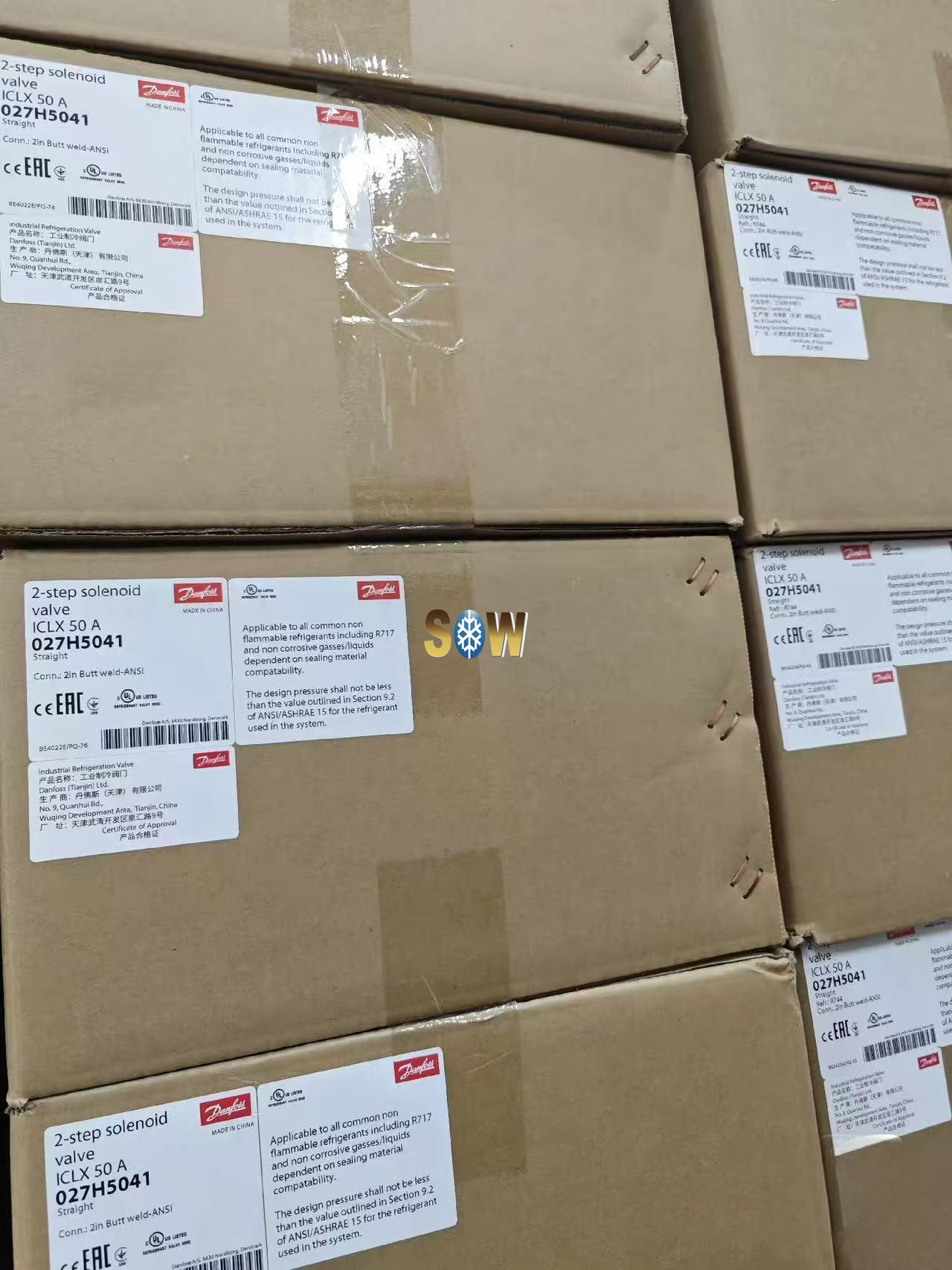

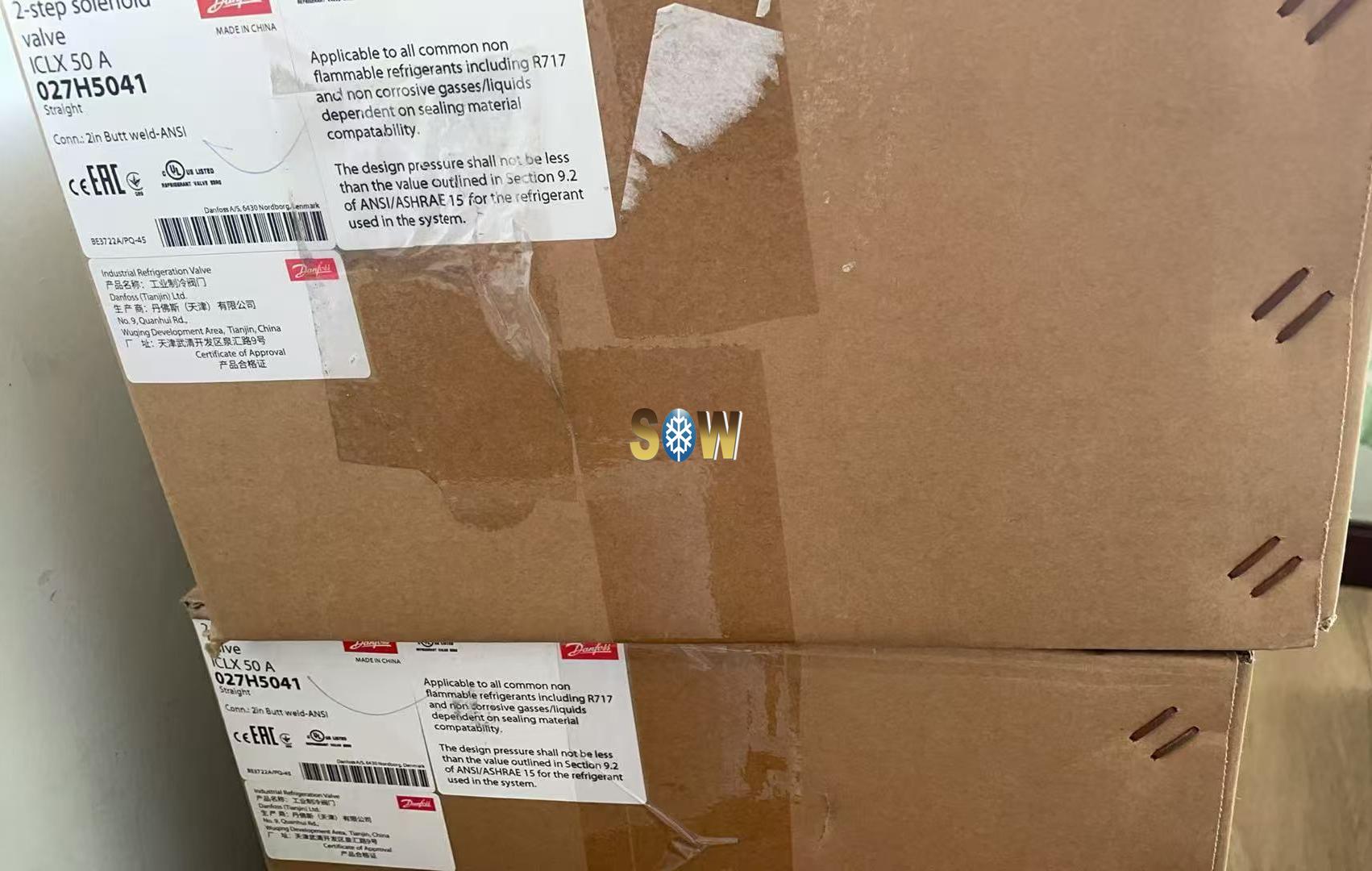

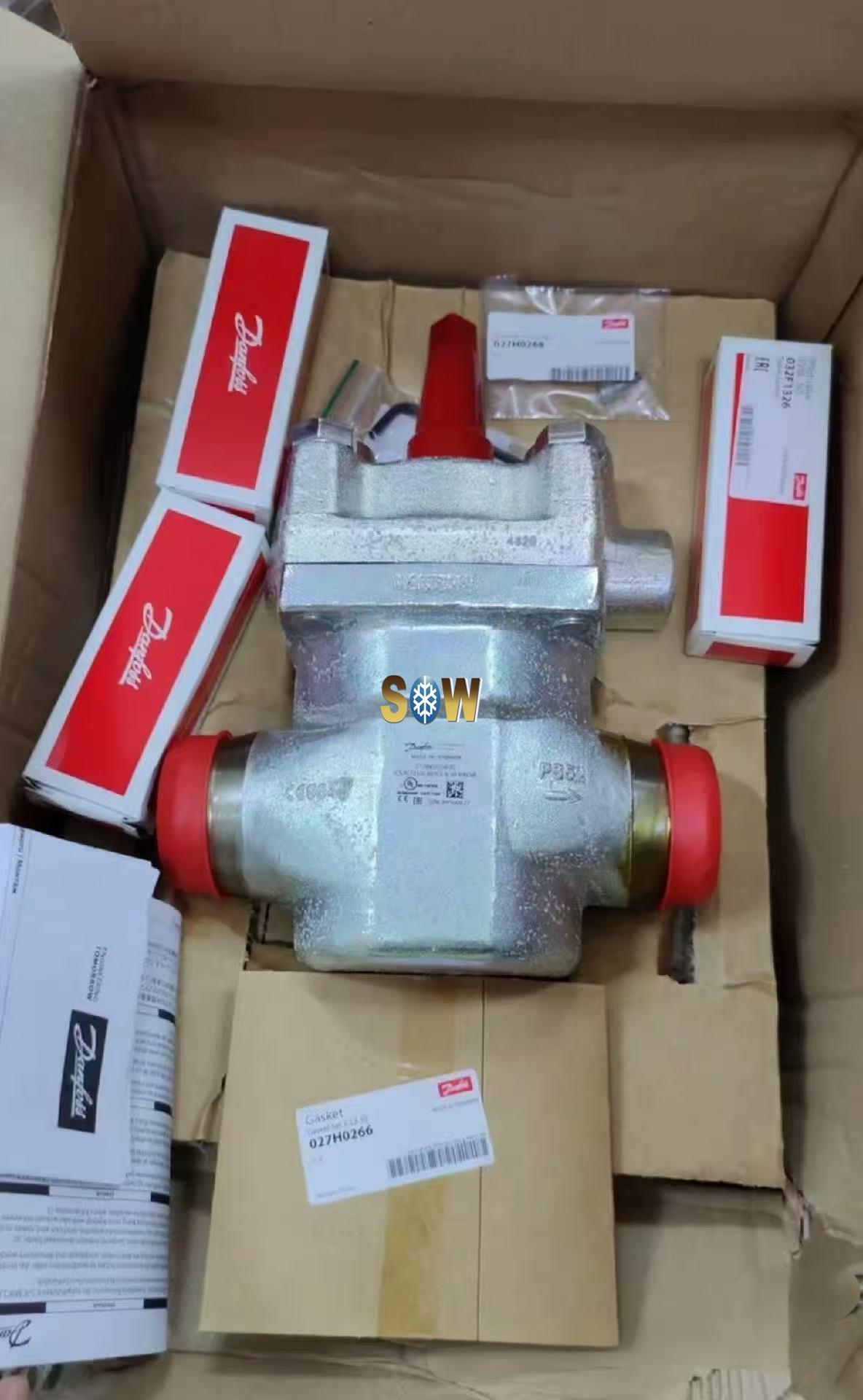

Danfoss 2-step solenoid valve, ICLX 50, 027H5041
Product details
| Gross weight | 13.624 Kilogram |
| Net weight | 9.836 Kilogram |
| Volume | 20.671 Liter |
| EAN | 5702428483056 |
| Type | ICLX 50 |
| Product group | Solenoid valves |
| Product Name Description | 2-step solenoid valve |
| Actuator system | 2 EVM pilot sol valve module |
| Approval | EAC LLC CDC TYSK TÜV UL |
| Body material | Steel |
| Brand | ICV Flexline |
| China RoHS compliance | Out of scope |
| Connection material | Steel |
| Connection standard | ASME B 36.10M SCHEDULE 40 |
| Contains batteries | No |
| Cv value [gal/min] | 54.52 gal/min |
| Description | 2-step solenoid valve |
| Direction | Straightway |
| EU RoHS compliance | Out of scope |
| Ext pilot pressure connection | Weld nipple (P2 Port) |
| Flow direction indicator | Embossed 1-way arrow |
| Fluid Group | 1 |
| Inlet connection size [in] | 2 in |
| Inlet connection size [mm] | 50 mm |
| Inlet connection type | Butt weld |
| Kv value [m³/h] | 47 m³/h |
| Manual operation option | Manual open spindle |
| Max. Working Pressure [bar] | 65 bar |
| Max. Working Pressure [psig] | 943 psig |
| Opening configuration | 1-step (optional setting) 2-step (default) |
| Outlet connection size [in] | 2 in |
| Outlet connection size [mm] | 50 mm |
| Outlet connection type | Butt weld |
| Packing format | Single pack |
| Parts Program name | ICLX |
| PED category | II |
| Product accessories | ICM / ICS / ICLX accessories |
| Product description | Solenoid valve |
| Quantity per packing format | 1 pc |
| REACH Candidate List substances | Lead (CAS no. 7439-92-1) |
| Refrigerants | R134a R22 R401A R402A R404A R407A R407B R407C R407F R409A R410A R421A R502 R717 R744 R507A R1234yf R1234ze(E) R125 R152a R227ea R236fa R245fa R290 R32 R407H R413A R417A R422A R422B R422D R438A R442A R444B R447A R447B R448A R449A R449B R450A R452A R452B R454A R454B R454C R455A R463A R512A R513A R513B R515A R515B R516A R170 R452C R600 R600a |
| Serviceable | ICM / ICS / ICLX spare parts |
| Step 1 opening degree (~) [%] | 10 % |
| Step 2 initialization | Delta p < 1.25 bar (18 psig) |
| Surface coating | Zn (TLP) |
| Temperature range [°C] [max] | 120 °C |
| Temperature range [°C] [min] | -60 °C |
| Temperature range [°F] [max] | 248 °F |
| Temperature range [°F] [min] | -76 °F |
| UL approval file name | REFRIGERANT VALVE 53R0 |
| UL evaluated | Yes |
| Valve operation | Solenoid operated |
| Valve version | Standard version |
