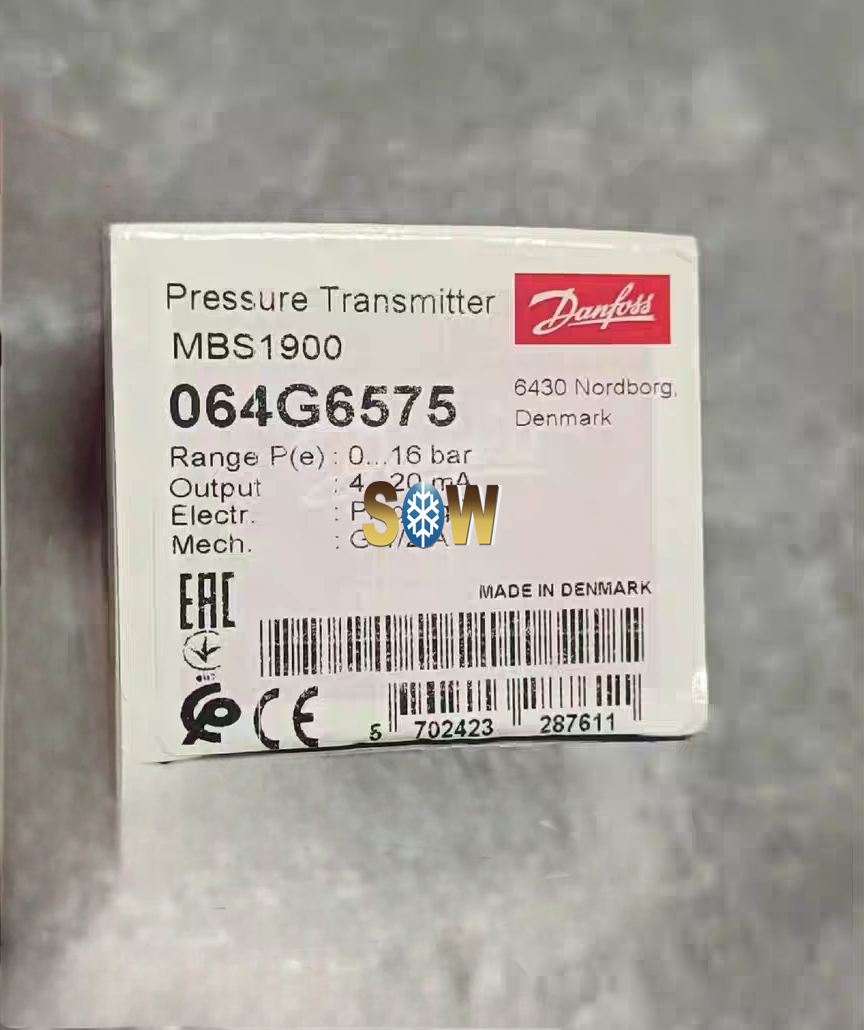

Name:	Danfoss Pressure transmitter, MBS 1900, 064G6575
Brand:	Danfoss
Model No.:	MBS 1900
Part No.:	064G6575
Country of origion:	Denmark
G.W:	0.118kgs/pc
Pressure range [bar]:	0 bar - 16 bar
Pressure reference:	Gauge (relative)
Output signal:	Current
Electrical connection:	Angular connector
Pressure connection type:	G
Pressure connection size:	1/2
Specification key:	MBS 1900-2211-A1AB08-0

Danfoss Pressure transmitter, MBS 1900, 064G6575

This product has been discontinued.
We have a replacement.

Product details

+ supply	Pin 1
- common	Pin 2
Accuracy @ ref. temp. ±FS [%]	1 %
Accuracy, typical [±FS%]	1 %
Ambient temperature range [°C] [max]	80 °C
Ambient temperature range [°C] [min]	-20 °C
Ambient temperature range [°F] [max]	176 °F
Ambient temperature range [°F] [min]	-4 °F
Approval	CE cURus
Approval comments	UL-873
CE evaluated	Yes
China RoHS compliance	Out of scope
Compensated temp. range [°C] [max]	80 °C
Compensated temp. range [°C] [min]	0 °C
Compensated temp. range [°F] [max]	176 °F
Compensated temp. range [°F] [min]	32 °F
Contains batteries	No
Electrical conn. Male/Female	Male and Female
Electrical connection	Angular connector
Electrical connection size	Pg 9
Electrical connection standard	EN 175301-803-A
Enclosure rating IP	IP65
EU RoHS compliance	Yes
EU RoHS exemption clause	No
Fault Monitoring Demand	No
Flush diaphragm	No
International Article Number	5702423287611
Intrinsically safe	No
Medium temperature range [°C] [max]	80 °C
Medium temperature range [°C] [min]	0 °C
Medium temperature range [°F] [max]	176 °F

Medium temperature range [°F] [min]	32 °F
Non-linearity BFSL [±FS%]	0.5 %
Output signal	Current
Output signal [mA] [max]	20 mA
Output signal [mA] [min]	4 mA
Overload pressure max. [bar]	75 bar
Overload pressure max. [psi]	1088 psi
Packing format	Multi pack
Pressure connection HEX [mm]	24 mm
Pressure connection notes	A
Pressure connection size	1/2
Pressure connection standard	EN 837
Pressure connection type	G
Pressure Male/Female	Male
Pressure range [bar] [max]	16 bar
Pressure range [bar] [min]	0 bar
Pressure range [psi] [max]	232.06 psi
Pressure range [psi] [min]	0 psi
Pressure reference	Gauge (relative)
Pulse-snubber	No
Quantity per packing format	20 pc
REACH Candidate List substances	No
Reference temperature [°C]	20 °C
Reference temperature [°F]	68 °F
Response time max. [ms]	4 ms
Specification key	MBS 1900-2211-A1AB08-0
Supply voltage [V] DC [max]	28 V
Supply voltage [V] DC [min]	9 V
TEB inside CTR ±FS [%]	3 %
UL evaluated	Yes
