Name:	Danfoss Pressure transmitter, MBS 3350, 060G1474
Brand:	Danfoss
Model No.:	MBS 3350
Part No.:	060G1474
Country of origion:	China
G.W:	0.178kgs/pc
Pressure range [bar]:	0 bar - 6 bar
Pressure reference:	Gauge (relative)
Output signal:	Current
Electrical connection:	Angular connector
Pressure connection type:	G
Pressure connection size:	1/4
Specification key:	MBS 3350-1811-A6FB04-4

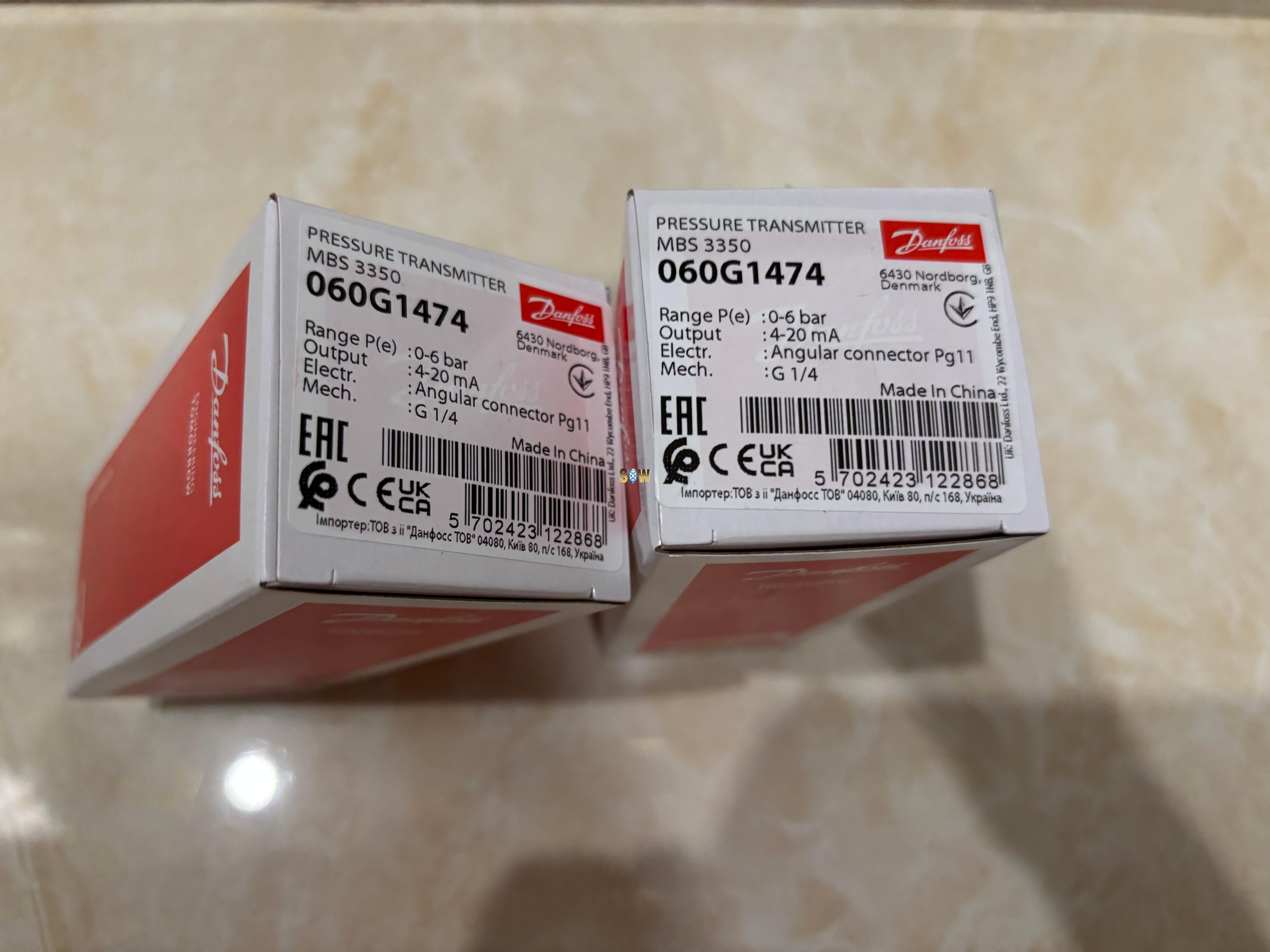

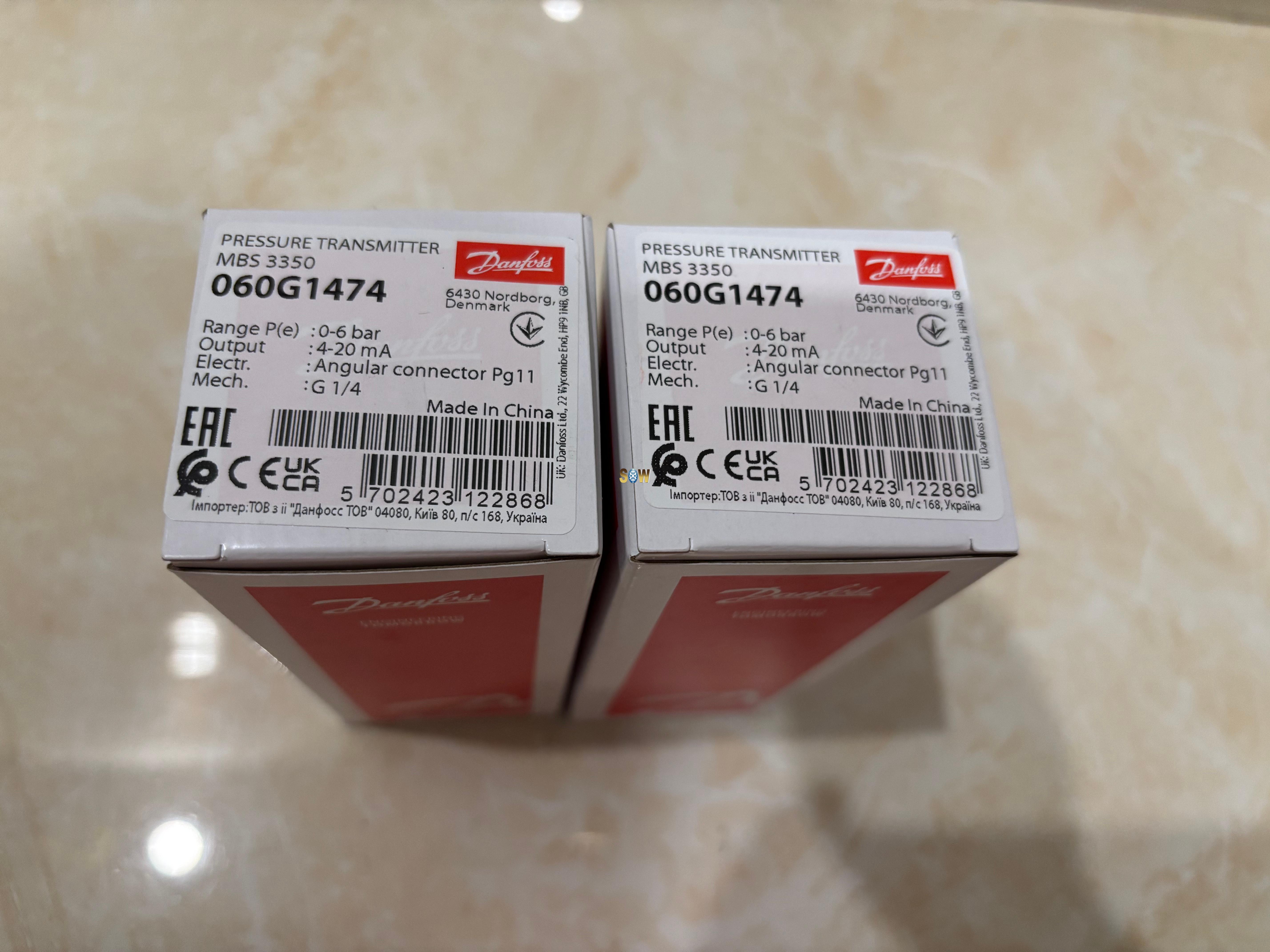

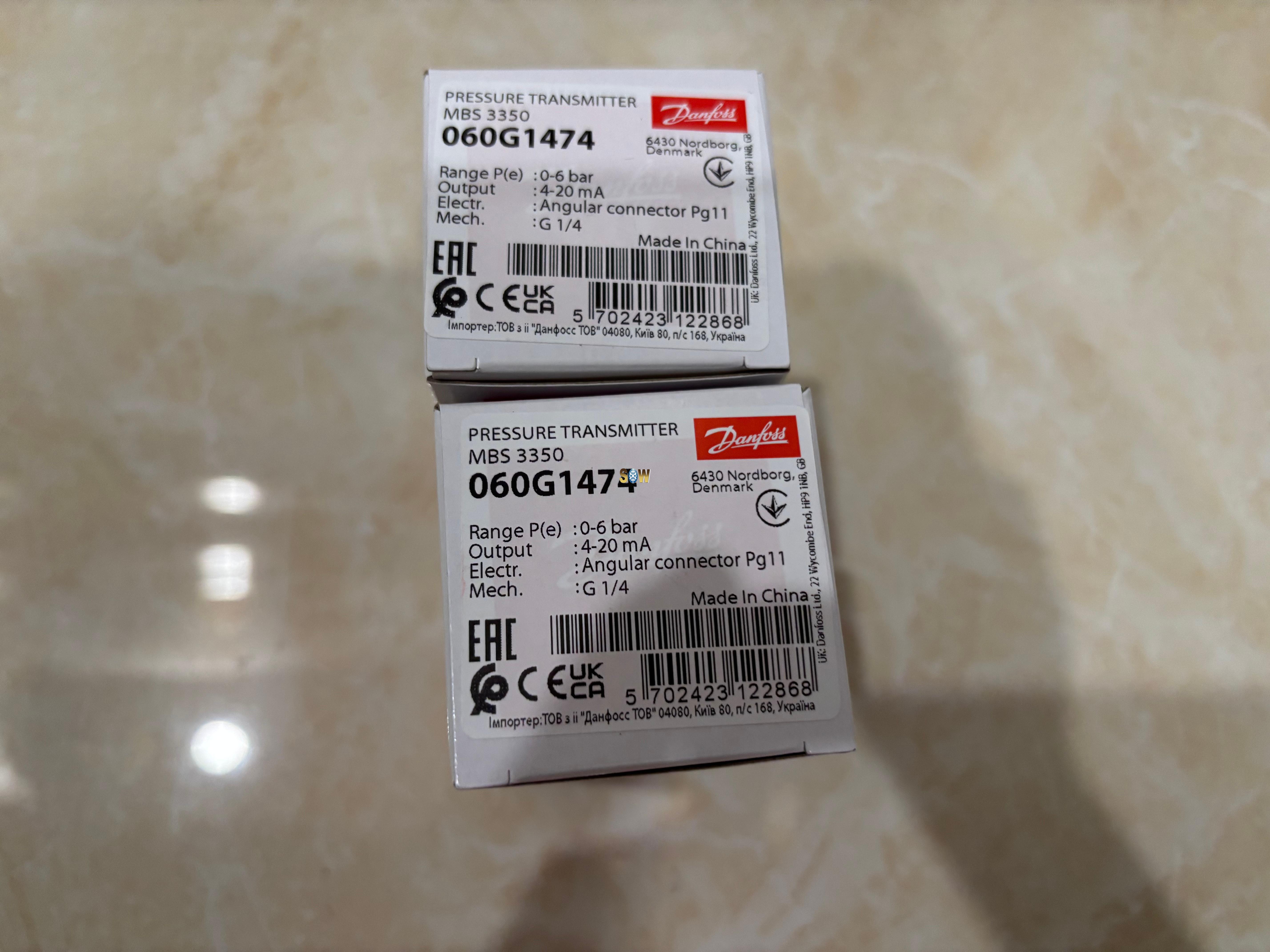

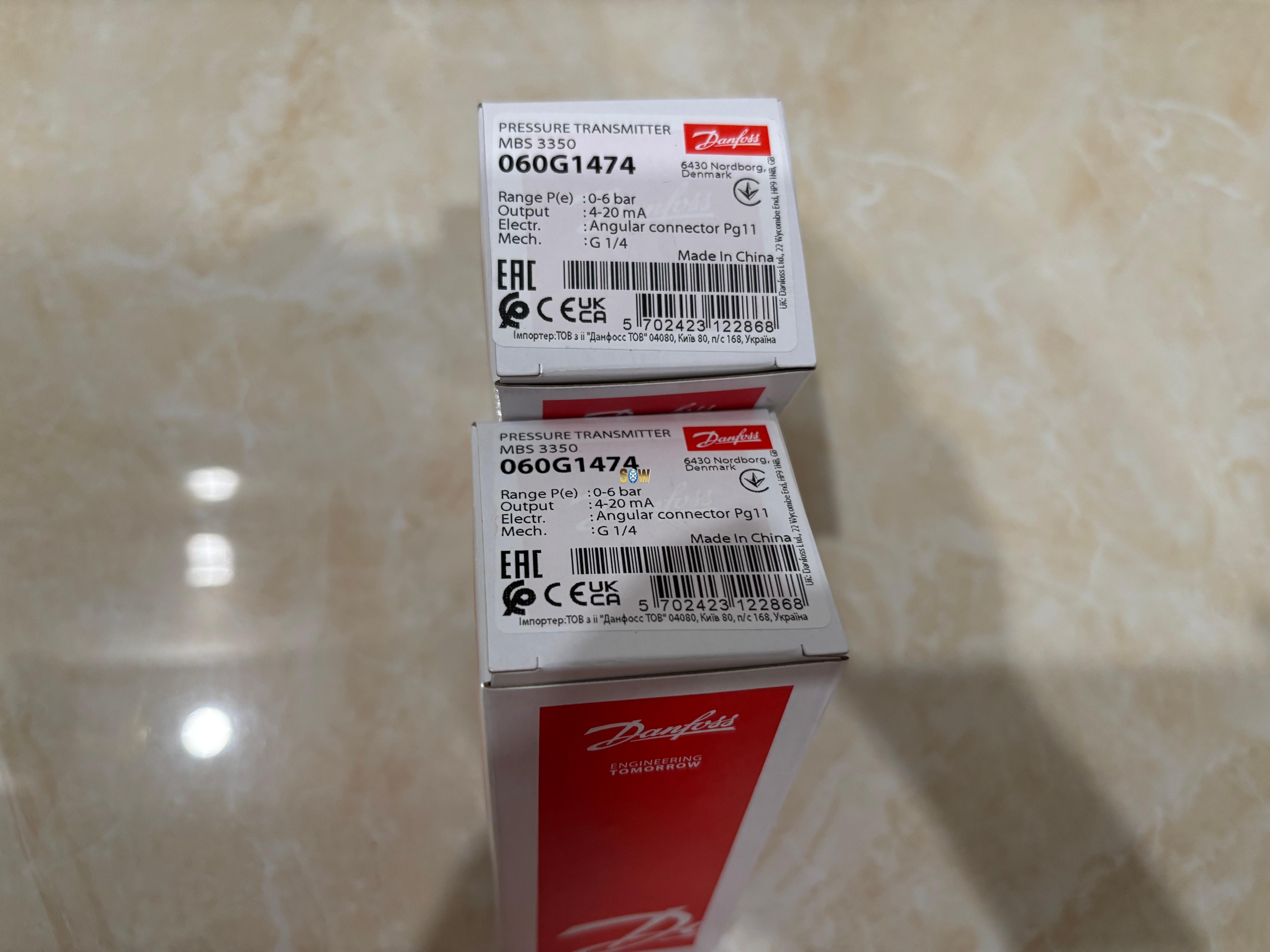

Danfoss Pressure transmitter, MBS 3350, 060G1474

Product details

+ supply	Pin 1
- common	Pin 2
Accuracy, max. [±FS%]	1 %
Accuracy, typical [±FS%]	0.5 %
Adj. zero point and span	No
Ambient temperature range [°C] [max]	100 °C
Ambient temperature range [°C] [min]	-40 °C
Ambient temperature range [°F] [max]	212 °F
Ambient temperature range [°F] [min]	-40 °F
Approval	ATEX CE C UL US UL Recognized
Approval comments	ATEX Ex ec IIA T4 Gc
CE evaluated	Yes
China RoHS compliance	Out of scope
Compensated temp. range [°C] [max]	100 °C
Compensated temp. range [°C] [min]	0 °C
Compensated temp. range [°F] [max]	212 °F
Compensated temp. range [°F] [min]	32 °F
Contains batteries	No
EEE category	5 small equipment (any external dimension < 50 cm)
Electrical conn. Male/Female	Male and Female
Electrical connection	Angular connector
Electrical connection size	Pg 11
Electrical connection standard	EN 175301-803-A
Enclosure rating IP	IP65
EU RoHS compliance	Yes with exemptions
EU RoHS exemption clause	6(c)
Flush diaphragm	No
High Clipping Level	22.4
In scope of WEEE	Yes
International Article Number	5702423122868
Intrinsically safe	No

Low Clipping level	3.6
Medium temperature range [°C] [max]	125 °C
Medium temperature range [°C] [min]	-40 °C
Medium temperature range [°F] [max]	257 °F
Medium temperature range [°F] [min]	-40 °F
Non-linearity BFSL [±FS%]	0.5 %
Output signal	Current
Output signal [mA] [max]	20 mA
Output signal [mA] [min]	4 mA
Overload pressure max. [bar]	20 bar
Packing format	Multi pack
Pressure connection HEX [mm]	27 mm
Pressure connection size	1/4
Pressure connection standard	DIN 3852-G
Pressure connection type	G
Pressure Male/Female	Male
Pressure range [bar] [max]	6 bar
Pressure range [bar] [min]	0 bar
Pressure range [psi] [max]	87 psi
Pressure range [psi] [min]	0 psi
Pressure reference	Gauge (relative)
Pulse-snubber	Yes
Quantity per packing format	14 pc
REACH Candidate List substances	Lead (CAS no. 7439-92-1)
Response time max. [ms]	4 ms
SCIP dossier no.	16d2efc6-64f3-4a4e-ae98-a3fd7ce0218d
SCIP dossier product name	AKS/MBS
Specification key	MBS 3350-1811-A6FB04-4
Supply voltage [V] DC [max]	32 V
Supply voltage [V] DC [min]	9 V
UL evaluated	Yes
