Name:	Saginomiya Thermostatic Expansion Valve ATX-71160DPS
Brand:	Saginomiya
Model No.:	ATX
Part No.:	ATX-71160DPS
Country of origional:	Japan
Refrigerant:	R407c
G.W:	1.5kgs/pc

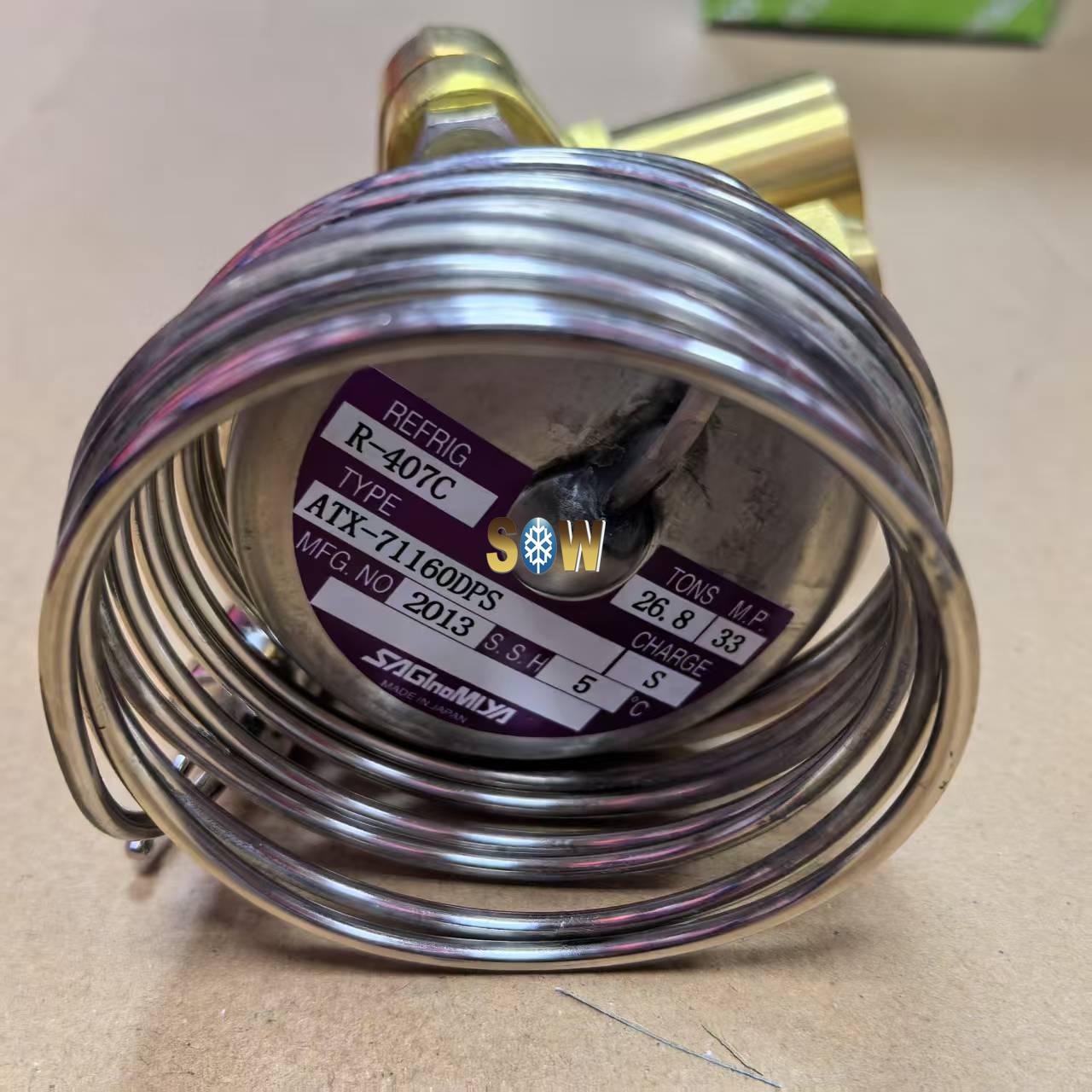

Saginomiya Thermostatic Expansion Valve ATX-71160DPS

Features

Design that incorporates a seat assembly within the main structure, allowing for flexible capacity and performance adjustments

Also compatible with equipment with hot gas defrost lines.

Refrigerating capacity of 3.30 to 268kW (R448A)

Applications

Water chillers, packaged heat pump air conditioners, freezers, refrigerators, brine coolers

Common Specifications

Maximum working pressure: 2.8 MPa (R134a, R404A, R448A, R449A), 3.3 MPa (R407C, R410A, R407H, R463A-J)

Maximum temperature for main structure: 80℃

Maximum temperature for sensing element: 40℃ (C, CL), 120℃ (S, SL)

Connections: Flare and solder connections

Refrigerants: R134a, R404A, R407C, R410A, R448A, R449A, R407H, R463A-J

(Please inquire about other refrigerants)
