Product Description

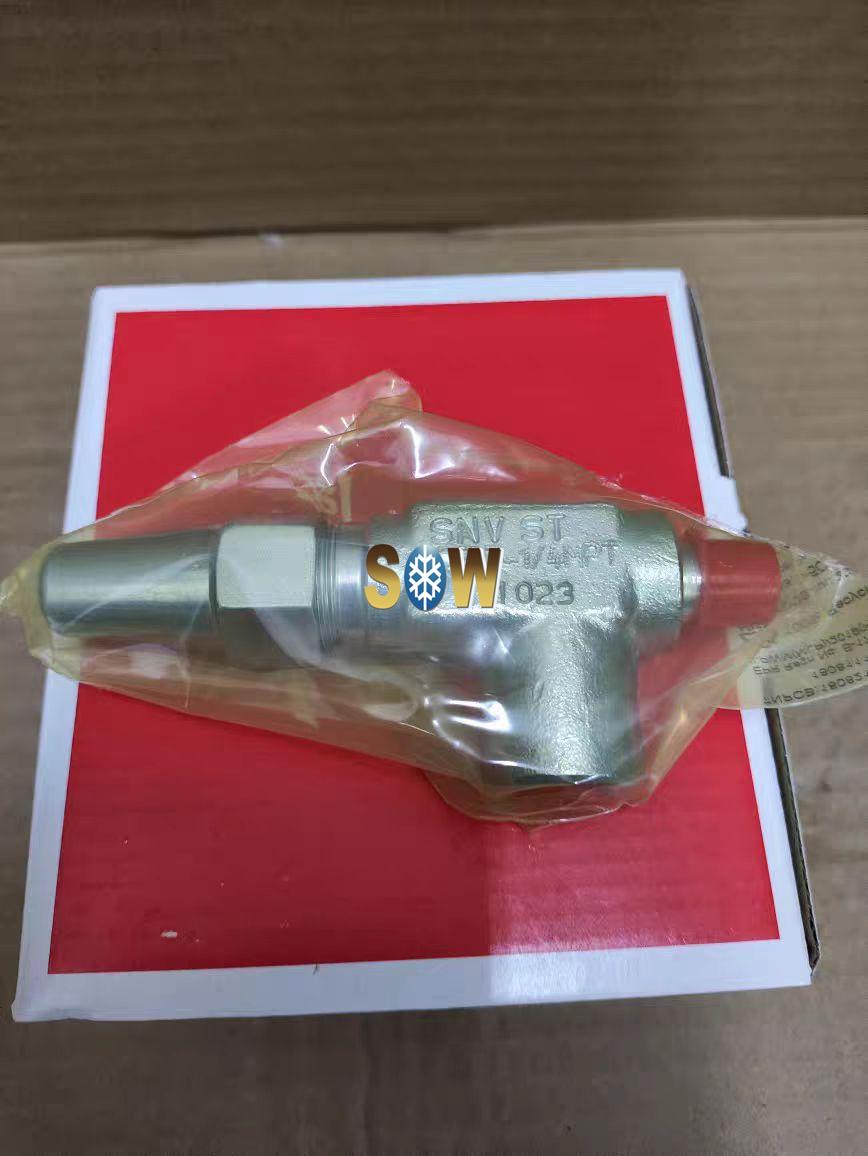

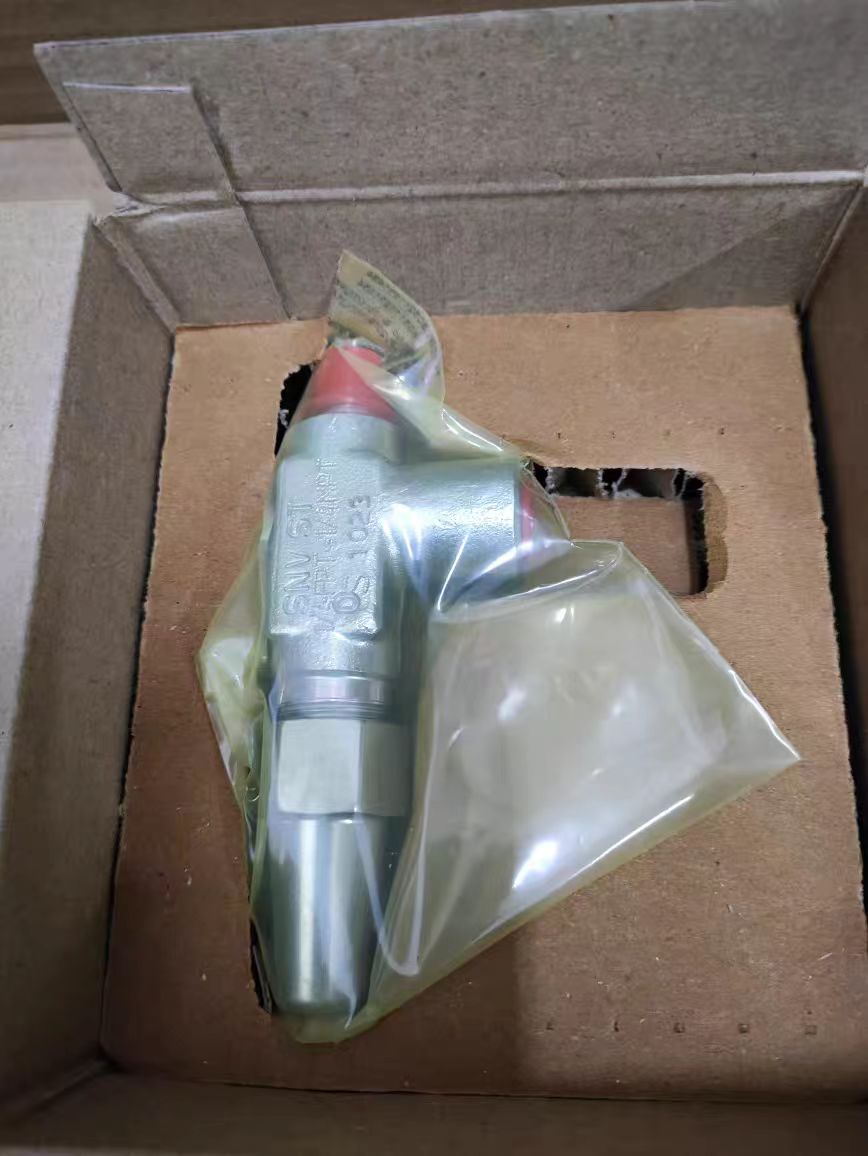

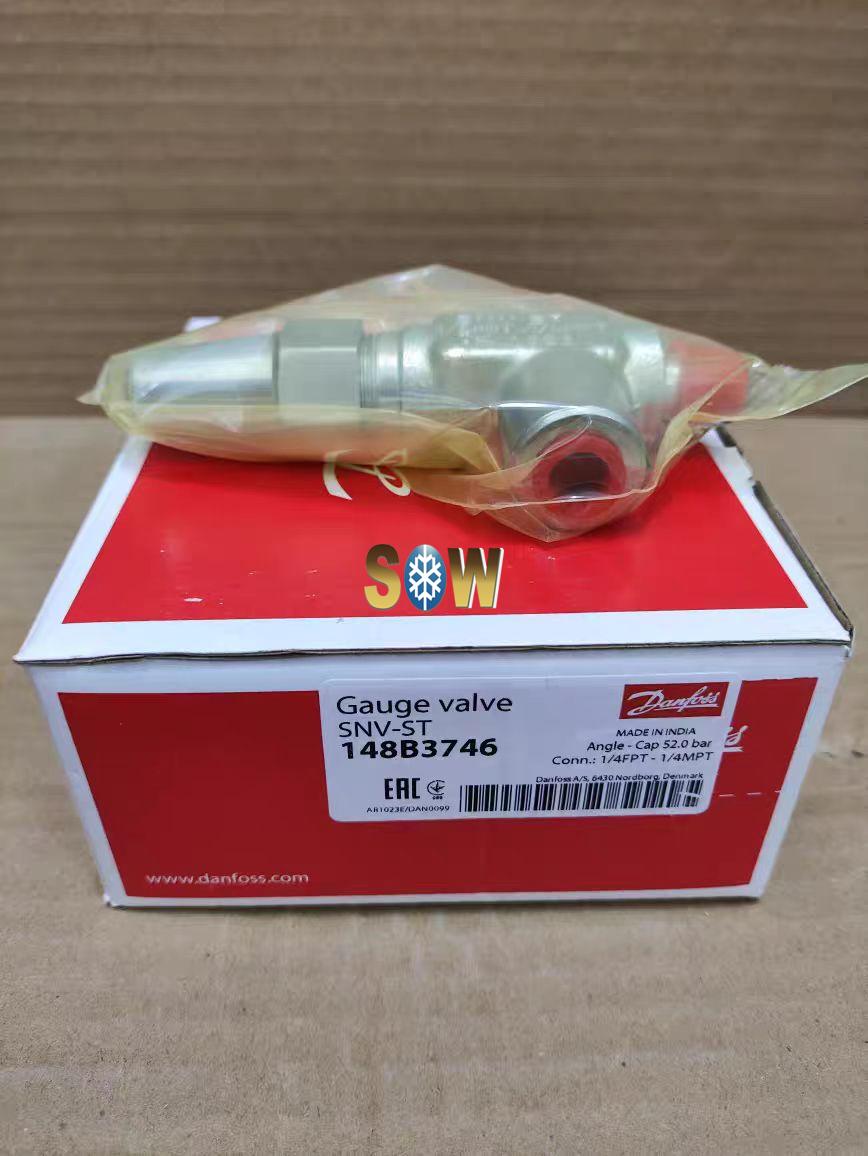

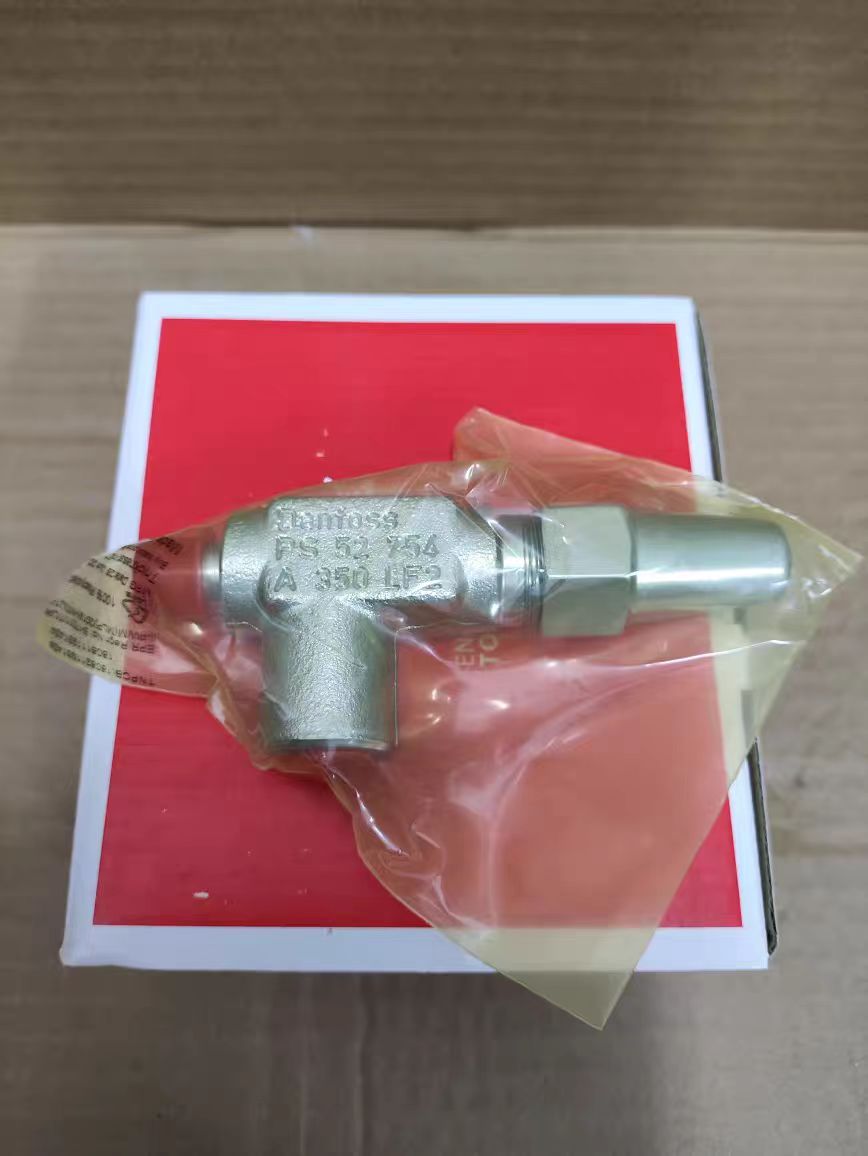

Danfoss Gauge valve, SNV-ST 148B3746
DANFOSS NEEDLE VALVE SNV-ST ANGLE 1/4" FPT X 1/4" MPT
Product details
| Gross weight | 0.49 Kilogram |
| Net weight | 0.39 Kilogram |
| Volume | 0.859 Liter |
| EAN | 5702428179317 |
| Approval | EAC LLC CDC TYSK TÜV |
| Body material | Steel |
| China RoHS compliance | Out of scope |
| Colour Paint | Cr3 / TLP |
| Connection material | Steel |
| Connection standard | ANSI/ASME B1.20.1 |
| Contain batteries | No |
| Direction | Angleway |
| Equipment | Cap |
| EU RoHS compliance | Out of scope |
| Flow direction | Bi-flow |
| Fluid Group | 1 |
| Identical product | 148B4180 |
| Inlet connection size [in] | 1/4 |
| Inlet connection type | NPT |
| Inlet Internal/External | External |
| Max. Working Pressure [bar] | 52 bar |
| Max. Working Pressure [psig] | 754 psig |
| Outlet connection size [in] | 1/4 |
| Outlet connection type | NPT |
| Outlet Internal/External | Internal |
| Packing format | Multi pack |
| PED category | Art. 4, par. 3 |
| Product accessories | SNV accessories |
| Product description | Stop Needle Valve |
| Product group | Shut-off and regulating valves |
| Product Name Description | Gauge valve |
| Quantity per packing format | 12 pc |
| REACH Candidate List substances | No |
| Refrigerants | R113 R114 R1150 R1233zd(E) R1234yf R1234ze(E) R125 R1270 R1336mzz(Z) R134a R152a R170 R22 R227ea R23 R236fa R245fa R290 R32 R401A R402A R402B R404A R407A R407B R407C R407F R407H R408A R409A R410A R413A R417A R421A R422A R422B R422D R427A R438A R442A R444B R447A R447B R448A R449A R449B R450A R452A R452B R454A R454B R454C R455A R463A R502 R503 R507A R512A R513A R513B R515A R515B R516A R600 R600a R717 R744 RE170 R508B |
| Serviceable | SNV spare parts |
| Temperature range [°C] [max] | 150 °C |
| Temperature range [°C] [min] | -60 °C |
| Temperature range [°F] [max] | 302 °F |
| Temperature range [°F] [min] | -76 °F |
| Type | SNV-ST |
| UK RoHS compliance | Out of scope |
| Valve version | Standard version |
