Product Description

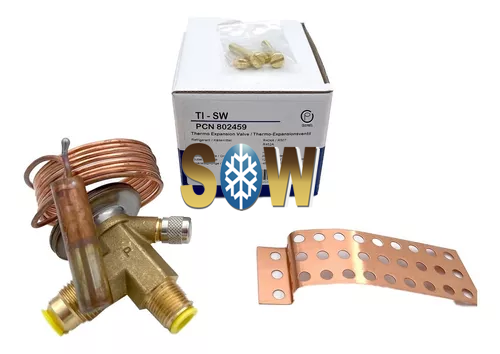

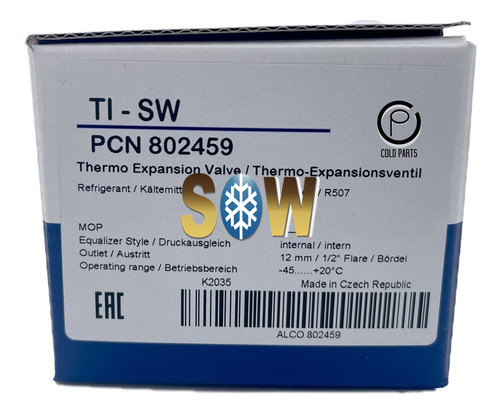

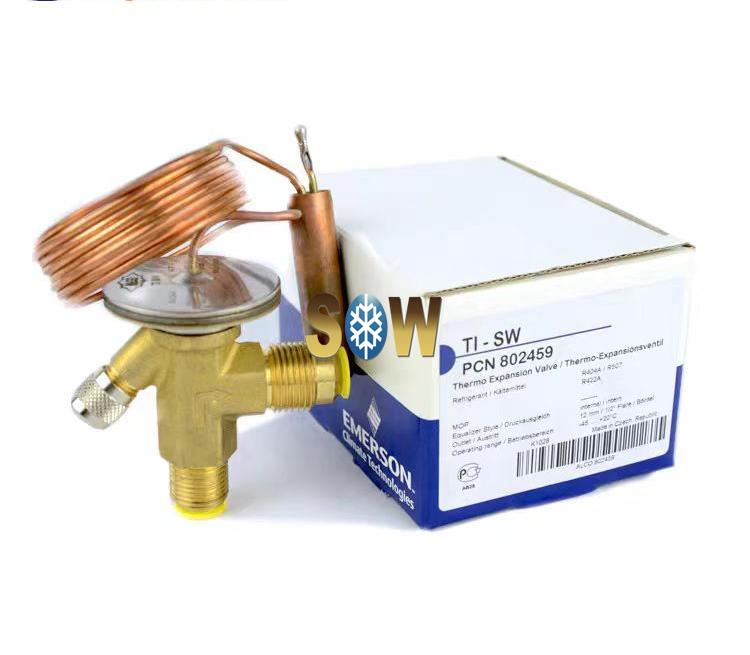

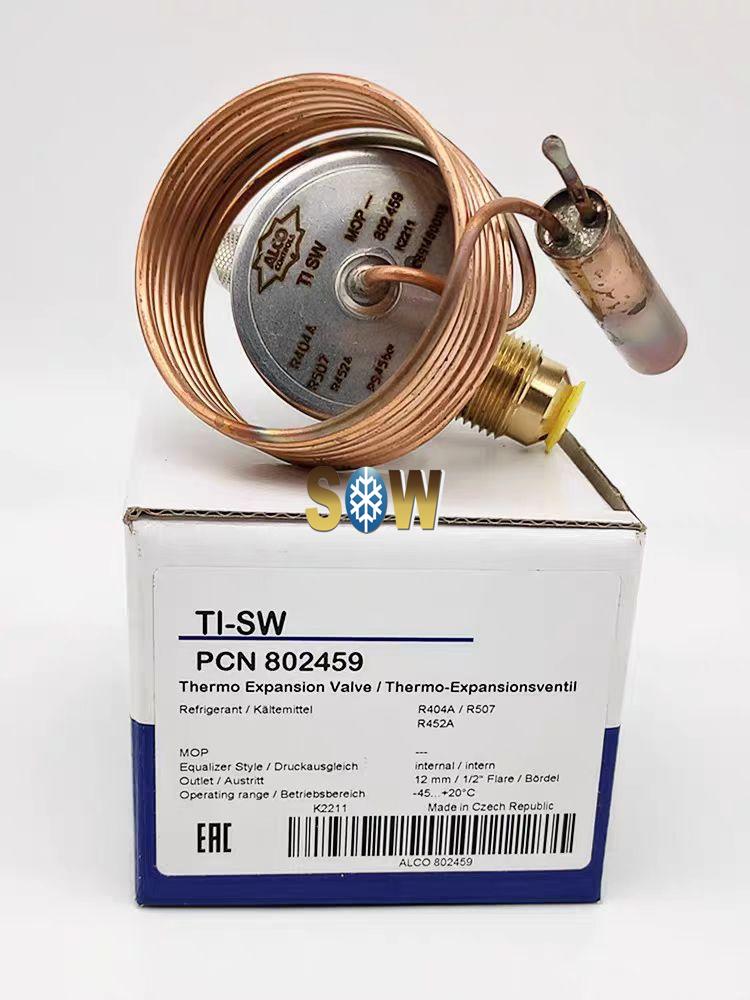

Alco (Emerson) TI Series Thermo Expansion Valve TI-SW R404A
Basic Info.
Product Description
1. Also(Emerson) TI valves design for refrigeration, special used for showcase, refrigerator, cake cabinet,ice maker etc.
2. There are models for R22, R134a, R404a, R407c, R410a refrigerant.
3. Features:
a). Laser-welded diaphragm with large diameter for high reliability and maximum lifetime.
b).Constant superheat across wide application rangesEasy and precise superheat setting by modified threads
c).TI valvs with stainless steel fittings allow brazing without wet rags
e).with capacities between 0.4KW and 14.2KW (R404a) ideally suited for service work.
f).Internal or externalequalizer
e).Brazing and flare connection available
g).Brazing and flare connection available
h).Capillary tube length 1.5m
i).PS:45bar. TS:-45... +75C
| Orifice model | TIO- | 00X | 000 | 001 | 002 | 003 | 004 | 005 | 006 | Eva Temp 0C | |
| model | freon | Equalizer type | Cooling Capacity | ||||||||
| TI-MW | R134a | internal equalizer | 0.3 | 0.8 | 1.9 | 3.1 | 5.0 | 8.3 | 10.1 | 11.7 | -45~ +20 |
| TIE-MW | external equalizer | -45~ +10 | |||||||||
| TI-HW | R22 | internal equalizer | 0.5 | 1.3 | 3.2 | 5.3 | 8.5 | 13.9 | 16.9 | 19.5 | -45~ +20 |
| TIE-HW | external equalizer | -45~ +13 | |||||||||
| TI-SW | R404a | internal equalizer | 0.4 | 1.0 | 2.3 | 3.9 | 6.2 | 10.1 | 12.3 | 14.2 | -45~ +20 |
| TIE-SW | external equalizer | -45~ + -3 | |||||||||
| TI-NW | R407a | internal equalizer | 0.5 | 1.4 | 3.5 | 5.7 | 9.2 | 15.0 | 18.3 | 21.1 | -45~ +20 |
| TIE-NW | external equalizer | -45~ +20 | |||||||||
| TI-ZW | R410a | internal equalizer | 0.6 | 1.5 | 3.7 | 6.2 | 9.9 | 16.2 | 19.7 | 22.8 | -45~ +20 |
| TIE-ZW | external equalizer | -45~ +15 | |||||||||
