Name:Emerson TCLE 5 HC Thermal Expansion Valve 054399 Valve Less Flange
Brand:Emerson Climate (Alco)
Model No.:TCLE 5 HC
Country of origional:China
Shipping Weight (Lbs.):2
Cage Included:X22440B5B
Capillary Length:5
Equalizer:1/4 SAE
Nominal Tons:5
Nominal Tons_Sort:5.0
Overall Height (In.):3 45/64 straight thru, 4 53/64" angle
Refrigerant:R22, R407A, R407C
Use with:R22, R407A, R407C

Product Description

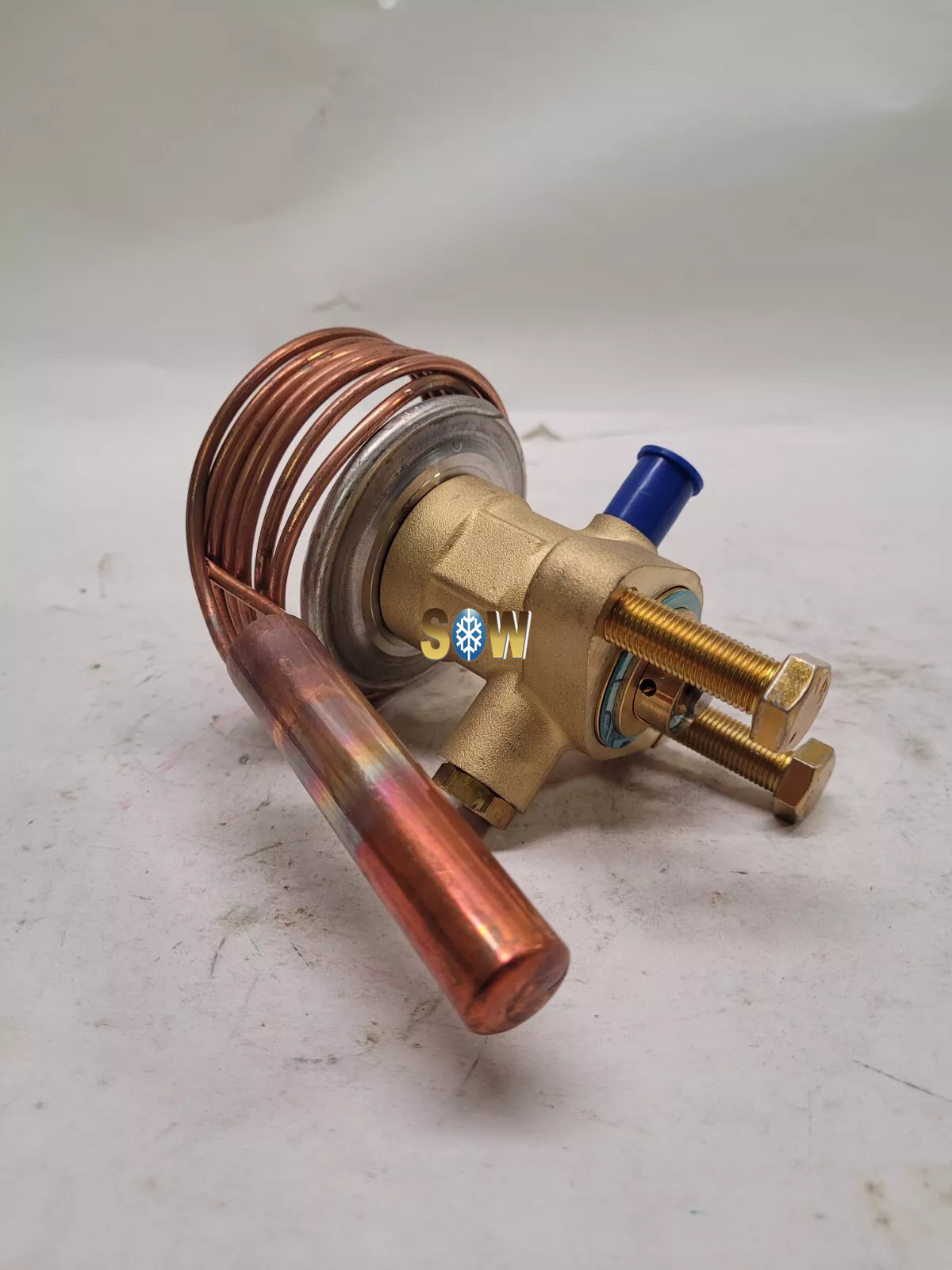

Emerson TCLE 5 HC Thermal Expansion Valve 054399 Valve Less Flange

Expansion valve, cartridge style, body only, take-a-part series, R22 family, external equalizer, 5 tons

TCLE 5HC-02, T-Series Take-Apart Thermostatic Expansion Valves

The T-Series Take-Apart valves, with adjustable superheat and replaceable, interchangeable components are ideal for original equipment and field replacements in air conditioning, heat pump, and refrigeration applications.

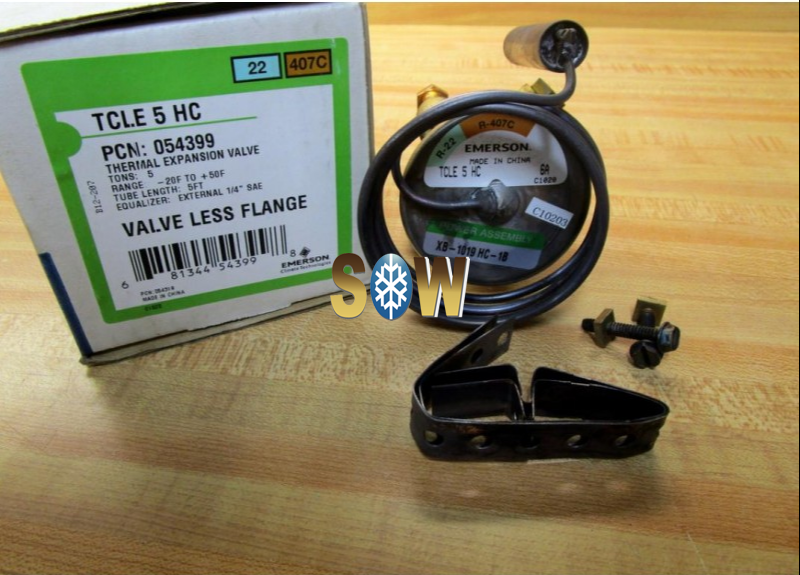

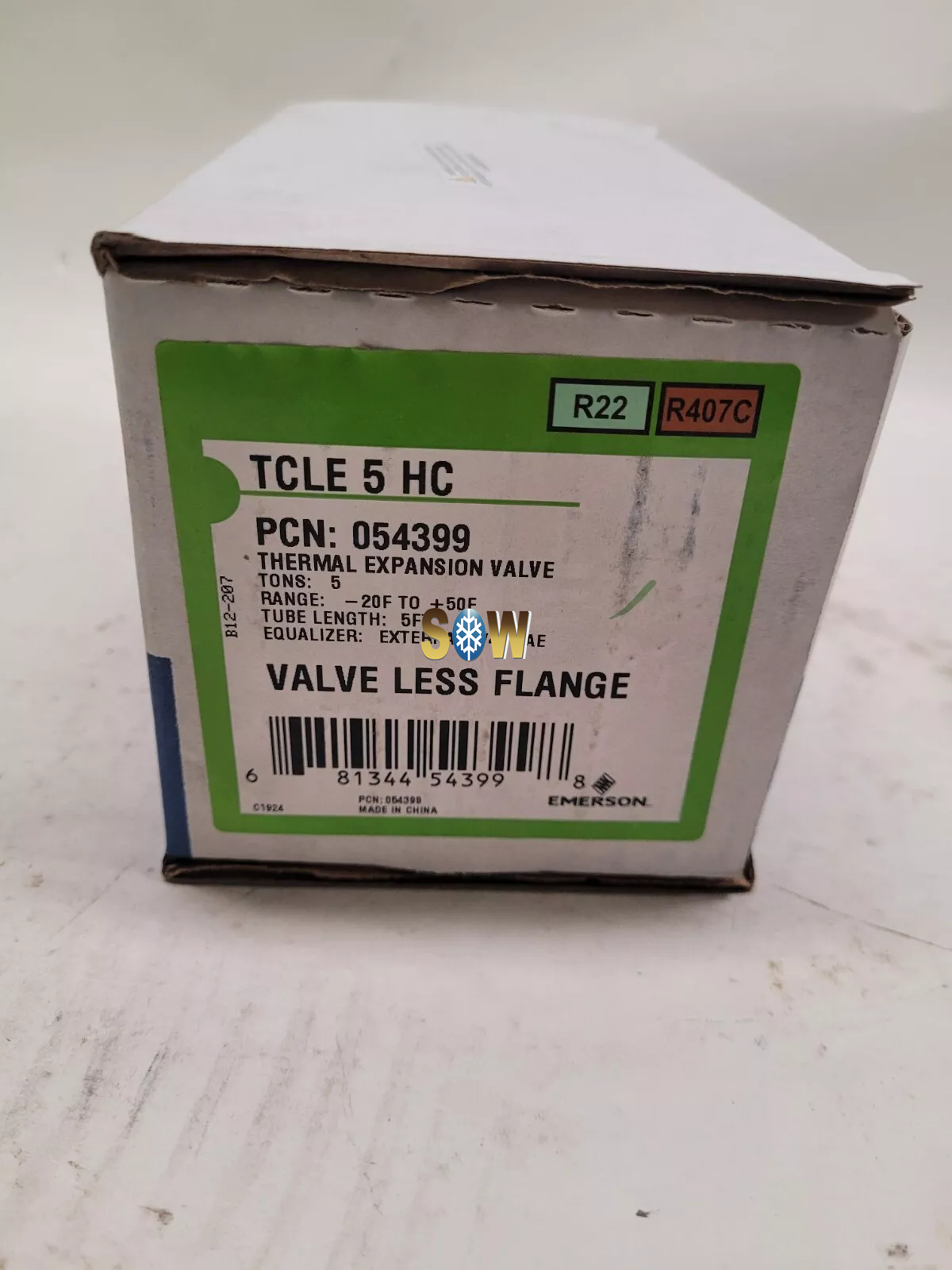

TCLE5HCPCN:054399

R-22 R-407C

6A

Power Assy.:XB-1019HC-1B

5 Tons

Range:-20F To +50F

Tube Length: 5FT.

Equalizer: External 1/4" SAE


Features

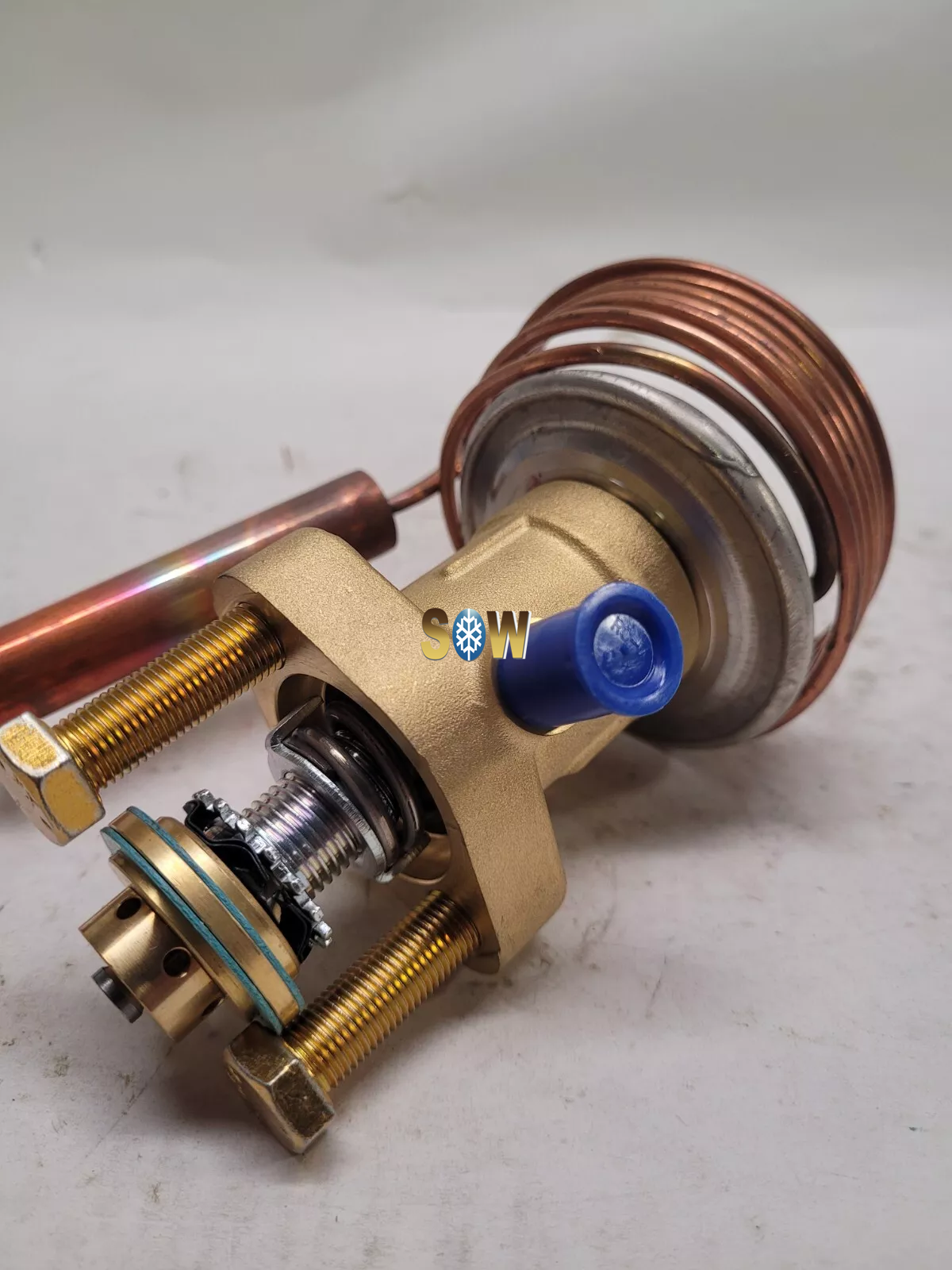

Take-Apart construction for easy field service

External superheat adjustment

Bi-directional capability

Stainless steel power assembly


Specifications
Capacity (Nominal):5 Tons
Inlet Connection Size:Valve Less Flange
Outlet Connection Size:Valve Less Flange
Adjustable Superheat:Yes
Equalizer:External
Length:5 Ft. Capillary
Bleed:No
Body Design:Valve Less Flange
Maximum Working Pressure:450 psig
Torque Bolts:300 in. lbs.
