Name:Saginomiya Expansion Valve ATX-34035DUS
Brand:Saginomiya
Model No.:ATX-34035DUS
Country of origional:Japan
Refrigerant:R404A
Connection size:3/81/2

Product Description

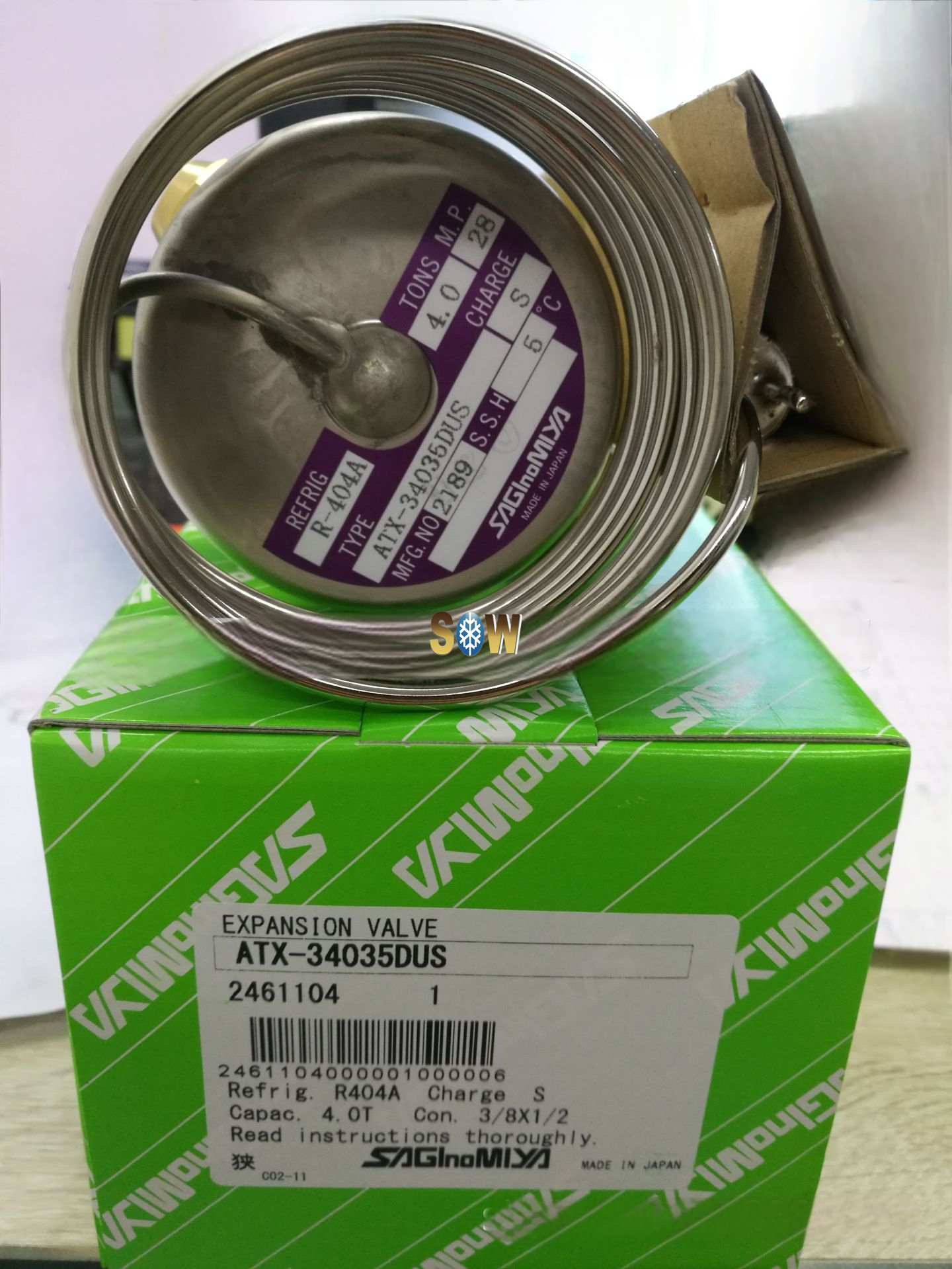

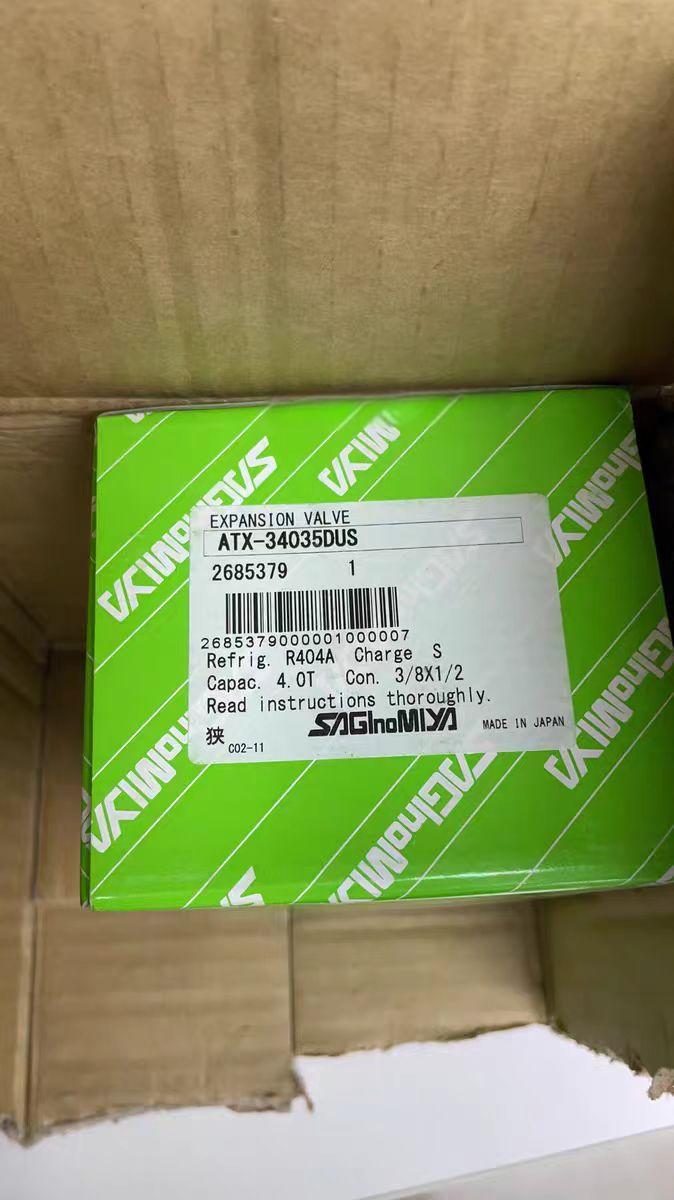

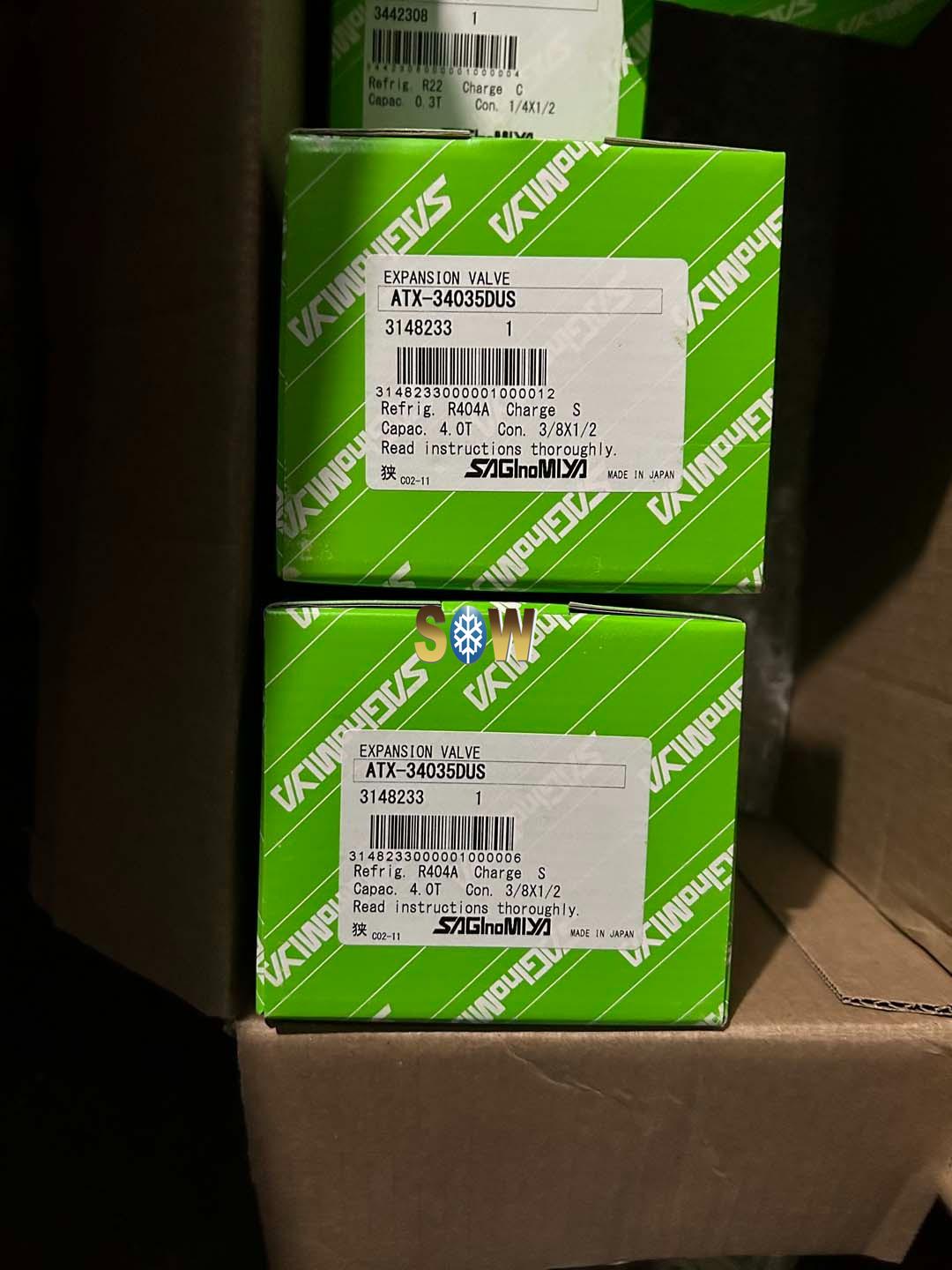

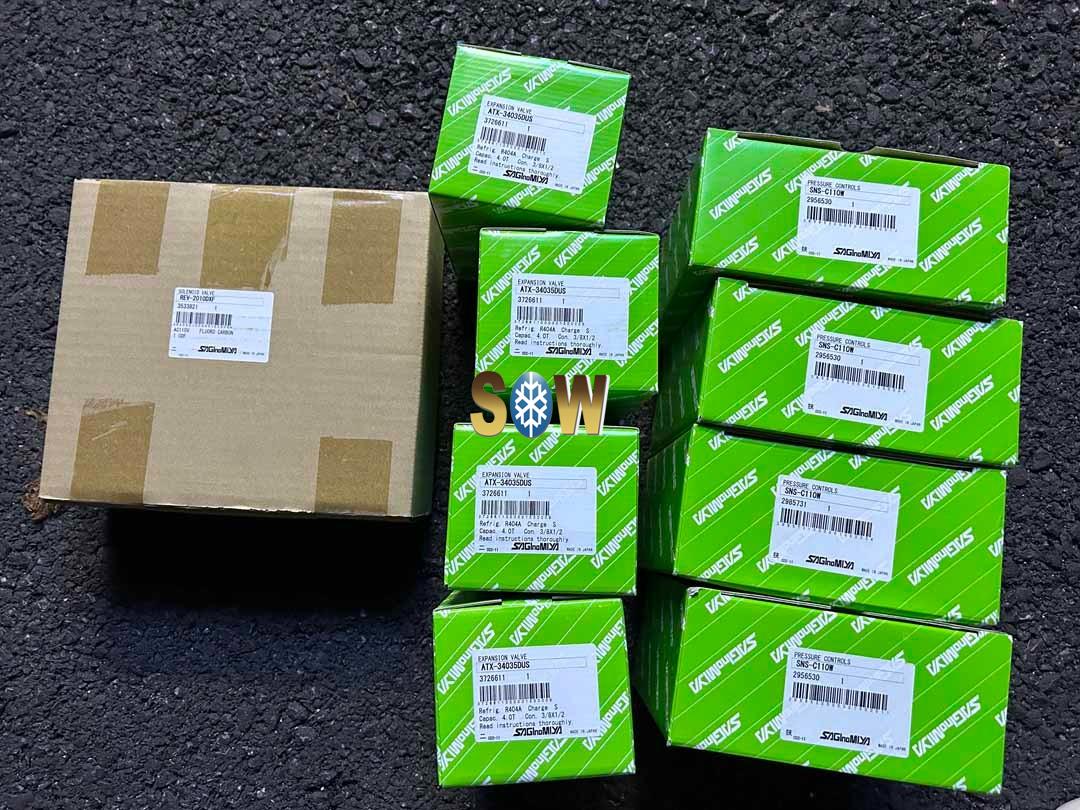

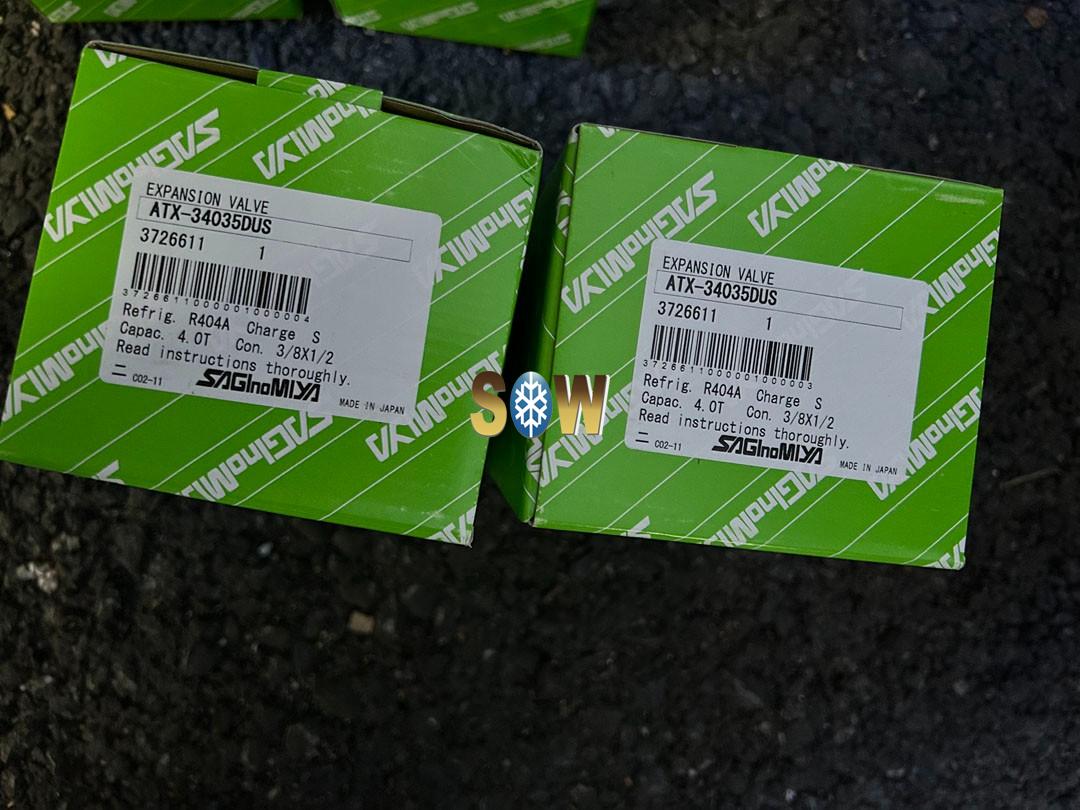

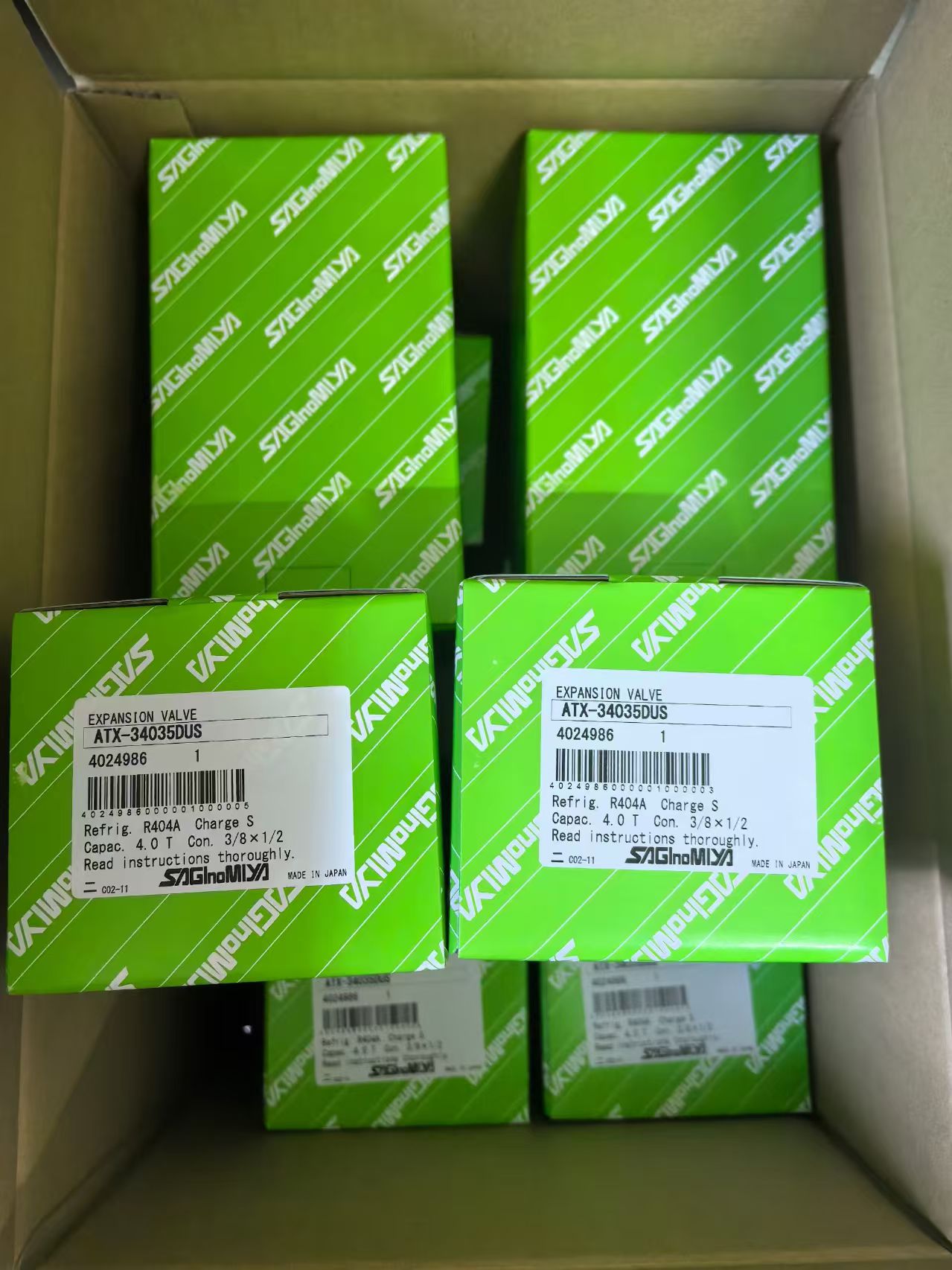

Saginomiya Expansion Valve ATX-34035DUS



Type:ATX

Pipe diameter:34

Capacity:035

Joint: Copper pipe welding

Refrigerant type:R404A

Filling method:S Filling

Saginomiya expansion valve ATX-34035DUS R404


Catalog No. is decided according to the specifications.



Example:ATX(Ⅰ) – 34006(Ⅱ) B(Ⅲ) H(Ⅳ) L(Ⅴ)


Ⅰ: Type...... ATX–Thermostatic expansion valve for general use.
Ⅱ: Model...... The first and second digits indicate inlet and outlet pipe size respectively.
The last three digits indicate nominal capacity.
Ⅲ: Connection...... B–Flare Nut Connection, D–Solder Connection
Ⅳ: Refrigerant...... M = R134a, H = R22, U = R404A, P = R407C
Ⅴ: Charge type...... G = G–charge, L = L–charge, C = C–charge, CL = CL–charge, CY = CY–charge,
S = S–charge, SL = SL–charge

Description
Application: General refrigeration and air conditioning system.
In cases where the evaporation temperature is −20°C or lower, S–charge type is best suited for heat-pump air conditioners and unloading system attached devices.

n
  • Application: General refrigeration and air conditioning
    system.
  • n
  • In cases where the evaporation temperature is u221220u00b0C
    or lower, Su2013charge type is best suited for heat-pump air
    conditioners and unloading system attached devices.
  • n","description_short":"

    VALVE NOMENCLATURE

    n


    Catalog No. is decided according to the specifications.

    n

    Example:ATX(u2160) u2013 34006(u2161) B(u2162) H(u2163) L(u2164)

    n


    u2160: Type...... ATXu2013Thermostatic expansion valve for general use.
    u2161: Model...... The first and second digits indicate inlet and outlet pipe size respectively.
    The last three digits indicate nominal capacity.
    u2162: Connection...... Bu2013Flare Nut Connection, Du2013Solder Connection
    u2163: Refrigerant...... M uff1d R134a, H uff1d R22, U uff1d R404A, P uff1d R407C
    u2164: Charge type...... G uff1d Gu2013charge, L uff1d Lu2013charge, C uff1d Cu2013charge, CL uff1d CLu2013charge, CY uff1d CYu2013charge,
    S uff1d Su2013charge, SL uff1d SLu2013charge

    ","available_now":"","available_later":"","id":159,"id_product":159,"out_of_stock":2,"new":0,"id_product_attribute":"0","quantity_wanted":1,"extraContent":[{"title":null,"content":false,"attr":{"id":"","class":""},"moduleName":"ststickers"},{"title":null,"content":{"description":"","tabs":[]},"attr":{"id":"","class":""},"moduleName":"steasycontent"}],"allow_oosp":0,"category":"expansion-valves","category_name":"Expansion valves","link":"https://www.coolmate.store/expansion-valves/159-saginomiya-expansion-valve-atx-12220dhs.html","attribute_price":0,"price_tax_exc":323,"price_without_reduction":323,"reduction":0,"specific_prices":[],"quantity":3,"quantity_all_versions":3,"id_image":"en-default","features":[{"name":"Inlet 1 connection size [in]","value":"3/8in","id_feature":"114","position":"108"},{"name":"Outlet 1 connection size [in]","value":"1/2"","id_feature":"125","position":"119"},{"name":"Refrigerant","value":"R404a","id_feature":"127","position":"121"},{"name":"Equalizer connection","value":"1/4","id_feature":"187","position":"180"},{"name":"Capillary tube length","value":"u03c63 u00d7 1500mm","id_feature":"188","position":"181"}],"attachments":[],"virtual":0,"pack":0,"packItems":[],"nopackprice":0,"customization_required":false,"rate":0,"tax_name":"","ecotax_rate":0,"unit_price":"","customizations":{"fields":[]},"id_customization":0,"is_customizable":false,"show_quantities":true,"quantity_label":"Items","quantity_discounts":[],"customer_group_discount":0,"images":[{"bySize":{"cart_default":{"url":"https://www.coolmate.store/287-cart_default/saginomiya-expansion-valve-atx-12220dhs.jpg","width":70,"height":70},"small_default":{"url":"https://www.coolmate.store/287-small_default/saginomiya-expansion-valve-atx-12220dhs.jpg","width":120,"height":120},"cart_default_2x":{"url":"https://www.coolmate.store/287-cart_default_2x/saginomiya-expansion-valve-atx-12220dhs.jpg","width":140,"height":140},"home_default":{"url":"https://www.coolmate.store/287-home_default/saginomiya-expansion-valve-atx-12220dhs.jpg","width":230,"height":230},"small_default_2x":{"url":"https://www.coolmate.store/287-small_default_2x/saginomiya-expansion-valve-atx-12220dhs.jpg","width":240,"height":240},"large_default":{"url":"https://www.coolmate.store/287-large_default/saginomiya-expansion-valve-atx-12220dhs.jpg","width":450,"height":450},"large_default_2x":{"url":"https://www.coolmate.store/287-large_default_2x/saginomiya-expansion-valve-atx-12220dhs.jpg","width":450,"height":450},"medium_default":{"url":"https://www.coolmate.store/287-medium_default/saginomiya-expansion-valve-atx-12220dhs.jpg","width":450,"height":450},"medium_default_2x":{"url":"https://www.coolmate.store/287-medium_default_2x/saginomiya-expansion-valve-atx-12220dhs.jpg","width":450,"height":450},"home_default_2x":{"url":"https://www.coolmate.store/287-home_default_2x/saginomiya-expansion-valve-atx-12220dhs.jpg","width":460,"height":460},"superlarge_default":{"url":"https://www.coolmate.store/287-superlarge_default/saginomiya-expansion-valve-atx-12220dhs.jpg","width":750,"height":750},"superlarge_default_2x":{"url":"https://www.coolmate.store/287-superlarge_default_2x/saginomiya-expansion-valve-atx-12220dhs.jpg","width":750,"height":750}},"small":{"url":"https://www.coolmate.store/287-cart_default/saginomiya-expansion-valve-atx-12220dhs.jpg","width":70,"height":70},"medium":{"url":"https://www.coolmate.store/287-large_default_2x/saginomiya-expansion-valve-atx-12220dhs.jpg","width":450,"height":450},"large":{"url":"https://www.coolmate.store/287-superlarge_default_2x/saginomiya-expansion-valve-atx-12220dhs.jpg","width":750,"height":750},"legend":"","cover":"1","id_image":"287","position":"1","associatedVariants":[]}],"cover":{"bySize":{"cart_default":{"url":"https://www.coolmate.store/287-cart_default/saginomiya-expansion-valve-atx-12220dhs.jpg","width":70,"height":70},"small_default":{"url":"https://www.coolmate.store/287-small_default/saginomiya-expansion-valve-atx-12220dhs.jpg","width":120,"height":120},"cart_default_2x":{"url":"https://www.coolmate.store/287-cart_default_2x/saginomiya-expansion-valve-atx-12220dhs.jpg","width":140,"height":140},"home_default":{"url":"https://www.coolmate.store/287-home_default/saginomiya-expansion-valve-atx-12220dhs.jpg","width":230,"height":230},"small_default_2x":{"url":"https://www.coolmate.store/287-small_default_2x/saginomiya-expansion-valve-atx-12220dhs.jpg","width":240,"height":240},"large_default":{"url":"https://www.coolmate.store/287-large_default/saginomiya-expansion-valve-atx-12220dhs.jpg","width":450,"height":450},"large_default_2x":{"url":"https://www.coolmate.store/287-large_default_2x/saginomiya-expansion-valve-atx-12220dhs.jpg","width":450,"height":450},"medium_default":{"url":"https://www.coolmate.store/287-medium_default/saginomiya-expansion-valve-atx-12220dhs.jpg","width":450,"height":450},"medium_default_2x":{"url":"https://www.coolmate.store/287-medium_default_2x/saginomiya-expansion-valve-atx-12220dhs.jpg","width":450,"height":450},"home_default_2x":{"url":"https://www.coolmate.store/287-home_default_2x/saginomiya-expansion-valve-atx-12220dhs.jpg","width":460,"height":460},"superlarge_default":{"url":"https://www.coolmate.store/287-superlarge_default/saginomiya-expansion-valve-atx-12220dhs.jpg","width":750,"height":750},"superlarge_default_2x":{"url":"https://www.coolmate.store/287-superlarge_default_2x/saginomiya-expansion-valve-atx-12220dhs.jpg","width":750,"height":750}},"small":{"url":"https://www.coolmate.store/287-cart_default/saginomiya-expansion-valve-atx-12220dhs.jpg","width":70,"height":70},"medium":{"url":"https://www.coolmate.store/287-large_default_2x/saginomiya-expansion-valve-atx-12220dhs.jpg","width":450,"height":450},"large":{"url":"https://www.coolmate.store/287-superlarge_default_2x/saginomiya-expansion-valve-atx-12220dhs.jpg","width":750,"height":750},"legend":"","cover":"1","id_image":"287","position":"1","associatedVariants":[]},"has_discount":false,"discount_type":null,"discount_percentage":null,"discount_percentage_absolute":null,"discount_amount":null,"discount_amount_to_display":null,"price_amount":323,"unit_price_full":"","show_availability":true,"availability_date":null,"availability_message":"","availability":"available"}">
    Specifications
    ATX-34035DUS
    Inlet 1 connection size [in]:3/8in
    Outlet 1 connection size [in]:1/2"
    Refrigerant:R404a
    Equalizer connection:1/4
    Capillary tube length:φ3 × 1500mm
