Product Description

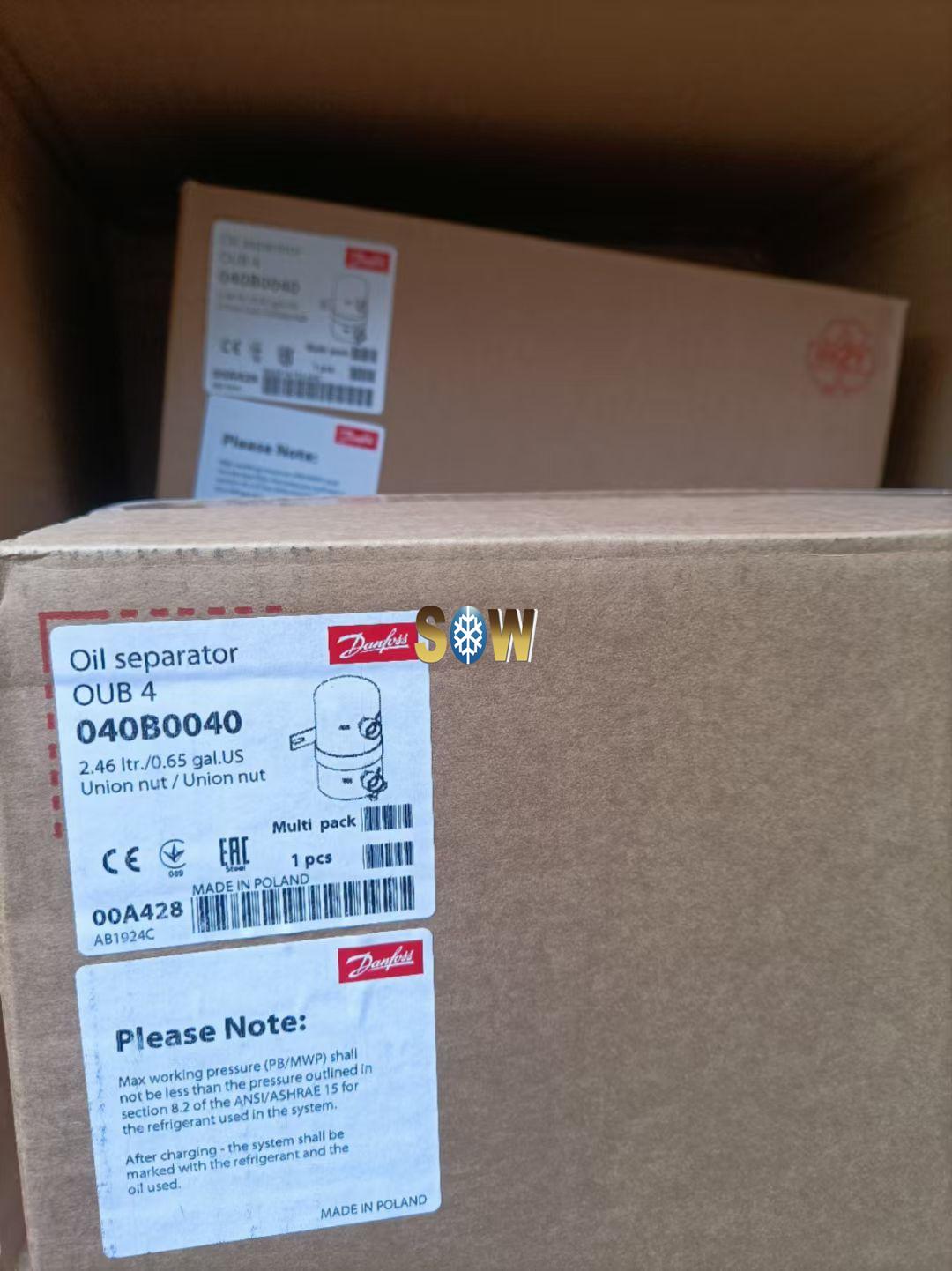

Danfoss Oil separator, OUB 4 040B0040
Product details
Gross weight | 4.044 Kilogram |
Net weight | 3.263 Kilogram |
Volume | 11.246 Liter |
EAN | 5702422003991 |
Approval | C UL US LISTED EAC LLC CDC TYSK PED |
Approval file name | REFRIGERANT OIL SEPARATOR 169N |
China RoHS compliance | Yes |
EU RoHS compliance | Out of scope |
Flow direction indicator | Engraved OIL/IN/OUT |
Further information | Excl. unions |
In scope of WEEE and contain batteries | No |
Inlet connection type | Union nut |
Inlet size [in] | 1 3/8 in - 12 UNF |
Max. test pressure [bar] | 40 bar |
Max. test pressure [psig] | 580 psig |
Max. Working Pressure [bar] | 28 bar |
Max. Working Pressure [psig] | 406 psig |
Medium temperature range [°C] [max] | 120 °C |
Medium temperature range [°C] [min] | -40 °C |
Medium temperature range [°F] [max] | 248 °F |
Medium temperature range [°F] [min] | -40 °F |
Net volume [l] | 2.46 L |
Netto volume [gal US] | 0.65 gal |
Oil reservoir vol. [foz US] | 13.53 Fluid Ounce US |
Oil reservoir vol. [l] | 0.5 L |
Outlet connection type | Union nut |
Outlet size [in] | 1 3/8 in - 12 UNF |
Packing format | Multi pack |
Product accessories | OUB accessories |
Product group | Oil separators |
Product Name Description | Oil separator |
Quantity per packing format | 1 pc |
Rated cap. R404A/R507A [kW] | 12.8 kW |
Rated capacity R134a [kW] | 9.6 kW |
Rated capacity R22 [kW] | 11.6 kW |
Rated capacity R407C [kW] | 16 kW |
REACH Candidate List substances | Lead (CAS no. 7439-92-1) |
Refrigerants | R134a R22 R404A R407A R407C R407F R407H R422B R422D R438A R448A R449A R449B R450A R452A R454A R454C R455A R507A R513A |
Return connection size [in] | 7/16 in - 20 UNF |
Return connection type | Flare |
SCIP dossier no. | 84665ad6-10fd-4942-be2c-ff8deeb786af |
Serviceable | OUB spare parts |
Type | OUB 4 |
UK RoHS compliance | Out of scope |
UL approved refrigerants | R134a R22 R404A R407A R407C R407F R407H R422B R422D R438A R448A R449A R449B R450A R452A R507A R513A |
