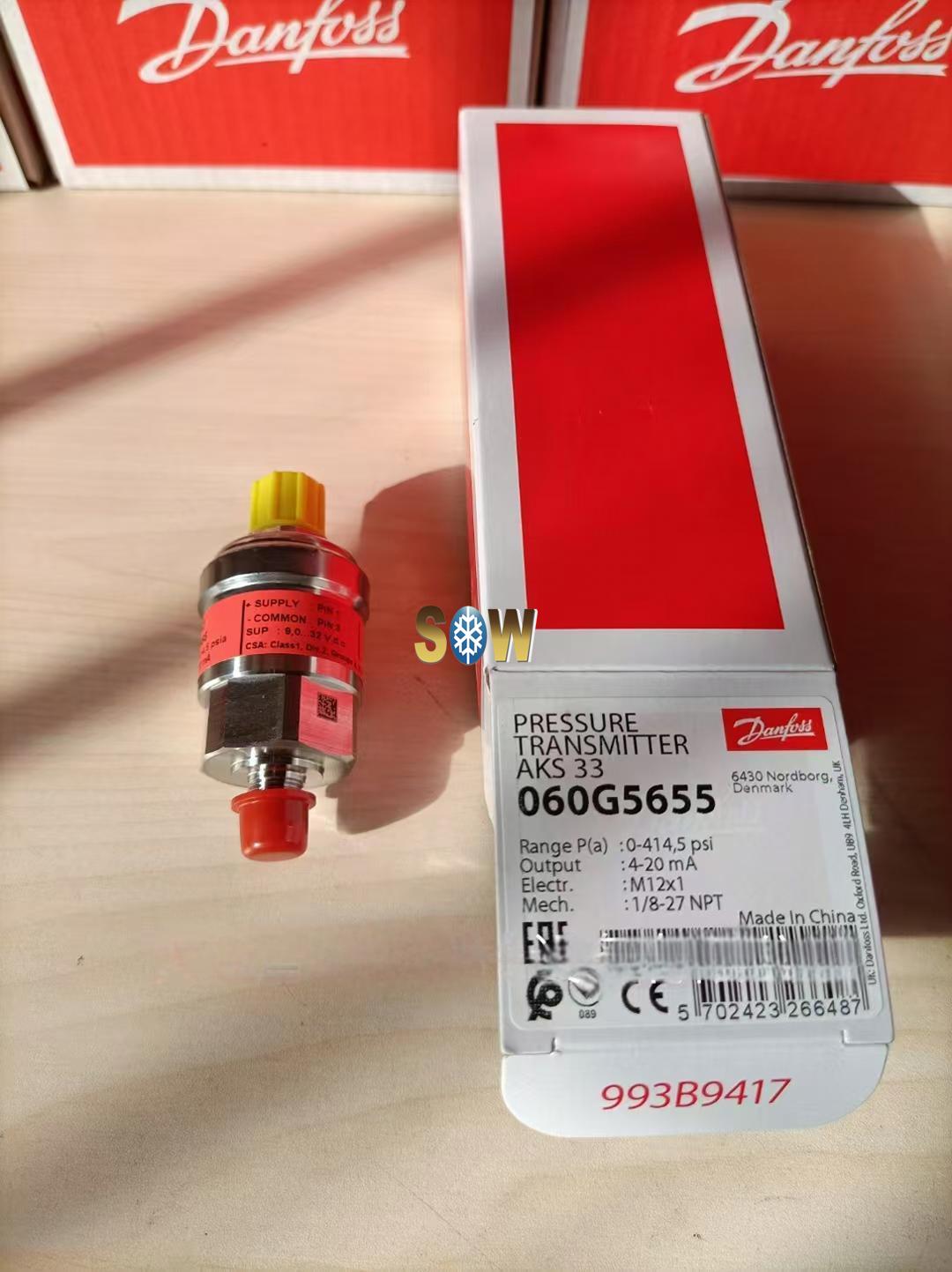

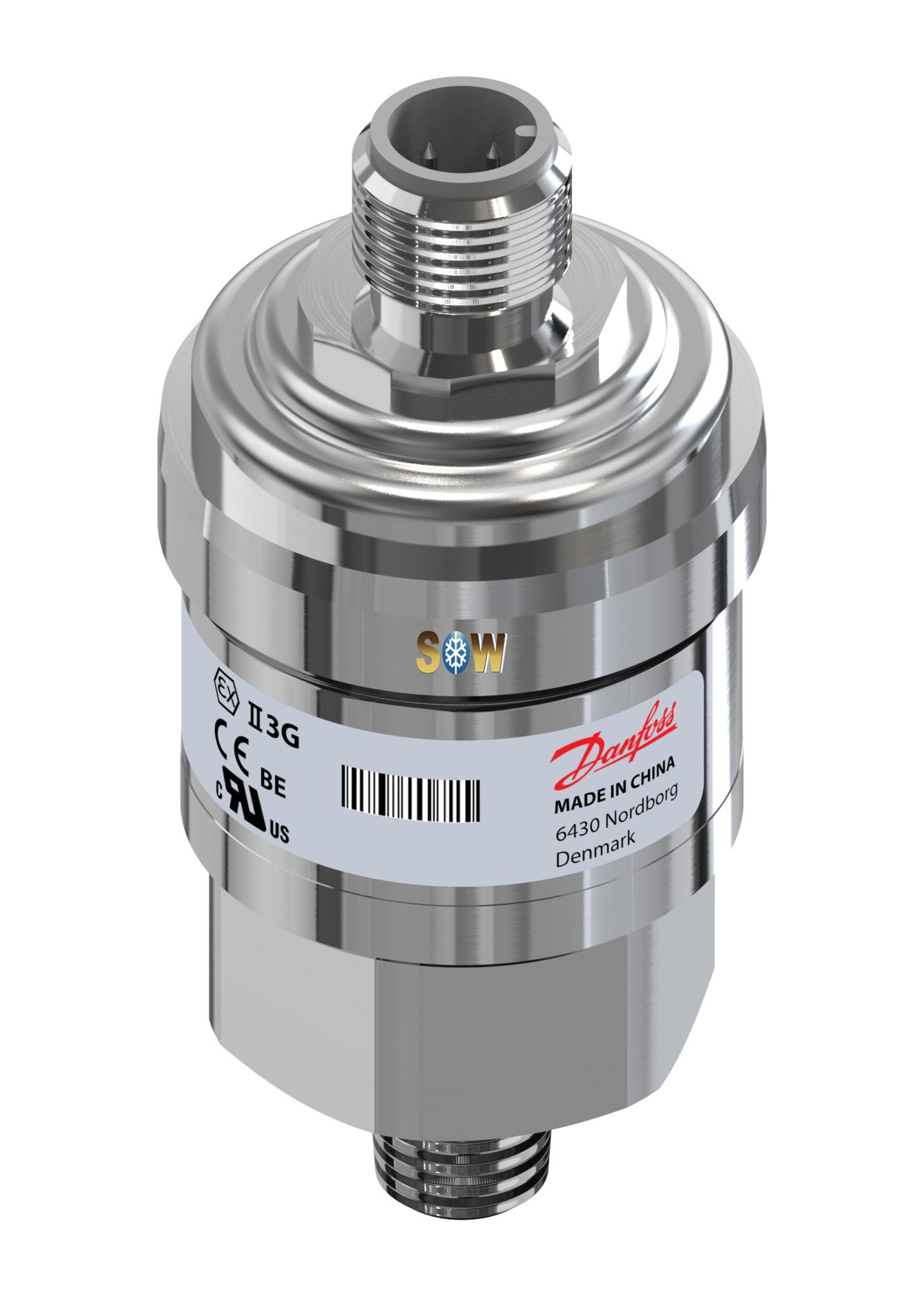

Name:	060G5655 Danfoss Pressure transmitter, AKS 33
Brand:	Danfoss
Model No.:	AKS 33
Part No.:	060G5655
Country of origion:	China
G.W:	0.15kgs/pc
Product Name Description:	Pressure transmitter
Specification key:	AKS 33-L621-E3AC02-0
Pressure connection size:	1/8-27
Pressure connection type:	NPT
Electrical connection:	M12 x 1
Output signal:	Current
Pressure reference:	Absolute

060G5655 Danfoss Pressure transmitter, AKS 33

Product details

Gross weight	0.15 Kilogram
Net weight	0.128 Kilogram

Volume	0.39 Liter
EAN	5702423266487

+ supply	Pin 1
- common	Pin 3
Accuracy, max. [±FS%]	0.8 %
Accuracy, typical [±FS%]	0.3 %
Adj. zero point and span	No
Ambient temperature range [°C] [max]	85 °C
Ambient temperature range [°C] [min]	-25 °C
Ambient temperature range [°F] [max]	185 °F
Ambient temperature range [°F] [min]	-13 °F
Approval	GOST POCC cUR
Approval standard	6967179 E227388 E31024
China RoHS compliance	Out of scope
Compensated temp. range [°C] [max]	80 °C
Compensated temp. range [°C] [min]	0 °C
Compensated temp. range [°F] [max]	104 °F
Compensated temp. range [°F] [min]	-22 °F
EEE category	5 small equipment (any external dimension 50 cm)
Electrical conn. Male/Female	Male
Electrical connection	M12 x 1
Electrical connection size	4 pin
Electrical connection standard	IEC 61076-2-101
Enclosure rating IP	IP67
EU RoHS compliance	Out of scope
Flush diaphragm	No
High Clipping Level	22.4
In scope of WEEE	Yes
In scope of WEEE and contain batteries	No
International Article Number	5702423266487
Intrinsically safe	No
Low Clipping level	3.6
Medium temperature range [°C] [max]	85 °C
Medium temperature range [°C] [min]	-40 °C
Medium temperature range [°F] [max]	185 °F

Medium temperature range [°F] [min]	-40 °F
Non-linearity BFSL [±FS%]	0.2 %
Output signal	Current
Output signal [mA] [max]	20 mA
Output signal [mA] [min]	4 mA
Overload pressure max. [psi]	800 psi
Packing format	Multi pack
Pressure connection HEX [mm]	27 mm
Pressure connection size	1/8-27
Pressure connection standard	ANSI/ASME B1.20.1
Pressure connection type	NPT
Pressure Male/Female	Male
Pressure range [bar] [max]	28.6 bar
Pressure range [bar] [min]	0 bar
Pressure range [psi] [max]	414.5 psi
Pressure range [psi] [min]	0 psi
Pressure reference	Absolute
Product group	Sensors
Product Name Description	Pressure transmitter
Pulse-snubber	No
Quantity per packing format	14 pc
REACH Candidate List substances	Lead (CAS no. 7439-92-1)
Response time max. [ms]	4 ms
SCIP dossier no.	5d3ddba9-4ab7-49e8-8c1e-73e8e21d0b89
SCIP dossier product name	Sensor AKS 33
Specification key	AKS 33-L621-E3AC02-0
Supply voltage [V] DC [max]	32 V
Supply voltage [V] DC [max]	32 V
Supply voltage [V] DC [min]	9 V
Supply voltage [V] DC [min]	9 V
Type	AKS 33
UK RoHS compliance	Out of scope
