Name:	068Z3284 Danfoss Thermostatic expansion valve, TE 2, R22/R407C
Brand:	Danfoss
Model No.:	TE 2
Part No.:	068Z3284
Country of origion:	China
G.W:	0.3kgs/pc
Product Name Description:	Thermostatic expansion valve
Pressure equalization:	Externally equalized
Temperature range [°C]:	-40 - 10
Parts Program name:	T2/TE2

068Z3284 Danfoss Thermostatic expansion valve, TE 2, R22/R407C

Product details

Gross weight	0.3 Kilogram
Net weight	0.281 Kilogram

Volume	0.489 Liter
EAN	5702422114178

Approval	EAC LLC CDC TYSK
Body material	Brass
Capillary tube length [in]	59 in
Capillary tube length [mm]	1500 mm
China RoHS compliance	Yes exceed limitations
Connection material	Brass Copper
Direction	Angleway
Equalization connection type	Solder
Equalization size [in]	1/4 in
EU RoHS compliance	Yes with exemptions
EU RoHS exemption clause	6(a), 6(c)
Flow direction	Bi-flow with orifice 01-05
Flow direction indicator	Embossed 1-way arrow
Fluid Group	2
Identical product	068Z3333
In scope of WEEE and contain batteries	No
Inlet connection type	Flare
Inlet size [in]	3/8 in
Max. Working Pressure [bar]	34 bar
Max. Working Pressure [psig]	500 psig
Outlet connection type	Solder
Outlet size [in]	1/2 in

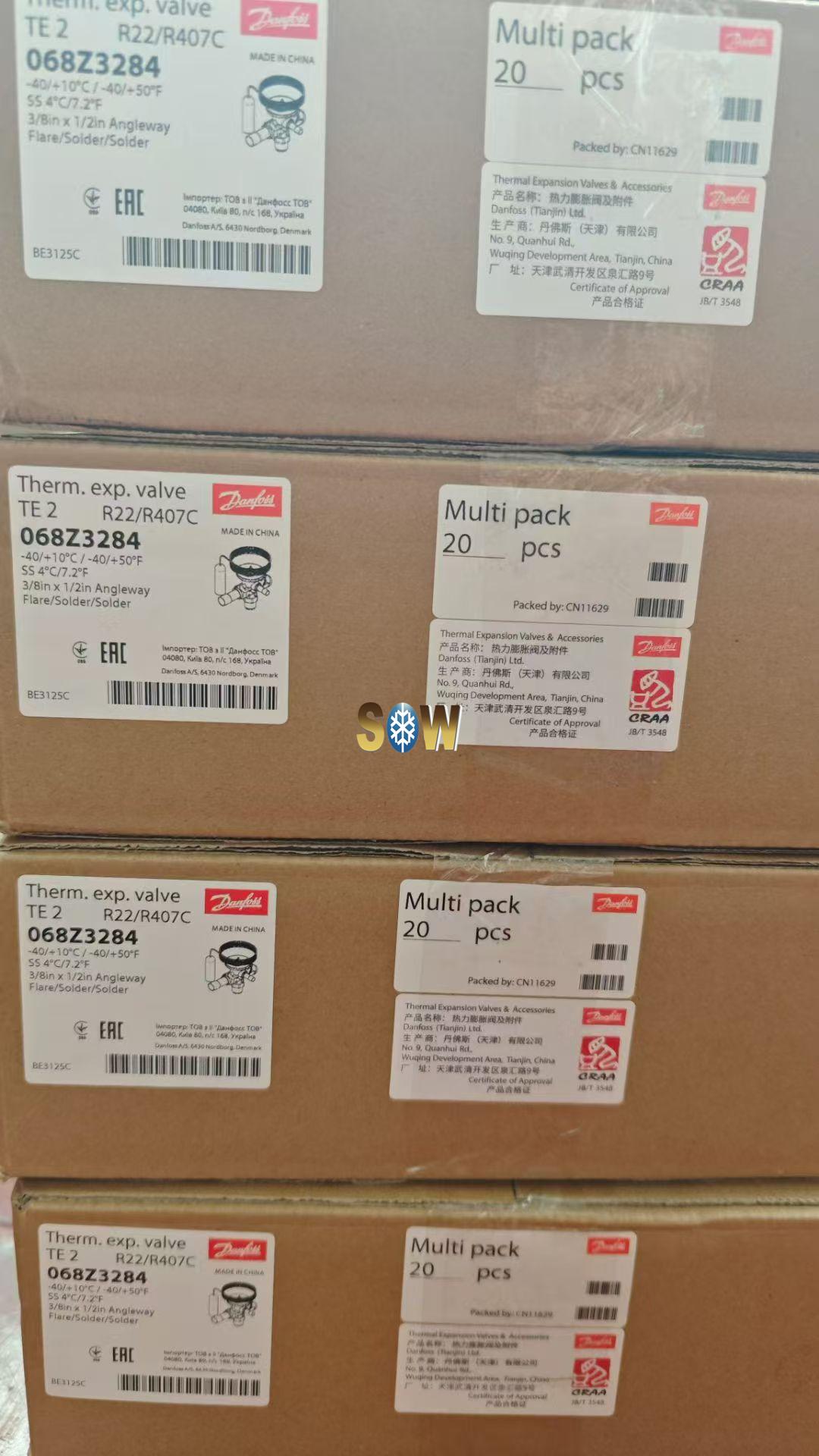

Packing format	Multi pack
Parts included	Bulb strap

Parts Program name	T2/TE2
PED category	Art. 4, par. 3
Pressure equalization	Externally equalized
Product accessories	TXV accessories
Product group	Expansion valves
Product Name Description	Thermostatic expansion valve
Quantity per packing format	20 pc
Rated cap. cond. Range N [IMP]	OS=10.8 ºF tcond=100 ºF tevap=40 ºF tliq=98 ºF
Rated cap. cond. Range N [SI]	OS=6K tcond=38 ºC tevap=4.4 ºC tliq=37 ºC
REACH Candidate List substances	Lead (CAS no. 7439-92-1)
Refrigerants	R22/R407C
SCIP dossier no.	c164ed45-f10d-4d73-9eae-355ccb479f4b
SCIP dossier product name	T2 /TE2 - Thermostatic Expansion Valve
Serviceable	TXV spare parts
Static Superheat (SS) [°C]	4 °C
Static Superheat (SS) [°F]	7.2 °F
Superheat setting	Adjustable
Temperature range [°C] [max]	10 °C
Temperature range [°C] [min]	-40 °C
Temperature range [°F] [max]	50 °F
Temperature range [°F] [min]	-40 °F
Type	TE 2
UA address	UA_2L.png
UK RoHS compliance	Out of scope
