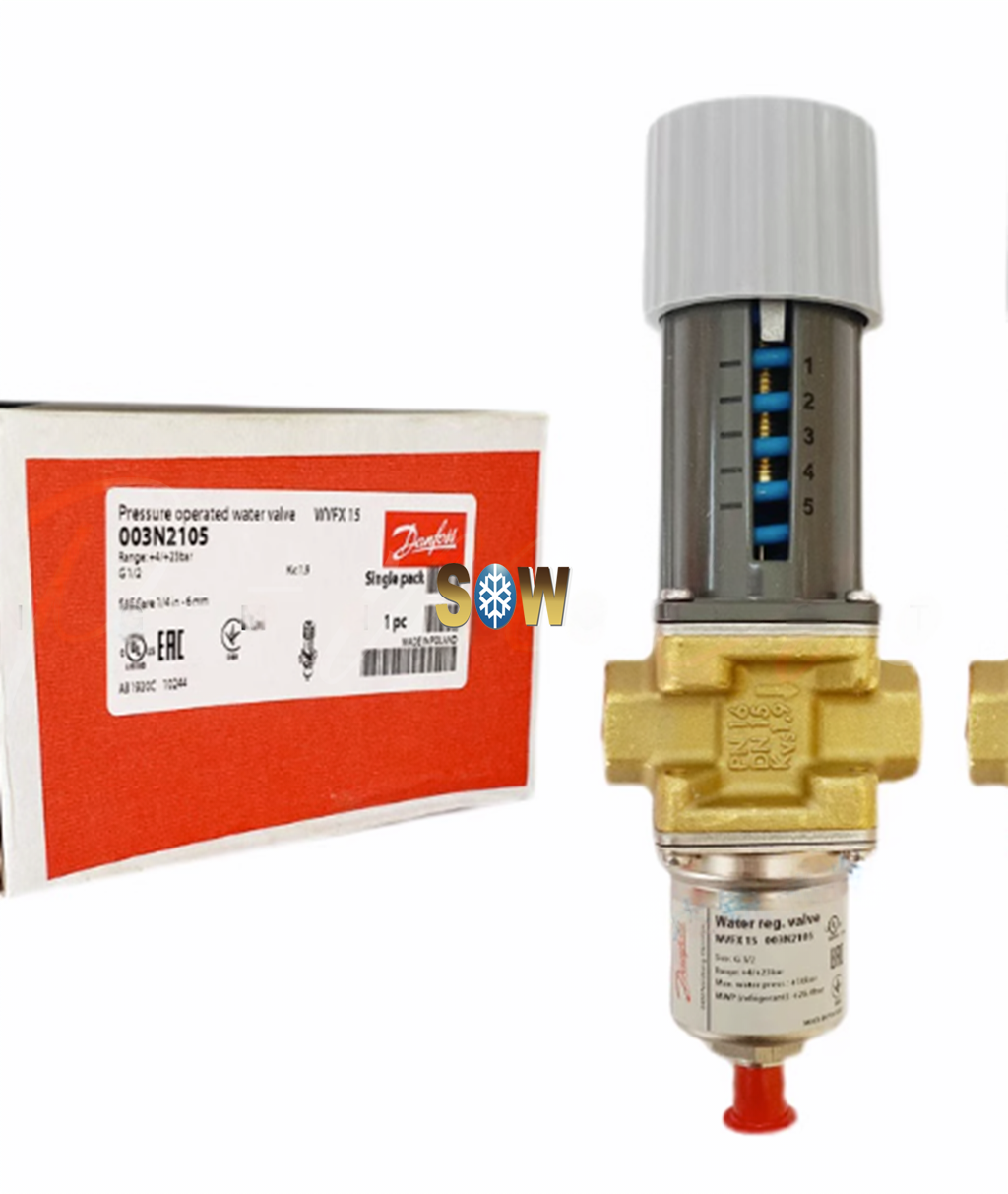

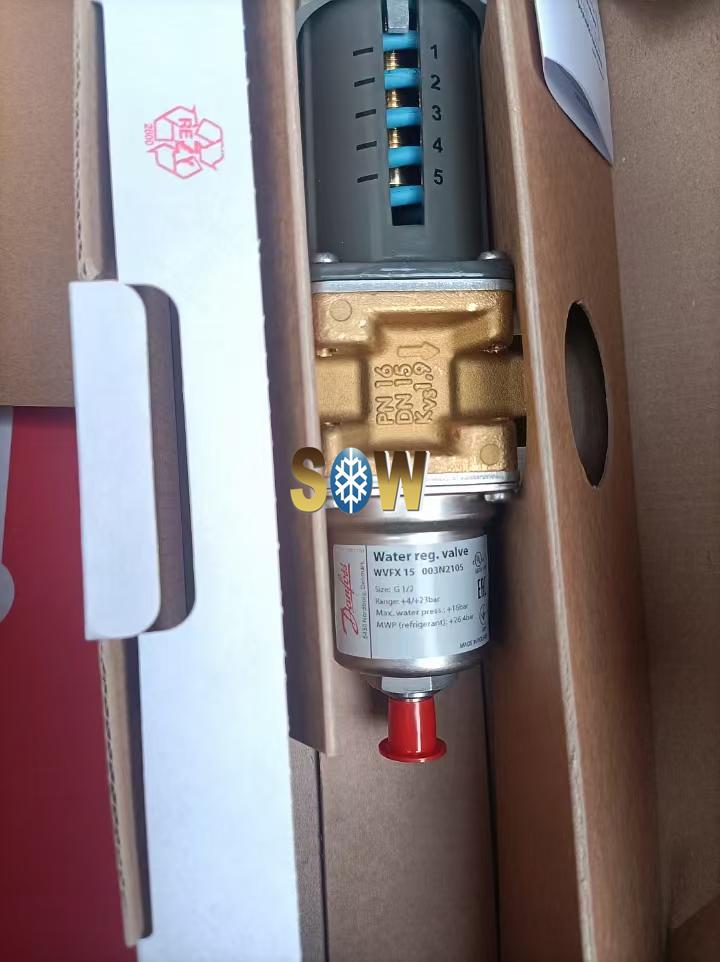

Name:	003N2105 Danfoss Pressure operated water valve, WVFX 15
Brand:	Danfoss
Model No.:	WVFX 15
Part No.:	003N2105
Country of origion:	Denmark
G.W:	1.402kgs/pc
Product Name Description:	Pressure operated water valve
Product group:	Water regulating valve
Connection type (refrigerant):	SAE flare
Connection size (refrigerant):	1/4 in - 6 mm
Control pressure range [bar]:	4.00 - 23.00
Opening configuration:	Opens on rising cond. pressure
Kv value [m³/h]:	1.900
Connection size [in]:	1/2

003N2105 Danfoss Pressure operated water valve, WVFX 15

Product details

Gross weight	1.402 Kilogram
Net weight	1.17 Kilogram

Volume	3.967 Liter
EAN	5702422045458

Approval	C UL US LISTED EAC LLC CDC TYSK PED RoHS RoHS China
Approval file name	REFRIGERANT VALVE 53R0
Body material	Brass
China RoHS compliance	Yes
Connection Internal/External	Internal
Connection size (refrigerant)	1/4 in - 6 mm
Connection size [in]	1/2
Connection standard	ISO 228-1
Connection type	G
Connection type (refrigerant)	SAE flare
Control pressure range [bar] [max]	23 bar
Control pressure range [bar] [min]	4 bar
Cv value [gal/min]	2.2 gal/min
Differential pressure [bar]	10 bar
Differential pressure [psi]	145 psi
EU RoHS compliance	Yes with exemptions
EU RoHS exemption clause	6(b), 6(c)
In scope of WEEE and contain batteries	No
Kv value [m³/h]	1.9 m³/h
Lubricants compatibility	Oilfree applications
Max. test pressure [bar] Pe	24 bar
Max. test pressure [psig]	348 psig
Max. Working Pressure [bar]	16 bar
Max. Working Pressure [psig]	232 psig
Max.test press.(refrig.)[bar]	60 bar

Max.test press.(refrig.)[psig]	870.2 psig
Media	Fresh water Neutral brine
Medium temperature range [°C] [max]	130 °C
Medium temperature range [°C] [min]	-25 °C
Medium temperature range [°F] [max]	266 °F
Medium temperature range [°F] [min]	-13 °F
MWP (refrigerant) [bar]	26.4 bar
Oil free refrigerants	R513A
Opening configuration	Opens on rising cond. pressure
Orifice size [mm]	15 mm
Orifice size fraction [in]	3/5 in
Packing format	Multi pack
Product accessories	Generic accessories Water valves accessories
Product group	Water regulating valves
Product Name Description	Pressure operated water valve
Quantity per packing format	10 pc
REACH Candidate List substances	Lead (CAS no. 7439-92-1)
Refrigerants	R1234yf R134a R22 R404A R407A R407C R407F R407H R422B R422D R448A R449A R449B R450A R452A R454A R454C R455A R507A R513A R515B R516A
SCIP dossier no.	f7d782f1-04df-4c40-bfe2-ea3a06dce79f
SCIP dossier product name	WVS/WVTS
Serviceable	Water valve spare parts
Type	WVFX 15
UK RoHS compliance	Out of scope
UL approved refrigerants	R134a R22 R404A R407A R407C R407F R407H R422B R422D R448A R449A R449B R450A R452A R507A R513A R515B R516A
