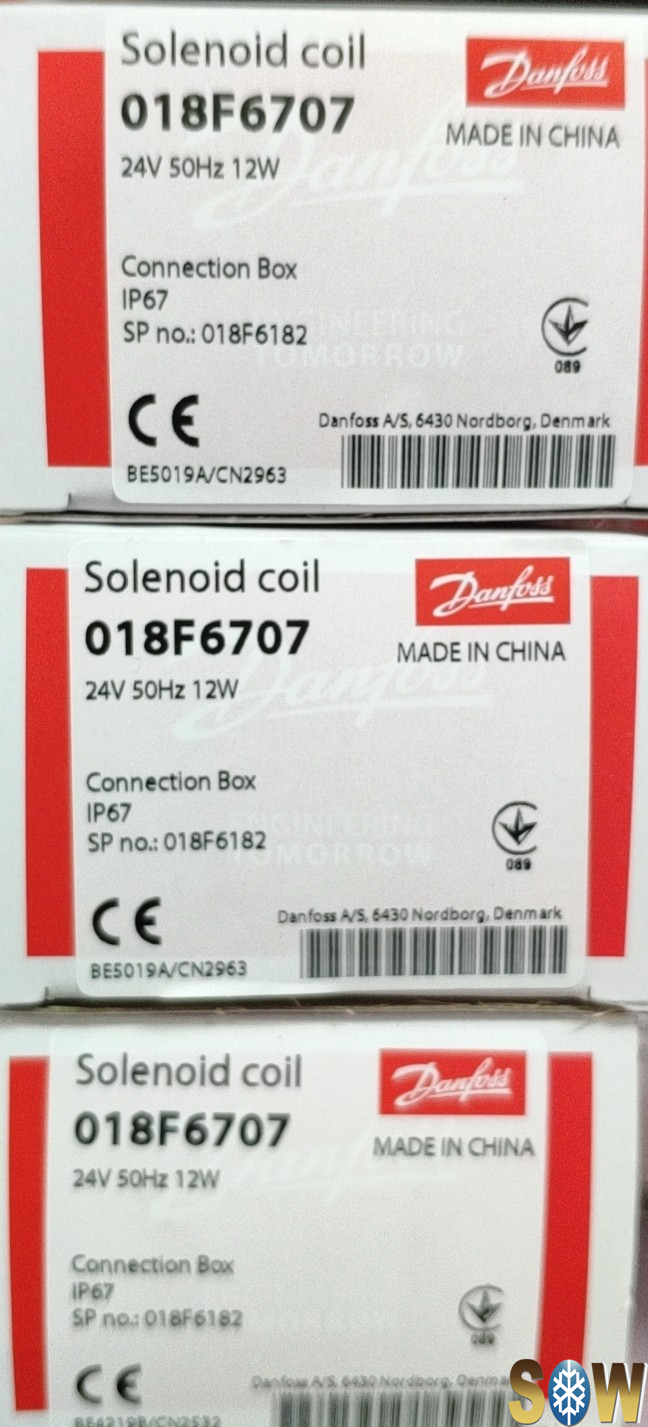

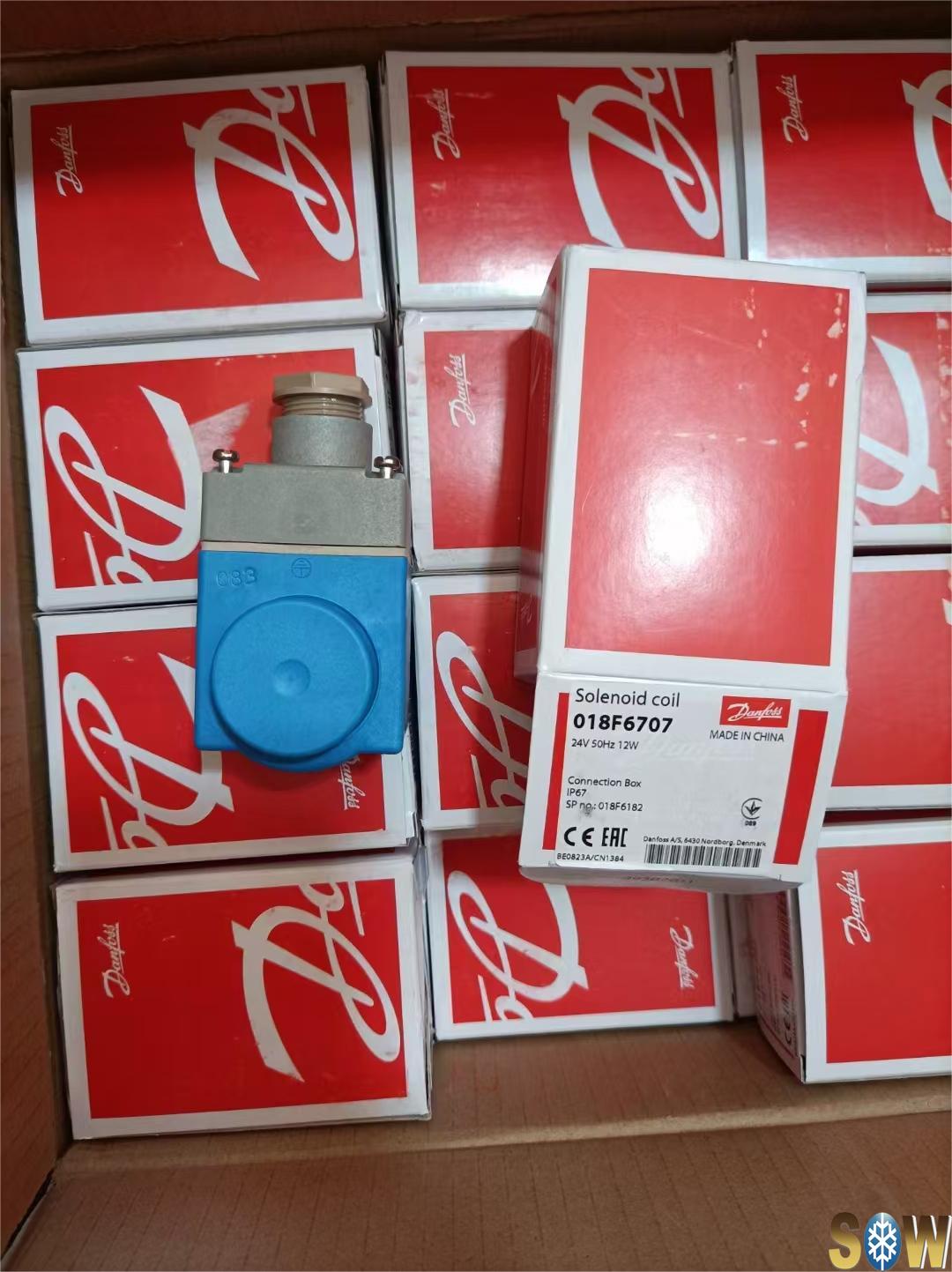

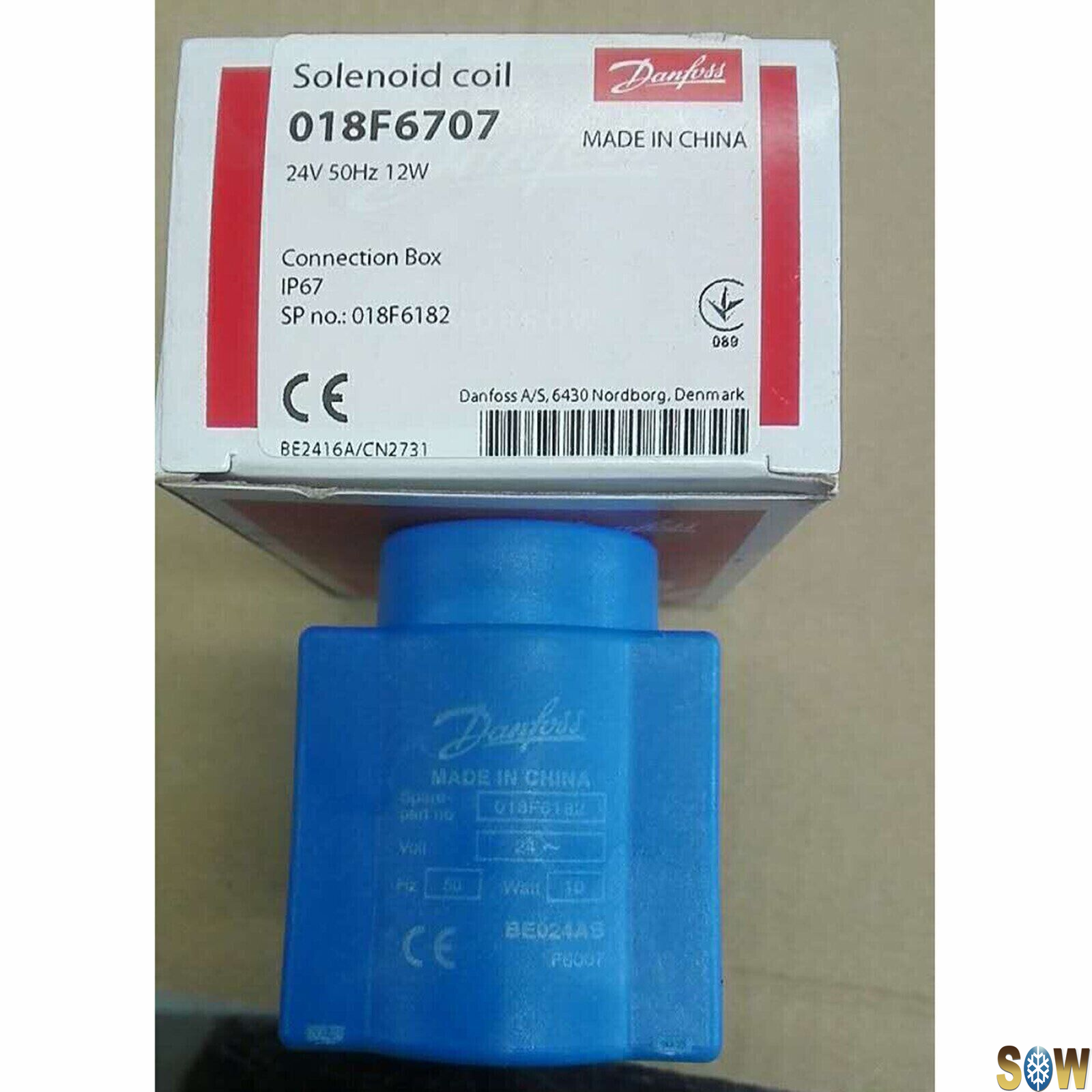

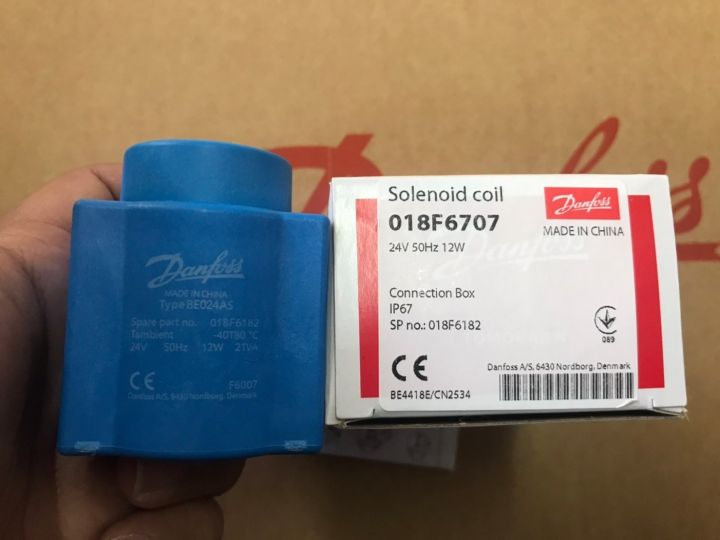

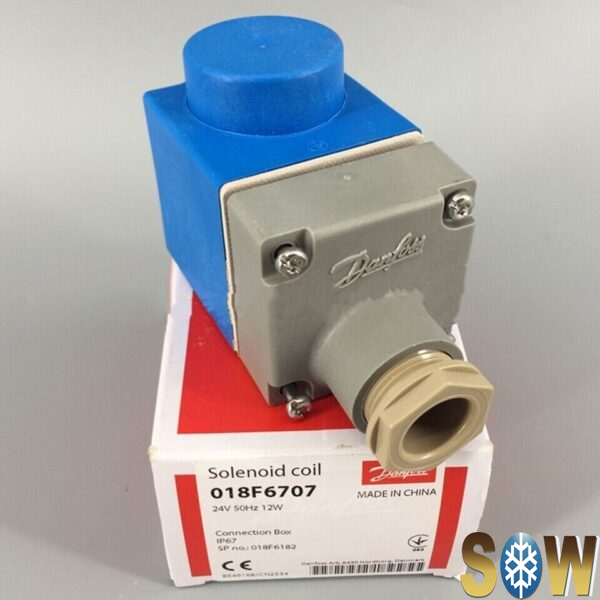

Name:	018F6707 Danfoss Solenoid coil, BE024AS, Terminal box
Brand:	Danfoss
Model No.:	BE024AS
Part No.:	018F6707
Country of origion:	China
G.W:	0.32kgs/pc
Enclosure rating IP:	IP67
Frequency [Hz]:	50 Hz
Supply voltage [V] AC:	24
Electrical connection:	Terminal box
Product Name Description:	Solenoid coil
Quantity per packing format:	32 pcs

018F6707 Danfoss Solenoid coil, BE024AS, Terminal box

Product details

Gross weight	0.32 Kilogram
Net weight	0.305 Kilogram

Volume	0.323 Liter
EAN	5702428519120

Actuator size	13.5 mm
Ambient temperature range [°C] [max]	80 °C
Ambient temperature range [°C] [min]	-40 °C
Ambient temperature range [°F] [max]	175 °F
Ambient temperature range [°F] [min]	-40 °F
Approval	CE EAC LLC CDC TYSK UKCA
Cable diameter [mm] [max]	11 mm
Cable diameter [mm] [min]	6 mm
China RoHS compliance	Out of scope
Coil connection	Connection Box
Coil design standard	VDE 0580
Coil fastening	Clip-on
Coil winding insulation class	Class H to IEC 85
Colour	Blue
Compliance	EN 60730-1
Conductor area [mm2]	0.75 - 1.5 mm2
Duty rating	Continuous
EEE category	5 small equipment (any external dimension 50 cm)
Electrical connection	Terminal box
Electrical connection size	Pg 13.5
Enclosure rating IP	IP67
EU RoHS compliance	Out of scope
Frequency [Hz]	50 Hz

Identical product	018F8707
In scope of WEEE	Yes
In scope of WEEE and contain batteries	No
Packing format	Multi pack
Parts Program name	EV210B EV212B EV220B 15 - 50 EV220B 6 - 22 EV220B 65 - 100 EV222B EV224B EV227B EV250B EV251B
Power consumption 50Hz [VA]	21 VA
Power consumption [W] 50Hz	12 W
Product accessories	Solenoid coil accessories
Product group	Solenoid valves
Product Name Description	Solenoid coil
Quantity per packing format	32 pc
REACH Candidate List substances	Lead (CAS no. 7439-92-1)
Rel. Humidity [% RH] [max]	100 %
Rel. Humidity [% RH] [min]	0 %
SCIP dossier no.	23785618-b379-4da7-a913-ecd40c8fae6d
SCIP dossier product name	Solenoid coils
Serviceable	No
Spare part number	018F6182
Supply voltage 50Hz Max [V]	24 V
Supply voltage [V] AC	24 V
Type	BE024AS
Type designation	BE024AS
UK RoHS compliance	Out of scope
