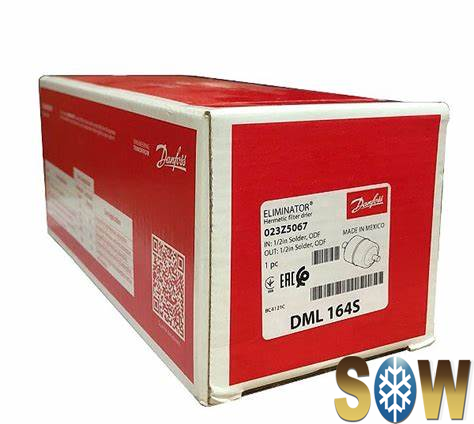

Name:	023Z5067 Danfoss Hermetic filter drier, DML164S, 16 cu.in., Copper
Brand:	Danfoss
Model No.:	DML164S
Part No.:	023Z5067
Country of origion:	Mexico
G.W:
Inlet connection type::	Solder, ODF,
Outlet connection type:	Solder, ODF
Core Size code:	16 cu.in.
Product Name Description:	Hermetic filter drier

023Z5067 Danfoss Hermetic filter drier, DML164S, 16 cu.in., Copper

Product details

Gross weight	0.68 Kilogram
Net weight	0.65 Kilogram

Volume	1.291 Liter
EAN	5702428155434

Acid capacity [g]	1.2 g
Acid capacity [oz]	0.042 oz
Activated alum/Molec sieve [%]	0% / 100%
Activated alumina [%]	0 %
Approval	UL
Body material	Steel
Braket	No
Brand	ELIMINATOR
China RoHS compliance	Yes exceed limitations
Connection material	Copper
Core	Solid core
Core Size code	16 cu.in.
Core type	Solid core
Drying Cap[Drops of Water]24°C	R134a: 559 R290: -- R32: 470 R404A: 582 R407C: 543 R410A: 506 R507: 610
Drying Cap[Drops of Water]52°C	R134a: 512 R290: -- R32: 433 R404A: 551 R407C: 500 R410A: 450 R507: 548
EU RoHS compliance	Yes with exemptions
EU RoHS exemption clause	6(a)
Filter application	High Moisture Capacity
Flow capacity [kW]	R134a: 26.6 R290: 32.0 R32: 40.5 R404A: 18.7 R407C: 27.2 R410A: 27.7 R507: 18.1
Flow capacity [TR]	R134a: 7.6 R290: 9.1 R32: 11.5 R404A: 5.3 R407C: 7.7 R410A: 7.9 R507: 5.2
Flow direction indicator	Label printed 1-way arrow
Fluid Group	2
In scope of WEEE and contain batteries	No
Inlet 1 connection size [in]	1/2 in
Inlet connection type	Solder, ODF
LiqCap Cond (ARI 710-2009)[SI]	Delta p=0.07bar tliq= 30°C tvap=-15°C
LiqCapCond (ARI 710-2009)[IMP]	Delta p=1psi tliq= 86°F tvap=5°F
Lubricants compatibility	Oilfree applications
Max. Working Pressure [bar]	46 bar
Max. Working Pressure [psig]	667 psig

Molecular sieve [%]	100 %
Net volume [foz US]	7.63 Fluid Ounce US
Net volume [l]	0.226 L
Oil free refrigerants	R1234ze(E) R134a R513A R515A
Outlet 1 connection size [in]	1/2 in
Outlet connection type	Solder, ODF
Packing format	Multi pack
PED category	Art. 4, par. 3
Product description	Liquid line filter drier
Product group	Filter driers
Product Name Description	Hermetic filter drier
Quantity per packing format	12 pc
REACH Candidate List substances	No
Refrigerants	R1233zd(E) R1234yf R1234ze(E) R125 R134a R22/R407C R23 R290 R32 R404A R407A R407F R407H R410A R422B R422D R438A R444B R448A R449A R449B R450A R452A R452B R454A R454B R454C R455A R463A R507A R513A R515B R516A R600
Serviceable	No
Shell volume [foz US]	11.97 Fluid Ounce US
Shell volume [l]	0.35 L
Solid core surface [cm2]	183 cm²
Solid core surface [in2]	28.34 in²
Solid core volume [cm3]	128 cm³
Solid core volume [in3]	7.84 in³
Temperature range [°C] [max]	70 °C
Temperature range [°C] [min]	-40 °C
Temperature range [°F] [max]	160 °F
Temperature range [°F] [min]	-40 °F
Type	DML
Type designation	DML 164S
UK RoHS compliance	Out of scope
UL approval file name	SA6398
UL approved refrigerants	R125 R134a R22 R23 R404A R407A R407C R407F R410A R422B R422D R438A R448A R449A R449B R450A R452A R507A R513A
