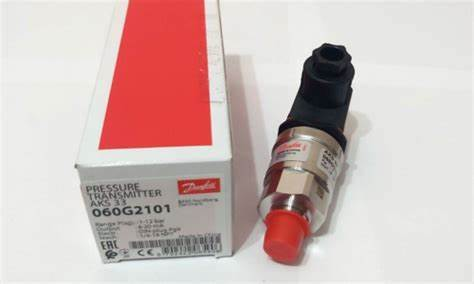

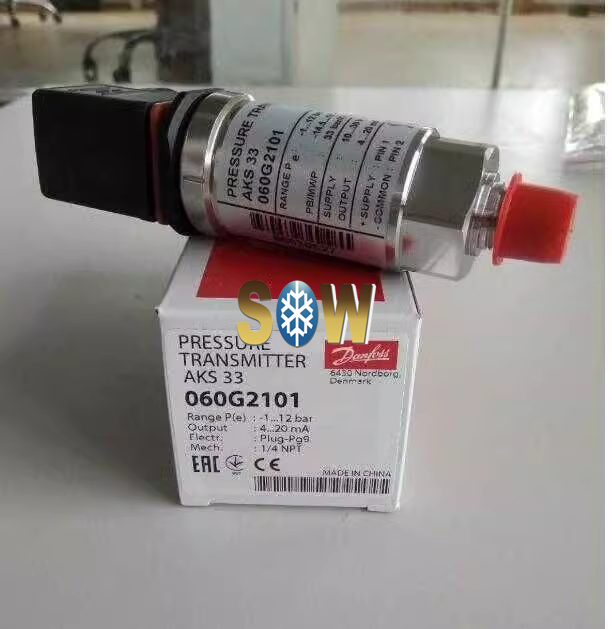

Name:	060G2101 Danfoss Pressure transmitter, AKS 33
Brand:	Danfoss
Model No.:	AKS 33
Part No.:	060G2101
Country of origion:	China
G.W:	0.184kgs/pc
Pressure range [bar]:	-1.00 bar - 12.00 bar
Specification key:	AKS 33-DH31-A1EC04-0
Pressure connection size:	1/4-18
Pressure connection type:	NPT
Electrical connection:	Angular
Output signal:	Current, connector
Pressure reference:	Sealed gauge
Product Name Description:	Pressure transmitter

060G2101 Danfoss Pressure transmitter, AKS 33

Product details

Gross weight	0.184 Kilogram
Net weight	0.157 Kilogram

Volume	0.416 Liter
EAN	5702422065906

+ supply	Pin 1
- common	Pin 2
Accuracy, max. [±FS%]	0.8 %
Accuracy, typical [±FS%]	0.3 %
Adj. zero point and span	No
Ambient temperature range [°C] [max]	85 °C
Ambient temperature range [°C] [min]	-40 °C
Ambient temperature range [°F] [max]	185 °F
Ambient temperature range [°F] [min]	-40 °F
Approval	ATEX GOST POCC cUR
Approval comments	ATEX Ex ec IIA T4 Gc
Approval standard	6967179 E227388 E31024
China RoHS compliance	Out of scope
Compensated temp. range [°C] [max]	40 °C
Compensated temp. range [°C] [min]	-30 °C
Compensated temp. range [°F] [max]	104 °F
Compensated temp. range [°F] [min]	-22 °F
EEE category	5 small equipment (any external dimension 50 cm)
Electrical conn. Male/Female	Male and Female
Electrical connection	Angular connector
Electrical connection size	Pg 9
Electrical connection standard	EN 175301-803-A
Enclosure rating IP	IP65
EU RoHS compliance	Out of scope
Flush diaphragm	No
High Clipping Level	22.4
In scope of WEEE	Yes
In scope of WEEE and contain batteries	No
International Article Number	5702422065906
Intrinsically safe	No
Low Clipping level	3.6
Medium temperature range [°C] [max]	85 °C
Medium temperature range [°C] [min]	-40 °C
Medium temperature range [°F] [max]	185 °F
