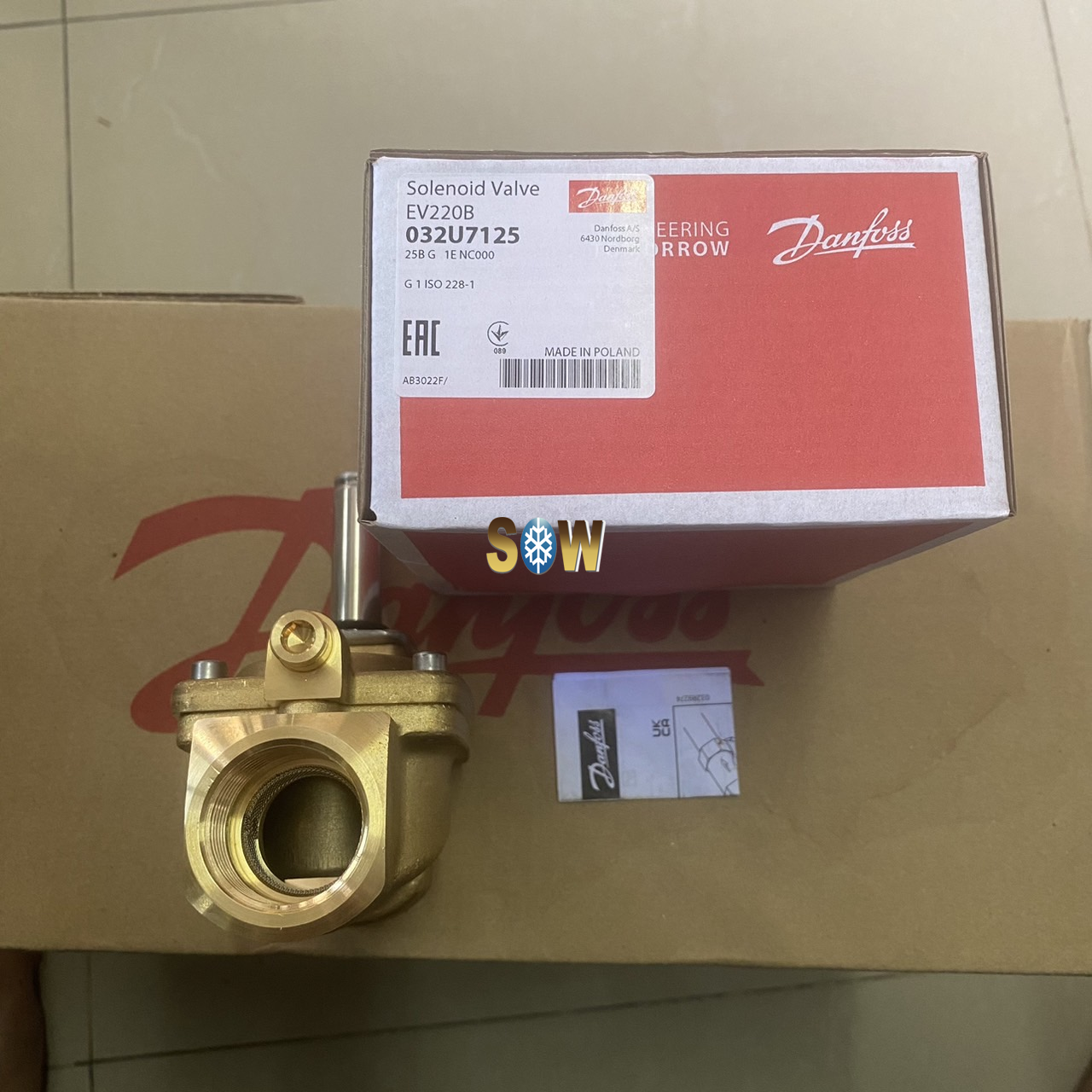

Name:	Danfoss Solenoid valve, EV220B, EPDM 032U7125
Brand:	Danfoss
Model No.:	EV220B
Part No.:	032U7125
Country of origion:	Poland
G.W:	1.382kgs/pc
Function:	NC
Number of ways:	2/2
Operation:	Servo-operated (diaphragm)
Body material:	Brass
Approval:	DNVGL-CG-0339; GL; PZH
Media recommendations:	Water & Brine

Danfoss Solenoid valve, EV220B, EPDM 032U7125

Product details

Gross weight	1.382 Kilogram
Net weight	1.291 Kilogram

Volume	1.264 Liter
EAN	5702423018543

Actuator	B
Actuator size	13.5 mm
Actuator size [in]	0.53 in
Actuator system [mm]	13.5 mm
Ambient temperature max. [°C]	80 °C
Ambient temperature max. [°F]	176 °F
Application	Open
Approval	DNVGL-CG-0339 GL PZH
Body material	Brass
China RoHS compliance	Out of scope
Connection Internal/External	Internal
Connection material	Brass
Connection size [in]	1
Connection standard	ISO 228-1
Connection type	G
Cv value [gal/min]	12.7 gal/min
Differential pressure [bar] [max]	16 bar
Differential pressure [bar] [min]	0.3 bar
Differential pressure [psi] [max]	232 psi
Differential pressure [psi] [min]	4.35 psi
EEE category	5 small equipment (any external dimension 50 cm)
Est. time to open, water [ms]	300 ms
EU RoHS compliance	Yes with exemptions
EU RoHS exemption clause	6(c)
Flow direction	Single-flow
Flow direction indicator	Embossed 1-way arrow
Fluid Group	1
Function	NC
Identical product	032U8125
In scope of WEEE	Yes
In scope of WEEE and contain batteries	No
Kv value [m³/h]	11 m³/h

Max media viscosity [cSt]	50 cSt
Max. test pressure [bar]	24 bar
Max. test pressure [psig]	348 psig
Max. Working Pressure [bar]	16 bar
Max. Working Pressure [psig]	232 psig
Media recommendations	Water & Brine
Media tolerance comments	Neutral media Steam Max 4 bar Temperature: Coil dependent
Medium temperature range [°C] [max]	120 °C
Medium temperature range [°C] [min]	-30 °C
Medium temperature range [°F] [max]	248 °F
Medium temperature range [°F] [min]	-22 °F
Number of ways	2/2
Open/close equalizing orifice	Optional Equalization orifice
Operation	Servo-operated (diaphragm)
Orifice size [mm]	25 mm
Orifice size fraction [in]	1 in
Packing format	Multi pack
Parts Program name	EV220B 15 - 50
Product accessories	Solenoid valve accessories
Product group	Solenoid valves
Product Name Description	Solenoid valve
Quantity per packing format	12 pc
REACH Candidate List substances	Lead (CAS no. 7439-92-1)
SCIP dossier no.	23e5d8c0-c744-42b7-b414-f18776b38f4b
SCIP dossier product name	EV250B NC
Seal Material	EPDM
Serviceable	Solenoid valve spare parts
Specification key	EV220B 25B G 1E NC000
Type	EV220B
Type designation	EV220B 25
UK RoHS compliance	Out of scope
