Product Description

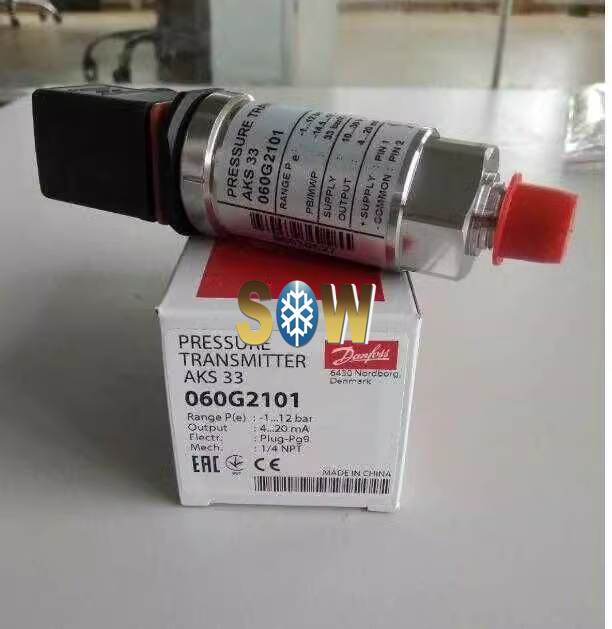

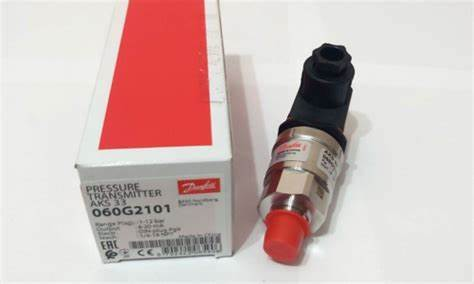

060G2101 Danfoss Pressure transmitter, AKS 33
Product details
Gross weight | 0.184 Kilogram |
Net weight | 0.157 Kilogram |
Volume | 0.416 Liter |
EAN | 5702422065906 |
+ supply | Pin 1 |
- common | Pin 2 |
Accuracy, max. [±FS%] | 0.8 % |
Accuracy, typical [±FS%] | 0.3 % |
Adj. zero point and span | No |
Ambient temperature range [°C] [max] | 85 °C |
Ambient temperature range [°C] [min] | -40 °C |
Ambient temperature range [°F] [max] | 185 °F |
Ambient temperature range [°F] [min] | -40 °F |
Approval | ATEX GOST POCC cUR |
Approval comments | ATEX Ex ec IIA T4 Gc |
Approval standard | 6967179 E227388 E31024 |
China RoHS compliance | Out of scope |
Compensated temp. range [°C] [max] | 40 °C |
Compensated temp. range [°C] [min] | -30 °C |
Compensated temp. range [°F] [max] | 104 °F |
Compensated temp. range [°F] [min] | -22 °F |
EEE category | 5 small equipment (any external dimension |
Electrical conn. Male/Female | Male and Female |
Electrical connection | Angular connector |
Electrical connection size | Pg 9 |
Electrical connection standard | EN 175301-803-A |
Enclosure rating IP | IP65 |
EU RoHS compliance | Out of scope |
Flush diaphragm | No |
High Clipping Level | 22.4 |
In scope of WEEE | Yes |
In scope of WEEE and contain batteries | No |
International Article Number | 5702422065906 |
Intrinsically safe | No |
Low Clipping level | 3.6 |
Medium temperature range [°C] [max] | 85 °C |
Medium temperature range [°C] [min] | -40 °C |
Medium temperature range [°F] [max] | 185 °F |
