Name:	068F5214 Danfoss Electric expansion valve, AKV 10P4
Brand:	Danfoss
Model No.:	AKV 10P4
Part No.:	068F5214
Country of origion:	Denmark
G.W:	0.346kgs/pc
Outlet connection type:	Solder, ODF
Inlet connection type:	Solder, ODF
Product Name Description:	Electric expansion valve
Quantity per packing format:	18 pcs
Packing format:	Multi pack
Outlet size [in]:	1/2 in

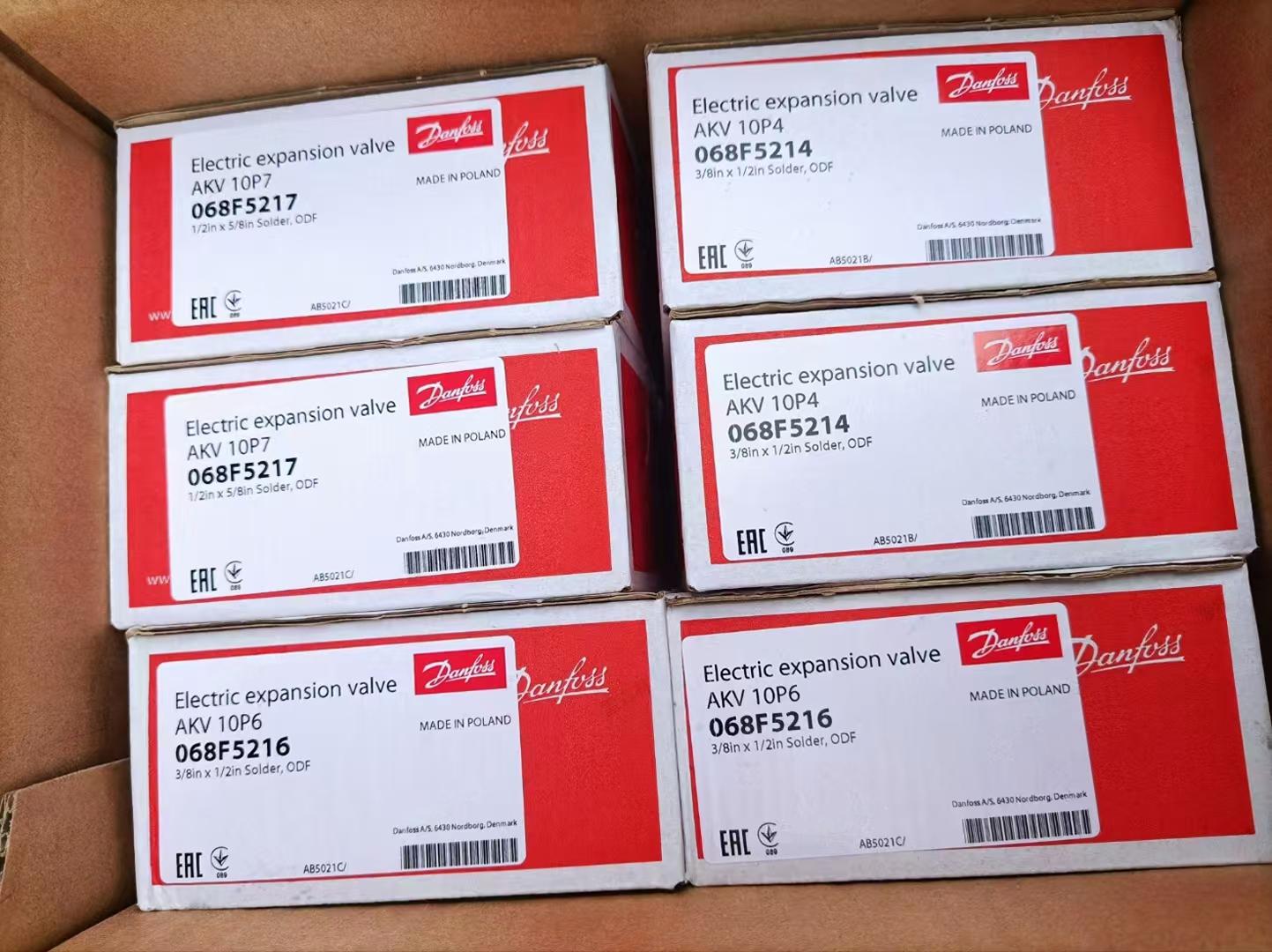

068F5214 Danfoss Electric expansion valve, AKV 10P4

Product details

Gross weight	0.346 Kilogram
Net weight	0.301 Kilogram

Volume	1.138 Liter
EAN	5702428669962

Actuator system [mm]	13.5 mm
Ambient temperature	-50 - 50 °C
Ambient temperature range [°F] [max]	120 °F
Ambient temperature range [°F] [min]	-58 °F
Approval	C UL US LISTED EAC LLC CDC EURO-TYSK
China RoHS compliance	Out of scope
Coil	No
Cv value [gal/min]	0.06 gal/min
Direction	Angleway
EU RoHS compliance	Yes with exemptions
EU RoHS exemption clause	6(a), 6(c)
Function	NC
In scope of WEEE and contain batteries	No
Inlet connection type	Solder, ODF
Inlet size [in]	3/8 in
Kv value [m³/h]	0.046 m³/h
Manual operation option	No
Max. Working Pressure [bar]	90 bar
Max. Working Pressure [psig]	1305 psig
Medium temperature range [°C] [max]	60 °C
Medium temperature range [°C] [min]	-50 °C

Medium temperature range [°F] [max]	140 °F
Medium temperature range [°F] [min]	-58 °F
MinODP [bar]	0 bar
MinODP [psi]	0 psi
MOPD[bar/psi]	35 bar/505 psi Coil Dependend
Orifice size [mm]	1.1 mm
Outlet connection type	Solder, ODF
Outlet size [in]	1/2 in
Packing format	Multi pack
Product accessories	Electric valve accessories
Product group	Expansion valves
Product Name Description	Electric expansion valve
Quantity per packing format	18 pc
Rated capacity R744 [kW]	5.3 kW
Refrigerants	R1233zd(E) R1234yf R1234ze(E) R1270 R134a R170 R22 R23 R290 R32 R404A R407A R407C R407F R407H R410A R422B R422D R438A R444B R448A R449A R449B R450A R452A R452B R454A R454B R454C R455A R463A R469A R507A R513A R513B R515A R515B R516A R600 R600a R744
SCIP dossier no.	d20fef86-9125-42d0-8579-71e1f708fb89
Serviceable	Electric valve spare parts
Type	AKV 10P4
Type designation	Electric expansion valve
UK RoHS compliance	Out of scope
UL approved refrigerants	R1233zd(E) R134a R22 R23 R404A R407A R407C R407F R407H R410A R422B R422D R438A R448A R449A R449B R450A R452A R454A R463A R507A R513A R513B R515A R515B R516A R744
